1 Ufs No Notices to Mariners, SWEDEN Swedish Maritime Administration Editorial office Swedish Maritime Administration Ufs NORRKÖPING Sweden tel: Publisher: Hydrographer Patrik Wiberg

2 No 606 Affected charts and Notices Underrättelser för sjöfarande (Ufs) is an official Swedish publication which provides information pertaining to shipping in the Baltic Sea Area and Kattegat, as well as Skagerrak east of a line drawn between Hanstholm and Lindesnes. The information on foreign waters is largely confined to significant occurrences which may affect Swedish charts. Ufs is thus wholly unsuited for the purpose of keeping BAcharts and/or other national charts updated. An asterisk (*) in front of the number denotes that the notice is based on information obtained from Swedish source material and that the details contained therein affect Swedish waters. When the letter (P) is adjacent to the notice number it serves as an indication that the notice is of a preliminary nature. Such notices will later be replaced by corresponding ones containing definitive information. Similarly, when the letter (T) is placed adjacent to the notice number it denotes that the notice is of a temporary nature. In case no period of validity is given, this type of notice will be rendered invalid either when a new Temporary Notice is promulgated or if pertaining conditions cease to exist. Bearings are true and given clockwise from 000 to 360 and, when given in conjunction with lights, indicate a direction from seaward. Featured chartlets are primarily intended to simplify chart correction work and are not always true to scale. In general, they show the largest charted scale available for respective area. Responsibility for the factual content published in Ufs rests with the informant. Chart corrections and other information attributed to a specific geographical area can be found under NOTICES. Other information is found under ANNOUNCEMENTS, starting on pg. 3. The periodical Ufs is normally published every Thursday and can be downloaded as a PDF-file from the homepage of the Swedish Maritime Administration. Note that as the file is automatically generated from a database unintentional page breaks may occur at random. Further information on the use of Ufs can be found in the annual publication Ufs A. Reporting dangers and errors All observations concerning floating aids to navigation, unlit beacons and lights, objects adrift or any other occurrence which may have a detrimental impact on safety at sea are to be forwarded to MSI Sweden at the earliest possible opportunity. Call: MSI Sweden VHF Channel: Appropriate working channel Phone: (24/7) msi@sjofartsverket.se Affected charts Notice no Sign (T) (P) (T) (T) (T) (T) (P) (T) (T) (P) (T) (P) (T) (T) (T) (T) (P) (T)

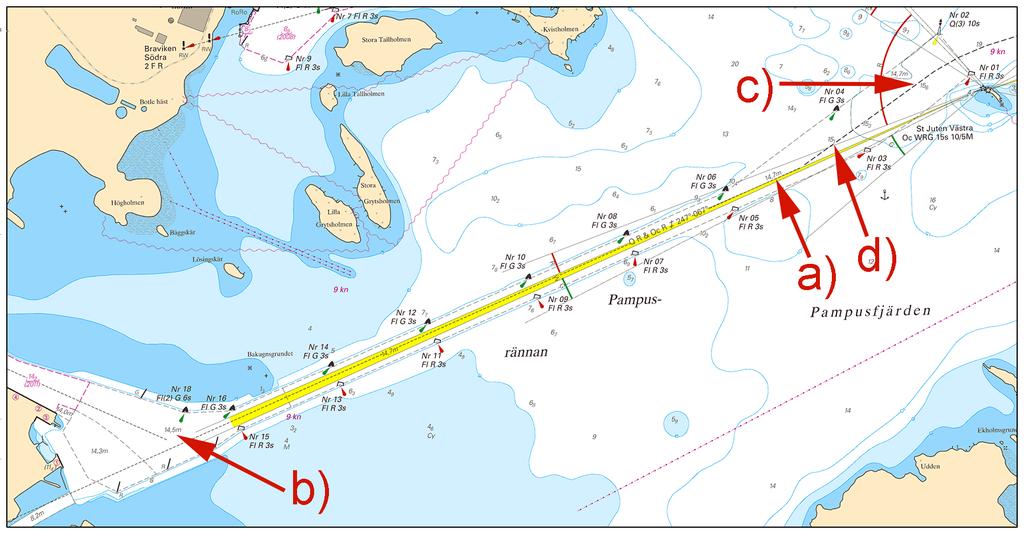

3 No 606 ANNOUNCEMENTS * (not translated) Hamnmyndigheten i Falkenberg. Publ. 7 juli 2016 NOTICES Northern Baltic * Chart: 6212 Sweden. Northern Baltic. Norrköping. Pampusrännan. Amended depths. A hydrographic survey of Pampusrännan outside Port of Norrköping has shown other depths than charted. Important amendments are shown below, and will be published in the next print of affected chart. The changes are available as an update of ENC. Replace swept area 14,9 m with dredged area 14,7 m a) 58-37,85N ,43E Replace swept area 14,9 m with dredged area 14,5 m b) 58-37,25N ,50E Insert depth 15,6 m c) 58-38,066N ,181E Insert depth 15,3 m d) 58-37,973N ,902E Bsp Ostkusten 2015/s24, s26, s59, s60 Pampusrännan, Norrköping. Sjöfartsverket, Norrköping. Publ. 1 juli 2016 * (T) Chart: 6144, 615 Sweden. Northern Baltic. Stockholm. Sandhamn. Sail Race "Sandhamnsregattan". Time: August 11-13, Daily LT. Sail races take place in area marked in chartlet. Race course, Sandhamn ,3N ,1E Bsp Stockholm M 2016/s32, s52, Bsp Stockholm N 2016/s35, s41

4 No 606 Sail race "Sandhamnsregattan". Kungliga Svenska Segelsällskapet. Publ. 5 juli 2016 * Sweden. Northern Baltic. Utö. Mysingen. ODAS buoy and spar withdrawn. Chart: 616, 6162, 6163 Expired notices: 2015:574/10817 Delete ODAS buoy a) 58-59,31N ,69E Delete special spar buoy Fl(5) Y 20s b) 58-59,32N ,64E Bsp Stockholm S 2016/s11, s12, s34 Buoyage withdrawn SMHI. Publ. 6 juli Sweden. Northern Baltic. Suomen Leijona. Racon. AIS. Amend Racon(T) to Racon(D) and insert symbol for AIS a) 59-28,36N Chart: 6, 61, ,79E Note: Amend the name Finlands Lejon to Suomen Leijona in Swedish chart no 6. Suomen Leijona

5 No 606 Suomen Leijona. Finnish NtM 2016:12. Publ. 2 juli 2016 * Chart: 6144, 6145 Sweden. Northern Baltic. S of Nämdö. W of Hemskär. Underwater rock. Insert depth 4,4 m a) 59-09,664N ,527E Insert underwater rock 2,5 m b) 59-09,716N ,534E Amend depth contours according to chartlet Bsp Stockholm M 2016/s37 Amended depths W of Hemskär Sjöfartsverket, Norrköping. Publ. 5 juli 2016 * Chart: 611 Sweden. Northern Baltic. Kapellskär. New pier. Works completed. Expired notices: 2013:466/9002(T) The construction work at Port of Kapellskär has been completed. Port of Kapellskär Port of Kapellskär 59-43,224N ,024E Insert Delete new pier and amend land contour as shown text 'Works in progress (2013)' Bsp Stockholm N 2016/s62

6 No 606 Port of Kapellskär Kapellskärs Hamn AB. Publ. 2 juli 2016 * Chart: 6145 Sweden. Northern Baltic. Erstaviken. Tyresö brygga. Shoaling. Jetty. A depth survey in Erstaviken has shown other depths than charted. Important amendments are shown below, and will be published in the next print of affected chart. The changes are available as an update in ENC. Amend 3 m depth contour a) 59-13,79N ,58E Insert brygga enligt bild b) 59-13,77N ,63E Bsp Stockholm M 2016/s26, s34 Tyresö Sjöfartsverket, Norrköping Publ. 2 juli 2016 * (T) Chart: 616, 6162, 6171 Sweden. Northern Baltic. N of Nynäshamn. Norvikfjärden. Norvikuddenudden. Drilling work. Time: Daily LT until mid-july 2016 Surveys on the seabed will be performed in the marked out area (refer to chartlet) from a working vessel (Jarl SFB- 6983) and a pontoon (KingKong). Mariners are advised to pass the area exercising caution. survey area 'Norviksudden' 58-56,395N ,769E Not shown in ENC.

7 No 606 Bsp Stockholm S 2016/s20, s35 Surveys on seabed Stockholm Hamnentreprenad AB. Publ. 1 juli 2016 * Chart: 6181 Sweden. Northern Baltic. Fairway Landsort - Södertälje. Hallsfjärden. Fläsklösa. Buoyage. New fairway. To avoid disturbances from small pleasure craft in the main fairway, an alternative fairway has been established east of Fläsklösa. Insert fairway between a) - b) a) 59-07,42N ,11E Bsp Mälaren - Hjälmaren 2016/s32 b) 59-07,77N ,15E Insert west cardinal spar buoy c) 59-07,429N ,151E Move starboard hand spar buoy 70 m to d) 59-07,482N ,252E

8 No 606 New fairway for small pleasure craft at Fläsklösa Sjöfartsverket, Södertälje. Publ. 7 juli 2016 * (P) Chart: 6143, 6144 Sweden. Northern Baltic. NW of Sandhamn. S of Getholmen. Smörasken. Light buoy temporarily moved. The red light buoy S of Getholmen is presently located approx. 10 m north of charted position. The light buoy will later on be moved to a slightly different position. Port hand light buoy "Smöraskens grund", charted position: 59-18,023N ,282E Bsp Stockholm M 2016/s25 Light buoy presently closer to the centre of the fairway Sjöfartsverket, fartyget Baltica. Publ. 6 juli 2016

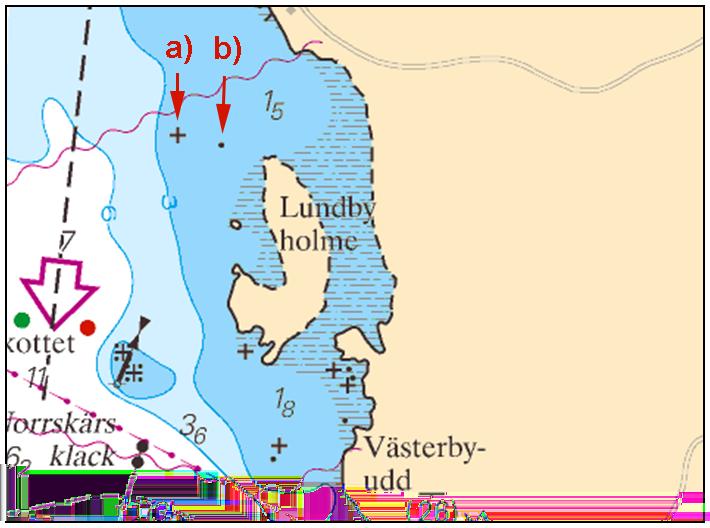

9 No 606 Lake Mälaren and Södertälje kanal * Chart: 111, 113 Sweden. Lake Mälaren and Södertälje kanal. E of Strängnäs. Segeröfjärden. NW of Lundby holme. Underwater rock and visible rock. Insert underwater rock a) 59-23,178N ,522E Delete depth 1,8 nearby a) Insert rock b) 59-23,159N ,678E Bsp Mälaren - Hjälmaren 2016/s26 Segeröfjärden Sjöfartsverket, Norrköping. Publ. 1 juli 2016 * Chart: 111, 6181 Sweden. Lake Mälaren and Södertälje kanal. N of Södertälje. Stuggrundet. Branten. Cable. Insert cable between a) - d) a) 59-15,126N ,558E Shore b) 59-15,134N ,814E c) 59-15,174N ,979E d) 59-15,216N ,068E Pumping station "Branten" Insert the name Branten adjacent to d) Bsp Mälaren - Hjälmaren 2016/s28, s29 Cable from shore to Branten Svenska Undervattensentreprenader AB. Publ. 1 juli 2016

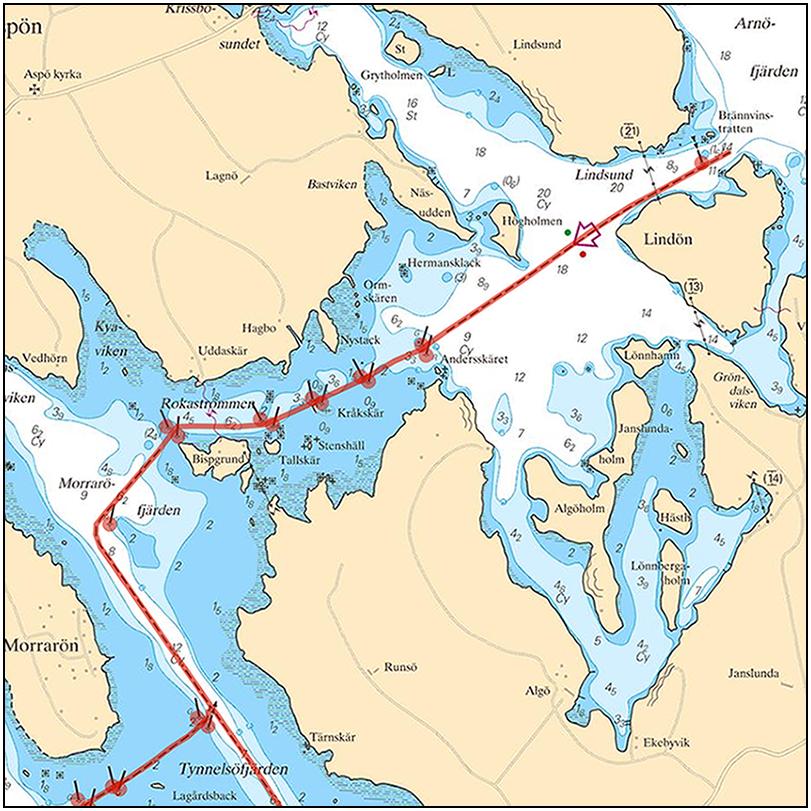

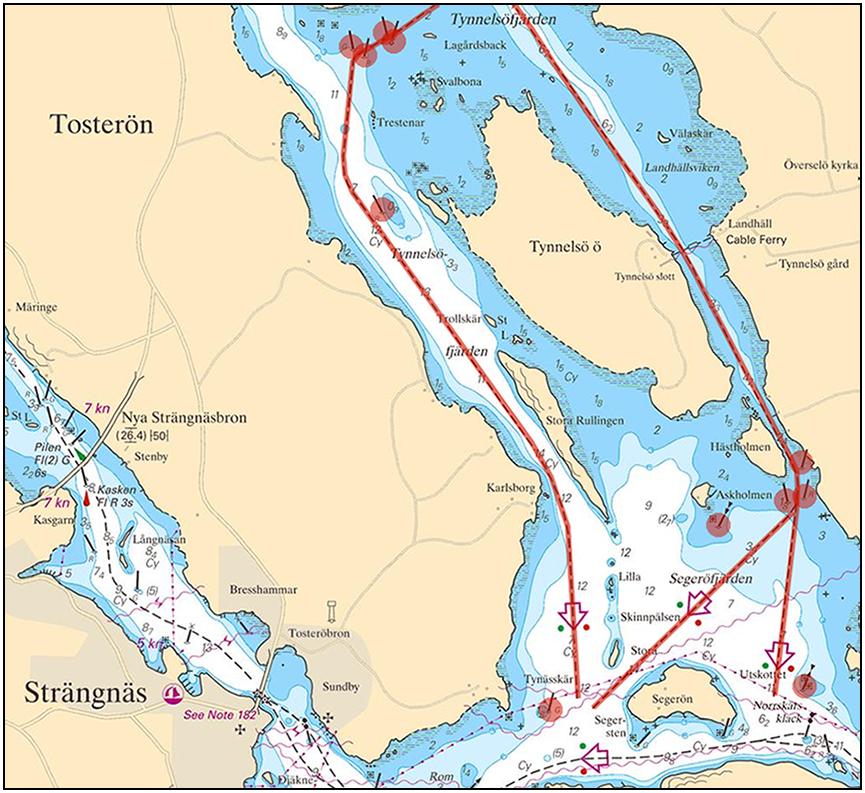

10 No 606 * Chart: 111, 113 Sweden. Lake Mälaren and Södertälje kanal. NE of Strängnäs. Arnöfjärden - Rökaströmmen - Tynnelsöfjärden - Segeröfjärden. Fairway and spar buoys withdrawn. The fairway between Arnöfjärden and Segeröfjärden, via Rökaströmmen and Tynnelsöfjärden, has been discontinued. Associated 25 spar buoys have been withdrawn. Affected fairways and spar buoys have been indicated on the chartlets. Arnöfjärden a) 59-28,9N ,2E Segeröfjärden b) 59-22,6N ,0E Bsp Mälaren - Hjälmaren 2016/s23, s26 Northern part of discontinued fairway

11 No 606 Time: Preliminary until autumn Due to damage on the motorway bridge following apply: MERCHANT VESSELS SÖDRA KANALBROARNA: the bridges cannot be opened for any vessels. MÄLARBRON, SLUSSEN and SLUSSBRON: will not be opened and PLEASURE CRAFT SÖDRA KANALBROARNA: the bridges cannot be opened for any vessels. SLUSSEN and SLUSSBRON: will only be opened 0930, 1130, 1330, 1530, 1730, 1815, 1915, 2015 and 2115 MÄLARBRON: will only be opened 0900, 1300 and Bsp Mälaren - Hjälmaren 2016/s30, s31 Southern part of discontinued fairway Strängnäs Segelsällskap och Transportstyrelsen. Publ. 7 juli 2016 * (T) Chart: 6181 Sweden. Lake Mälaren and Södertälje kanal. Södertälje kanal. Bridges Södra kanalbroarna will not open due to damage. Changed opening times at the Lock and Mälarbron. Expired notices: 2016:605/11333(T) Södra kanalbroarna bridges a) 59-11,1N ,6E The Lock b) 59-11,6N ,9E Mälarbron bridge c) 59-12,0N ,7E

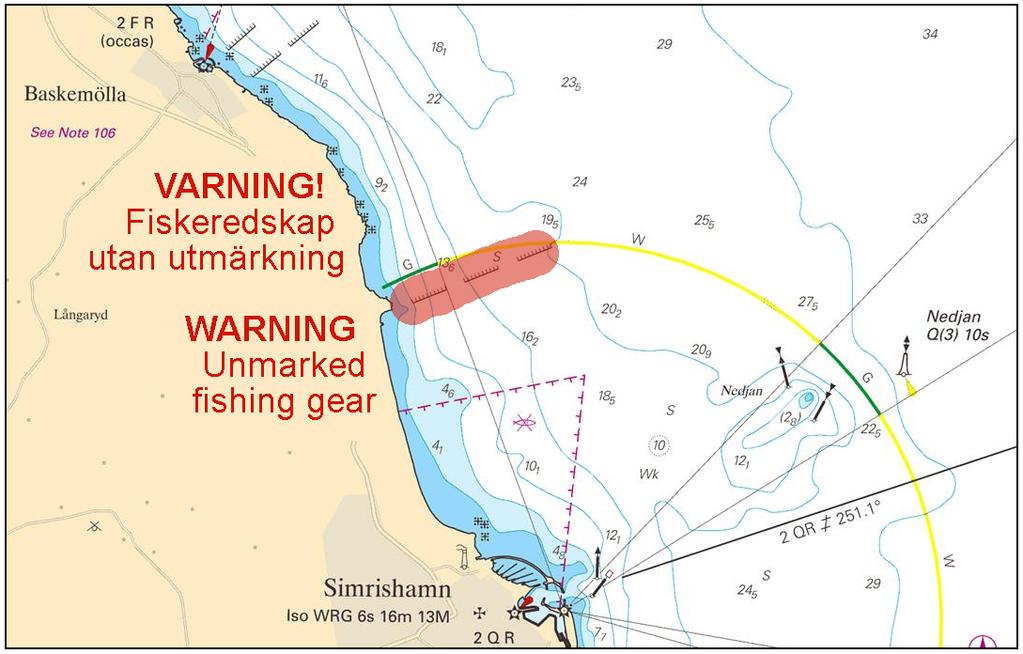

12 No 606 Bridges across Södertälje canal Trafikverket och Sjöfartsverket. Publ. 7 juli 2016 Southern Baltic * (T) Sweden. Southern Baltic. N of Simrishamn. Large fishing gear without buoyage. Chart: 743, 83, 839 A large fishing gear without buoyage exist approx. 1,3 M north of Simrishamn. The equipment is floating just under the water surface within an area of approx x 200 m. Fishing gear under the surface between shore and position 55-34,9N ,4E Not shown in ENC. Bsp Hanöbukten 2014/s06, s07, s31, Bsp Sydkusten 2012/s06, s07, s29

13 No 606 Unmarked fishing gear Old fishing gear under the water surface Sjöfartsverket, Norrköping. Publ. 5 juli 2016 Kattegat * (T) Chart: 1352, 9312 Sweden. Kattegat. Göteborg. S of Marieholmsbroarna. Marieholm Tunnel. Works in progress near the fairway. Expired notices: 2016:604/11315(T) Time: Summer Piling in progress near the fairway a) 57-43,64N ,55E Bsp Göta kanal 2011/s59

14 No 606 Piling near the fairway S of Marieholmsbroarna bridges Sjöfartsverket, Göteborg. Publ. 7 juli 2016 Skagerrak * Chart: 934 Sweden. Skagerrak. Fjällbacka - Valön. Pipe. Insert pipe between a) - c) a) 58-35,585N ,637E S of Fjällbacka b) 58-35,630N ,088E the sound between L and St Enerskär c) 58-35,747N ,643E Valön Bsp Västkusten N 2016/s13 Pipe between Fjällbacka and Valön Sjöfartsverket, Norrköping. Publ. 1 juli 2016 * Chart: 937 Sweden. Skagerrak. Svinesund - Idefjorden. Amended character of lights. Amend light character to Iso G 4s a) 59-05,61N ,99E light 'Bjällvarp' Amend light character to Iso G 2s b) 59-06,68N ,57E light 'Svarte Jan' Adm. LoL Vol. C 0275 Adm. LoL Vol. C 0273 Bsp Västkusten N 2016/s06, s07, s39

15 No 606 Svinesund, Bjällvarp. Idefjorden, Svarte Jan. Sjöfartsverket, Norrköping. Publ. 1 juli 2016 * (P) Chart: 93, 932, 9321 Sweden. Skagerrak. W of Tjörn. Räbbehuvud light. New character. Temporarily unlit. Time: Summer 2016 The character of the light Räbbehuvud will be changed to LFl 12s. The light is temporarily unlit and will be lit again when the work is finished ,76N ,90E Räbberhuvud light Adm LoL Vol C: 0464 Bsp Västkusten N 2016/s23, Bsp Västkusten S 2016/s11, s36

16 No 606 Time: July Water area, bounded to the north of breakwater at the guest harbor and in the south about 200 m S of the bridge, is temporarily closed for traffic. Not shown in ENC Bsp Västkusten N 2016/s19, s33 Räbbehuvud light Föreningen för Räbbehuvud fyrs bevarande. Publ. 7 juli 2016 * (T) Chart: 933, 9331 Sweden. Skagerrak. S of Lysekil. Grundsund. Water area temporarily closed. Grundsund 58-12,9N ,0E Grundsund Länsstyrelsen Västra Götaland. Publ. 7 juli 2016
