1 The leading company in West Sweden specializing in environment

2 130 years history Renhållningsverket GRAAB Renova was founded in 1998

3 Our vision We put a value into everything for a sustainabel tomorrow

4 Our business idea We offer environmentally smart services and recycle waste to energy and new raw material

5 Core values Social benefit Business value Rethinking

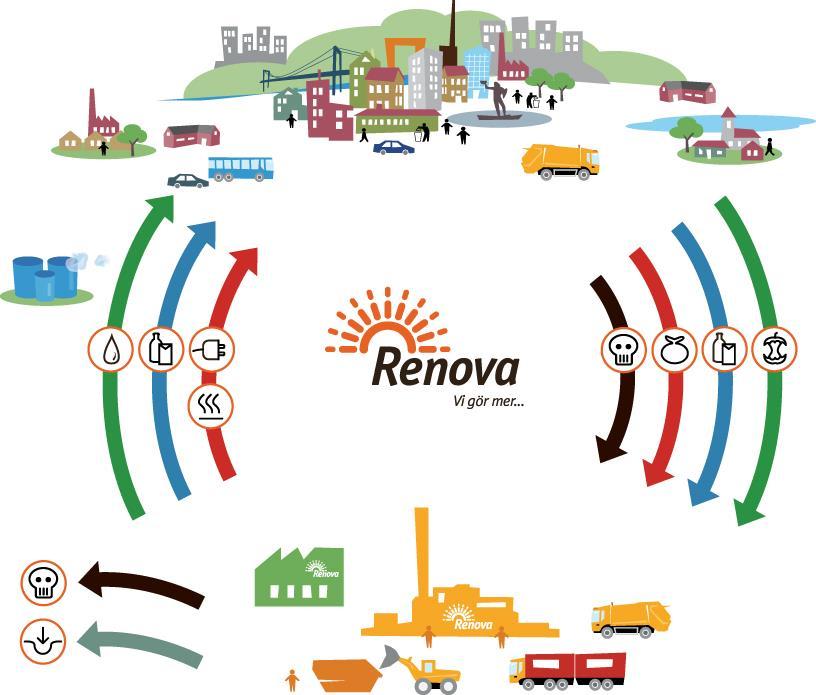

6 Our role in a circular economy

7 Sustainable transports 220 heavy vehicles Fossil free 15 years ahead Three fully hybrids Driving innovation

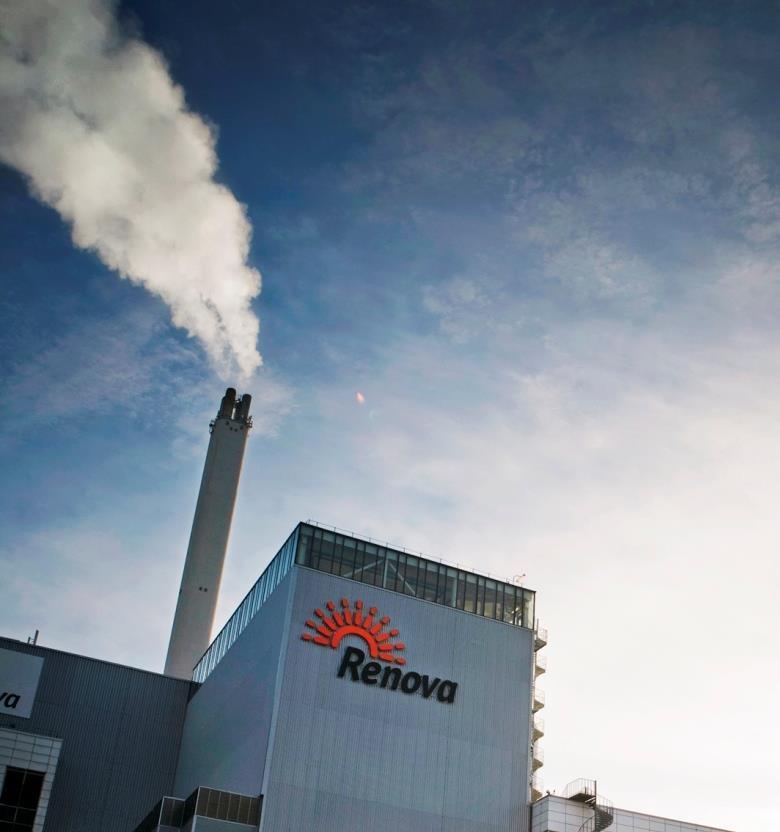

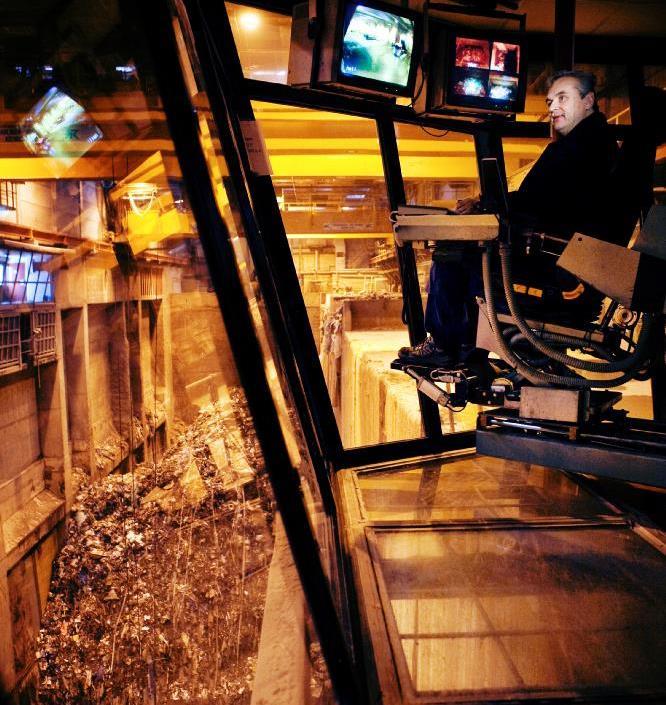

8 Plants Waste-to-Energy Biological Treatment Hazardous Waste Sorting Landfills Workshops

9 Our offer Collection and transport Sustainable treatment Service Knowledge

10 Certificates ISO (Environment) ISO 9001 (Quality) OHSAS (Working environment)

11 Environmental Research and Development Research Sholarship Research and collaboration Master s Thesis

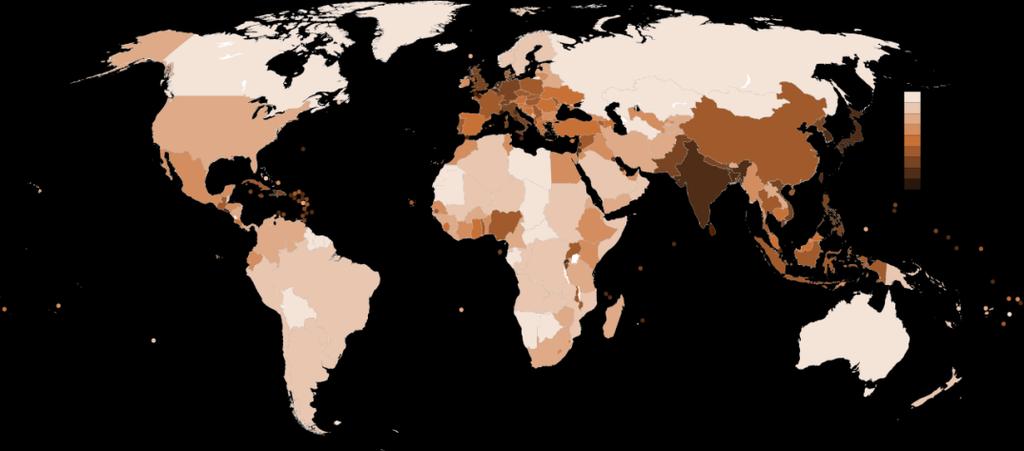

12 Sweden is a bit different Population density (wikipedia) Woods Average temperature 2016 Delivered district heating (District cooling 1000 GWh)

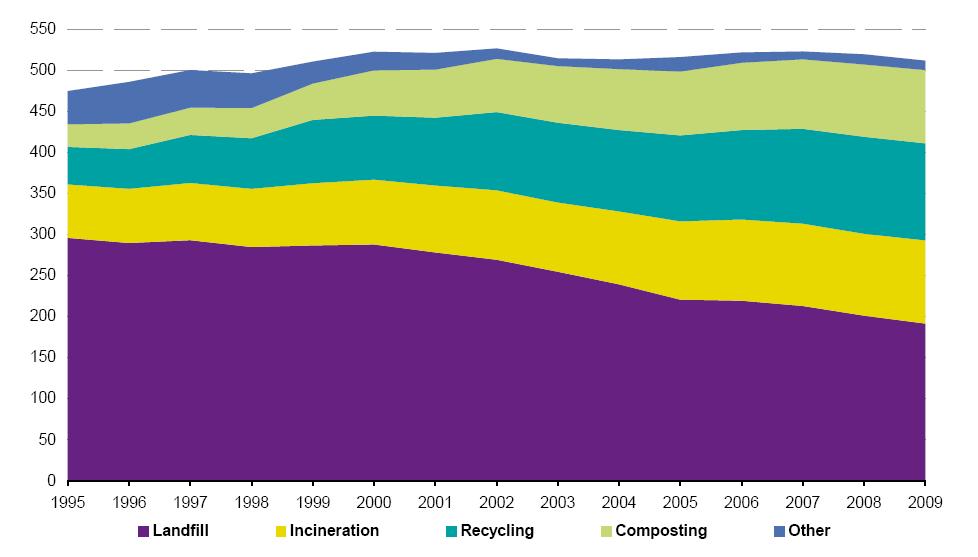

13 Treatment of Municipal Waste Sweden and EU-27 EU-27 Biologisk återvinning Energiåtervinning Deponering Materialåtervinning Biological Recycling Energy Recovery Landfilling Material Recycling Source: Avfall Sverige and Eurostat /13

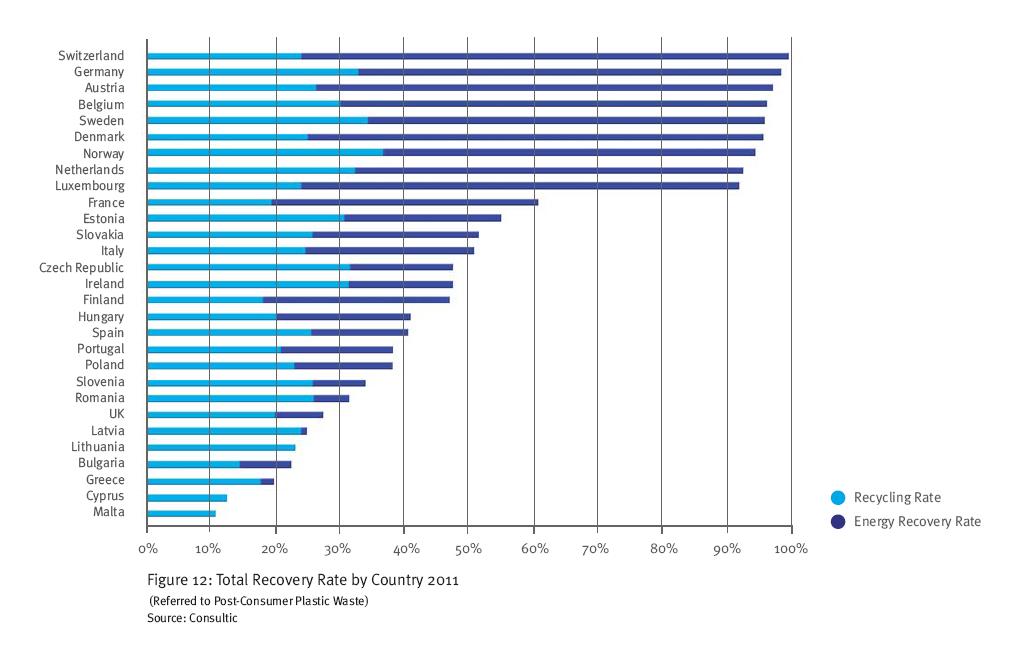

14 Material recycling and Waste to Energy go hand-in-hand /14 Källa Plastics Europe

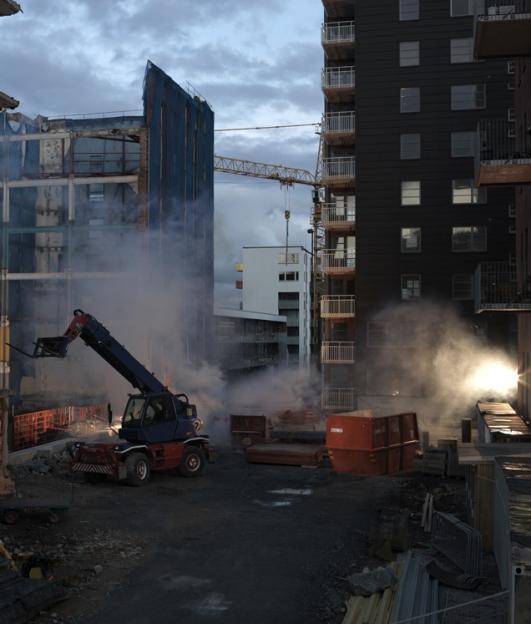

15 Wood products and waste 16 million m 3 cut tree products produced Where of 12,3 million m 3 exported (2009) pieces of wood packaging put on the market (2016) 1,2 million ton wood waste (2015)

16 Waste Wood in Sweden Producer s responsibility for packaging material Goal 15 % material recycling Today < 1% Reuse? White wood Treated wood Impregnated wood ISPM 15

17 National statistics Total amount of wood waste ton Papper mills: wood waste and sludges make up to ton per year. Statistics are depending on whether wood is considered waste or byproduct. Hazardous wood waste: ton, but since crushed, impregnated wood will be calculated twice both as a primary waste and a secondary after crushing, the total actual number is lower. Non-hazardous wood waste from households ton. Wood waste to composting ton Non hazardous Wood waste to Waste to energy: ton Haz wood waste to Waste to Energy ton Impregnated wood waste from building and demolition: ton Non-haz wood waste from building and demolition ton Wood waste to Waste to Energy: ton

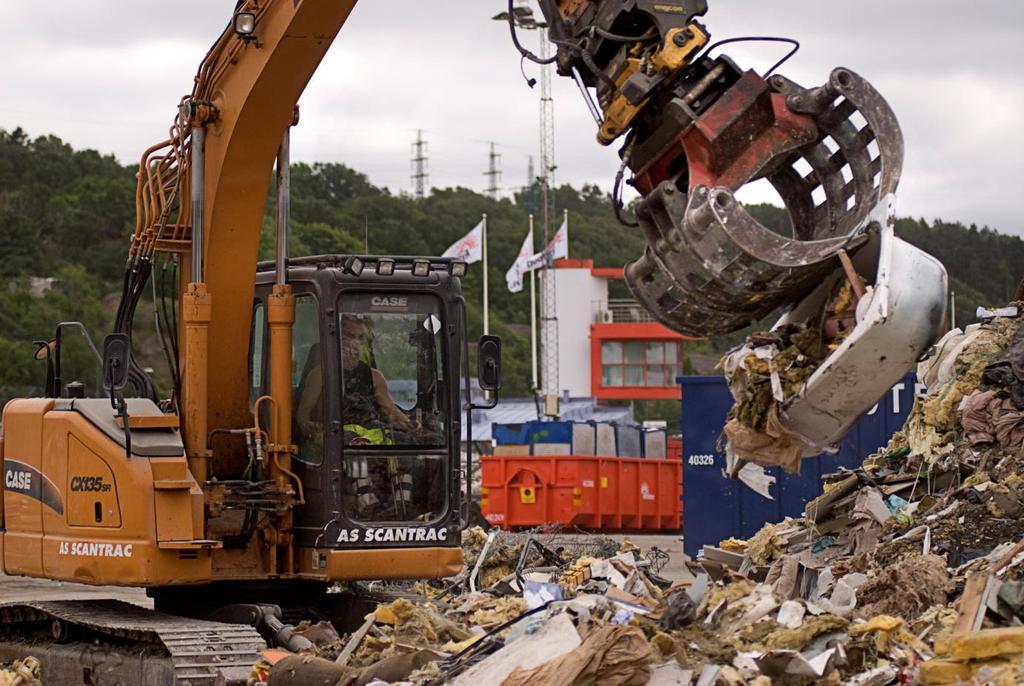

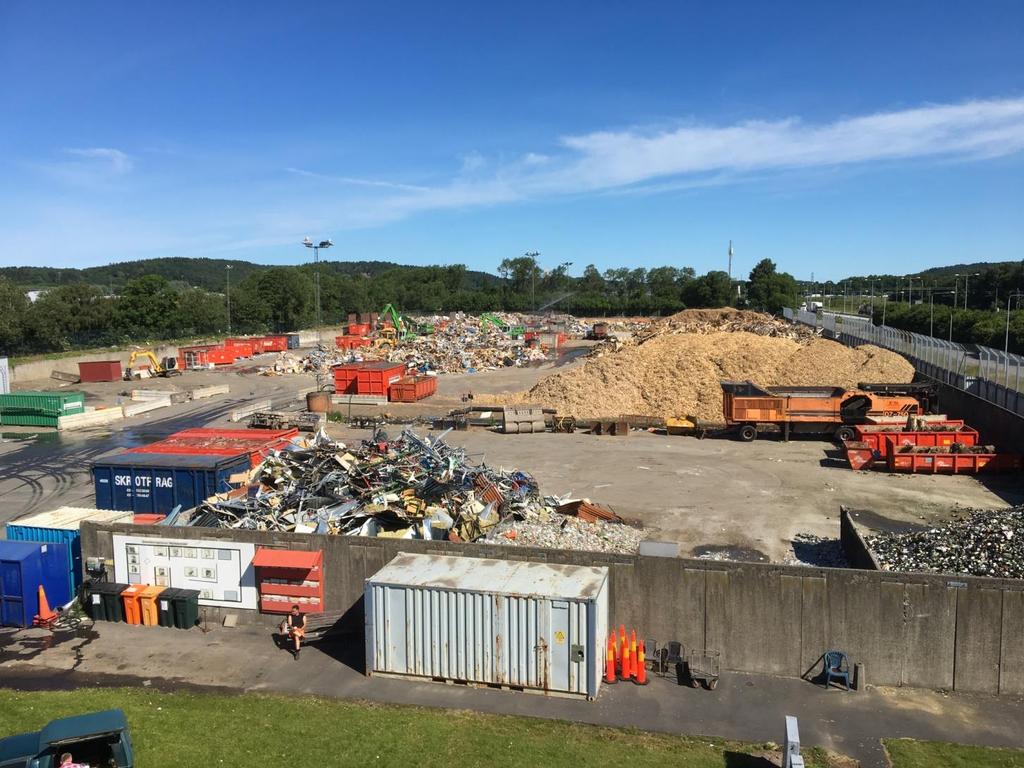

18 Sorting plants Skräppekärr och Högsbo Sorting mainly commercial and industrial waste ton waste in total /18

19 Sortering gives Bild skrot Recycling material Garden waste including waste wood Waste Wood Non-treated Treated (Impregnated) incineration/energy recycling Construction waste /19

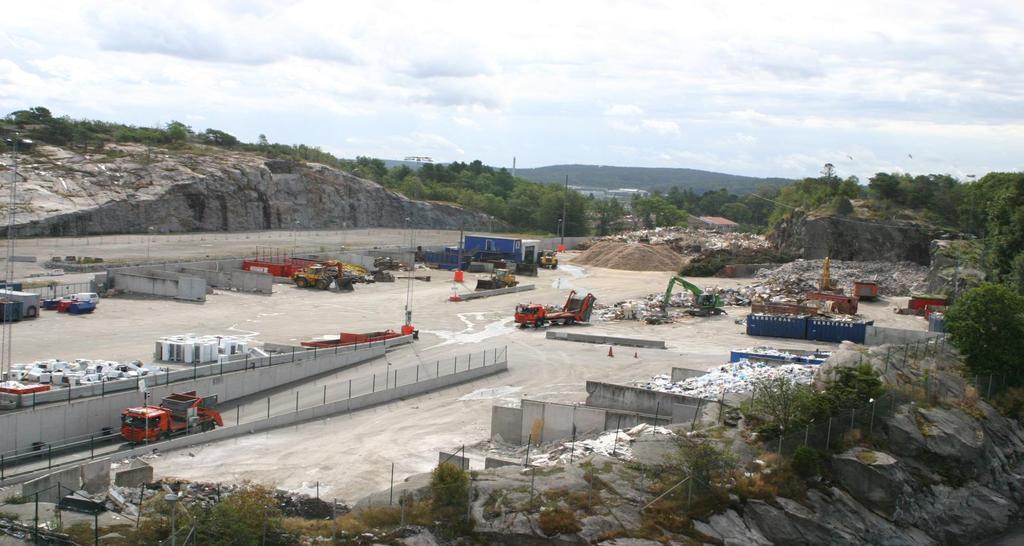

20 Sorting plant Skräppekärr

21 Högsbo /21

22 Fresh wood larger sized >25 cm diameter Twigs and other smaller sized fresh wood Waste Wood Renova 2015 To Renova From Renova to Main type of recycling external recycling 400 Waste to Energy Sävenäs Composting Marieholm and Waste to Energy Impregnated wood Waste to Energy Treated wood painted Untreated wood Not painted Wood waste in mixed smaller fractioned Waste to Energy plant and other Energy production plants such as paper mills and biomass energy plants other Energy production plants such as paper mills and biomass energy plants Material recycling Poland? Waste to energy

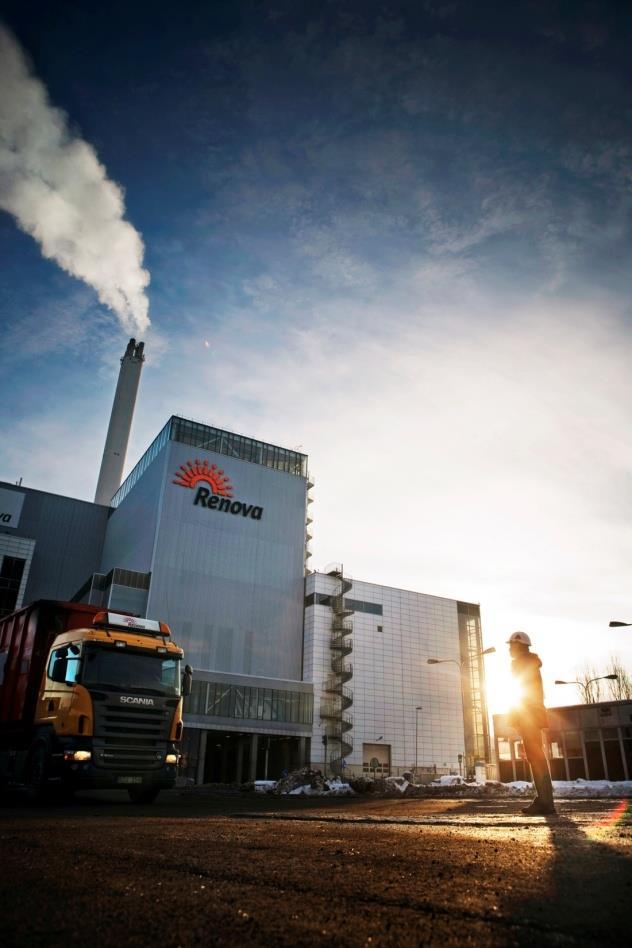

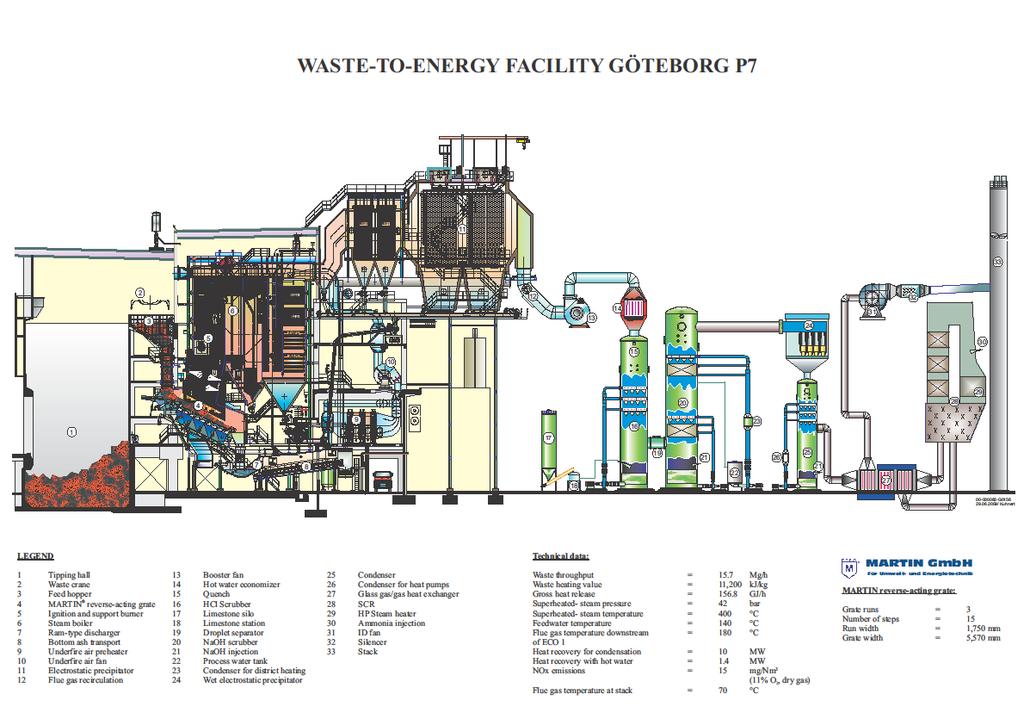

23 Renova Waste to Energy plant Avfallskraftvärmeverket i Sävenäs Boiler name Capacity (ton waste/h) Power generation (MW) Total Grate incineration Wet and dry flue gas treatment Energy efficiency as of the R1-formula = 1, / /23

24 District Heat and Electricity from Renova MWh, ton Avfall (ton) Levererad värme (MWh) Levererad el (MWh) /24

25 Plant overview Här ska det in en skiss på anläggningen /25

26 Profu (Projektinriktad forskning och utveckling AB), Götaforsliden 13 nedre, Mölndal, 4,0 [MWh/tonnes] Energy recovered: House hold Waste to Energy Plants in Europe 3,5 3,0 Electricity Heat 2,5 2,0 1,5 1,0 0,5 0 Source:Profu /26

27 District heating About 50 billion SEK invested since 1952 Owned and run by sister company Göteborg Energi More than 1000 km of piping Serves more than 90% of apartment buildings in Göteborg / /27

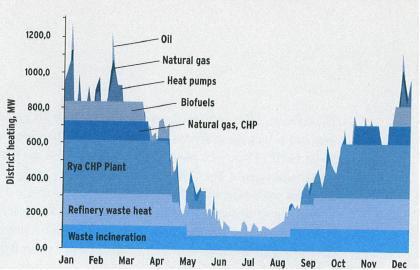

28 Producerad fjärrvärme 2016 Fossil energi 17% Renova 32% Förnyelsebar energi 15% Avloppsvatten 5% Industriell spillvärme 30% /28

29 District Heat Production 2011 In 2014 Renova contributed with 38% of the heat /29

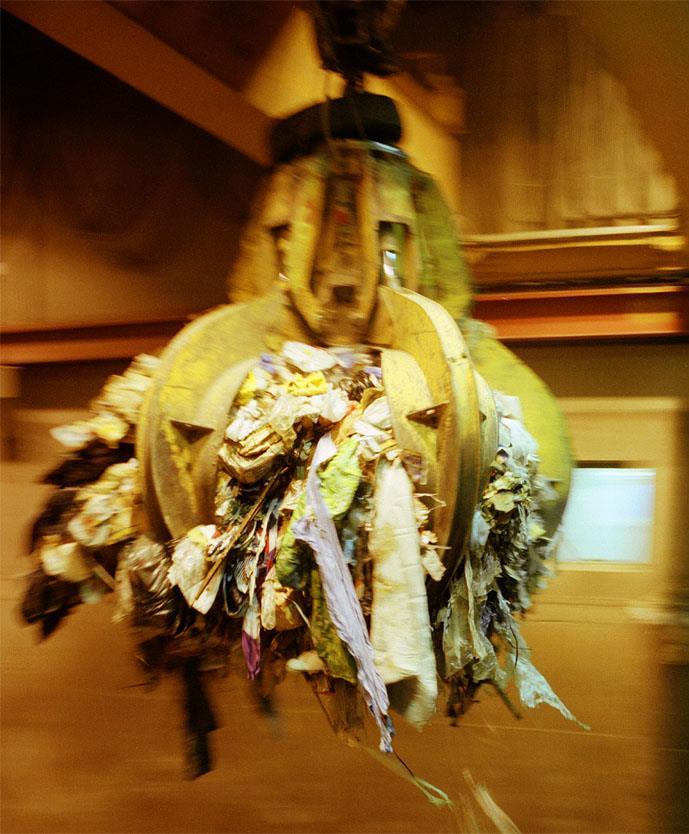

30 Superheated steam generates electricity /30

31 /31

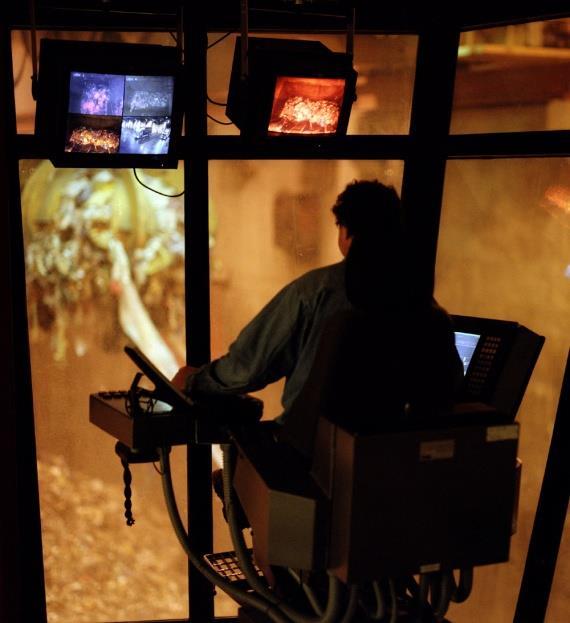

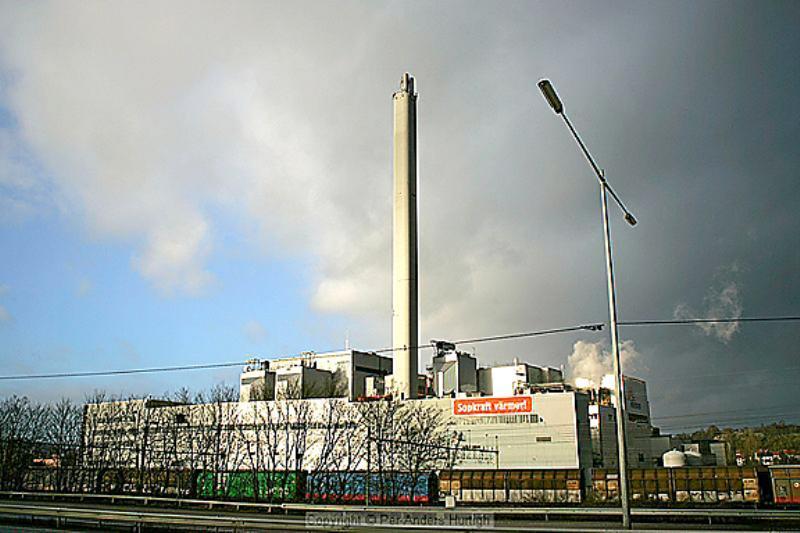

32 Waste to Energy at Renova procent of district heating in regionala network 5 procent Göteborgers electrcity use ton waste Municipal and industrial /32

33 Ur en kranskopa med avfall utvinns el och värme som räcker i ca 9 månader för en normalvilla. 5 ton avfall motsvarar ca kwh (Om 20 MWh/år och småhus) /33

34 Avfallskraftvärmeverket 2016 Panna 1 Panna 4 Panna 5 Panna 7 Risk och sekretess Specialugnen Förbränd mängd (ton) Drifttid (h) Antal ton/h 15,3 19,8 19,8 14,1 Total energiproduktion MWh Värme MWh El MWh Energiutbyte/ton avfall 3,28 MWh /34

35 MWh, ton Deliveries of heat and electricity srom Sävenäs Waste-to-Energy Avfall (ton) Levererad värme (MWh) Levererad el (MWh) /35

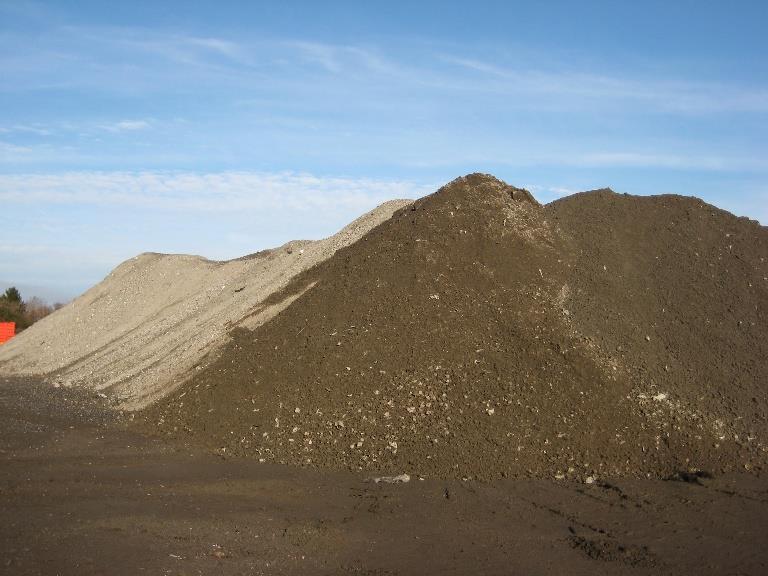

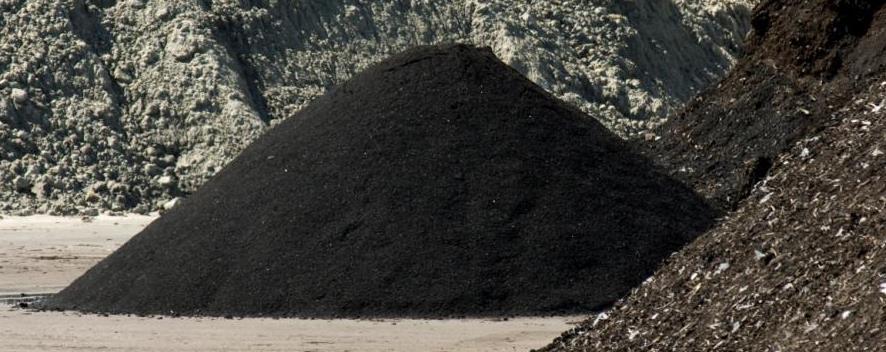

36 Particles Förbränt (ton/år) Stoft (ton/år) /36 0

37 /37 Marieholm kompostering

38 Fertilized soils Grass soil Planting soil Pot soil Perenn soil Rhodedendron soil Special mixtures /38

39 Our 130 years old innovation journey continues Read more at

40 extras

41 AKV Sävenäs /41

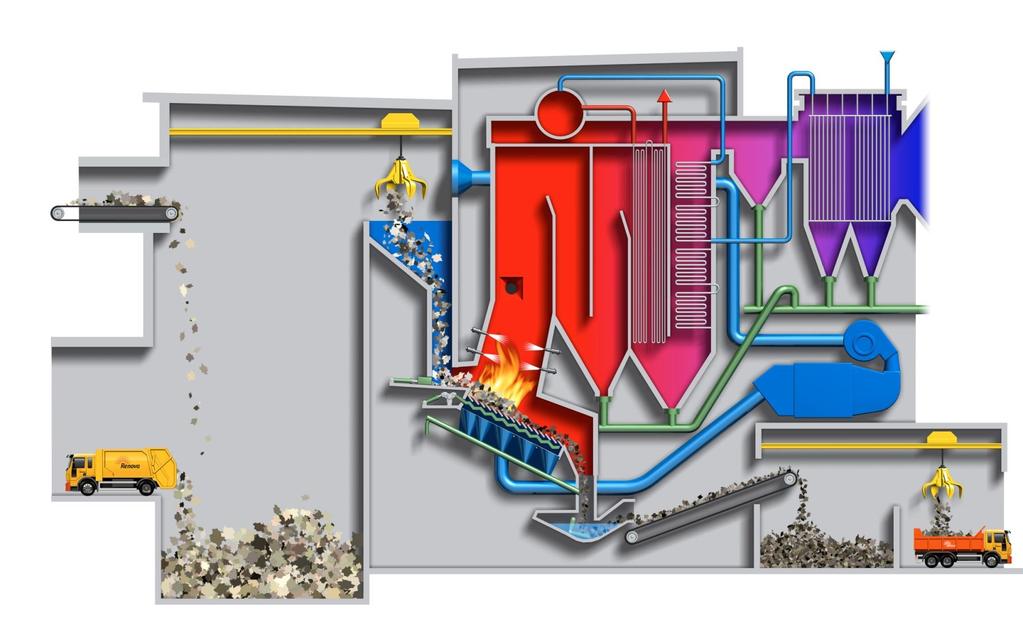

42 /42 Förbränning

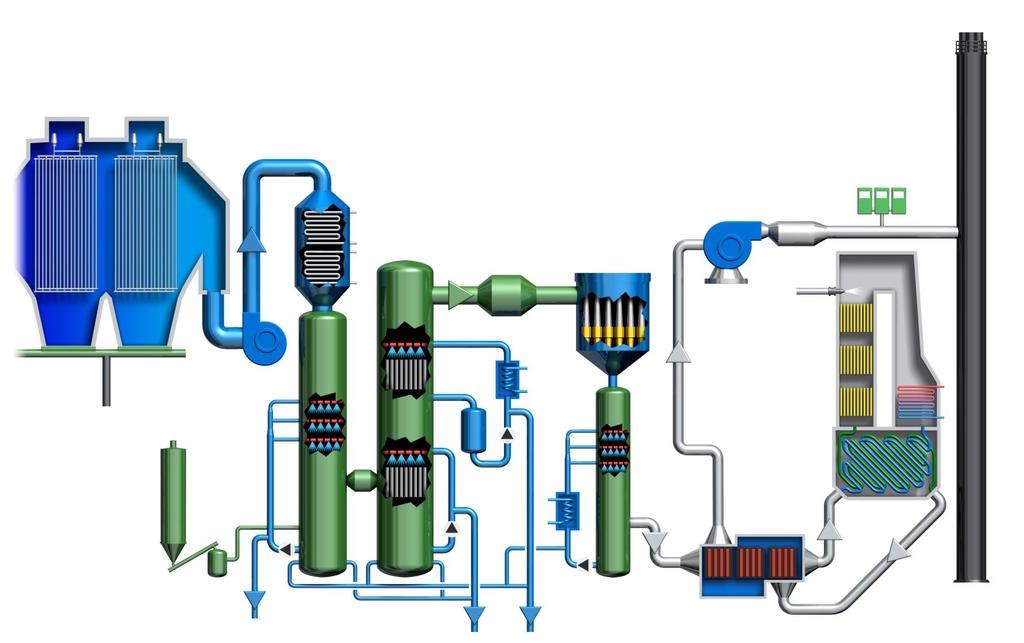

43 /43 Rökgasrening

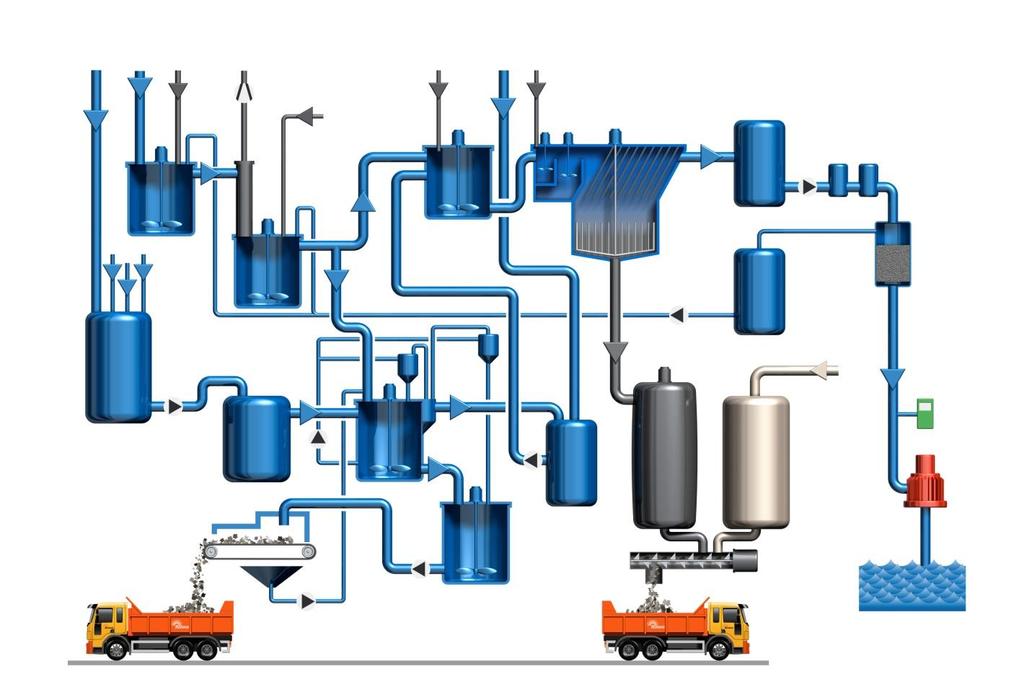

44 /44 Vattenrening

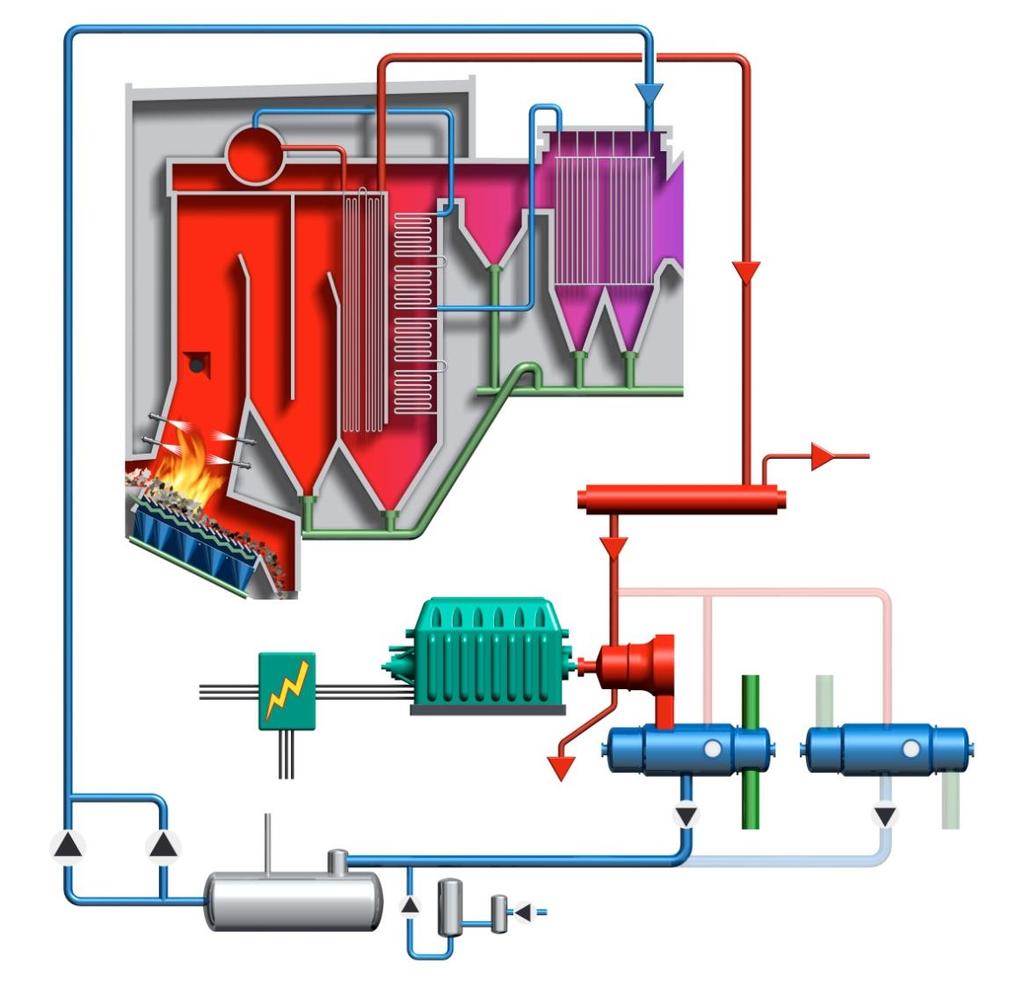

45 /45 Ånga och el

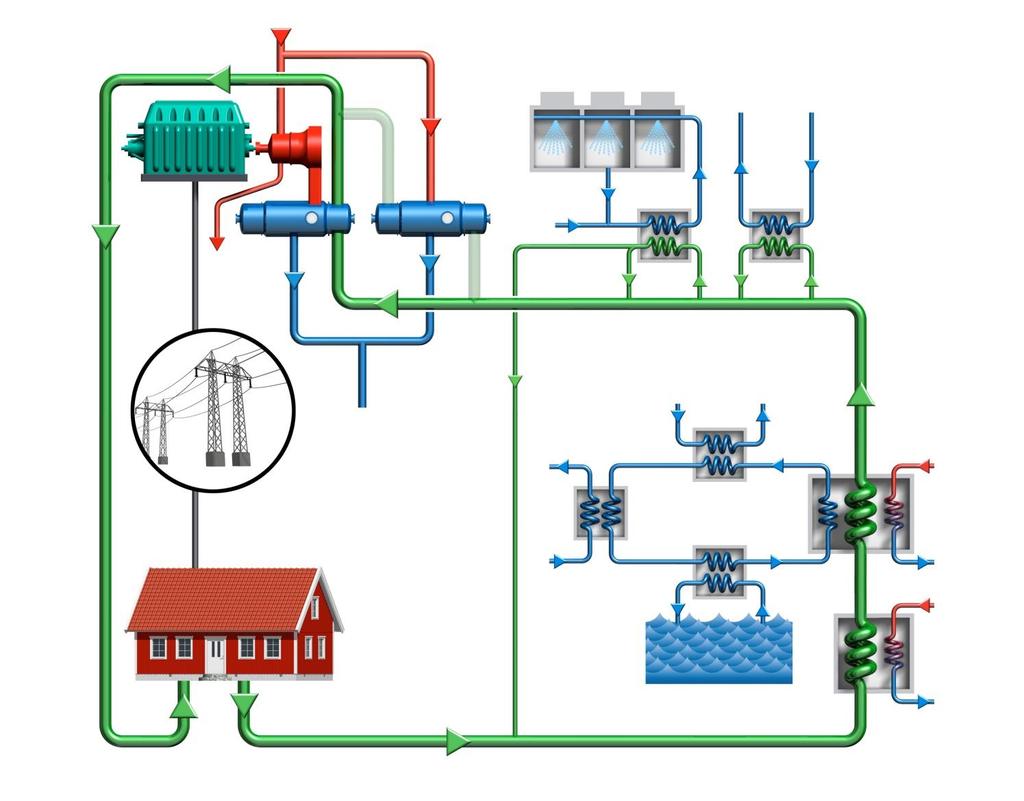

46 /46 Fjärrvärme

47 Stoft Förbränt (ton/år) Stoft (ton/år) /47

48 SO Förbränt (ton/år) SO2 (ton/år) /48 0

49 HCl Förbränt (ton/år) HCl (ton/år) /49

50 NOx Förbränt (ton/år) NOx (ton/år) /50 0

51 Slagg till sortering ton avfall kg/ton avfall ton kg/ton avfall /51

52 Restprodukter 2016 Mängd (ton) vikt av förbränt (%) Slagg ,2 Bambergkaka ,6 Gipsslam ,3 TOTALT , /52

53 Avfallskraftvärmeverkets kapacitet Pannor Ugn 1 15 ton avfall/h 45 MW Ugn 4 22 ton avfall/h 56 MW Ugn 5 22 ton avfall/h 56 MW Ugn 7 14 ton avfall/h 43 MW SUMMA 73 ton avfall/h 200 MW Värmeproduktion Direktkondensering AVP Hetvattenväxling Internvärme Turbinkondensor SUMMA Elproduktion (40 bar/400ºc) TOTAL levererad effekt 18 MW 65 MW 9 MW - 3 MW 100 MW 189 MW 42 MW 231 MW /53

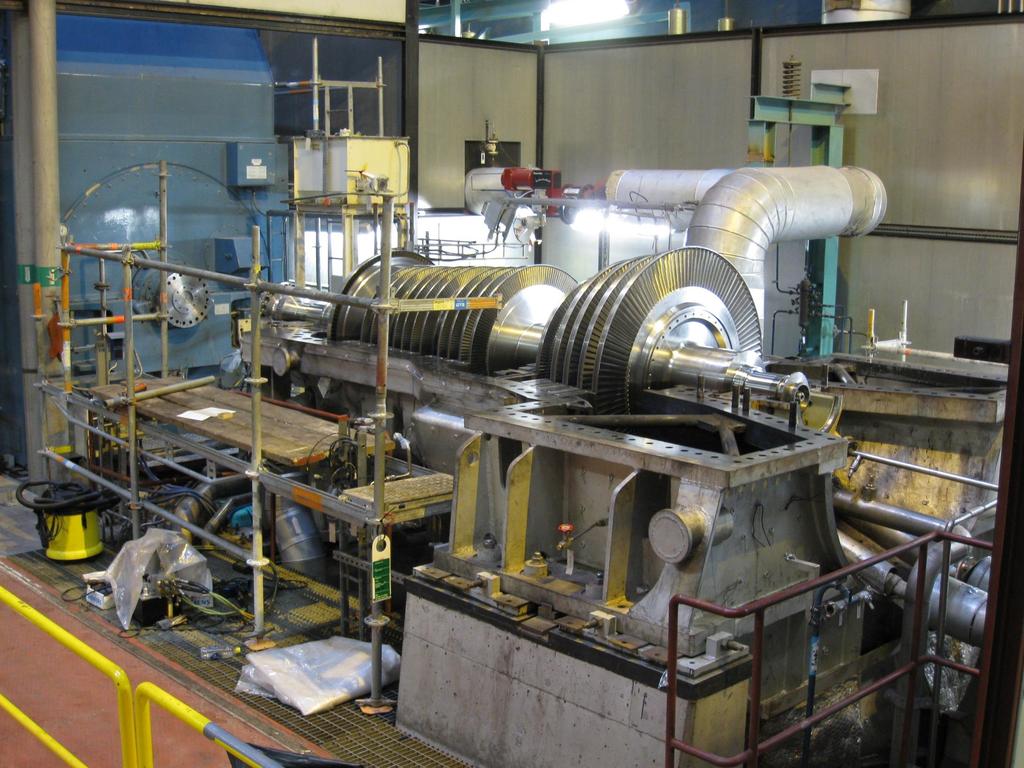

54 Turbin Tillverkare: ABB STAL Turbintyp: VAX MT17 Nominell effekt: kw Ångdata: 40 bar / 400 ºC Hastighet: 3000 rpm /54

55 /55

56 SO Förbränt (ton/år) SO2 (ton/år) /56 0

57 HCl Förbränt (ton/år) HCl (ton/år) /57

58 NOx Förbränt (ton/år) NOx (ton/år) /

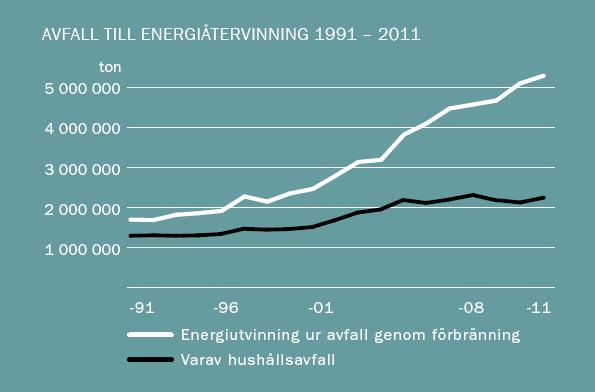

59 Waste to Energy in Sweden total household /59
