1 E.ON Gas operational areas Gas lines Vehicle gas LPG

2 E.ON Gas Sweden Gasdistribution in the south of Sweden - a small part of the country Page 2

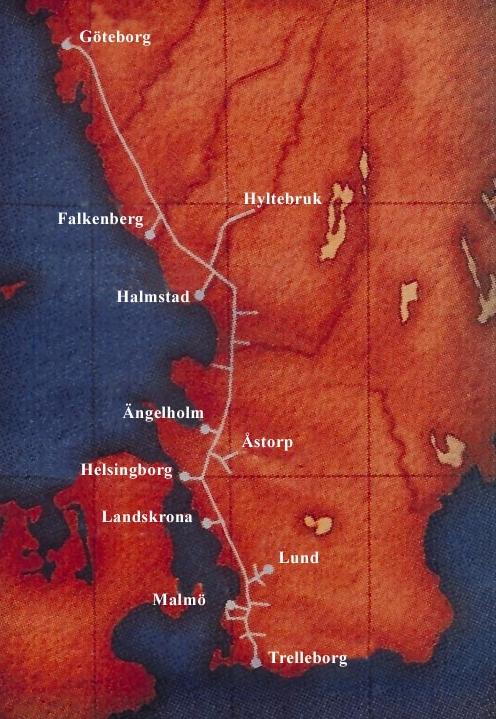

3 E.ON s transmissions and distribution network Årstad Grid line Swedegas (Transmission) MR Distribution Branch line E.ON (Transmission) Dragör E.ON transports around 9 TWh energy gas over one year. Our grid is 1,800 km long. 33 measuring and control stations. Gas storage in Halmstad holds 10 million m³ of energy gas.

4 We emit too much carbon dioxide, so the EU has formulated the following climate objectives To reduce carbon dioxide emissions by 20% by 2020 To increase the efficiency of energy use by 20% by 2020 To increase the proportion of renewable energy to 20% by 2020 In other words, we are facing a real challenge

5 Index Global environmental impact ,2 96,5 95, , , Euro 2 Euro 3 Euro 4 Euro 5 RME CNG 50/50 Biogas Type of engine and fuels 11,6 Global environmental impact (Carbon dioxide equivalents)

6 A first step towards a sustainable fuel Gas use Raw materials Biogas plant Gas cleaning plant Natural gas grid Bio fertiliser Page 6

7 Natural gas grid Filling station for biogas/natural gas Storage Dispenser Quick fill Compressor Depot Compressor Bus depot parking Page 7

8 Samma energiinnehåll men olika volym 1 Normalkubikmeter metangas (1 Nm 3 ) 1 liter dieselolja 5 liter komprimerad metangas (vid 200 bar)

9

10 Var sitter gastankarna?

11 Gas bus depot Page 11

12 Public filling station for biogas/natural gas Page 12

13 E.ON product branding Biogas 50 Biogas % biogas 100 % biogas Page 13

14 Biogas in Sweden today and tomorrow Biogas is used throughout Sweden Production is about 1.5 TWh, which corresponds to 10% of the country s natural gas use. The potential for digested biogas: 15 TWh The potential for gasified biogas: 59 TWh

15 An effective producer of fuel Page 15

16 Biogas production

17 Sjölunda 2 million liters of gasoline Deliveries of organic waste Production of biogas Sewage treatment works Energy gas lines Biogas plant Incoming sewage

18 Wrams - Centra för miljövänlig energi, jordbruks och livsmedelsproduktion Wrams Gunnarstorp Findus Dalsjöfors

19 Biogas and natural gas i the same grid Biogas Upgrading Natural gas Mix Natural gas Biogas The green gas principle means that biogas can be offered at all filling stations Page 19

20 Access to biogas in Sweden Current Laholm 25 GWh Norrköping 10 GWh Kristianstad 20 GWh Eslöv 5 GWh Bjuv 25 GWh Sjölunda 25 GWh Kalmar 10 GWh Falkenberg 40 GWh Grödinge 20 GWh Total 180 GWh E.ON is overseeing the situation in about 15 projects, with a total of 400 GWh in southern Sweden. E.ON is also looking at the possibility of building two gasification plants: GoBiGas - 30 GWh and E.ON s own 1.5 TWh Current plants

21 E.ON Gas Sweden Gasdistribution in the south of Sweden - a small part of the country Page 21

22 Vehicle gas filling stations Karlstad Örebro Västerås Eskilstuna Katrineholm Uppsala Arlanda Stockholm Södertälje Filling stations in the north Östersund Boden Sundsvall Skellefteå Munkedal Lysekil Stenungsund Uddevalla Vänersborg Lidköping Kungälv Göteborg Mölndal Varberg Trollhättan Grästorp Lilla Edet Ullared Falköping Skara Skövde Lerum Alingsås Partille Borås Landvetter Jönköping Kungsbacka Ulricehamn Gnosjö Gislaved Mariestad Värnamo Motala Norrköping Linköping Mjölby Västervik Nyköping Falkenberg Halmstad Växjö 120 public filling stations 50 depots for heavy traffic 30,000 private cars 950 buses 350 trucks Båstad Ängelholm Höganäs Helsingborg Landskrona Malmö Trelleborg Laholm Eslöv Lund Svedala Olofström Karlshamn Hässleholm Ystad Kristianstad Åhu s Kalmar Fill up with E.ON s fuel card Fill up with vehicle gas from other suppliers

23 KRISTIANSTAD local biogas grid Kristianstads kommun Page 23

24 Mobile storage 2400 Nm bar Page 24

25 High pressure gas transport Page 25

26 Sollentuna Häggvik E.ON har tillsammans med OKQ8 identifierat följande etableringar för LNG (flytande gas). - Sollentuna - Häggvik - Fittja - Haninge Fittja Haninge 26

27 Marketing methane as a vehicle fuel E.ON Gas Sverige AB sells compressed natural gas and biogas at 35 public filling stations in the south of Sweden 18 busdepots The yearly volume is 400 GWh - replacing about 40 million liters of gasoline/diesel 40 % is biogas Target: Supply GWh/year in 2020, of which biogas will account for % Page 27

28 28

29 Summary of market drivers for biogas as a vehicle fuel Emerging demand and economy EU directive for renewables Developing the agriculture sector new possibilities High envorinmental benefit global, local and regional Technologies for producing and use are in place Low or zero tax in many countries Infrastucture in place Huge potential organic waste, maneur, crops and in the future wood Page 29

30 Kombinerad LNG LCNG fuel station

31 If this car can run on biogas, so can yours. E.ON Vehicle Gas Cheaper. Cleaner. Greener.
