1 The Rock Art of Nämforsen, Sweden The survey By Thomas B Larsson & Sven-Gunnar Broström UMARK 62, 2011 ISSN Department of Historical, Philosophical and Religious Studies, Umeå University, SE Umeå, Sweden

2 About the authors Thomas B Larsson is professor of archaeology at Umeå University, Sweden. He has mainly carried out research on the European and South Scandinavian Bronze Age, but during the last decade his focus has shifted towards the Stone Age of Northern Fennoscandia. Rock art, dwellings, pitfall traps, moose hunting and climate change during the Late Stone Age are currently his favored research topics. Sven-Gunnar Broström is honorary doctor at the Faculty of Humanities, Umeå University, Sweden. He has surveyed and documented rock art in Sweden during the last 50 years, and he is one of the most experienced field workers in Sweden when it comes to rock art. Together with colleagues he has found more than 20% of the known rock carvings in south and middle Sweden. Cover: Rock art panel from Laxön in Nämforsen (Plate XII, D:16a, according to Hallström s description). Rock art images presented in black were documented by Hallström (1960), while red images represent additional figures recorded at the new documentation of Nämforsen by Broström & Larsson in

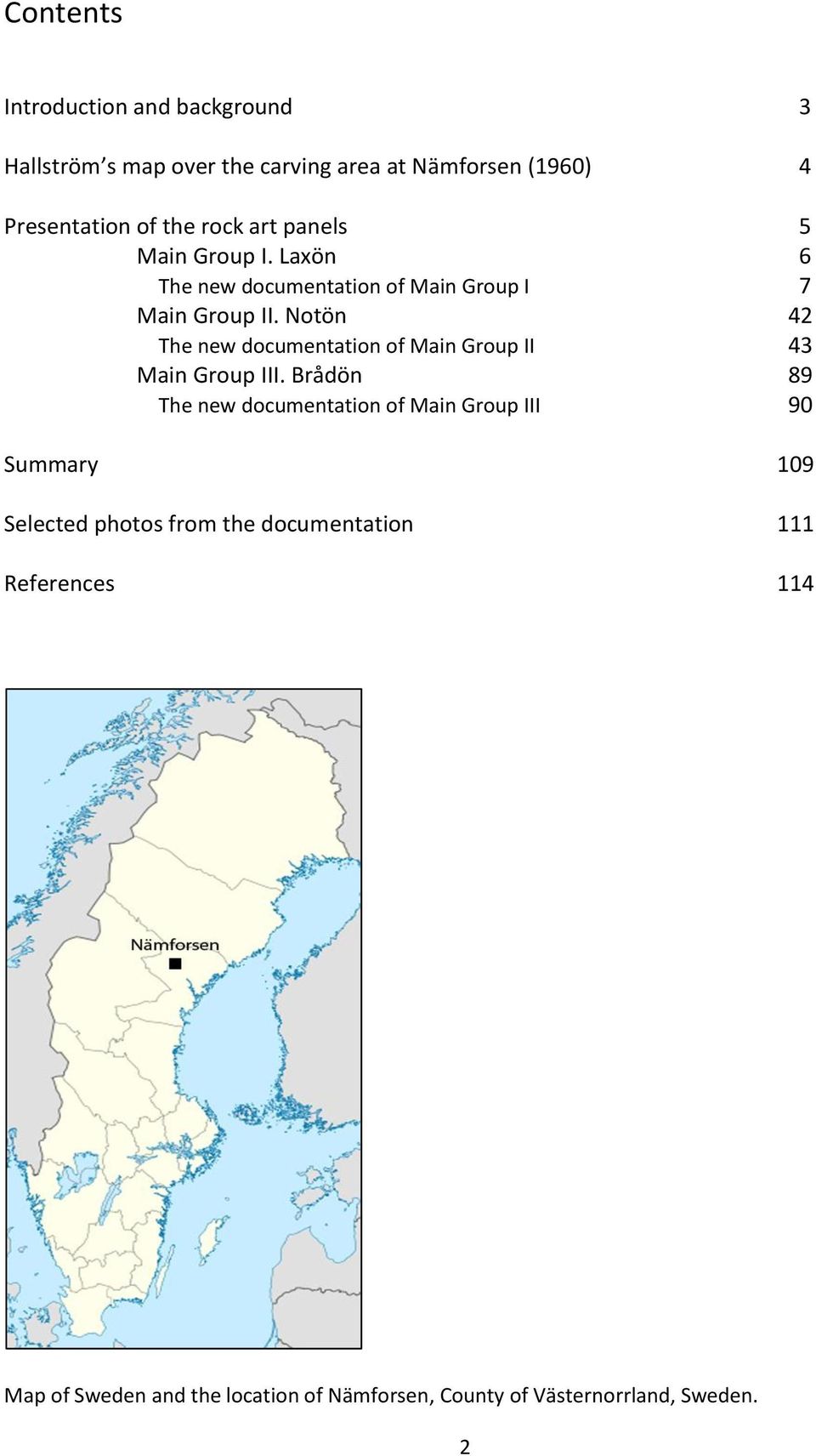

3 Contents Introduction and background 3 Hallström s map over the carving area at Nämforsen (1960) 4 Presentation of the rock art panels 5 Main Group I. Laxön 6 The new documentation of Main Group I 7 Main Group II. Notön 42 The new documentation of Main Group II 43 Main Group III. Brådön 89 The new documentation of Main Group III 90 Summary 109 Selected photos from the documentation 111 References 114 Map of Sweden and the location of Nämforsen, County of Västernorrland, Sweden. 2

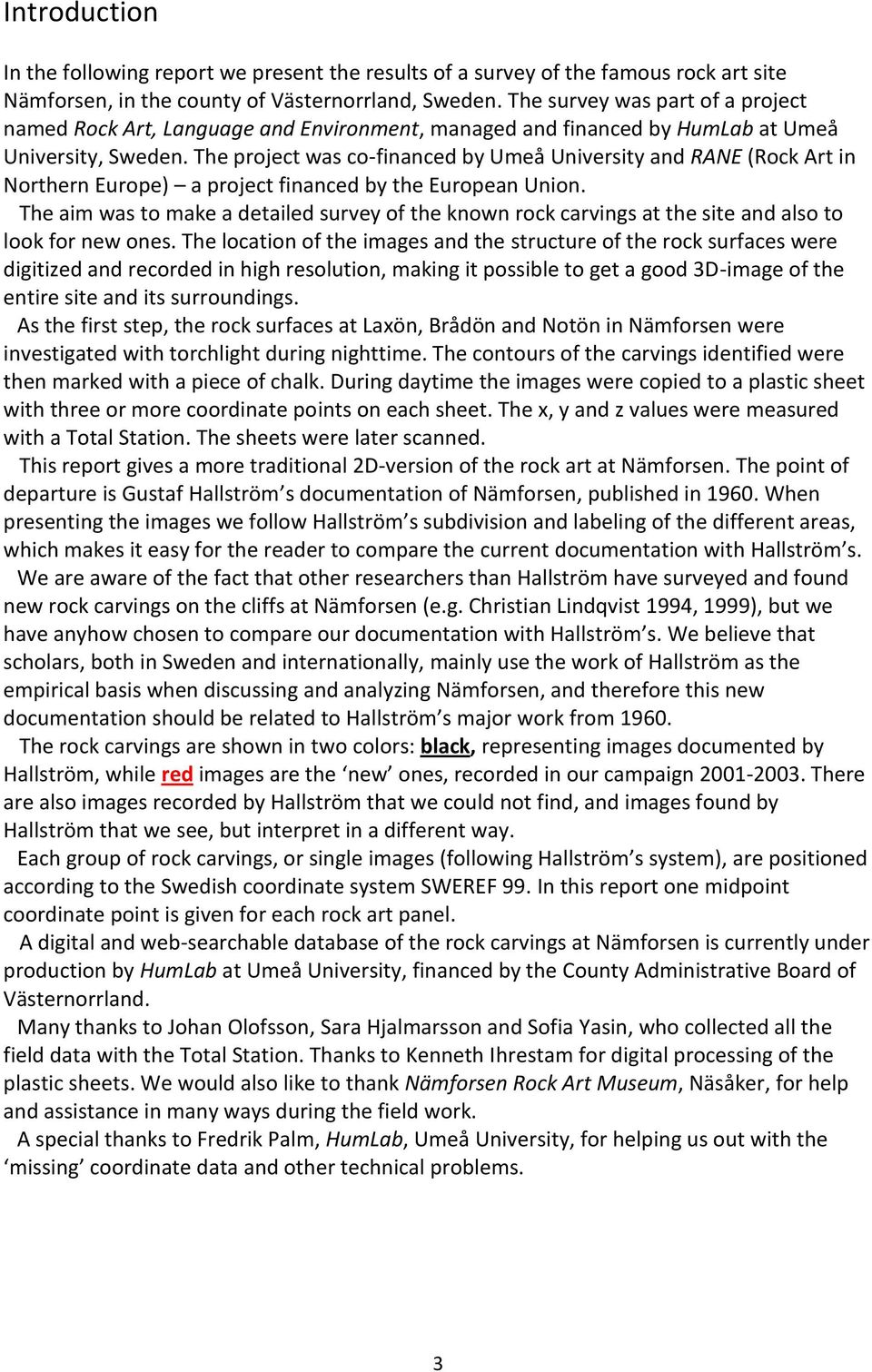

4 Introduction In the following report we present the results of a survey of the famous rock art site Nämforsen, in the county of Västernorrland, Sweden. The survey was part of a project named Rock Art, Language and Environment, managed and financed by HumLab at Umeå University, Sweden. The project was co-financed by Umeå University and RANE (Rock Art in Northern Europe) a project financed by the European Union. The aim was to make a detailed survey of the known rock carvings at the site and also to look for new ones. The location of the images and the structure of the rock surfaces were digitized and recorded in high resolution, making it possible to get a good 3D-image of the entire site and its surroundings. As the first step, the rock surfaces at Laxön, Brådön and Notön in Nämforsen were investigated with torchlight during nighttime. The contours of the carvings identified were then marked with a piece of chalk. During daytime the images were copied to a plastic sheet with three or more coordinate points on each sheet. The x, y and z values were measured with a Total Station. The sheets were later scanned. This report gives a more traditional 2D-version of the rock art at Nämforsen. The point of departure is Gustaf Hallström s documentation of Nämforsen, published in When presenting the images we follow Hallström s subdivision and labeling of the different areas, which makes it easy for the reader to compare the current documentation with Hallström s. We are aware of the fact that other researchers than Hallström have surveyed and found new rock carvings on the cliffs at Nämforsen (e.g. Christian Lindqvist 1994, 1999), but we have anyhow chosen to compare our documentation with Hallström s. We believe that scholars, both in Sweden and internationally, mainly use the work of Hallström as the empirical basis when discussing and analyzing Nämforsen, and therefore this new documentation should be related to Hallström s major work from The rock carvings are shown in two colors: black, representing images documented by Hallström, while red images are the new ones, recorded in our campaign There are also images recorded by Hallström that we could not find, and images found by Hallström that we see, but interpret in a different way. Each group of rock carvings, or single images (following Hallström s system), are positioned according to the Swedish coordinate system SWEREF 99. In this report one midpoint coordinate point is given for each rock art panel. A digital and web-searchable database of the rock carvings at Nämforsen is currently under production by HumLab at Umeå University, financed by the County Administrative Board of Västernorrland. Many thanks to Johan Olofsson, Sara Hjalmarsson and Sofia Yasin, who collected all the field data with the Total Station. Thanks to Kenneth Ihrestam for digital processing of the plastic sheets. We would also like to thank Nämforsen Rock Art Museum, Näsåker, for help and assistance in many ways during the field work. A special thanks to Fredrik Palm, HumLab, Umeå University, for helping us out with the missing coordinate data and other technical problems. 3

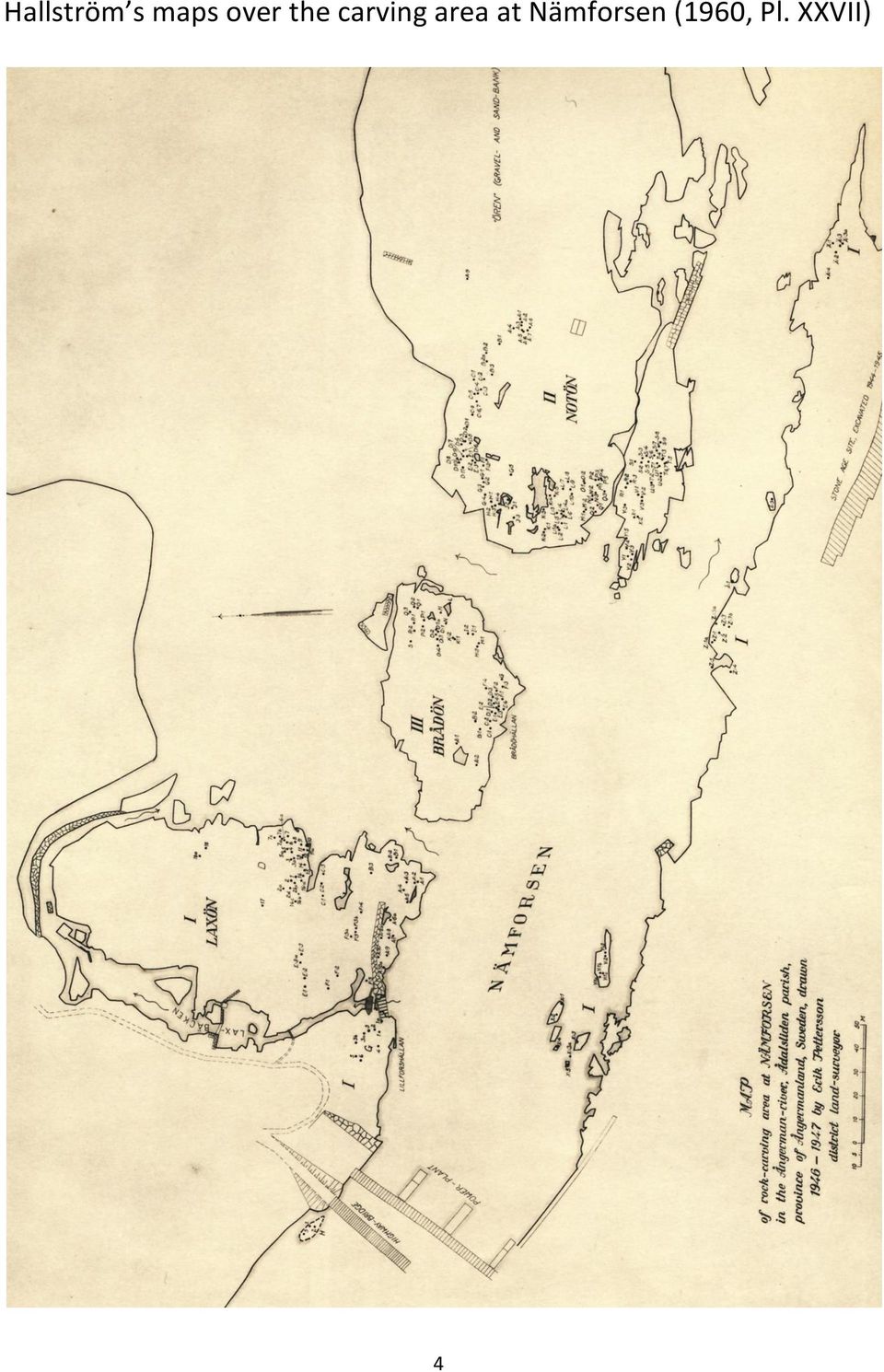

5 Hallström s maps over the carving area at Nämforsen (1960, Pl. XXVII) 4

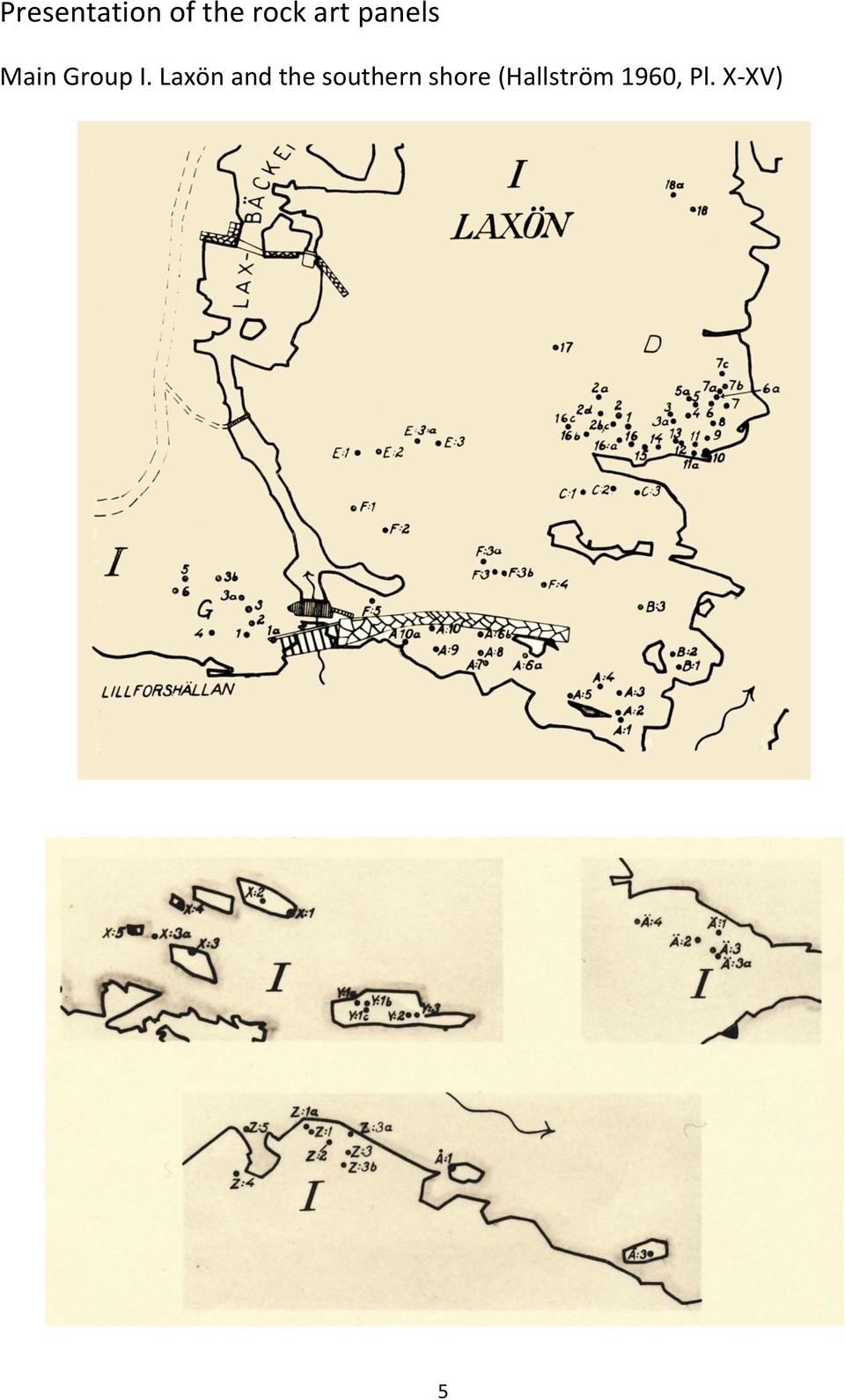

6 Presentation of the rock art panels Main Group I. Laxön and the southern shore (Hallström 1960, Pl. X-XV) 5

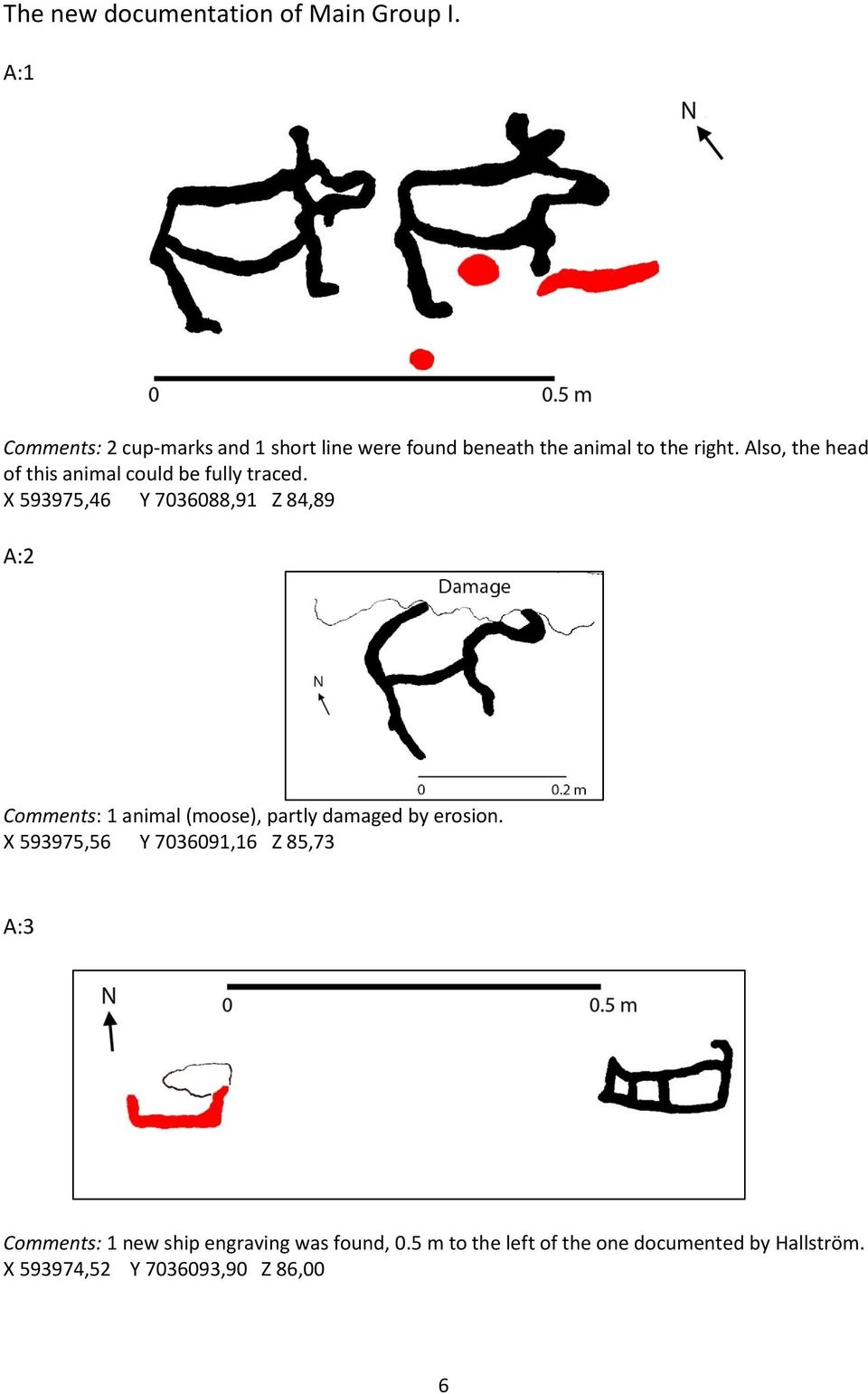

7 The new documentation of Main Group I. A:1 Comments: 2 cup-marks and 1 short line were found beneath the animal to the right. Also, the head of this animal could be fully traced. X ,46 Y ,91 Z 84,89 A:2 Comments: 1 animal (moose), partly damaged by erosion. X ,56 Y ,16 Z 85,73 A:3 Comments: 1 new ship engraving was found, 0.5 m to the left of the one documented by Hallström. X ,52 Y ,90 Z 86,00 6

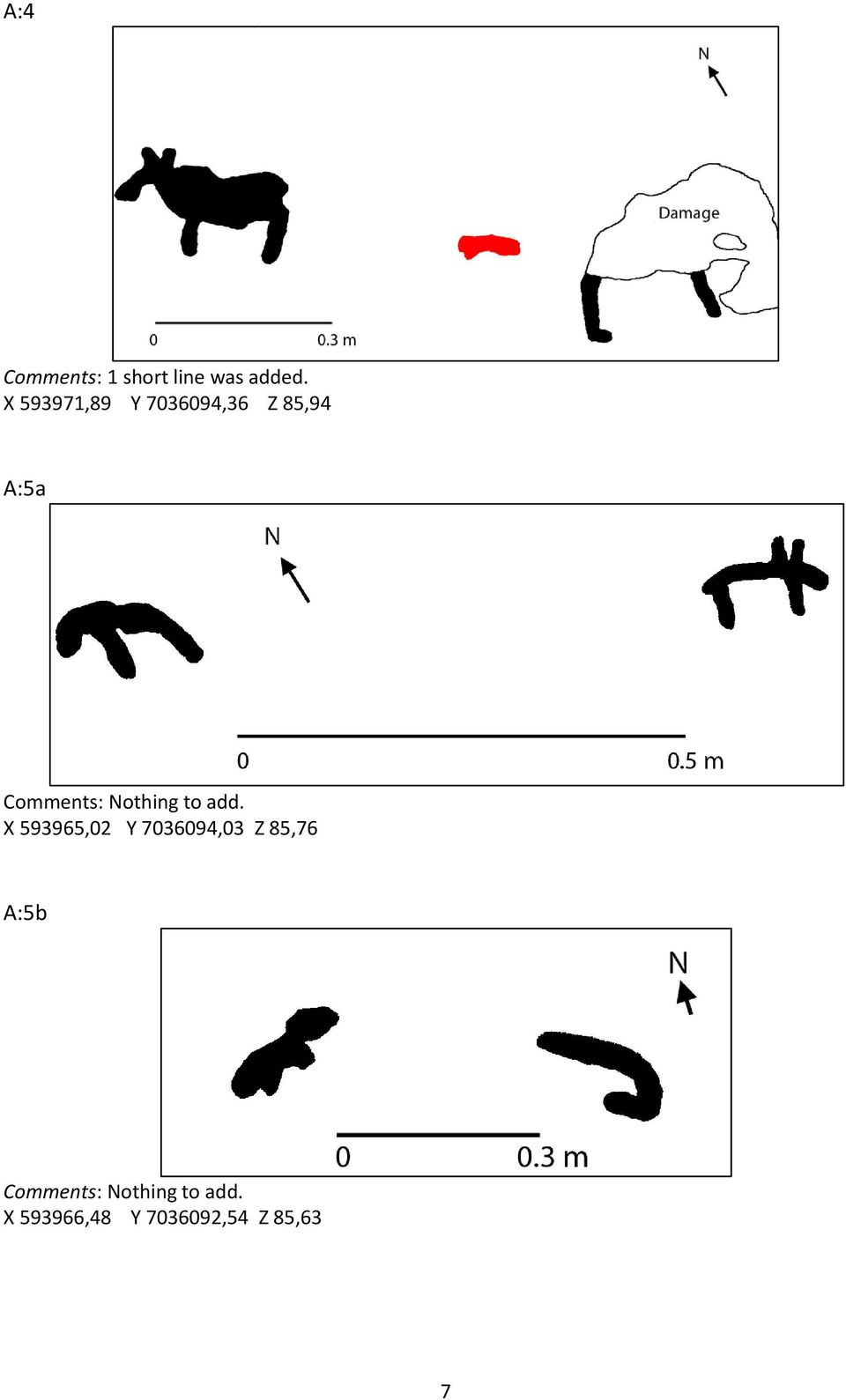

8 A:4 Comments: 1 short line was added. X ,89 Y ,36 Z 85,94 A:5a Comments: Nothing to add. X ,02 Y ,03 Z 85,76 A:5b Comments: Nothing to add. X ,48 Y ,54 Z 85,63 7

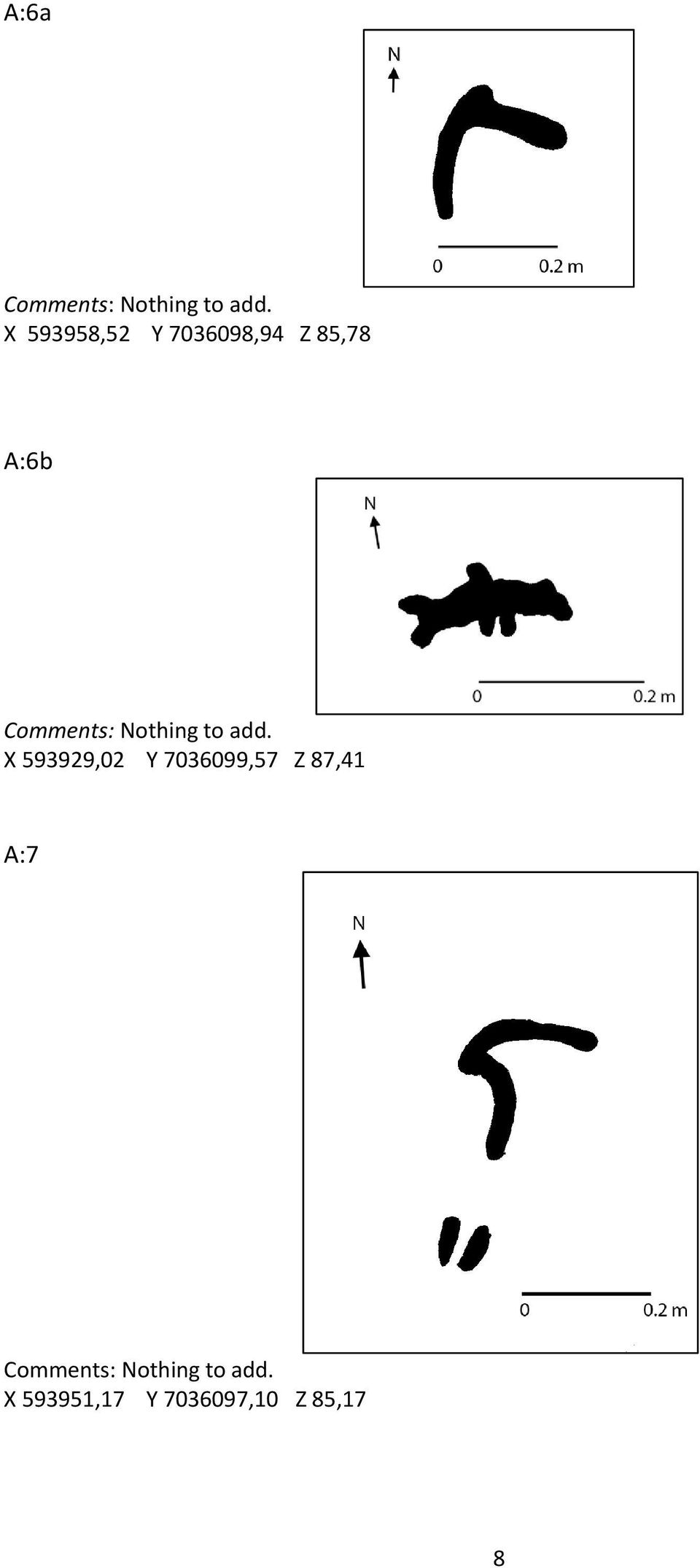

9 A:6a Comments: Nothing to add. X ,52 Y ,94 Z 85,78 A:6b Comments: Nothing to add. X ,02 Y ,57 Z 87,41 A:7 Comments: Nothing to add. X ,17 Y ,10 Z 85,17 8

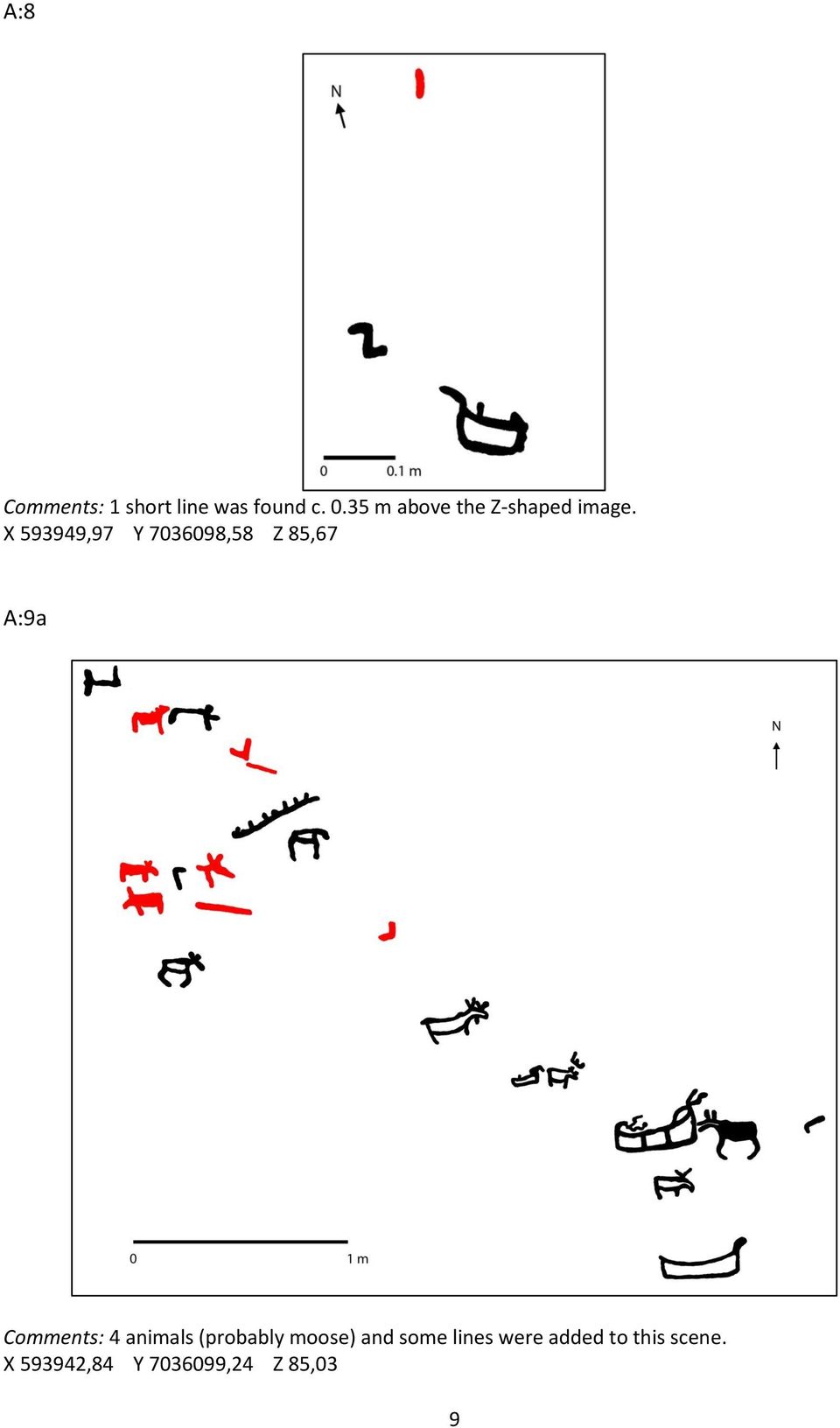

10 A:8 Comments: 1 short line was found c m above the Z-shaped image. X ,97 Y ,58 Z 85,67 A:9a Comments: 4 animals (probably moose) and some lines were added to this scene. X ,84 Y ,24 Z 85,03 9

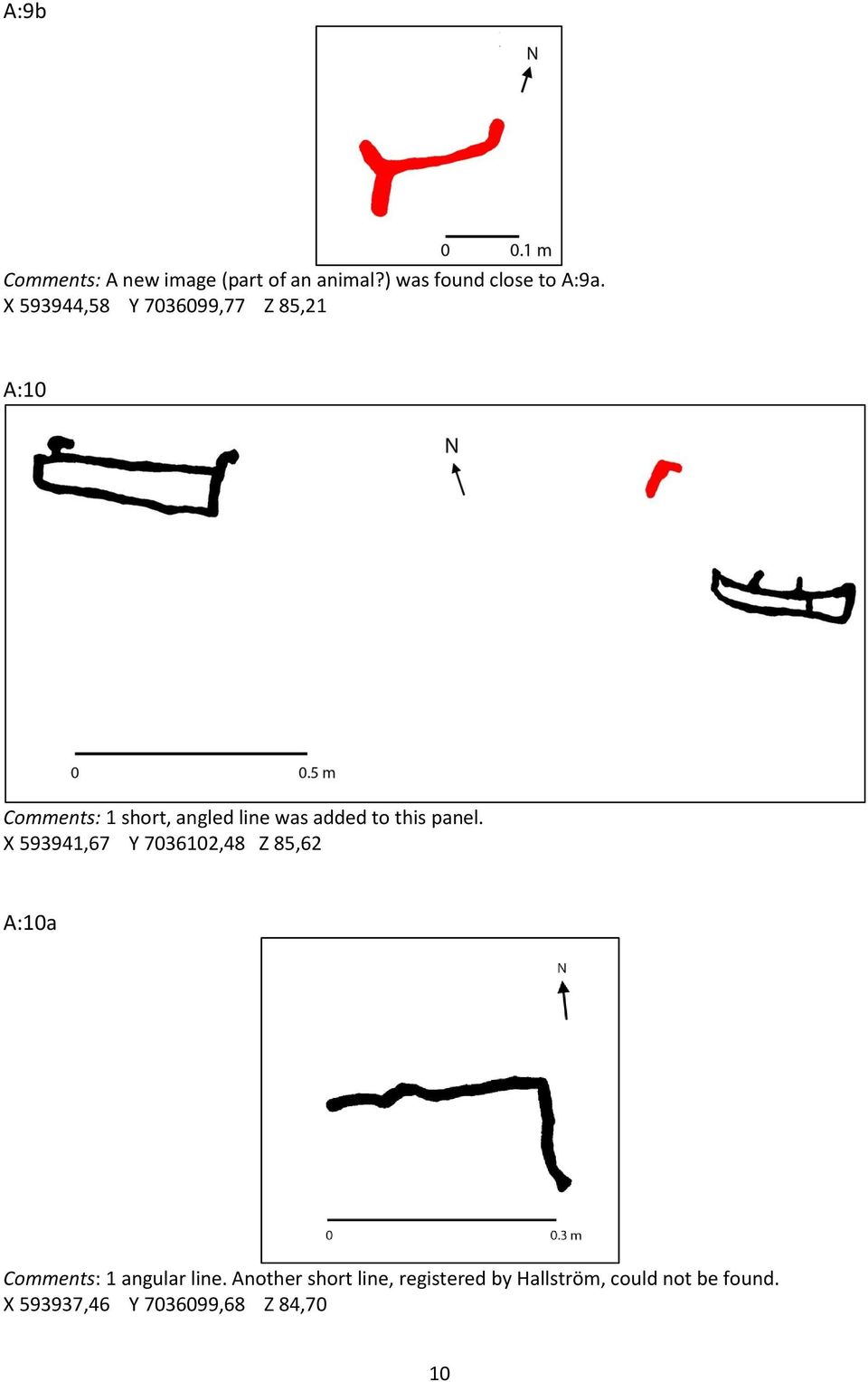

11 A:9b Comments: A new image (part of an animal?) was found close to A:9a. X ,58 Y ,77 Z 85,21 A:10 Comments: 1 short, angled line was added to this panel. X ,67 Y ,48 Z 85,62 A:10a Comments: 1 angular line. Another short line, registered by Hallström, could not be found. X ,46 Y ,68 Z 84,70 10

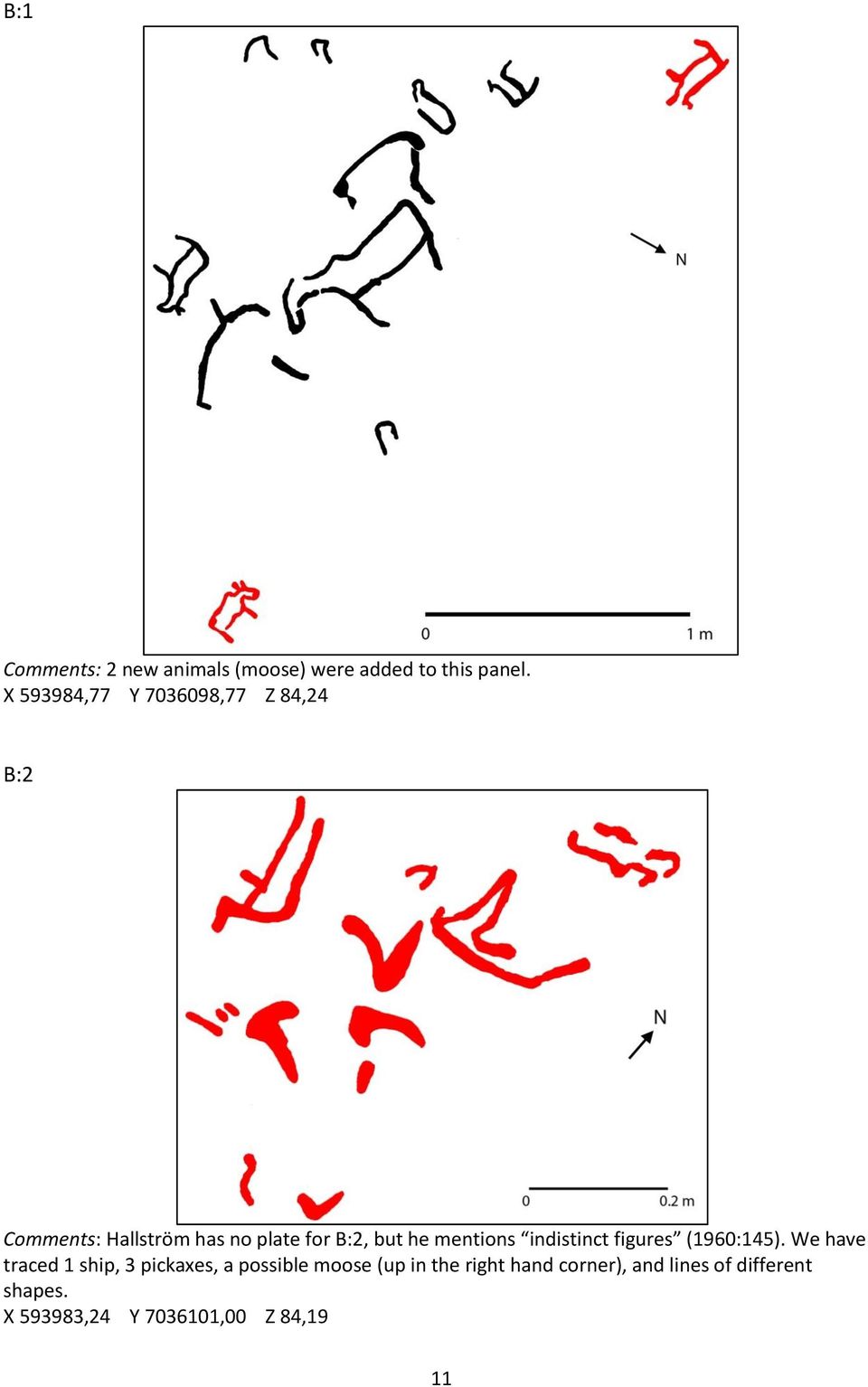

12 B:1 Comments: 2 new animals (moose) were added to this panel. X ,77 Y ,77 Z 84,24 B:2 Comments: Hallström has no plate for B:2, but he mentions indistinct figures (1960:145). We have traced 1 ship, 3 pickaxes, a possible moose (up in the right hand corner), and lines of different shapes. X ,24 Y ,00 Z 84,19 11

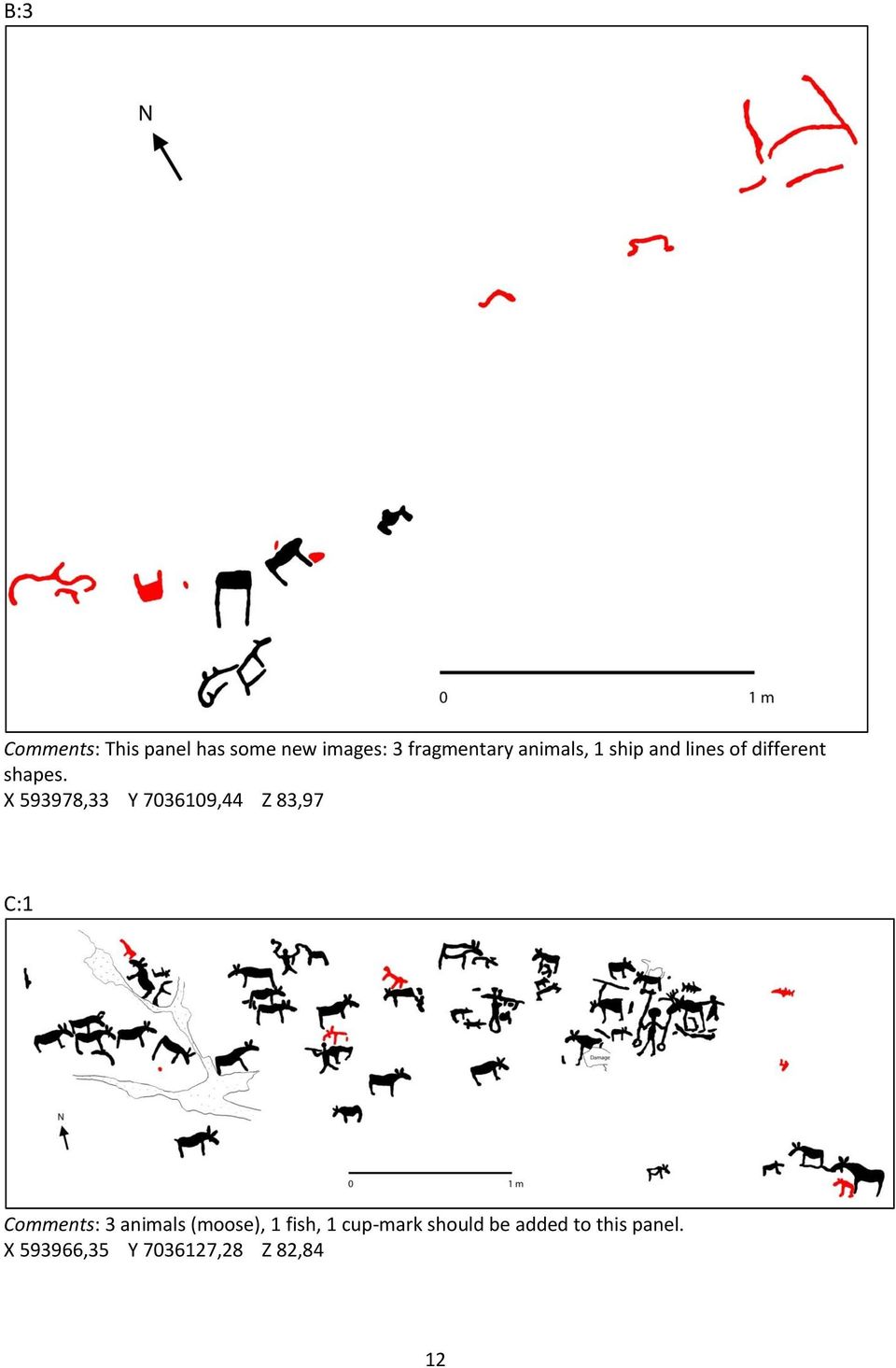

13 B:3 Comments: This panel has some new images: 3 fragmentary animals, 1 ship and lines of different shapes. X ,33 Y ,44 Z 83,97 C:1 Comments: 3 animals (moose), 1 fish, 1 cup-mark should be added to this panel. X ,35 Y ,28 Z 82,84 12

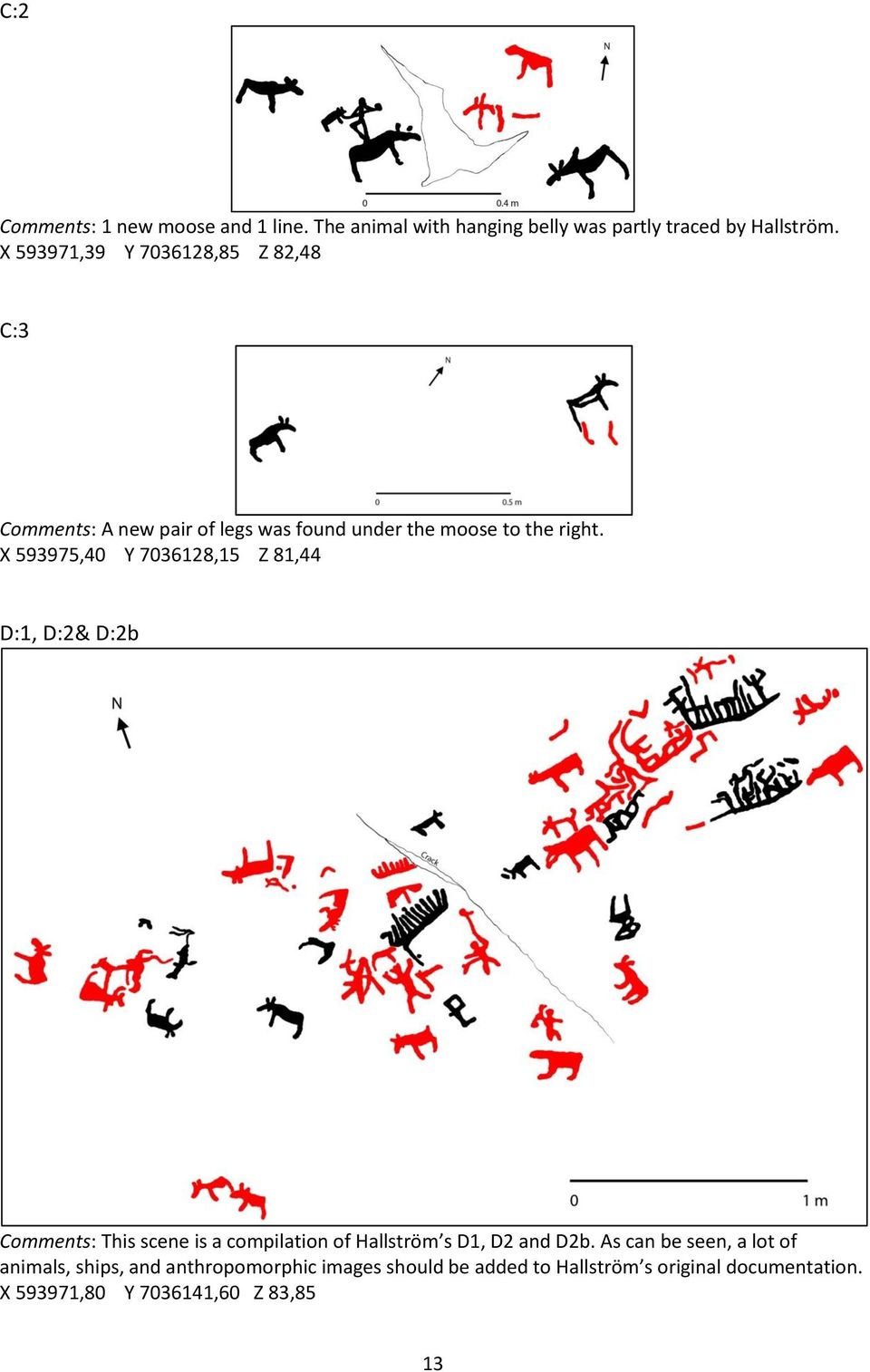

14 C:2 Comments: 1 new moose and 1 line. The animal with hanging belly was partly traced by Hallström. X ,39 Y ,85 Z 82,48 C:3 Comments: A new pair of legs was found under the moose to the right. X ,40 Y ,15 Z 81,44 D:1, D:2& D:2b Comments: This scene is a compilation of Hallström s D1, D2 and D2b. As can be seen, a lot of animals, ships, and anthropomorphic images should be added to Hallström s original documentation. X ,80 Y ,60 Z 83,85 13

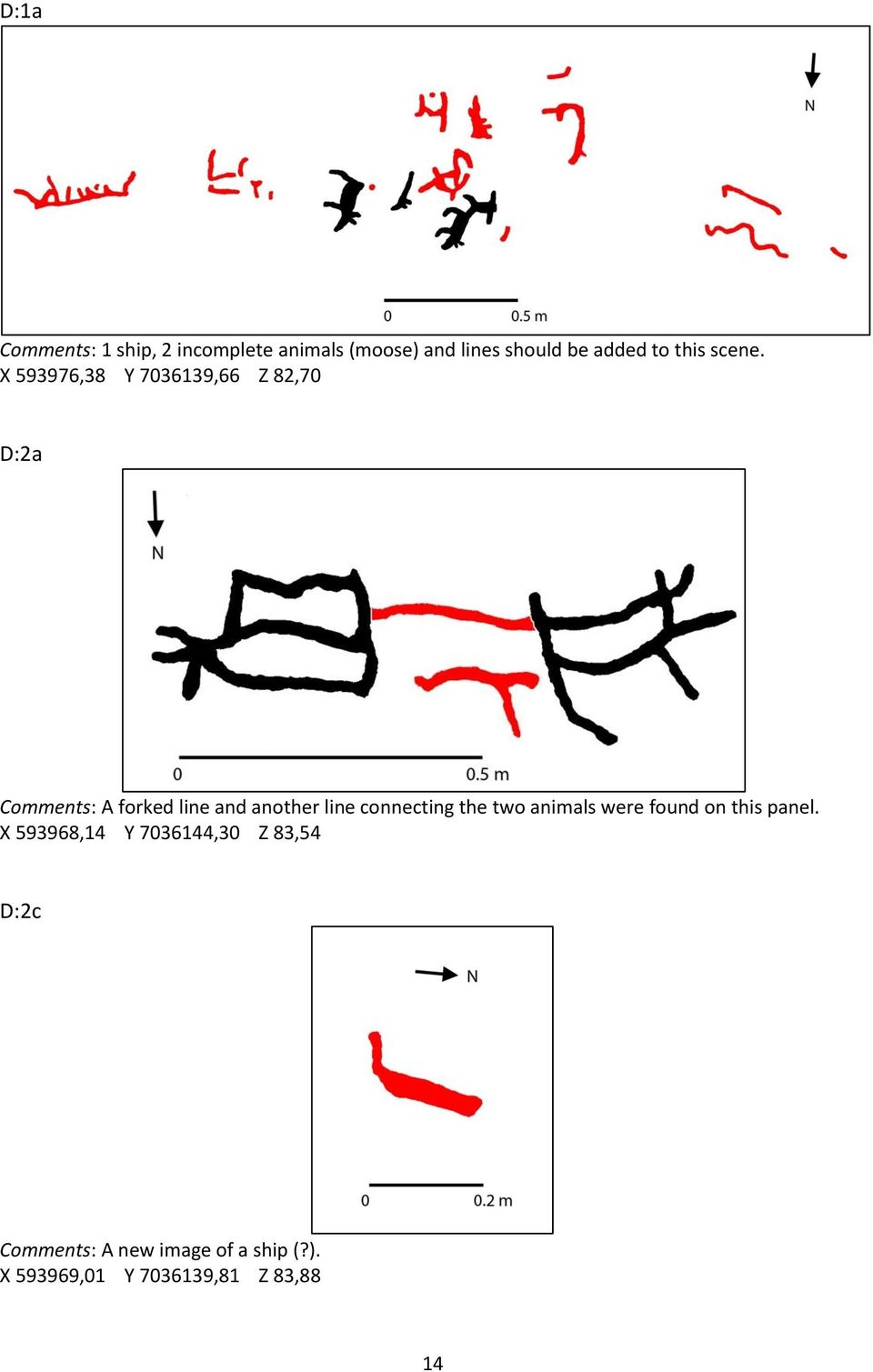

15 D:1a Comments: 1 ship, 2 incomplete animals (moose) and lines should be added to this scene. X ,38 Y ,66 Z 82,70 D:2a Comments: A forked line and another line connecting the two animals were found on this panel. X ,14 Y ,30 Z 83,54 D:2c Comments: A new image of a ship (?). X ,01 Y ,81 Z 83,88 14

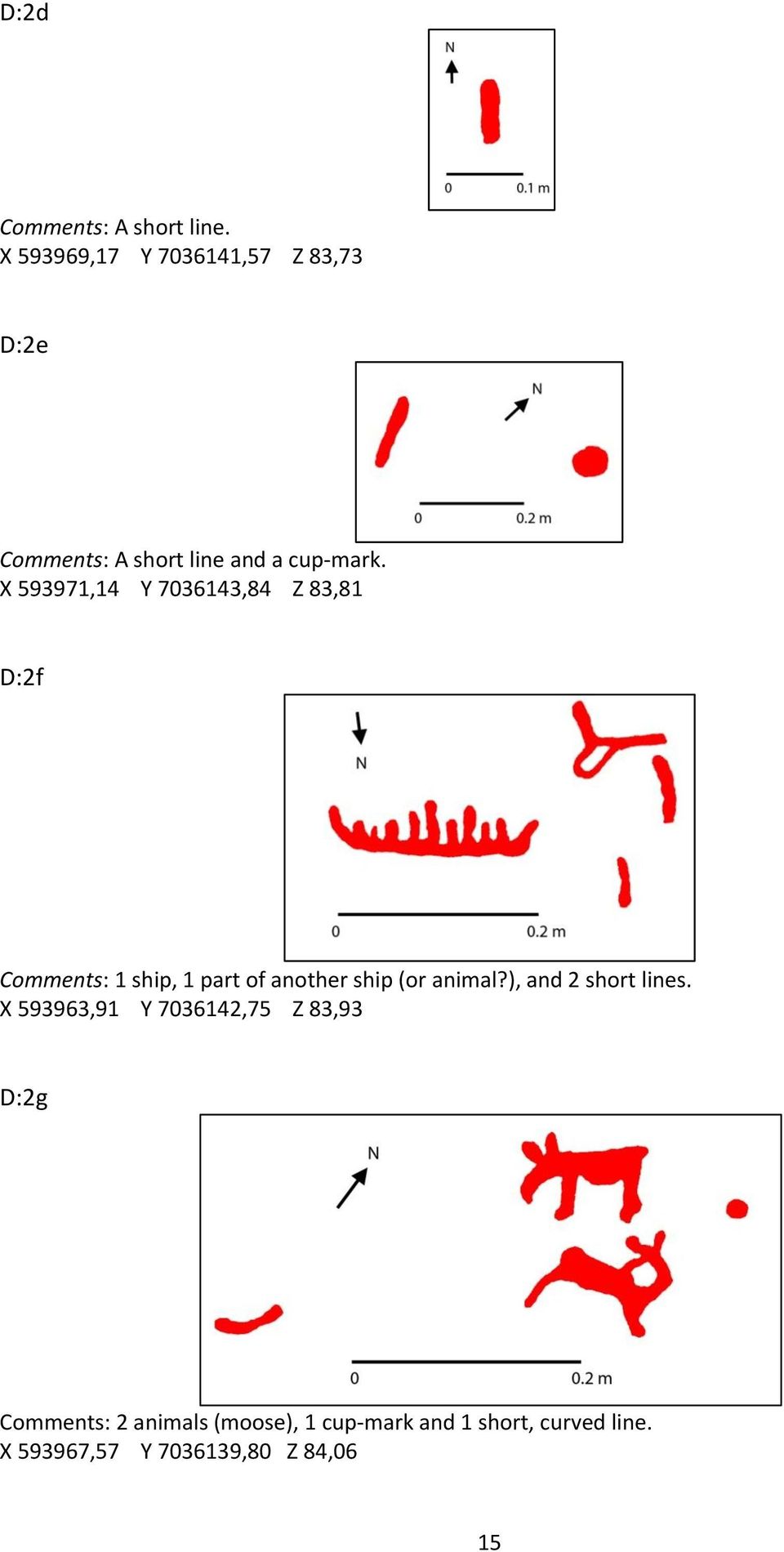

16 D:2d Comments: A short line. X ,17 Y ,57 Z 83,73 D:2e Comments: A short line and a cup-mark. X ,14 Y ,84 Z 83,81 D:2f Comments: 1 ship, 1 part of another ship (or animal?), and 2 short lines. X ,91 Y ,75 Z 83,93 D:2g Comments: 2 animals (moose), 1 cup-mark and 1 short, curved line. X ,57 Y ,80 Z 84,06 15

17 D:3 Comments: A lot of small lines or flying objects were found above the ship and (probably) 1 animal in the upper left corner of the scene. X ,66 Y ,46 Z 81,63 D:3a Comments: 1 cup-mark was found above the head of the centaur. X ,17 Y ,22 Z 81,43 16

18 D:4 Comments: 1 moose superimposed upon the anthropomorphic image, 1 animal (?) below, and lines (images?) that are difficult to interpret. X ,41 Y ,49 Z 81,01 D:5 & D:5a Comments: This panel comprices Hallström s D:5 and D:5a. 5 animals (moose), 2 ships, 1 anthropomorphic figure, 1 pole with animal head (?), and some unidentifiable images should be added. A rock carving from 1923 (made by Verner Molander from Resele) can also be seen: VERNER MOLANDER, RESELE X ,63 Y ,51 Z 80,95 17

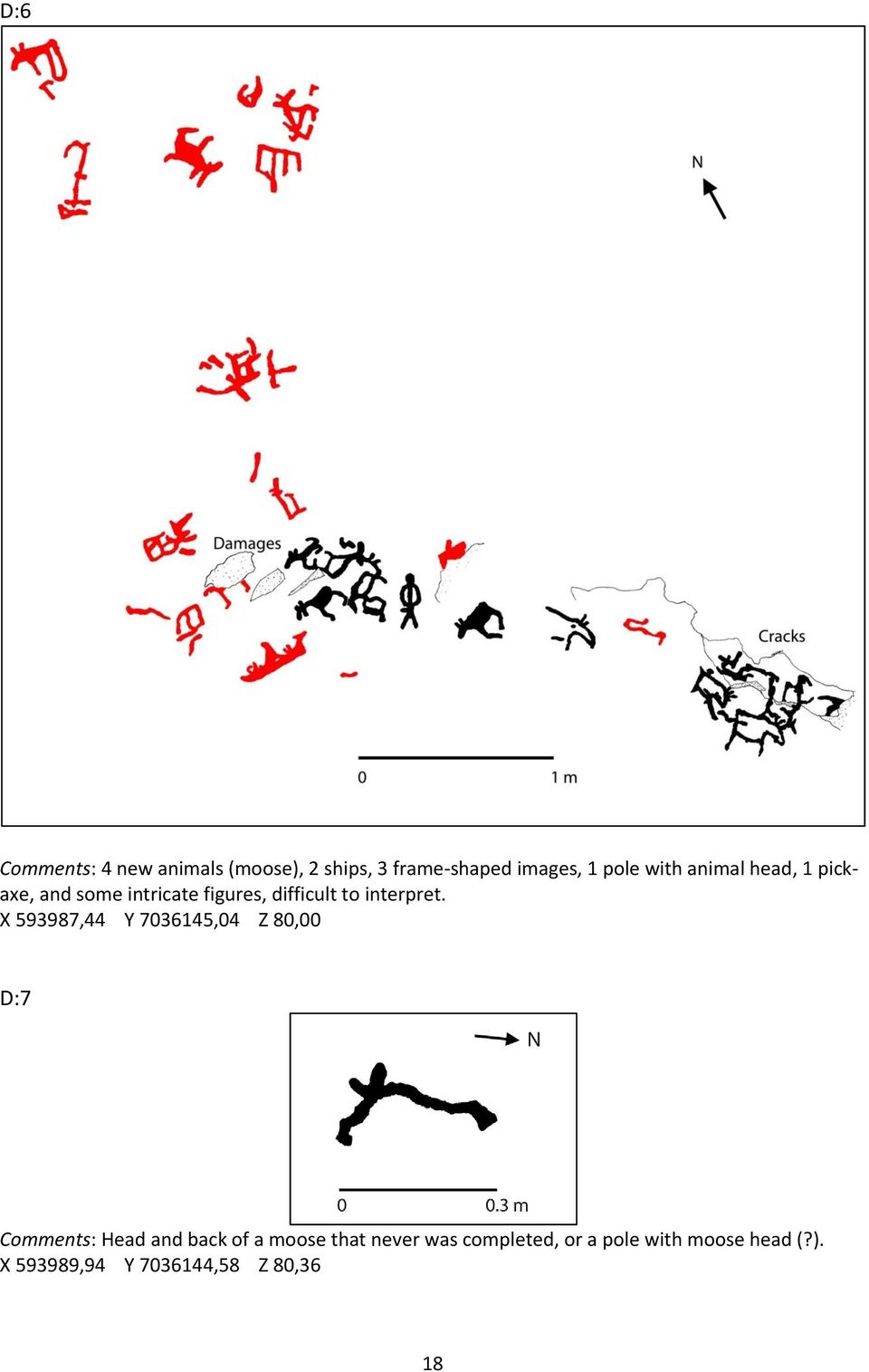

19 D:6 Comments: 4 new animals (moose), 2 ships, 3 frame-shaped images, 1 pole with animal head, 1 pickaxe, and some intricate figures, difficult to interpret. X ,44 Y ,04 Z 80,00 D:7 Comments: Head and back of a moose that never was completed, or a pole with moose head (?). X ,94 Y ,58 Z 80,36 18

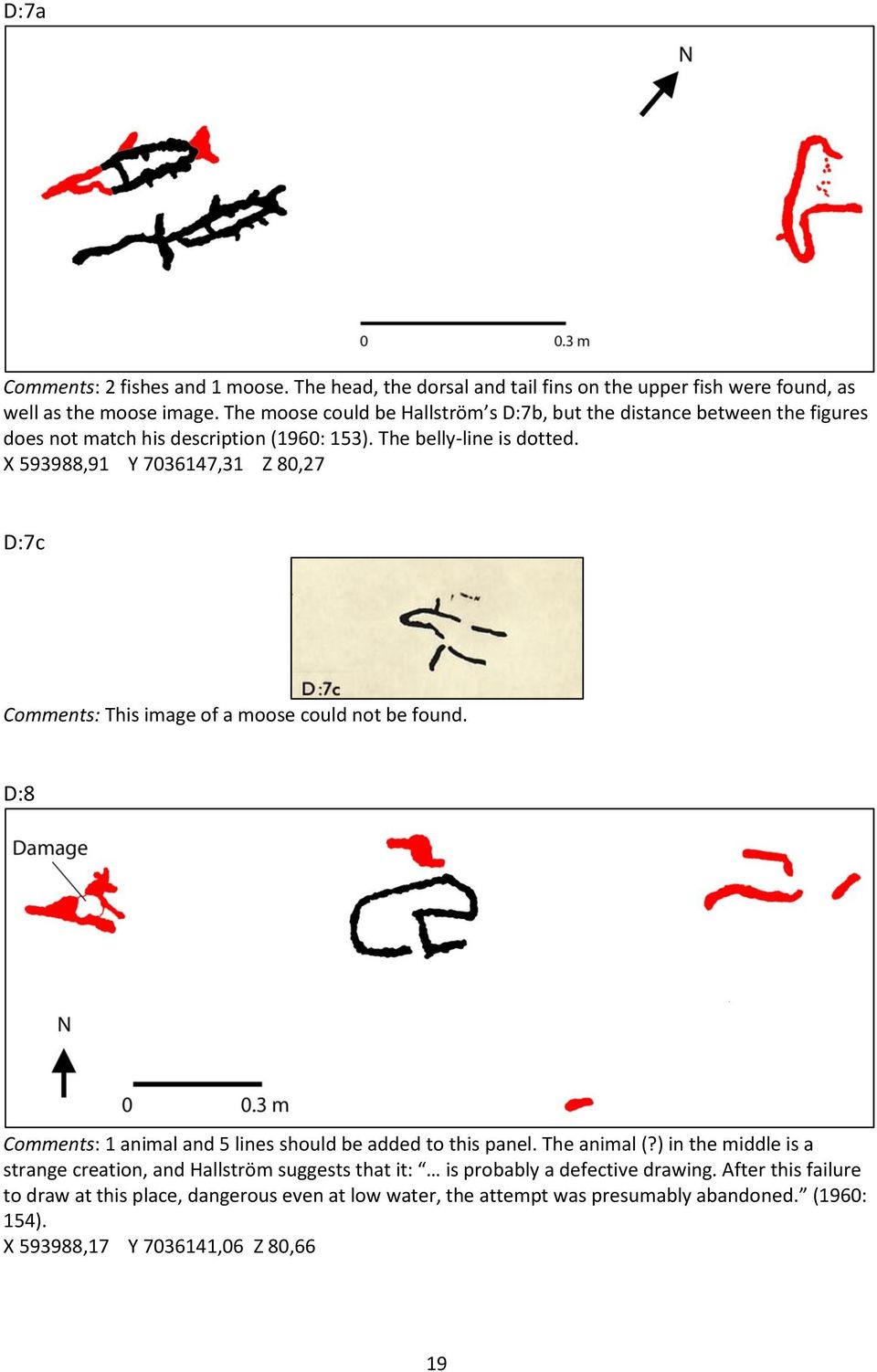

20 D:7a Comments: 2 fishes and 1 moose. The head, the dorsal and tail fins on the upper fish were found, as well as the moose image. The moose could be Hallström s D:7b, but the distance between the figures does not match his description (1960: 153). The belly-line is dotted. X ,91 Y ,31 Z 80,27 D:7c Comments: This image of a moose could not be found. D:8 Comments: 1 animal and 5 lines should be added to this panel. The animal (?) in the middle is a strange creation, and Hallström suggests that it: is probably a defective drawing. After this failure to draw at this place, dangerous even at low water, the attempt was presumably abandoned. (1960: 154). X ,17 Y ,06 Z 80,66 19

21 D:9 Comments: 1 animal (perhaps 2?), some dots and curved lines are the new features on this panel. X ,20 Y ,79 Z 81,07 D:10, D:11 and D:11a Comments: Only 4 lines and 1 cup-mark were added to this scene. X ,35 Y ,03 Z 80,89 20

22 D:12 and D:13 Comments: A pair of legs and a dotted belly-line should be added to the lower moose. A line was also discovered on the image behind the other moose, making it look like a bestiality scene (?). 1 long line and 2 cup-marks were also found between the seal looking figures fabulous beings as Hallström called them (1960: 157). X ,29 Y ,23 Z 81,51 D:16 Comments: 2 animals, 1 anthropomorphic, 3 lines and 2 unidentifiable carvings were added to this scene. X ,42 Y ,63 Z 83,16 21

23 D:

24 Comments: On this large panel (previous page) we can see a great increase in the number of recorded images. According to our documentation there are 141 carved items on D:14-15, which marks an increase with 143%. In many cases Hallström had seen some vague lines or carved forms where we now have identified certain figures. The new motives are mainly animals (moose) and anthropomorphic figures. X ,11 Y ,43 Z 82,93 D:16a Comments: 4 certain animals, 3 possible animals, 1 fish (?) and 1 forked line are the new images. X ,04 Y ,35 Z 82,89 D:16b Comments: 1 certain moose, 1 possible animal and 1 fish (salmon) should be added to the picture. X ,72 Y ,07 Z 83,47 23

25 D:16c Comments: A slight change in the form of the animal, compared to Hallström s documentation. X ,60 Y ,53 Z 83,64 D:17 Comments: 2 new animals (moose), 1 fish?, 1 ship and some lines that are difficult to interpret. X ,29 Y ,45 Z 82,17 D:18a Comments: 1 part of a ship and 1 animal (?) are the new items. X ,19 Y ,92 Z 78,78 24

26 D:18 I and D:18 II Comments: 2 lines and 1 animal to be added to this panel. X ,65 Y ,71 Z 80,00 D:18b Comments: A ship of an unusual type was found very close to the water. A rock carving ship of this type has been found at Laxforsen in Västerbotten (Larsson & Broström 1999). X ,64 Y ,25 Z 77,26 D:19 Comments: 1 animal (moose). X ,41 Y ,54 Z 80,01. 25

27 D:20 Comments: 1 cup-mark, 3 cm I diameter. X ,45 Y ,51 Z 80,11 D:21 Comments: 1 moose image, 1 short line and an undeterminable figure. X ,57 Y ,64 Z 81,19 E:1 Comments: Only 1 new image: a cup-mark. X ,00 Y ,54 Z 85,30 26

28 E:2 Comments: To this image of a moose a small cup-mark has been added. X ,05 Y ,34 Z 85,33 E:3 Comments: No major change. X ,96 Y ,46 Z 84,65 E:3a Comments: No major change. X ,86 Y ,12 Z 84,53 27

29 E:4 Comments: 2 new small ships. X ,45 Y ,67 Z 85,84 F:1 Comments: Only a few new carved dots could be traced. X ,02 Y ,57 Z 85,07 F:2 Comments: 1 anthropomorphic figure (partly recognized by Hallström) and 1 forked line are new in this scene. X ,91 Y ,86 Z 85,93 28

30 F:3 Comments: These two lined could be parts of Hallström s F:3, even if the location does not fit his description. X ,22 Y ,58 Z 84,97 F:3a Comments: This image is slightly reinterpreted, but it is Hallström s F:3a. A short line has been added. X ,41 Y ,36 Z 85,12 F:3b Comments: Nothing to add. X ,73 Y ,63 Z 85,14 29

31 F:3c Comments: 1 ship image, 3 lines and 1 cup-mark. X ,14 Y ,83 Z 85,20 F:4 Comments: The head of the animal was fully traced. X ,74 Y ,47 Z 84,89 F:5 Comments: Nothing to add. X ,52 Y ,68 Z 84,31 30

32 G:1 31

33 Comments: On this great panel at Laxön (previous page) there were only some minor changes: 1 ship (?), 1 cup-mark and 1 angled line could be added. X ,02 Y ,57 Z 87,41 G:1a Comments: The stem part of a ship could be added to Hallström s drawing. X ,77 Y ,59 Z 87,93 G:2 Comments: A new group of animals (moose and fish) was found above the lonely fish in Hallström s G:2 panel. Also, the head (with antlers) of an animal could be traced. X ,20 Y ,11 Z 88,22 32

34 G:3 Comments: 5 animals (moose), 1 fish, and a number of lines (fragmentary images) should be added to this scene. X ,08 Y ,32 Z 88,79 G:3c Comments: Two new images: 1 animal (moose) and 1 stem of a ship (?). X ,98 Y ,52 Z 88,69 G:4 Comments: Nothing to add to Hallström s original drawing. X ,91 Y ,02 Z 86,13 33

35 G:5 Comments: 5 new images (animals?) could be added to this panel. Where most of the images were found, the rock surface is damaged. X ,74 Y ,70 Z 88,11 G:6 Comments: Nothing to add. X ,83 Y ,93 Z 86,74 G:7 Comments: New: Most probably 2 ships (broken by a crack): one stem and one stern remains. X ,40 Y ,11 Z 86,86 34

36 G:8 Comments: 3 new lines. X ,08 Y ,85 Z 87,47 G:9 Comments: A new angled line perhaps body and legs of an animal (?). X ,27 Y ,02 Z 87,27 G:10 Comments: New: An animal (or ship?) with two heads. X ,60 Y ,51 Z 86,63 35

37 H:1-H:3 Comments: Hallström s H-series was not possible to find. It is located close to the power plant dam and the floodgate (Hallström 1960: 181) on the northern shore of the rapids. X:1 Comments: 1 new animal (moose) and 1 short line. X ,65 Y ,35 Z 81,85 36

38 X:2 Comments: Hallström recorded some lines which he interpreted as possible fragments of animals (1960: 183). Our tracing revealed 2 ships and 1 short line in 90 o angel. X ,88 Y ,79 Z 81,81 X:3 Comments: This ship with an animal head at the stem is not of the same type as the one that Hallström recorded, but it is located at roughly the same spot. X ,00 Y ,65 Z 82,49 X:3a Comments: This ship resembles X:3a in Hallström s publication, even if he has 2 ships and the direction seems to be upside down (his arrow towards North is pointing in the opposite direction). X ,15 Y ,35 Z 82,41 37

39 X:4 Comments: On the X:4 panel we could only retrieve the ship and a new short line. The moose image was impossible to see. X ,96 Y ,36 Z 82,15 X:5 Comments: This scene could not be found. Y:1a-c Comments: 3 ships and 2 lines are new. The two ships to the right were noticed by Hallström, but there are more details in the new documentation. X ,71 Y ,77 Z 82,28 38

40 Y:2-3 Comments: A small carved depression in front of the moose image is the only new element. X ,47 Y ,38 Z 82,12 Z:1 Comments: A Z-shaped line (swan?) is the only image that could be added to this scene. X ,15 Y ,84 Z 78,01 Z:1a Comments: This small boat was never found. Z:2 Comments: Only 2 new carvings on this panel. X ,79 Y ,63 Z 78,09 39

41 Carvings in the Z- and Ä-series that could not be found when surveying the southern shore. Ä:1 Comments: 8 new images could be identified on this panel: 1 moose, 2 ships and lines. The ship at the top of the drawing is of a unusual type, similar to D:18b (Larsson & Broström 1999). X ,16 Y ,47 Z (missing) Ä:4 Comments: In Hallström s drawing, a line was noted c. 0.7 m above the stem of the ship. This line could not be found. X ,28 Y ,78 Z (missing) 40

42 Ö Comments: This image of an animal (reindeer or goat?) was carved on a loose stone, found on the southern shore in The stone was moved to the Parish Museum and after that it was lost. Summary, Main Group I. Laxön: The total number of rock carvings (all categories included) on Laxön and on the southern shore are now close to This figure includes everything, from short carved lines and cup-marks to complete images of ships, animals, etc. We have also included the images documented by Hallström that we could not find in our survey. The table below shows the total number of carvings and the number of new carvings, distributed on the different sub-groups (A-Ä). Altogether, the increase in Main Group I is 72%. Panels New Total A group B group C group D group E group 4 16 F group G group X group 6 11 Y group 6 33 Z group 3 31 Ä group 4 27 Not found 65 Total Increase % 72 41

43 Main Group II. Notön (Hallström 1960, Pl. XVI-XXII) 42

44 The new documentation of Main Group II. A:1 Comments: Nothing to add. X ,41 Y ,63 Z 76,64 A:2 Comments: 1 line, close to the two anthropomorphic figures should be added. X594209,92 Y ,62 Z 76,69 A:3a-b Comments: Nothing to add. X ,86 Y ,60 Z 76,79 43

45 A:4 Comments: A small, oval carving was found close to the animal to the left. X ,57 Y ,34 Z 76,73 A:5 Comments: 1 cup-mark, inside one of the ships was found. X ,93 Y ,83 Z 77,45 A:6 Comments: Hallström had noticed a box-formed carving (the black figure?). We could also identify 1 animal, lines and 1 cup-mark. The animal could be a dog (?), with long, raised ears and an upright tail. X ,37 Y ,32 Z 77,78 44

46 A:7 Comments: Hallström recorded the oval form and interpreted it as a boat or some other figure. (1960: 197), and our documentation revealed this image but also two anthropomorphic figures and two curved lines. The larger of the two humans has a short carved line between the legs. If this should be interpreted as a gender indicator, is the figure then of female or male sex? X ,27 Y ,58 Z 77,57 A:8 Comments: Nothing new to add. X ,27 Y ,10 Z 77,32 45

47 A:9 Comments: This carving was found on a loose stone on the gravel-bank on Notön in It was removed to the National Museum of Antiquities in Stockholm (No ), according to Hallström (1960: 197). A:10 Comments: New image of a moose. X ,74 Y ,59 Z 77,16 A:11 Comments: A new group of images, consisting of 3 ships and 1 spearhead-shaped image. X ,48 Y ,80 Z 78,24 46

48 B:1 Comments: Only minor changes compare to Hallström s documentation. The curved line above the stern of the ship could not be found. We have also added two new rays on the sun above the ship. X ,82 Y ,75 Z 76,47 B:2a-b Comments: This panel is probably Hallström s B:2a or B:2b. The distance between the two is, according to Hallström, 2,8 m, so this drawing cannot include both. 2 new animals were found. X ,59 Y ,95 Z 76,57 B:3 Comments: This image was found at the position of B:3, according to Hallström s description, though it does not resemble his drawing. X ,51 Y ,91 Z 76,24 47

49 C:1 Comments: A curved line, 0.3 m to NE of the head of the ship, could not be retrieved. X ,08 Y ,05 Z 75,96 C:2 Comments: The stern of the ship to the left could be added to the picture. X ,63 Y ,06 Z 76,58 C:4 Comments: Nothing to add. X ,67 Y ,98 Z 77,45 48

50 C:3 Comments: On this panel we could not find the easternmost figures on Hallström s drawing (4 ships and some lines). X ,94 Y ,74 Z 77,10 49

51 C:5 Comments: 1 ship, 1 pick-axe and 6 lines are new items in this scene. X ,22 Y ,24 Z 77,43 C:8 Comments: Hallström s ship was interpreted in a different way and 2 lines and 1 cup-mark should be added. X ,65 Y ,37 Z 78,34 C:9 Comments: A 0.13 m long line. X ,09 Y ,14 Z 78,28 50

52 C:6-7 Comments: On this large panel, only one small ship (above the main ship) is missing compared to Hallström s drawing. X ,86 Y ,93 Z 77,85 51

53 D:1 Comments: 2 new ships, 2 lines and 1 cup-mark were added to this scene. X ,89 Y ,56 Z 78,44 D:2 Comments: A few details were added: two ears and hooves on the animal to the right. X ,51 Y ,25 Z 78,65 52

54 D:5 Comments: 1 animal, 2 lines and 8 cup-marks should be added. 1 animal (in the E part of the panel) could not be retrieved. X ,40 Y ,73 Z 78,74 53

55 D:3 Comments: Nothing to add. X ,63 Y ,48 Z 78,87 D:4 Comments: The frame-shaped image behind the animal in Hallström s documentation could not be found, but instead we found a double-headed creature (ship?). X ,37 Y ,70 Z 78,64 D:6 Comments: One of Hallström s ships (to the right of the stem of the longest ship) could not be retrieved. Instead, we found 3 new ships and 2 lines. X ,32 Y ,69 Z 78,57 54

56 D:7 Comments: 1 pick-axe was added to this scene. X ,44 Y ,65 Z 78,07 D:8 Comments: Only one small carving (ship?) was found close to the previously known images. X ,18 Y ,63 Z 77,78 D:9 Comments: 2 pick-axe shapes were added. X ,48 Y ,39 Z 77,74 55

57 D:10 Comments: A new line (ship?) could be traced. X ,80 Y ,12 Z 77,50 D:11 Comments: Nothing to add. X ,82 Y ,34 Z 77,37 D:12 Comments: A hook-shaped line. X ,18 Y ,50 Z 78,51 56

58 E:1 Comments: New elements are 3 ships, 1 line and 2 cup-marks. The southernmost images (partly traced by Hallström) were two ships. X ,65 Y ,65 Z 78,30 E:2 Comments: 1 complete ship, 2 fragmentary ships, 2 lines, 1 cup-mark and the continuation of a ship that Hallström started to draw. X ,81 Y ,63 Z 78,69 57

59 E:3 Comments: 1 new, fragmentary ship (?), 2 cup-marks and a slightly different shape of the muzzle of the moose was noted on this panel. X ,26 Y ,62 Z 78,49 F:1 Comments: Nothing to add. X ,49 Y ,12 Z 78,83 58

60 F:2 Comments: 1 animal, 3 lines and 3 cup-marks are the new features. X ,94 Y ,15 Z 78,83 G:1 Comments: A curved line could be added to this scene. X ,49 Y ,05 Z 78,81 59

61 G:2 Comments: No major changes in this scene. We added 1 ship and 1 animal. X ,69 Y ,28 Z 78,63 G:3 Comments: 1 new cup-mark. X ,63 Y ,25 Z 78,34 60

62 G:4 Comments: Nothing to add. X ,52 Y ,21 Z 77,92 G:5 Comments: 2 new anthropomorphic figures were identified. X ,76 Y ,33 Z 80,01 61

63 G:6 Comments: A new panel, consisting of 3 ships and a line should be added to the G-series. X ,90 Y ,26 Z 80,11 H:2 Comments: Nothing to add. X ,81 Y ,91 Z 77,66 H:3 Comments: Two small carvings (indistinct) to the left and to the right of the animals were not found. X ,26 Y ,66 Z 77,82 62

64 H:1 Comments: 5 lines, 2 ships and 2 new cup-marks are the main changes in this panel. Some images have been slightly reinterpreted. X ,49 Y ,44 Z 78,09 63

65 H:4 Comments: Nothing to add. X ,97 Y ,17 Z 78,11 J:1 Comments: 6 ships (some partly traced by Hallström), 1 animal (?) and some lines are new in this scene. Some of Hallström s short lines were not found. X ,97 Y ,66 Z 78,62 J:2 Comments: The stem of a ship and one forked line were the new carvings here. X ,95 Y ,45 Z 78,36 64

66 J:3 Comments: An angled line, c. 0.2 m long. X ,05 Y ,61 Z 78,61 K:1 Comments: Nothing to add. X ,22 Y ,32 Z 79,96 K:2 Comments: A U-shaped line was added to this drawing. X ,03 Y ,55 Z 79,52 K:3 Comments: The cup-mark behind the foreleg noted by Hallström could not be identified. X ,33 Y ,67 Z 79,58 65

67 K:4 Comments: Nothing to add. X ,35 Y ,74 Z 79,54 K:5 Comments: The shape of our moose differs from Hallström s version: the hooves are forked and the bell under the chin could not be identified. Also, the ears (or antlers?) are different. X ,19 Y ,49 Z 79,79 L:1 Comments: Some of Hallström s animals and lines could not be fully traced. 1 curved line and 2 cupmarks are added. X ,49 Y ,61 Z 80,06 66

68 L:1a & L:2 Comments: These two carvings could not be found. L:3 Comments: Some lines are missing and some have been added. X ,02 Y ,90 Z 81,83 L:4 Comments: 1 ship, 2 complete animals, 2 fragmentary ones and some lines were added to this panel. X ,17 Y ,91 Z 81,28 67

69 L:5 Comments: 2 new animals, 1 cup-mark and the upper part of a human should be added. The legs of the human probably continue in L:6. X ,56 Y ,15 Z 80,55 L:6 Comments: A carving on a loose part of the rock, originally connected with L:5. The two new lines most certainly belong to the anthropomorphic figure in L:5. X ,82 Y ,39 Z 79,92 L:7 Comments: Two new lines. X ,54 Y ,54 Z 79,92 68

70 L:8 Comments: 5 ships, 3 animals, 1 pick-axe, 1 cup-mark and 2 undeterminable figures should be added to this panel. X ,87 Y ,58 Z 80,33 L:9 Comments: The animal does not look like Hallström s L:9, but location on Notön is roughly the same. Two new indeterminable figures were added. X ,96 Y ,04 Z 80,22 L:10 Comments: Nothing to add. X ,84 Y ,77 Z 80,22 69

71 M:1 Comments: 1 anthropomorphic figure, 2 lines and 1 indeterminable carving were added to the picture. X ,79 Y ,93 Z 80,44 M:2 Comments: Nothing to add. The animal is 0.28 m long. X ,79 Y ,44 Z 80,74 N:1 Comments: Nothing to add. X ,94 Y ,49 Z 81,31 70

72 N:2 Comments: 2 animals should be added to this scene. Two lines recorded by Hallström could not be found. X ,44 Y ,26 Z 81,19 N:3 Comments: A 0.12 m long line (the leg of an animal?). X ,62 Y ,28 Z 81,41 O:1 Comments: Nothing to add. X ,65 Y ,83 Z 81,09 O:2 Comments: In our tracing, the arm is not connected to the back of the animal, as in Hallström s drawing. Coordinates missing 71

73 O:3 Comments: 1 curved line and 1 cup-mark are new in the O-series. X ,89 Y ,04 Z 80,86 O:4 Comments: 3 new lines. X ,36 Y ,84 Z 80,72 P:1 Comments: 6 ships, 1 duck (or ship?) and some lines should be added to this panel. X ,72 Y ,08 Z 80,55 72

74 P:2 Comments: Nothing to add. X ,32 Y ,60 Z 80,97 P:3 Comments: 2 ships and 1 animal (partly) are new features here. X ,72 Y ,11 Z 80,55 P:4-5 Comments: Nothing to add. X ,42 Y ,36 Z 80,05 73

75 Q:2 Comments: 1 ship and 1 curved line with forked endings (ship?). X ,16 Y ,18 Z 80,19 Q:1 Comments: For this large panel, Hallström s and our documentation are perfectly matching. The southernmost images in Hallström s documentation are presented on next page as Q:1a and Q:1b. X ,55 Y ,48 Z 80,72 74

76 Q:1a Comments: Nothing to add. X ,97 Y ,47 Z 81,37 Q:1b Comments: A ship image, 0.32 m long. Coordinates missing. Q:3 Comments: These carvings could not be found. 75

77 R:1 Comments: 1 line should be added. X ,79 Y ,33 Z 80,17 R:2 Comments: Nothing to add. X ,93 Y ,11 Z 80,30 R:3 Comments: 1 ship should be added to this panel. X ,07 Y ,15 Z 80,22 76

78 S:1 Comments: Nothing to add. X ,58 Y ,22 Z 80,00 S:2 Comments: The cup-mark and 2 lines noted by Hallström, c. 0.7 m N of these images, were not found. X ,68 Y ,22 Z 79,89 S:3 Comments: A short line was added. X ,31 Y ,99 Z 80,01 77

79 S:4 Comments: 1 angular line (part of a ship?) was added. X ,33 Y ,26 Z 79,91 S:5 Comments: 1 short, slightly curved line added. X ,90 Y ,23 Z 79,44 S:7 Comments: 1 new animal was found. X ,06 Y ,04 Z 79,39 78

80 S:6 Comments: 2 animals (moose), 1 anthropomorphic image, 3 ships, 2 cup-marks and a few short lines were added to this panel. X ,17 Y ,00 Z 79,59 79

81 S:8-9 Comments: 1 ship, 1 swan (?), 8 cup-marks and some lines were the new features here. X ,88 Y ,08 Z 79,32 80

82 T:1 Comments: 3 ships, 1 animal, 1 line and a carved surface. X ,38 Y ,73 Z 79,83 T:2 Comments: 3 animals, 4 ships and 3 lines should be added to this scene. X ,29 Y ,51 Z 78,91 T:4 Comments: A short angular line was found. X ,93 Y ,00 Z 78,07 81

83 T:3 Comments: 4 ships, 3 animals, 1 pick-axe, 2 cup-marks and some curved and straight lines. X ,02 Y ,97 Z 79,54 82

84 T:5 and T:6 Comments: Hallström s panels T:5 and T:6 could not be found when doing our survey. T:7 Comments: Apart from the animal in the lower left corner, the other figures are difficult to interpret (perhaps a small boat? among the lines). X ,67 Y ,22 Z 78,89 T:8 Comments: 2 new ships, 1 line and two indistinct figures. X ,09 Y ,29 Z 79,02 83

85 T:9 Comments: 1 new image of a ship, c. 0.2 m long. X ,27 Y ,51 Z 79,48 U:1 Comments: A line and a cup-mark were added. X ,60 Y ,92 Z 79,59 U:2 Comments: Nothing to add. X ,35 Y ,66 Z 79,19 84

86 U:3 Comments: The ship is 0.38 m long. X ,37 Y ,12 Z 80,21 V:1 Comments: A small hooked line was found. X ,74 Y ,55 Z 80,39 V:2-3 Comments: 2 new ships were found. X ,08 Y ,53 Z 79,64 85

87 X:1 Comments: Nothing to add. X ,42 Y ,18 Z 79,99 X:2 Comments: A small animal (?), c. 0.1 m long. X ,69 Y ,68 Z 79,73 Y:1 Comments: 2 short lines were added. X ,91 Y ,72 Z 80,39 86

88 Y:2 Comments: Nothing to add. X ,99 Y ,96 Z 79,33 Y:3 Comments: Nothing to add. X ,18 Y ,49 Z 79,33 Y:4 Only some short lines traced by Hallström. Could not be found. Y:5 Comments: Nothing to add. X ,40 Y ,51 Z 80,53 87

89 Summary, Main Group II. Notön: The total number of carvings (all categories included) on Notön are now more than This includes everything from short lines to elaborate images of ships, animals, etc. Included in the total is also figures drawn by Hallström that we could not find today. In all, the number of new carvings is 262, which means an increase with 30 %. Panels New Total A group B group 2 11 C group D group E group F group 7 11 G group H group 9 63 J group K group 1 7 L group M group 4 10 N group 3 17 O group 5 8 P group Q group R group 2 28 S group T group U group 2 29 V group 3 16 X group 0 2 Y group 2 8 Not found 17 Total Increase % 30 88

90 Main Group III. Brådön (Hallström 1960, Pl. XXIII-XXVI) 89

91 The new documentation of Main Group III. A:1 Comments: 4 animals and 10 cup-marks should be added to this panel. X ,39 Y ,65 Z 86,24 90

92 A:2 Comments: The animal is 0.14 m long. X ,26 Y ,30 Z 84,91 A:3 Comments: 1 animal (moose) and 1 indistinct figure were found on this new scene. X ,20 Y ,00 Z 87,76 A:4 Comments: 3 new lines. X ,82 Y ,47 Z 88,02 91

93 B:1 Comments: Two new short lines and one animal were added. X ,19 Y ,49 Z 85,79 B:2 Comments: The ship is 1.35 m long. X ,10 Y ,53 Z 85,13 B:3 Comments: Two new images: 1 animal and 1 cup-mark. X ,71 Y ,75 Z 85,37 92

94 B:4 Comments: On this new panel we identified 4 images: 2 foot soles (a pair) and 2 animals. The foot soles and one of the animals are outlined by small, pecked dots, while the other animal is carved in the traditional style. The dotted animal has four legs, which is an unusual trait. X ,54 Y ,22 Z 84,81 C:1 Comments: Nothing to add. X ,74 Y ,25 Z 84,26 C:2 Comments: Nothing to add. X ,18 Y ,29 Z 83,95 93

95 D:1 Comments: Just a small dot and a line added to this scene. X ,05 Y ,09 Z 82,77 D:2 Comments: A small new figure was found (anthropomorphic?). X ,25 Y ,14 Z 82,38 D:3 Comments: Nothing to add. X ,99 Y ,17 Z 82,14 94

96 D:5 Comments: An animal? (to the right) and the stem of a ship (?). X ,52 Y ,61 Z 83,48 E:1 Comments: An indistinct figure in front of the foot soles were not found and a forked line was added. X ,25 Y ,08 Z 83,05 95

97 E:2-3 Comments: Nothing to add to this panel. X ,70 Y ,36 Z 82,90 F:1 Comments: One new foot sole should be added (now a pair). The line is partly made up of small dots. X ,14 Y ,68 Z 81,61 96

98 E:4-6 Comments: No major changes to this large panel on Brådön. X ,90 Y ,15 Z 82,28 97

99 F:2 Comments: Nothing to add. X ,75 Y ,95 Z 80,97 F:3 Comments: Nothing to add. X ,53 Y ,72 Z 81,06 F:4 Comments: Nothing to add. X ,53 Y ,12 Z 82,84 98

100 G Comments: 3 lines (one dotted), 1 cup-mark, 1 leg and a gender marker (?) were added to this scene. X ,15 Y ,02 Z 79,86 H:1 Comments: The positioning of the two animals (in relation to each other) differs slightly from Hallström s drawing. X ,70 Y ,94 Z 79,28 99

101 H:2 Comments: Nothing to add. X ,18 Y ,17 Z 79,71 J:1 Comments: One small carving between the line and the top moose could not be found. X ,22 Y ,73 Z 78,99 J:2 Comments: A new U-shaped line was found. X ,45 Y ,98 Z 78,78 100

102 K:1-2 Comments: The head of one moose could be fully traced. X ,25 Y ,45 Z 78,40 L:1 Comments: Nothing to add. X ,40 Y ,63 Z 76,83 101

103 M Comments: 1 ship, 1 animal and some lines in Hallström s documentation could not be found. An anthropomorphic image has been added. X ,60 Y ,32 Z 77,40 102

104 N Comments: Nothing to add. X ,83 Y ,27 Z 78,06 O:1 Comments: 1 new animal (moose) is added to the picture and 4 cup-marks inside the moose in the lower left corner. X ,29 Y ,73 Z 78,22 103

105 O:2 Comments: 4 cup-marks were added. X ,35 Y ,45 Z 78,66 O:3 Comments: This image differs from Hallström s drawing. Two items are missing. X ,36 Y ,67 Z 78,93 P:1 Comments: 1 curved line and 2 cup-marks are new. X ,65 Y ,28 Z 77,56 104

106 P:2 Comments: Nothing to add. X ,77 Y ,75 Z 78,20 Q:1 Comments: Unusual, four legged creature. The front part of the head was diffuse. X ,30 Y ,34 Z 77,57 Q:2 Comments: Just a new cup-mark in this scene. X ,40 Y ,09 Z 77,59 105

107 Q:3 Comments: This small carving (ship?) is 0.13 m long. X ,20 Y ,56 Z 77,62 Q:4 Comments: A new moose image and a carved dot underneath the chin. X ,07 Y ,61 Z 77,19 R:1 Comments: The lines in Hallström s drawing, connected to this panel, could not be found. X ,91 Y ,51 Z 78,39 106

108 R:2 Comments: The stem (at the right) of this ship could not be properly traced. The length is m 0.9 m. X ,54 Y ,97 Z 78,33 S:1 Comments: A short line, a nozzle, and a fully traced moose are the new features. X ,03 Y ,91 Z 78,57 S:2 Comments: Two new lines. The one to the right probably is the head, ear and back of a moose. X ,91 Y ,68 Z 78,59 107

109 Summary, Main Group III. Brådön: The total number of recorded rock carvings on Brådön is now 479. The table below shows the number of carvings per sub-group and that we have an increase by 14%. Interestingly, the number of new carvings is extremely low in the sub-groups with large panels and many images, e.g. the E-group. Perhaps Hallström scrutinized the major panels extra carefully during his documentation campaigns at Nämforsen. Panels New Total A group B group 9 24 C group 0 14 D group 5 24 E group F group 1 12 G group 4 10 H group 0 5 J group 1 7 K group 0 7 L group 0 7 M group 1 34 N group 0 2 O group 7 38 P group 3 11 Q group 2 11 R group 0 2 S group 4 13 Not found 2 Total Increase %

110 Summary The survey of rock art at Nämforsen in Ångermanland, Sweden, was carried out during the summers of In total, the number of carvings at Nämforsen is, according to our counting, The newly discovered ones (compared to Hallström s documentation) count to 726. It is obvious from the tables presented above that the increase differs significantly if comparing the three main groups: Laxön 72%, Notön 30% and Brådön only 14%. If this is caused by varying quality of our work or Hallström s, or something else, can of course be discussed. For Nämforsen as a whole the general increase is 40%. If it is without doubt that two or more lines or carved areas belong to the same image, we have counted this as 1 carving. The scene below can illustrate this, where the red animal is 1 animal, instead of 1 animal and 1 line. It is obvious that the short line should be interpreted as a hind leg and nothing else. Also, the two animals with superimposed foot soles are treated as 2 animals, even if the contour lines are broken into several smaller lines. If we are to count every individual carving, irrespective of contextual interpretation, the number is close to The following diagrams show the distribution of the new carvings divided into different categories. 109

111 It is obvious that a majority of the new finds consist of lines. On Laxön and Brådön, many new animals (mainly moose) were found, while ships were mainly found on Notön. Cup-marks dominate on Brådön, where we also found some foot soles. In this very descriptive report we have chosen to present the new rock carving data from Nämforsen as we see it. For the time being, we leave interpretations and analyses to other rock art researchers. The most important thing with this report is to deliver the re-documentation of Nämforsen to archaeologists as well as to a broader public. 110

112 Selected photos from the documentation The authors in a small boat on their way to Notön. Photo: Sara Hjalmarsson. Sofia Yasin and Sara Hjalmarsson in action on Notön with the Total Station, collecting coordinate data for the rock carvings and for analyses of the micro-topography of the landscape. Photo: Thomas B Larsson. 111

113 Sofia and Sven-Gunnar searching for rock carvings at night by using a lamp. Photo: Thomas B Larsson. Sven-Gunnar documenting the big Q:1 panel on Notön. In the background are the rapids at Brådön and the hydro-electric power plant. Photo: Thomas B Larsson. 112
