Ett hållbart boende A sustainable living. Mikael Hassel. Handledare/ Supervisor. Examiner. Katarina Lundeberg/Fredric Benesch

Transkript

1 Ett hållbart boende A sustainable living Mikael Hassel Handledare/ Supervisor Examinator/ Examiner atarina Lundeberg/redric Benesch Jes us Azpeitia Examensarbete inom arkitektur, grundnivå 15 hp Degree Project in Architecture, irst Level 15 credits 23 maj 2013

2

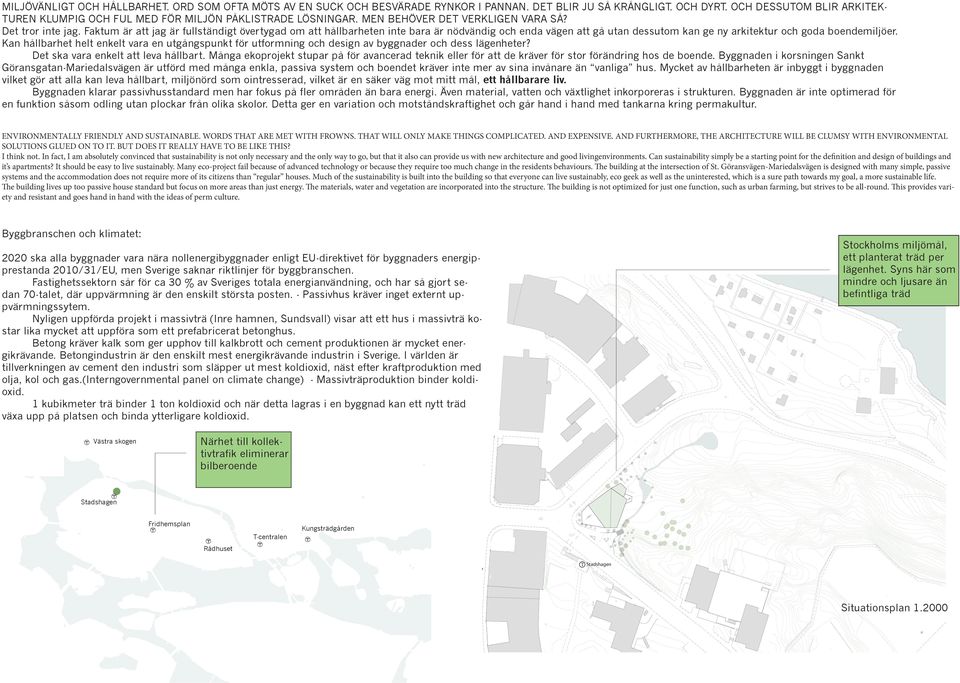

3 ENVIRONMENTALLY RIENDLY AND SUSTAINABLE. WORDS THAT ARE MET WITH ROWNS. THAT WILL ONLY MAE THINGS COMPLICATED. AND EXPENSIVE. AND URTHERMORE, THE ARCHITECTURE WILL BE CLUMSY WITH ENVIRONMENTAL SOLUTIONS GLUED ON TO IT. BUT DOES IT REALLY HAVE TO BE LIE THIS? I think not. In fact, I am absolutely convinced that sustainability is not only necessary and the only way to go, but that it also can provide us with new architecture and good livingenvironments. Can sustainability simply be a starting point for the definition and design of buildings and it s apartments? It should be easy to live sustainably. Many eco-project fail because of advanced technology or because they require too much change in the residents behaviours. The building at the intersection of St. Göransvägen-Mariedalsvägen is designed with many simple, passive systems and the accommodation does not require more of its citizens than regular houses. Much of the sustainability is built into the building so that everyone can live sustainably, eco geek as well as the uninterested, which is a sure path towards my goal, a more sustainable life. The building lives up too passive house standard but focus on more areas than just energy. The materials, water and vegetation are incorporated into the structure. The building is not optimized for just one function, such as urban farming, but strives to be all-round. This provides variety and resistant and goes hand in hand with the ideas of perm culture. T Stadshagen

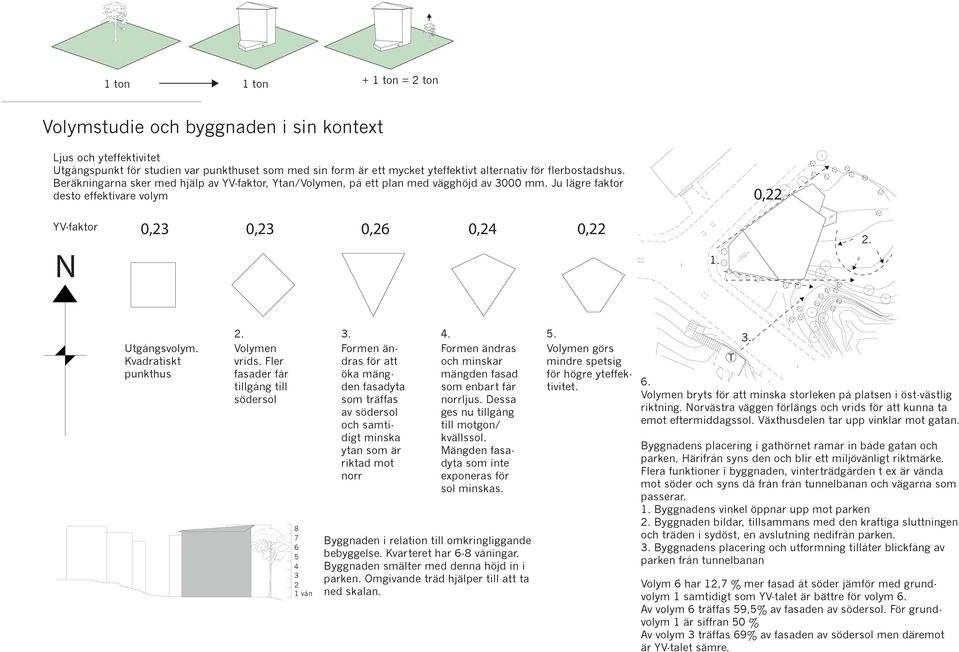

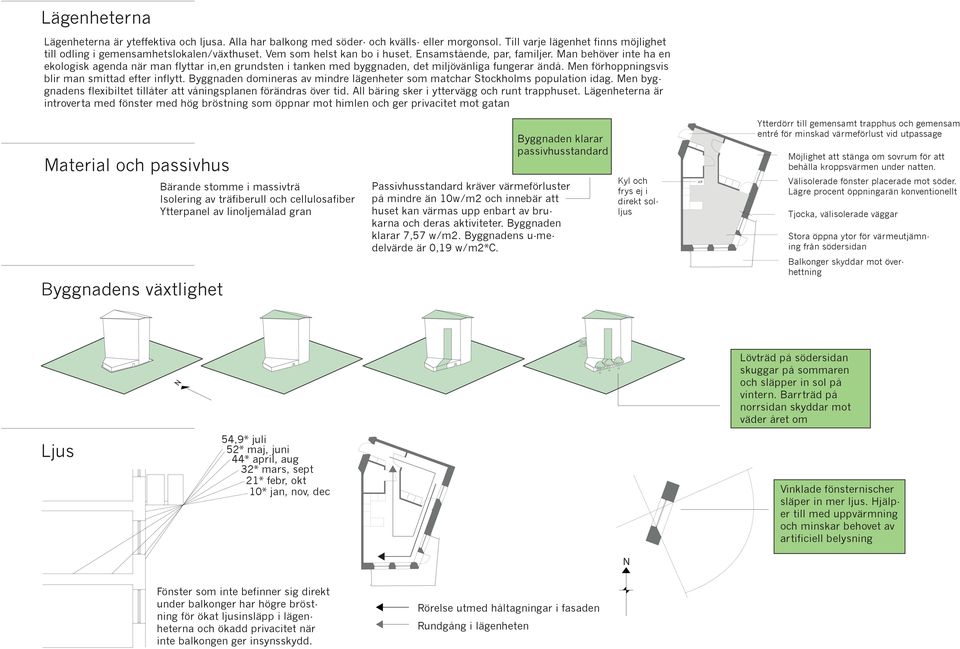

4 YV faktor. Ytan/ Volymen, beräknad på ett plan med vägghöjd av 3 meter. Ju lägre värde desto bättre 0,22 N 0,23 0,23 0,26 0,24 0,22 T

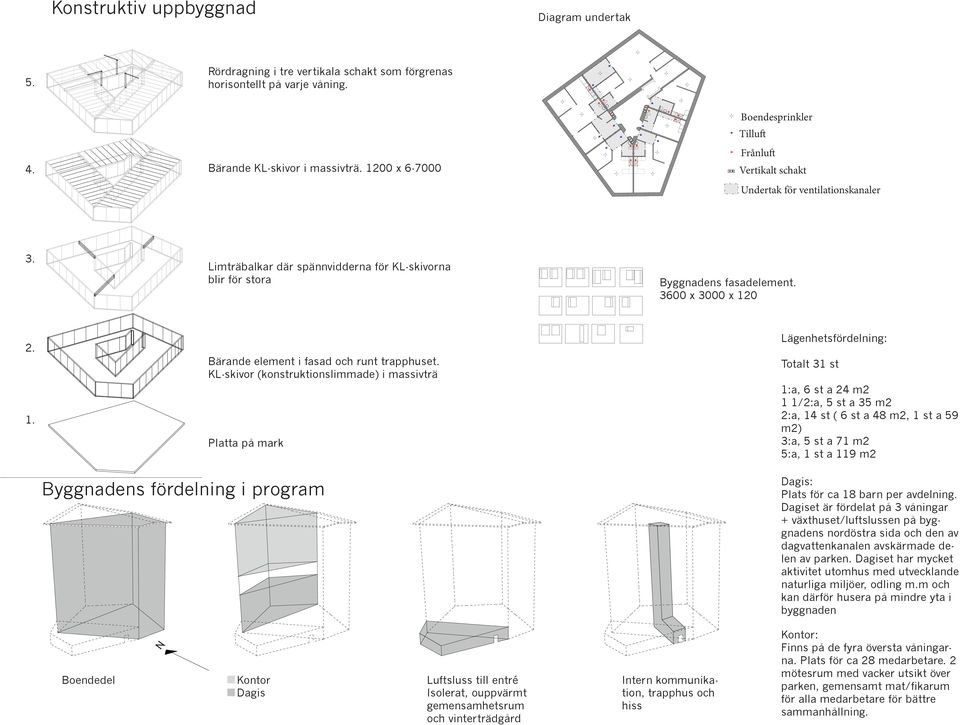

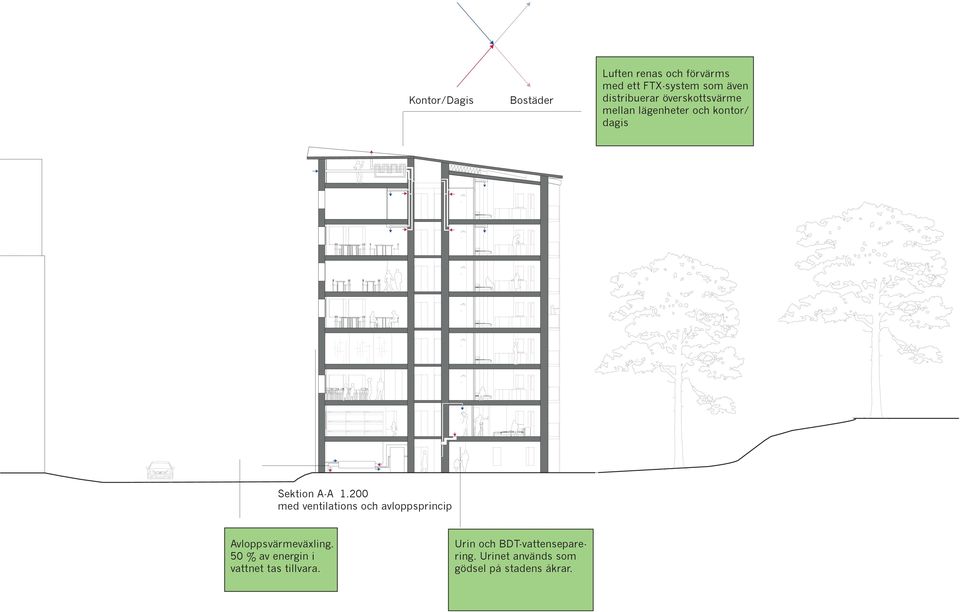

5 Boendesprinkler Tilluft rånluft Vertikalt schakt Undertak för ventilationskanaler

6 N

7

8

9

10

11

12 T

13

14 T

15

16
