1 Yaskawa MA2010 TPS/i konfiguration Ver Art: DOC123

2 MA2010 TPS/i ic (G) 4,049,036 WF 25i PAP /G/W/4R/FSC 4x 44,0001,1407 Matarhjul 1,2 mm TPSi/TSt 4,047,913 MHP 400i R/G/PAP/FSC/ 44,0350,3465 MTB 400i G R/22 /L241 44,0350,5120 BK Fe ø1,2 G/W/5m 4,100,952 Wire feeder bracket 4,047,876 HP 70i CON R /G/4m 4,100,955 Bracket Connection hose pack 42,0100,0570 Adapterplatta MA ,0350,3759 CrashBox /i PAP XL 5m 40,0001,0527 Wire feed hose OD 10mm 4,100,890 WF OPT/i QC DFS AD10 4,100,899 WF OPT/i QC VR AD10 Komplett art: YASKAWAMA2010TPSIBAS 4,075,172 Strömkälla TPS 320i 4,044,014 Interfaceport TPS/i 41,0018,0082 Interfacemodul Devicenet TPS/i 4,077,001 Podium Tillbehör

3 MA2010 TPS/i Standard (W) 4,049,036 WF 25i PAP /G/W/4R/FSC 4,100,813,IK Gasvakt 4,100,867,IK Renblås 16 bar 4x 44,0001,1407 Matarhjul 1,2mm TPSi/TSt 4,047,929 MHP 700i R/W/PAP/FSC 44,0350,3494 MTB 500i W R/22 /L241 44,0350,5120 BK Fe ø1,2 G/W/5m 4,100,952 Wire feeder bracket 4,047,881 HP 95i CON R /W/4m 4,100,955 Bracket Connection hose pack 42,0100,0570 Adapterplatta MA ,0350,3759 CrashBox /i PAP XL 5m 40,0001,0527 Wire feed hose OD 10mm 4,100,890 WF OPT/i QC DFS AD10 4,100,899 WF OPT/i QC VR AD10 Komplett art: YASKAWAMA2010TPSISTD 4,075,174 Strömkälla TPS 400i 4,066,013 WP Puls 4,044,014 Interfaceport TPS/i 41,0018,0082 Interfacemodul Devicenet TPS/i 4,048,003 Vattenkyl CU1100i 4,100,777,IK OPT/i CU Flow thermosensor 4,100,612 Vattenfilter CU 4,077,001 Podium Tillbehör

4 MA2010 TPS/i fessional (W) 4,049,036 WF 25i PAP /G/W/4R/FSC 4,100,969,IK Gasvakt digital 4,100,867,IK Renblås 16 bar 4,100,855,IK Gaskåpssökning 4x 44,0001,1407 Matarhjul 1,2mm TPSi/TSt 4,047,929 MHP 700i R/W/PAP/FSC 44,0350,3494 MTB 500i W R/22 /L241 44,0350,5120 BK Fe ø1,2 G/W/5m 4,100,952 Wire feeder bracket 4,047,881 HP 95i CON R /W/4m 4,100,955 Bracket Connection hose pack 42,0100,0570 Adapterplatta MA ,0350,3759 CrashBox /i PAP XL 5m 40,0001,0527 Wire feed hose OD 10mm 4,100,890 WF OPT/i QC DFS AD10 4,100,899 WF OPT/i QC VR AD10 Komplett art: YASKAWAMA2010TPSIPRO 4,075,176 Strömkälla TPS 500i 4,066,013 WP Puls 4,066,015 WP PMC 4,067,002 OPT/i Jobs 4,100,808,IK OPT/i TPS 2nd NT241 CU 1400i 4,044,014 Interfaceport TPS/i 41,0018,0082 Interfacemodul Devicenet TPS/i 4,048,004,633 Vattenkyl CU1400i /MC 4,100,612 Vattenfilter CU 4,077,001 Podium Tillbehör

5 Matarhjul TPS/i 0,8 ø 44,0001,1405 Matarhjul 0,8mm U TPS/i 0,9 ø 1,0 ø 44,0001,1406 Matarhjul 0,9-1,0mm U TPS/i Krävs 4 st. per matarverk. 1,2 ø 44,0001,1407 Matarhjul 1,2 mm U TPS/i 1,4 ø 1,6 ø 44,0001,1408 Matarhjul 1,4-1,6mm U TPS/i

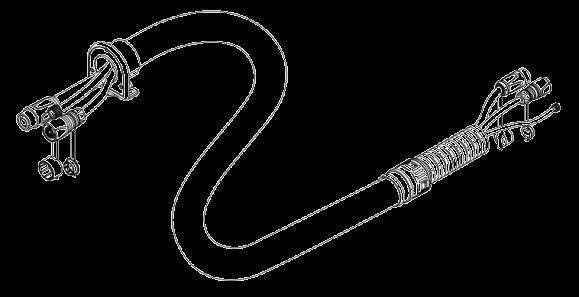

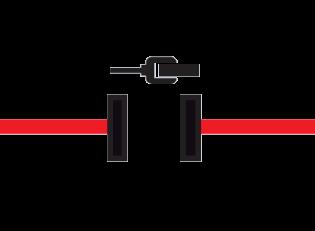

6 Kabelsatser TPS/i (G) Alternativ kabelsatser 4m 8m: 4,047,876 HP 70i CON R /G/4m 4,047,877 HP 95i CON R /G/4m 4,047,878 HP 70i CON R /G/8m 4,047,879 HP 95i CON R /G/8m HP CON R Alternativ kabelsatser 8m 23m: 1. 4,047,888 HP 70i EXT R /G/3m 4,047,889 HP 95i EXT R /G/3m ,047,835 HP 70i CON /G/5m 4,047,836 HP 95i CON /G/5m 4,047,837 HP 70i CON /G/10m 4,047,838 HP 95i CON /G/10m 4,047,839 HP 70i CON /G/15m 4,047,840 HP 95i CON /G/15m HP EXT R + HP CON 2.

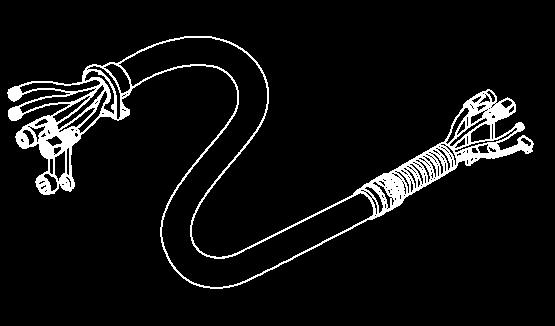

7 Kabelsatser TPS/i (W) Alternativ kabelsatser 4m 8m: Alternativ kabelsatser 8m 23m: 4,047,880 HP 70i CON R /W/4m 4,047,881 HP 95i CON R /W/4m 4,047,882 HP 120i CON R /W/4m 4,047,883 HP 70i CON R /W/8m 4,047,884 HP 95i CON R /W/8m 4,047,885 HP 120i CON R /W/8m HP CON R 1. 4,047,890 HP 70i EXT R /W/3m 4,047,891 HP 95i EXT R /W/3m 4,047,892 HP 120i EXT R /W/3m ,047,847 HP 70i CON W/5m 4,047,848 HP 95i CON W/5m 4,047,872 HP 120i CON /W/5m 4,047,849 HP 70i CON W/10m 4,047,850 HP 95i CON W/10m 4,047,873 HP 120i CON /W/10m 4,047,851 HP 70i CON W/15m 4,047,852 HP 95i CON W/15m 4,047,874 HP 120i CON /W/15m 4,047,853 HP 70i CON W/20m 4,047,854 HP 95i CON W/20m 4,047,875 HP 120i CON /W/20m HP EXT R + HP CON

8 Svanhalsar TPS/i (G) 44,0350,3459 MTB 250i G R /22 /L241/H50 44,0350,3460 MTB 250i G R /36 /L224/H86 44,0350,3461 MTB 250i G R /45 /L209/H107 44,0350,3462 MTB 320i G R /22 /L241/H50 44,0350,3463 MTB 320i G R /36 /L224/H86 44,0350,3464 MTB 320i G R /45 /L209/H107 44,0350,3465 MTB 400i G R /22 /L241/H50 44,0350,3466 MTB 400i G R /22 /L241/H50 44,0350,3467 MTB 400i G R /36 /L224/H86

9 Svanhalsar TPS/i (W) 44,0350,3486 MTB 250i W R /22 /L241/H50 44,0350,4299,630 MTB 250i W R /22 /L383/H50 (L/OVT) 44,0350,3487 MTB 250i W R /36 /L224/H86 44,0350,4300,630 MTB 250i W R /36 /L366/H86 (L/OVT) 44,0350,3488 MTB 250i W R /45 /L209/H107 44,0350,4301,630 MTB 250i W R /45 /L351/H107 (L/OVT) 44,0350,3683 MTB 330i W R /22 /L246/H27 44,0350,4228,630 MTB 330i W R /22 /L331/H27 (L/OVT) 44,0350,3684 MTB 330i W R /36 /L236/H44 44,0350,4229,630 MTB 330i W R /36 /L321/H44 (L/OVT) 44,0350,3685 MTB 330i W R /45 /L228/H56 44,0350,4230,630 MTB 330i W R /45 /L313,5/H56,5 (L/OVT) 44,0350,3686 MTB 330i W R /60 /L212/H71 44,0350,4231,630 MTB 330i W R /60 /L297,5/H71 (L/OVT) 44,0350,3490 MTB 400i W R /22 /L241/H50 44,0350,3491 MTB 400i W R /36 /L224/H86 44,0350,3492 MTB 400i W R /45 /L209/H107 44,0350,3494 MTB 500i W R /22 /L241/H50 44,0350,4302,630 MTB 500i W R /22 /L383/H50 (L/OVT) 44,0350,3495 MTB 500i W R /36 /L224/H86 44,0350,4303,630 MTB 500i W R /36 /L366/H86 (L/OVT) 44,0350,3496 MTB 500i W R /45 /L209/H107 44,0350,4304,630 MTB 500i W R /45 /L351/H107 (L/OVT) 44,0350,4262,630 MTB 500i W R / S-Type /36 /L338 (L/OVT) 44,0350,3657 MTB 700i W R/22 /L241/H50 44,0350,3658 MTB 700i W R/36 /L2224/H86 44,0350,3659 MTB 700i W R/45 /L209/H107 Kontaktrör M8 (MTB400i-700i) 42,0001,6464,10 K-rör 0,8mm M8 (10-pack) MTG/MTW 42,0001,6465,10 K-rör 0,9mm M6 (10-pack) MTG/MTW 42,0001,6466,10 K-rör 1,0mm M6 (10-pack) MTG/MTW 42,0001,6467,10 K-rör 1,2mm M6 (10-pack) MTG/MTW 42,0001,6468,10 K-rör 1,4mm M6 (10-pack) MTG/MTW 42,0001,6469,10 K-rör 1,6mm M6 (10-pack) MTG/MTW För ALU 42,0001,4750,10 K-rör ALU 1,0mm M6 (10-pack) MTG/MTW 42,0001,4751,10 K-rör ALU 1,2mm M6 (10-pack) MTG/MTW 42,0001,4752,10 K-rör ALU 1,6mm M6 (10-pack) MTG/MTW Kontaktrör M6 (MTB250i-330i) 42,0001,4461,10 K-rör 0,8mm M6 (10-pack) MTG/MTW 42,0001,4462,10 K-rör 0,9mm M6 (10-pack) MTG/MTW 42,0001,4463,10 K-rör 1,0mm M6 (10-pack) MTG/MTW 42,0001,4464,10 K-rör 1,2mm M6 (10-pack) MTG/MTW 42,0001,4465,10 K-rör 1,4mm M6 (10-pack) MTG/MTW 42,0001,4466,10 K-rör 1,6mm M6 (10-pack) MTG/MTW L=Lång version. OVT= Levereras utan slitdelar.

10 ic kit slangpaket TPS/i 0,8 ø 5m 44,0350,5117 BK Fe ø0.8 /G/W/5m 44,0350,5158 BK CrNi ø0.8 /G/W/5m 0,9 ø 5m 44,0350,5118 BK Fe ø0.9 /G/W/5m 44,0350,5159 BK CrNi ø0.9 /G/W/5m 1,0 ø 5m 44,0350,5119 BK Fe ø1.0 /G/W/5m 44,0350,5160 BK CrNi ø1,0 /G/W/5m 1,2 ø 5m 44,0350,5120 BK Fe ø1.2 /G/W/5m 44,0350,5161 BK CrNi ø1,2 /G/W/5m 1,4 ø 5m 44,0350,5121 BK Fe ø1.4 /G/W/5m 44,0350,5162 BK CrNi ø1,4 /G/W/5m 1,6 ø 5m 44,0350,5122 BK Fe ø1.6 /G/W/5m 44,0350,5163 BK CrNi ø1,6 /G/W/5m

11 Strömkällor TPS/i 4,075,172 TPSi 320 inkl. WP Standard 4,075,174 TPSi 400 inkl. WP Standard 4,075,176 TPSi 500 inkl. WP Standard 4,075,177 TPSi 600 inkl. WP Standard

12 cesser TPS/i 4,066,013 WP Puls 4,066,015 WP PMC (Pulse Multi Control) 4,066,014 WP LSC (Low Spatter Control)

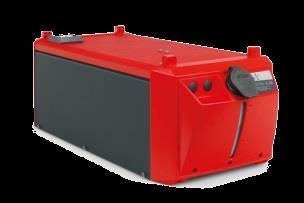

13 Vattenkyl TPS/i 4,048,003 CU1100i Options: 4,100,777,IK OPT/i CU Flow thermosensor 4,100,778,IK OPT/i CU Level sensor 4,100,612 I-kit coolant filter CU 4,048,004 CU1400i + 4,100,808,IK OPT/i TPS 2nd NT241 CU 1400i Options: 4,100,777,IK OPT/i CU Flow thermosensor 4,100,778,IK OPT/i CU Level sensor 4,100,612 I-kit coolant filter CU 40,0009,0046 Kylvätska 5 liter 4,048,004,633 CU1400i MC + 4,100,808,IK OPT/i TPS 2nd NT241 CU 1400i Options: 4,100,778,IK OPT/i CU Level sensor 4,100,612 I-kit coolant filter CU 40,0009,0075 Kylvätska 30 liter

14 Interface TPS/i 41,0018, ,0018, ,0018, ,0018, ,0018, ,0018, ,0018,0087 4,044,014 Interfaceport TPS/i

15

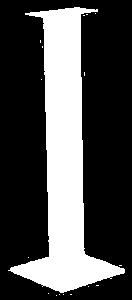

16 Rensstation-Mekanisk 44,0450,1444 Robacta Reamer V Easy Options: 44,0450,1150 Wire cutter RA SINGLE 44,0450,1152 Mounting socket RA SINGLE 42,0411,8042 Sprutrensolja Fronius 10L Svanhals: Gaskåpa: Art: MTB250i W 10mm 44,0450,1480 MTB250i W 12mm 44,0450,1484 MTB330i W 13mm 44,0450,1158 MTB330i W 15mm 44,0450,1385 MTB400i W 13mm 44,0450,1158 MTB400i W 15mm 44,0450,1160 MTB400i W 17mm 44,0450,1161 MTB500i W 13mm 44,0450,1158 MTB500i W 15mm 44,0450,1160 MTB500i W 17mm 44,0450,1161 MTB700i W 15mm 44,0450,1013 MTB700i W 17mm 44,0450,1014 Sleeve system: MTB330i W H 13mm 44,0450,1482 MTB400i W H 15mm 44,0450,1013 MTB400i W H 17mm 44,0450,1014 MTB500i W H 15mm 44,0450,1013 MTB500i W H 17mm 44,0450,1014 Tillbehör

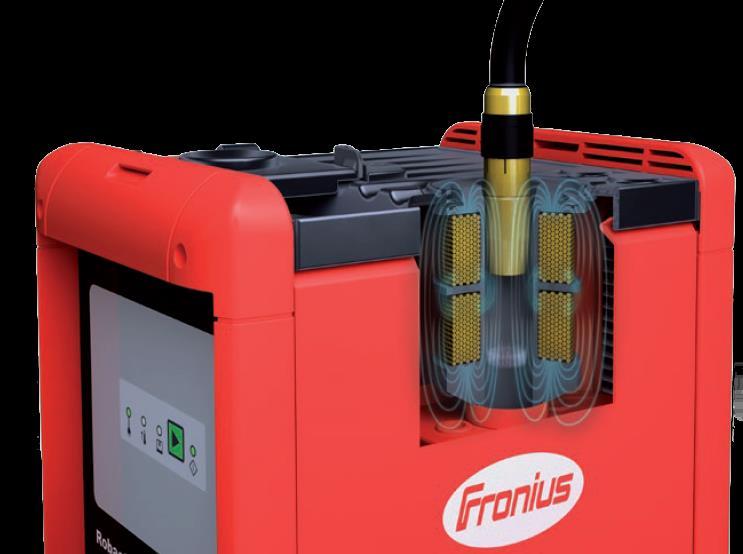

17 Rensstation-Magntetisk 4,075,123 Rensstation TC2000 Options: 44,0450,1285 Wire cutter electronical 24V DC TC2000 4,100,885 Wire cutter assembly set TC ,0300,3007 Suction line 1m-0.42m 4,045,907 Podie TC mm 4,045,916 Podie TC mm 42,0411,8042 Sprutrensolja Fronius 10L Tillbehör

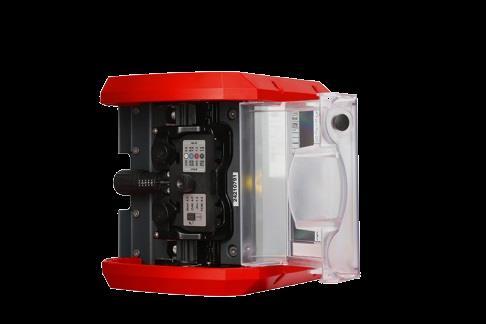

18 Hjälpmatarverk - 25m/min (4 hjulsmatning) 4,049,041 WF 25i REEL R /4R/G/W + 4,100,886,IK OPT/i TPS 4x Switch Speed Net /IK 4,051,023 Speed Net Cable CON 10m 4,100,890 OPT/i WF QC DFS AD10 Se alternativt hjälpmatarverk på nästa sida. Alternativ 1 Matarhjul TPS/i: Krävs 4 st. 4,100,846 WF Mounting Wall 0,8 ø 44,0001,1405 Matarhjul 0,8mm U TPS/i 44,0001,1406 Matarhjul 0,9-1,0mm U TPS/i Tillbehör Alternativ 2 0,9 ø 1,0 ø 44,0001,1407 Matarhjul 1,2 mm U TPS/i 1,2 ø 44,0001,1408 Matarhjul 1,4-1,6mm U TPS/i 4,100,845 WF Mounting Drum 1,4 ø 1,6 ø

19 Hjälpmatarverk - 30 m/min (2 hjulsmatning) 4,049,039 WF 30i REEL R /2R/G/W + 4,100,886,IK OPT/i TPS 4x Switch Speed Net /IK 4,051,023 Speed Net Cable CON 10m 4,100,890 OPT/i WF QC DFS AD10 Se alternativt hjälpmatarverk på föregående sida. Matarhjul WF 25 Reel/i: Alternativ 1 4,100,846 WF Mounting Wall Alternativ 2 4,100,845 WF Mounting Drum 0,8 ø 0,9 ø 1,0 ø 1,2 ø 44,0001,4579 Matarhjul 0,8 (Reel/2) 44,0001,3427 Tryckhjul 0,8 (Reel/2) 44,0001,4580 Matarhjul 0,9 (Reel/2) 44,0001,3428 Tryckhjul 0,9 (Reel/2) 44,0001,4581 Matarhjul 1,0 (Reel/2) 44,0001,3429 Tryckhjul 1,0 (Reel/2) 44,0001,4582 Matarhjul 1,2 (Reel/2) 44,0001,3430 Tryckhjul 1,2 (Reel/2) 44,0001,4583 Matarhjul 1,4 (Reel/2) 44,0001,3431 Tryckhjul 1,4 (Reel/2) En uppsättning per matarverk En uppsättning per matarverk En uppsättning per matarverk En uppsättning per matarverk En uppsättning per matarverk Tillbehör 1,4 ø
