Drill Driver. Specification: Voltage: 12V. Chuck size: 3/8 (10mm) keyless. No-load speed: 0-350/ rpm. Max. Torque: 22N.m(195 in.

Transkript

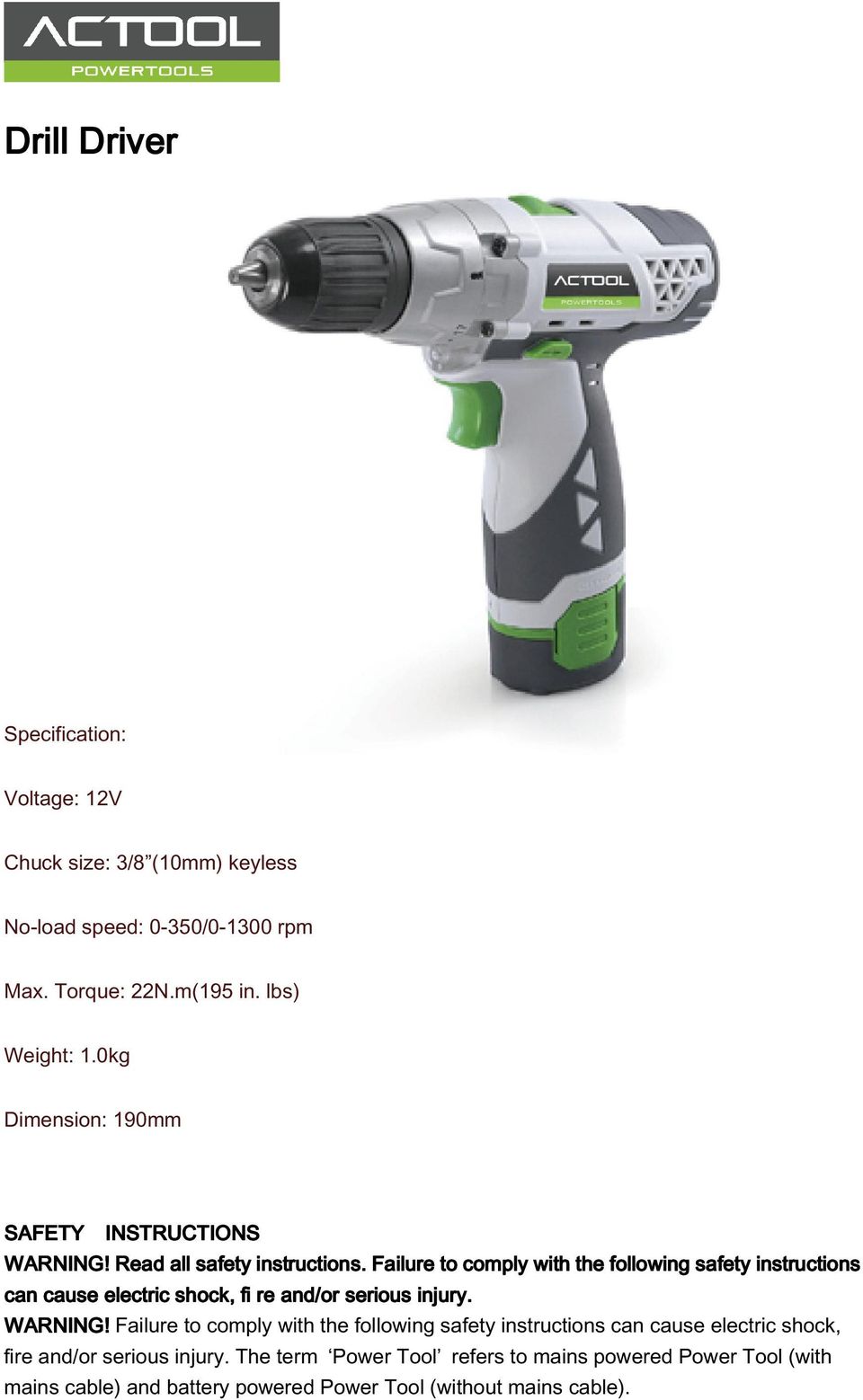

1 Drill Driver Specification: Voltage: 12V Chuck size: 3/8 (10mm) keyless No-load speed: 0-350/ rpm Max. Torque: 22N.m(195 in. lbs) Weight: 1.0kg Dimension: 190mm SAFETY INSTRUCTIONS WARNING! Read all safety instructions. Failure to comply with the following safety instructions can cause electric shock, fi re and/or serious injury. WARNING! Failure to comply with the following safety instructions can cause electric shock, fire and/or serious injury. The term Power Tool refers to mains powered Power Tool (with mains cable) and battery powered Power Tool (without mains cable).

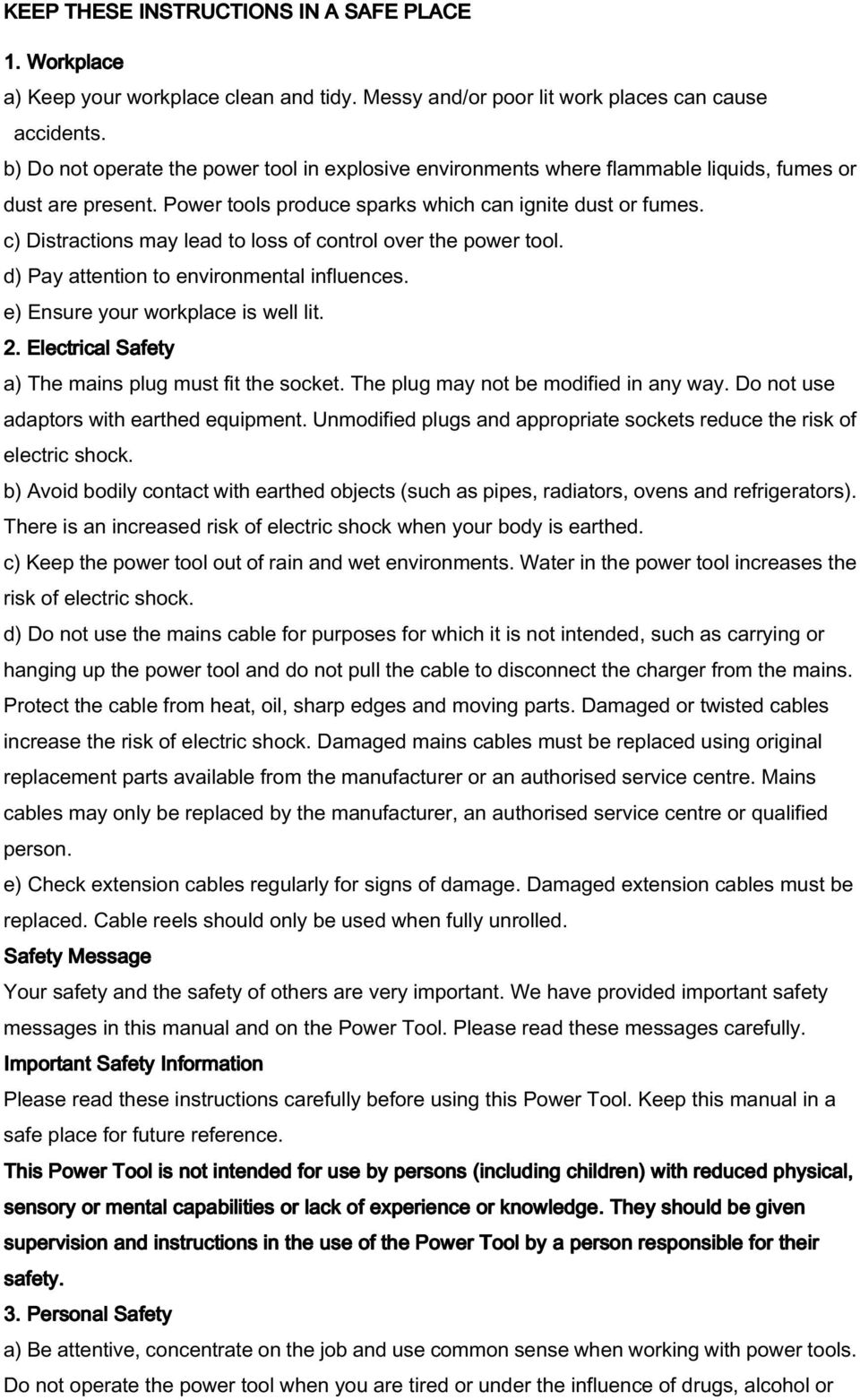

2 KEEP THESE INSTRUCTIONS IN A SAFE PLACE 1. Workplace a) Keep your workplace clean and tidy. Messy and/or poor lit work places can cause accidents. b) Do not operate the power tool in explosive environments where flammable liquids, fumes or dust are present. Power tools produce sparks which can ignite dust or fumes. c) Distractions may lead to loss of control over the power tool. d) Pay attention to environmental influences. e) Ensure your workplace is well lit. 2. Electrical Safety a) The mains plug must fit the socket. The plug may not be modified in any way. Do not use adaptors with earthed equipment. Unmodified plugs and appropriate sockets reduce the risk of electric shock. b) Avoid bodily contact with earthed objects (such as pipes, radiators, ovens and refrigerators). There is an increased risk of electric shock when your body is earthed. c) Keep the power tool out of rain and wet environments. Water in the power tool increases the risk of electric shock. d) Do not use the mains cable for purposes for which it is not intended, such as carrying or hanging up the power tool and do not pull the cable to disconnect the charger from the mains. Protect the cable from heat, oil, sharp edges and moving parts. Damaged or twisted cables increase the risk of electric shock. Damaged mains cables must be replaced using original replacement parts available from the manufacturer or an authorised service centre. Mains cables may only be replaced by the manufacturer, an authorised service centre or qualified person. e) Check extension cables regularly for signs of damage. Damaged extension cables must be replaced. Cable reels should only be used when fully unrolled. Safety Message Your safety and the safety of others are very important. We have provided important safety messages in this manual and on the Power Tool. Please read these messages carefully. Important Safety Information Please read these instructions carefully before using this Power Tool. Keep this manual in a safe place for future reference. This Power Tool is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience or knowledge. They should be given supervision and instructions in the use of the Power Tool by a person responsible for their safety. 3. Personal Safety a) Be attentive, concentrate on the job and use common sense when working with power tools. Do not operate the power tool when you are tired or under the influence of drugs, alcohol or

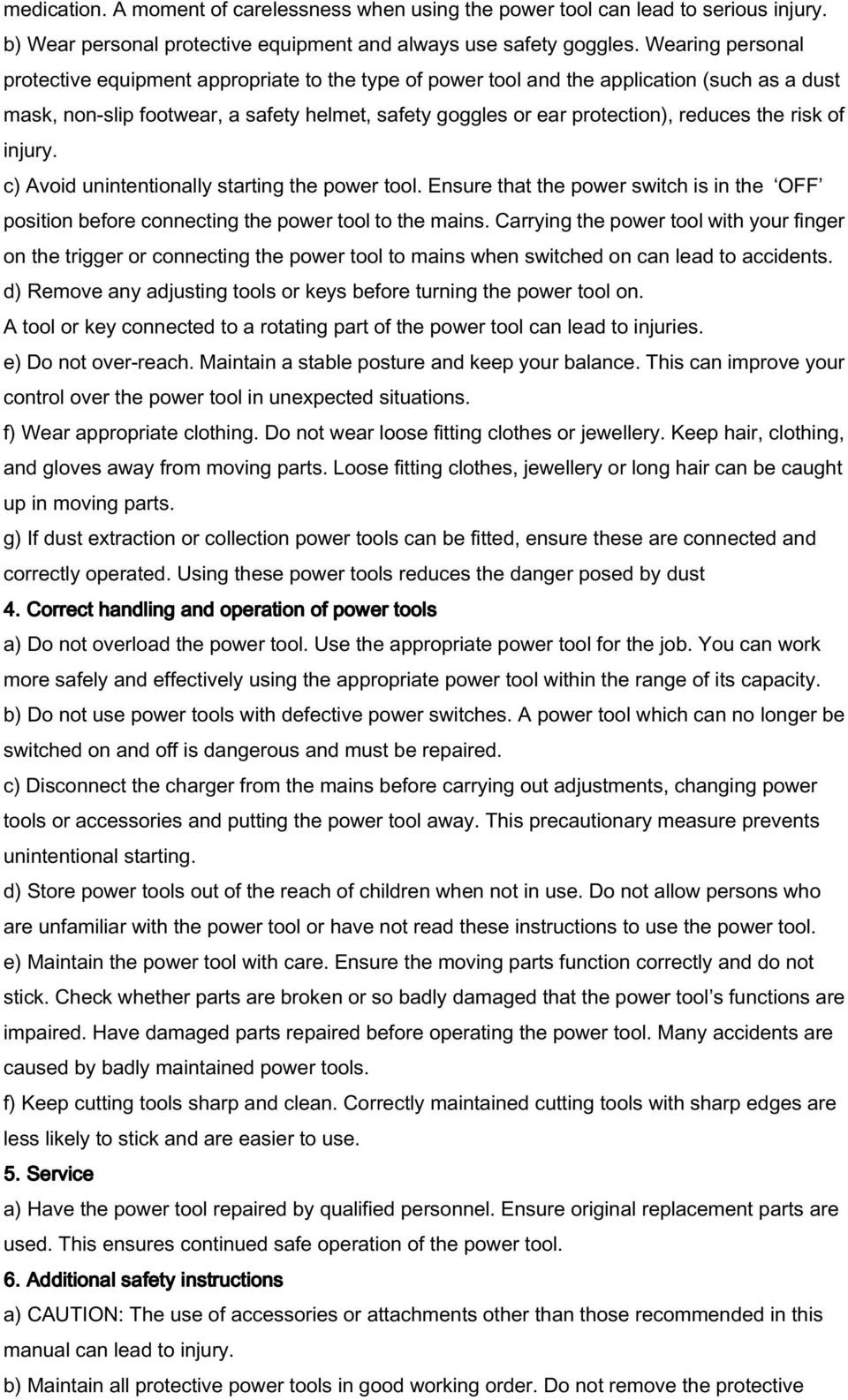

3 medication. A moment of carelessness when using the power tool can lead to serious injury. b) Wear personal protective equipment and always use safety goggles. Wearing personal protective equipment appropriate to the type of power tool and the application (such as a dust mask, non-slip footwear, a safety helmet, safety goggles or ear protection), reduces the risk of injury. c) Avoid unintentionally starting the power tool. Ensure that the power switch is in the OFF position before connecting the power tool to the mains. Carrying the power tool with your finger on the trigger or connecting the power tool to mains when switched on can lead to accidents. d) Remove any adjusting tools or keys before turning the power tool on. A tool or key connected to a rotating part of the power tool can lead to injuries. e) Do not over-reach. Maintain a stable posture and keep your balance. This can improve your control over the power tool in unexpected situations. f) Wear appropriate clothing. Do not wear loose fitting clothes or jewellery. Keep hair, clothing, and gloves away from moving parts. Loose fitting clothes, jewellery or long hair can be caught up in moving parts. g) If dust extraction or collection power tools can be fitted, ensure these are connected and correctly operated. Using these power tools reduces the danger posed by dust 4. Correct handling and operation of power tools a) Do not overload the power tool. Use the appropriate power tool for the job. You can work more safely and effectively using the appropriate power tool within the range of its capacity. b) Do not use power tools with defective power switches. A power tool which can no longer be switched on and off is dangerous and must be repaired. c) Disconnect the charger from the mains before carrying out adjustments, changing power tools or accessories and putting the power tool away. This precautionary measure prevents unintentional starting. d) Store power tools out of the reach of children when not in use. Do not allow persons who are unfamiliar with the power tool or have not read these instructions to use the power tool. e) Maintain the power tool with care. Ensure the moving parts function correctly and do not stick. Check whether parts are broken or so badly damaged that the power tool s functions are impaired. Have damaged parts repaired before operating the power tool. Many accidents are caused by badly maintained power tools. f) Keep cutting tools sharp and clean. Correctly maintained cutting tools with sharp edges are less likely to stick and are easier to use. 5. Service a) Have the power tool repaired by qualified personnel. Ensure original replacement parts are used. This ensures continued safe operation of the power tool. 6. Additional safety instructions tions a) CAUTION: The use of accessories or attachments other than those recommended in this manual can lead to injury. b) Maintain all protective power tools in good working order. Do not remove the protective

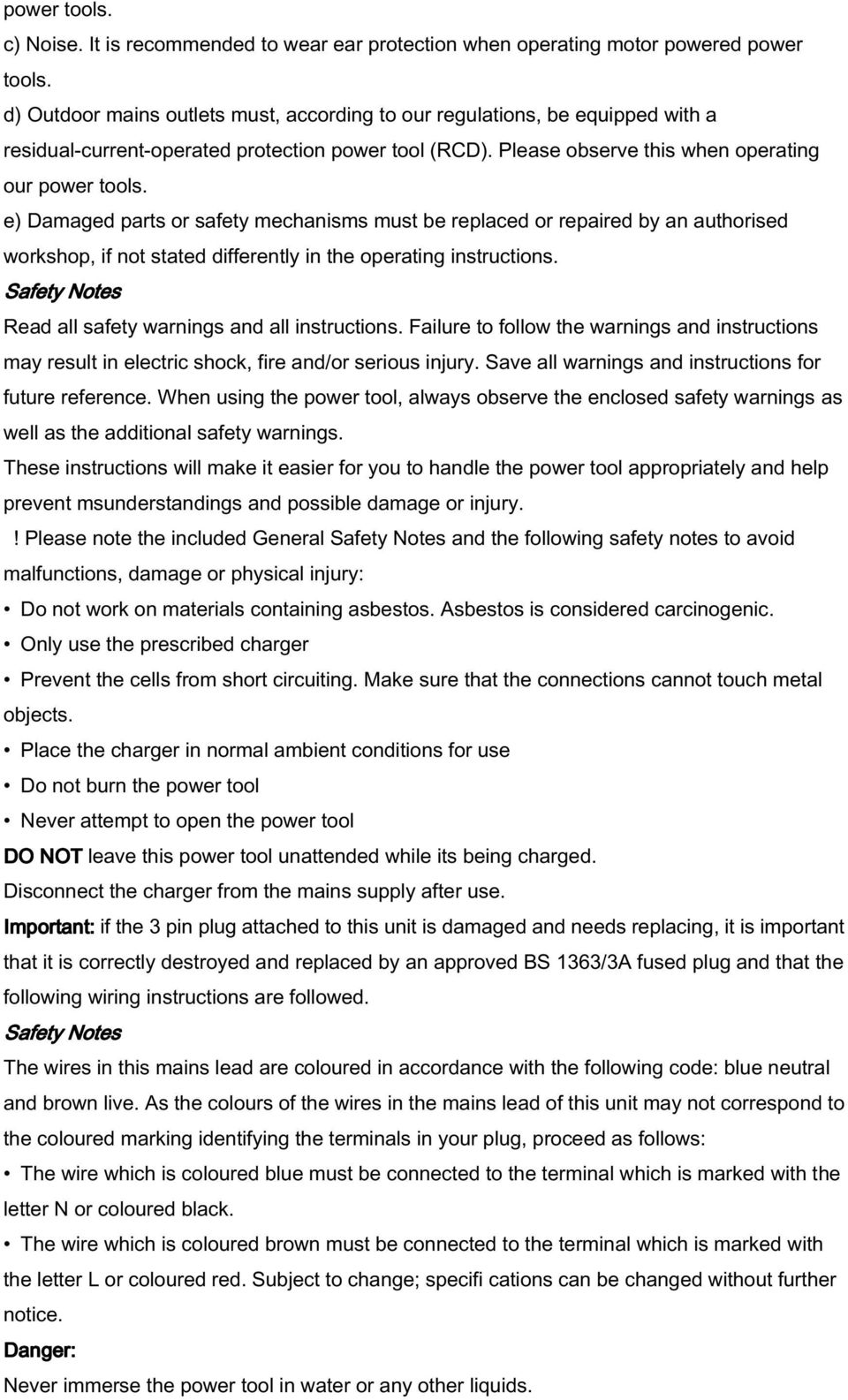

4 power tools. c) Noise. It is recommended to wear ear protection when operating motor powered power tools. d) Outdoor mains outlets must, according to our regulations, be equipped with a residual-current-operated protection power tool (RCD). Please observe this when operating our power tools. e) Damaged parts or safety mechanisms must be replaced or repaired by an authorised workshop, if not stated differently in the operating instructions. Safety Notes Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. When using the power tool, always observe the enclosed safety warnings as well as the additional safety warnings. These instructions will make it easier for you to handle the power tool appropriately and help prevent msunderstandings and possible damage or injury.! Please note the included General Safety Notes and the following safety notes to avoid malfunctions, damage or physical injury: Do not work on materials containing asbestos. Asbestos is considered carcinogenic. Only use the prescribed charger Prevent the cells from short circuiting. Make sure that the connections cannot touch metal objects. Place the charger in normal ambient conditions for use Do not burn the power tool Never attempt to open the power tool DO NOT leave this power tool unattended while its being charged. Disconnect the charger from the mains supply after use. Important: if the 3 pin plug attached to this unit is damaged and needs replacing, it is important that it is correctly destroyed and replaced by an approved BS 1363/3A fused plug and that the following wiring instructions are followed. Safety Notes The wires in this mains lead are coloured in accordance with the following code: blue neutral and brown live. As the colours of the wires in the mains lead of this unit may not correspond to the coloured marking identifying the terminals in your plug, proceed as follows: The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red. Subject to change; specifi cations can be changed without further notice. Danger: Never immerse the power tool in water or any other liquids.

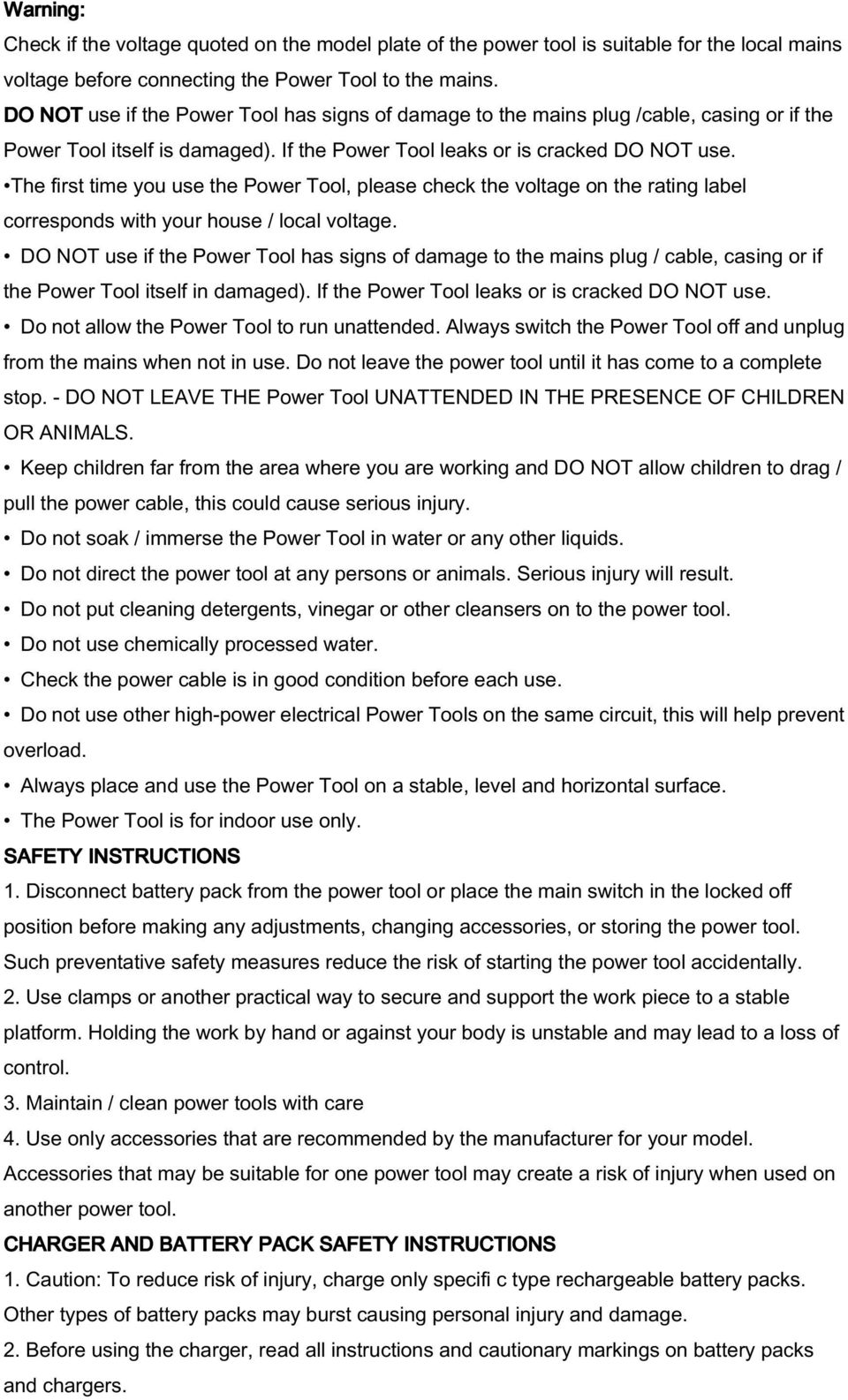

5 Warning: Check if the voltage quoted on the model plate of the power tool is suitable for the local mains voltage before connecting the Power Tool to the mains. DO NOT use if the Power Tool has signs of damage to the mains plug /cable, casing or if the Power Tool itself is damaged). If the Power Tool leaks or is cracked DO NOT use. The first time you use the Power Tool, please check the voltage on the rating label corresponds with your house / local voltage. DO NOT use if the Power Tool has signs of damage to the mains plug / cable, casing or if the Power Tool itself in damaged). If the Power Tool leaks or is cracked DO NOT use. Do not allow the Power Tool to run unattended. Always switch the Power Tool off and unplug from the mains when not in use. Do not leave the power tool until it has come to a complete stop. - DO NOT LEAVE THE Power Tool UNATTENDED IN THE PRESENCE OF CHILDREN OR ANIMALS. Keep children far from the area where you are working and DO NOT allow children to drag / pull the power cable, this could cause serious injury. Do not soak / immerse the Power Tool in water or any other liquids. Do not direct the power tool at any persons or animals. Serious injury will result. Do not put cleaning detergents, vinegar or other cleansers on to the power tool. Do not use chemically processed water. Check the power cable is in good condition before each use. Do not use other high-power electrical Power Tools on the same circuit, this will help prevent overload. Always place and use the Power Tool on a stable, level and horizontal surface. The Power Tool is for indoor use only. SAFETY INSTRUCTIONS 1. Disconnect battery pack from the power tool or place the main switch in the locked off position before making any adjustments, changing accessories, or storing the power tool. Such preventative safety measures reduce the risk of starting the power tool accidentally. 2. Use clamps or another practical way to secure and support the work piece to a stable platform. Holding the work by hand or against your body is unstable and may lead to a loss of control. 3. Maintain / clean power tools with care 4. Use only accessories that are recommended by the manufacturer for your model. Accessories that may be suitable for one power tool may create a risk of injury when used on another power tool. CHARGER AND BATTERY PACK SAFETY INSTRUCTIONS 1. Caution: To reduce risk of injury, charge only specifi c type rechargeable battery packs. Other types of battery packs may burst causing personal injury and damage. 2. Before using the charger, read all instructions and cautionary markings on battery packs and chargers.

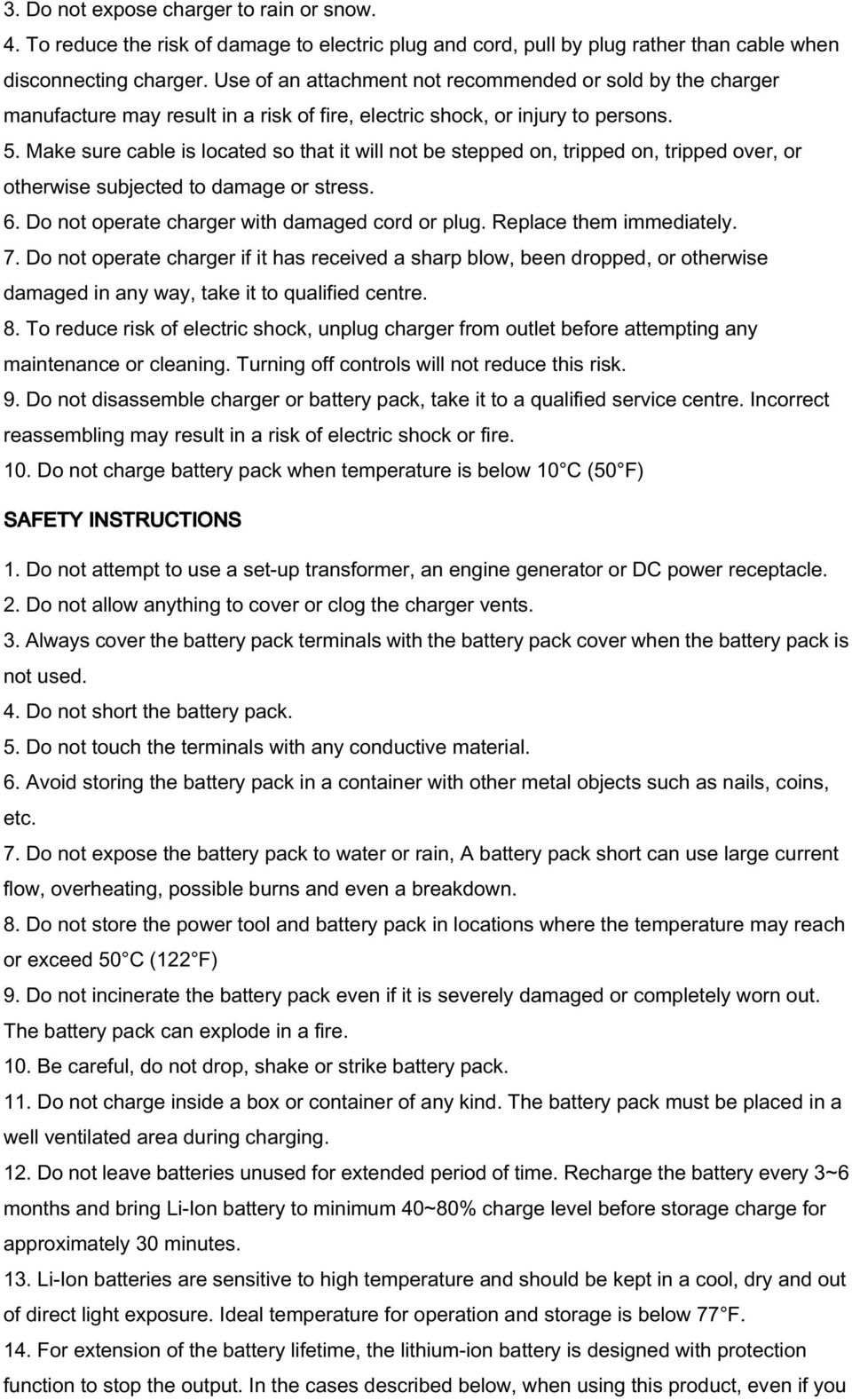

6 3. Do not expose charger to rain or snow. 4. To reduce the risk of damage to electric plug and cord, pull by plug rather than cable when disconnecting charger. Use of an attachment not recommended or sold by the charger manufacture may result in a risk of fire, electric shock, or injury to persons. 5. Make sure cable is located so that it will not be stepped on, tripped on, tripped over, or otherwise subjected to damage or stress. 6. Do not operate charger with damaged cord or plug. Replace them immediately. 7. Do not operate charger if it has received a sharp blow, been dropped, or otherwise damaged in any way, take it to qualified centre. 8. To reduce risk of electric shock, unplug charger from outlet before attempting any maintenance or cleaning. Turning off controls will not reduce this risk. 9. Do not disassemble charger or battery pack, take it to a qualified service centre. Incorrect reassembling may result in a risk of electric shock or fire. 10. Do not charge battery pack when temperature is below 10 C (50 F) SAFETY INSTRUCTIONS 1. Do not attempt to use a set-up transformer, an engine generator or DC power receptacle. 2. Do not allow anything to cover or clog the charger vents. 3. Always cover the battery pack terminals with the battery pack cover when the battery pack is not used. 4. Do not short the battery pack. 5. Do not touch the terminals with any conductive material. 6. Avoid storing the battery pack in a container with other metal objects such as nails, coins, etc. 7. Do not expose the battery pack to water or rain, A battery pack short can use large current flow, overheating, possible burns and even a breakdown. 8. Do not store the power tool and battery pack in locations where the temperature may reach or exceed 50 C (122 F) 9. Do not incinerate the battery pack even if it is severely damaged or completely worn out. The battery pack can explode in a fire. 10. Be careful, do not drop, shake or strike battery pack. 11. Do not charge inside a box or container of any kind. The battery pack must be placed in a well ventilated area during charging. 12. Do not leave batteries unused for extended period of time. Recharge the battery every 3~6 months and bring Li-Ion battery to minimum 40~80% charge level before storage charge for approximately 30 minutes. 13. Li-Ion batteries are sensitive to high temperature and should be kept in a cool, dry and out of direct light exposure. Ideal temperature for operation and storage is below 77 F. 14. For extension of the battery lifetime, the lithium-ion battery is designed with protection function to stop the output. In the cases described below, when using this product, even if you

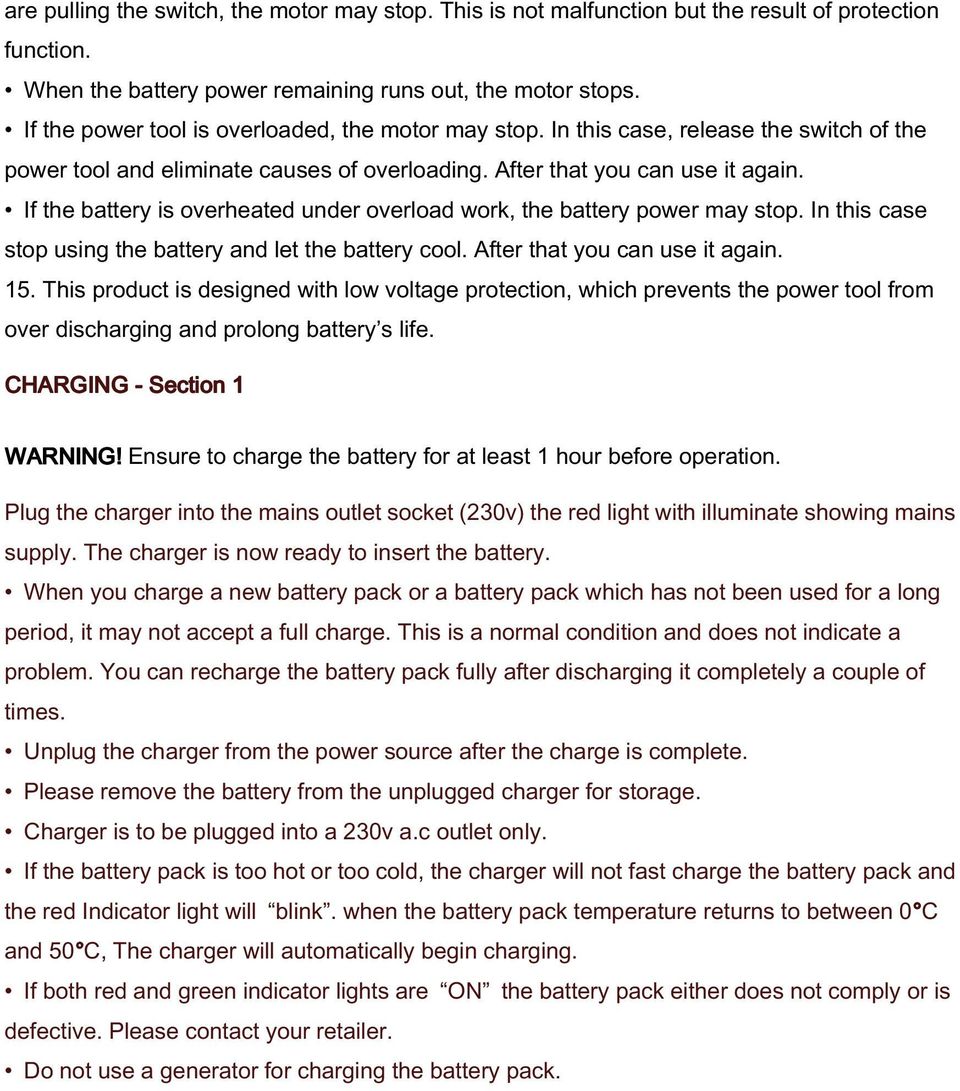

7 are pulling the switch, the motor may stop. This is not malfunction but the result of protection function. When the battery power remaining runs out, the motor stops. If the power tool is overloaded, the motor may stop. In this case, release the switch of the power tool and eliminate causes of overloading. After that you can use it again. If the battery is overheated under overload work, the battery power may stop. In this case stop using the battery and let the battery cool. After that you can use it again. 15. This product is designed with low voltage protection, which prevents the power tool from over discharging and prolong battery s life. CHARGING - Section 1 WARNING! Ensure to charge the battery for at least 1 hour before operation. Plug the charger into the mains outlet socket (230v) the red light with illuminate showing mains supply. The charger is now ready to insert the battery. When you charge a new battery pack or a battery pack which has not been used for a long period, it may not accept a full charge. This is a normal condition and does not indicate a problem. You can recharge the battery pack fully after discharging it completely a couple of times. Unplug the charger from the power source after the charge is complete. Please remove the battery from the unplugged charger for storage. Charger is to be plugged into a 230v a.c outlet only. If the battery pack is too hot or too cold, the charger will not fast charge the battery pack and the red Indicator light will blink. when the battery pack temperature returns to between 0 C and 50 C, The charger will automatically begin charging. If both red and green indicator lights are ON the battery pack either does not comply or is defective. Please contact your retailer. Do not use a generator for charging the battery pack.

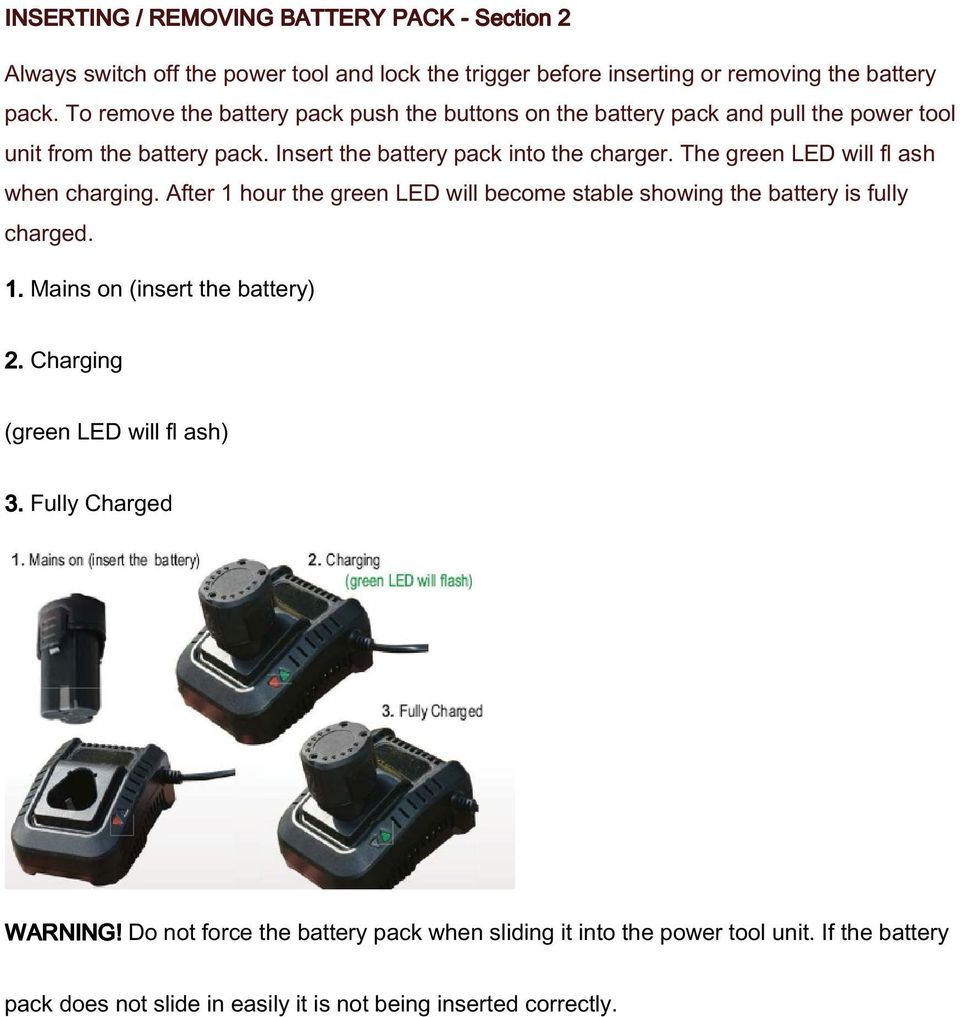

8 INSERTING / REMOVING BATTERY PACK - Section 2 Always switch off the power tool and lock the trigger before inserting or removing the battery pack. To remove the battery pack push the buttons on the battery pack and pull the power tool unit from the battery pack. Insert the battery pack into the charger. The green LED will fl ash when charging. After 1 hour the green LED will become stable showing the battery is fully charged. 1. Mains on (insert the battery) 2. Charging (green LED will fl ash) 3. Fully Charged WARNING! Do not force the battery pack when sliding it into the power tool unit. If the battery pack does not slide in easily it is not being inserted correctly.

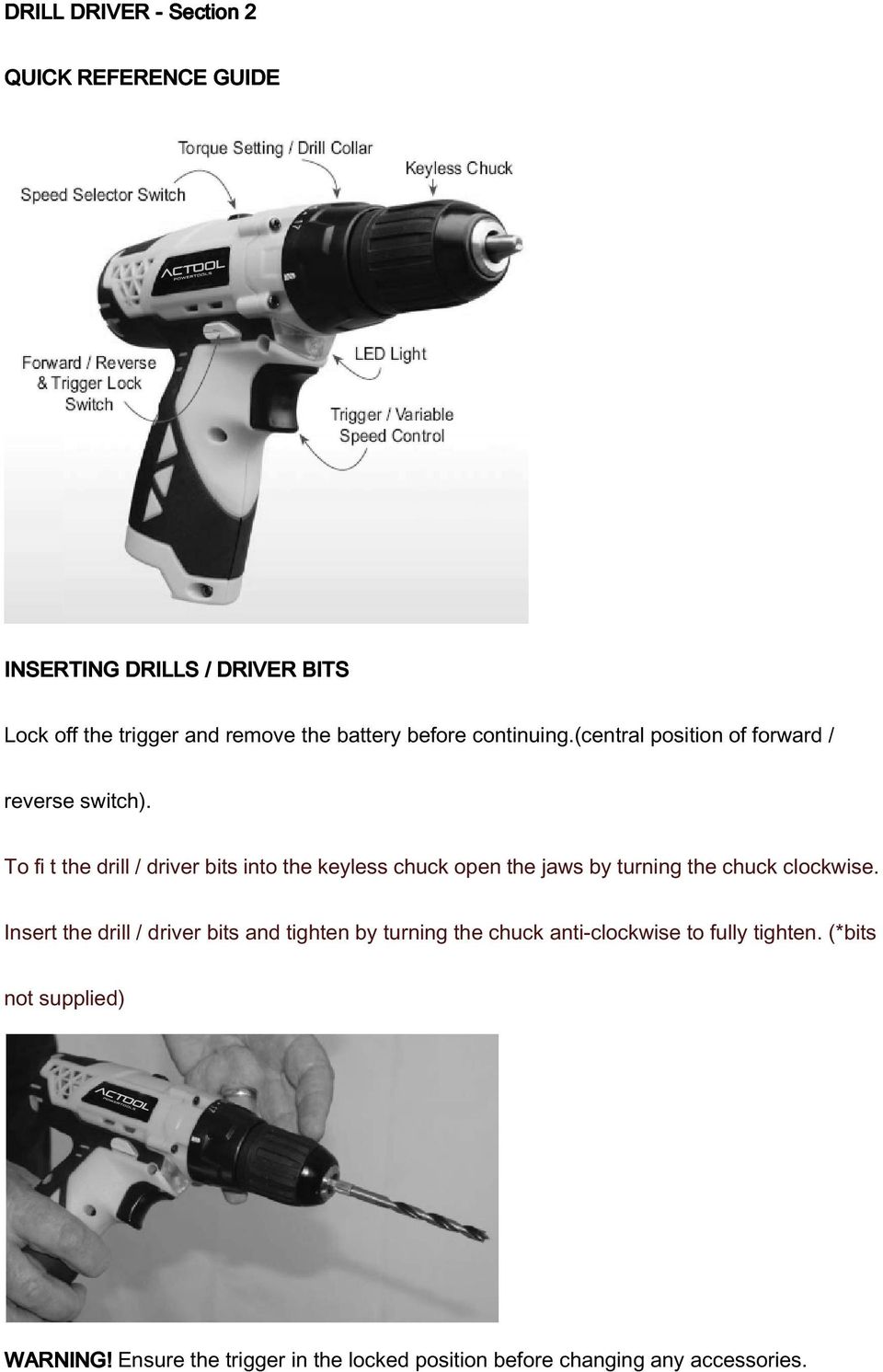

9 DRILL DRIVER - Section 2 QUICK REFERENCE GUIDE INSERTING DRILLS / DRIVER BITS Lock off the trigger and remove the battery before continuing.(central position of forward / reverse switch). To fi t the drill / driver bits into the keyless chuck open the jaws by turning the chuck clockwise. Insert the drill / driver bits and tighten by turning the chuck anti-clockwise to fully tighten. (*bits not supplied) WARNING! Ensure the trigger in the locked position before changing any accessories.

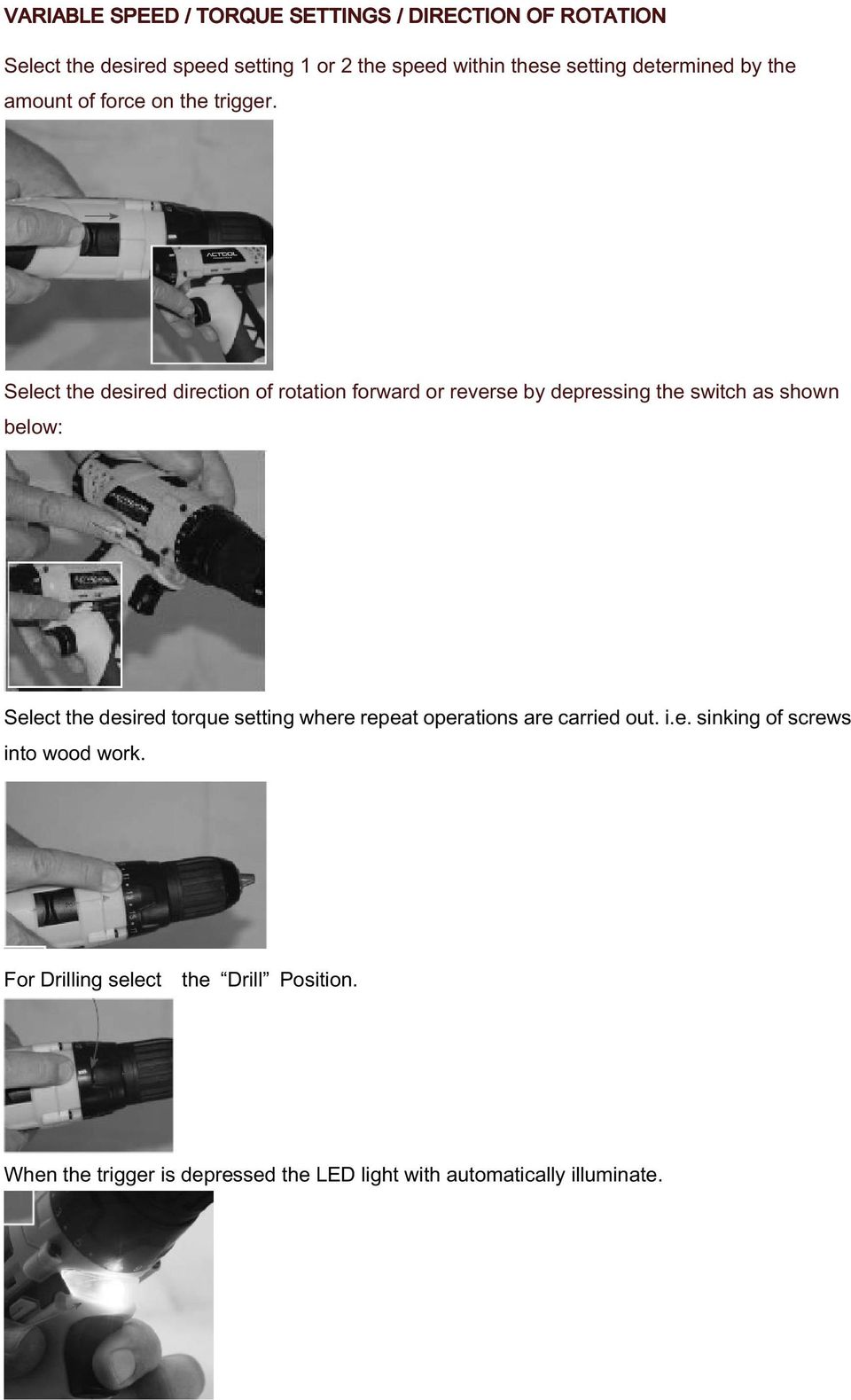

10 VARIABLE SPEED / TORQUE SETTINGS / DIRECTION OF ROTATION Select the desired speed setting 1 or 2 the speed within these setting determined by the amount of force on the trigger. Select the desired direction of rotation forward or reverse by depressing the switch as shown below: Select the desired torque setting where repeat operations are carried out. i.e. sinking of screws into wood work. For Drilling select the Drill Position. When the trigger is depressed the LED light with automatically illuminate.

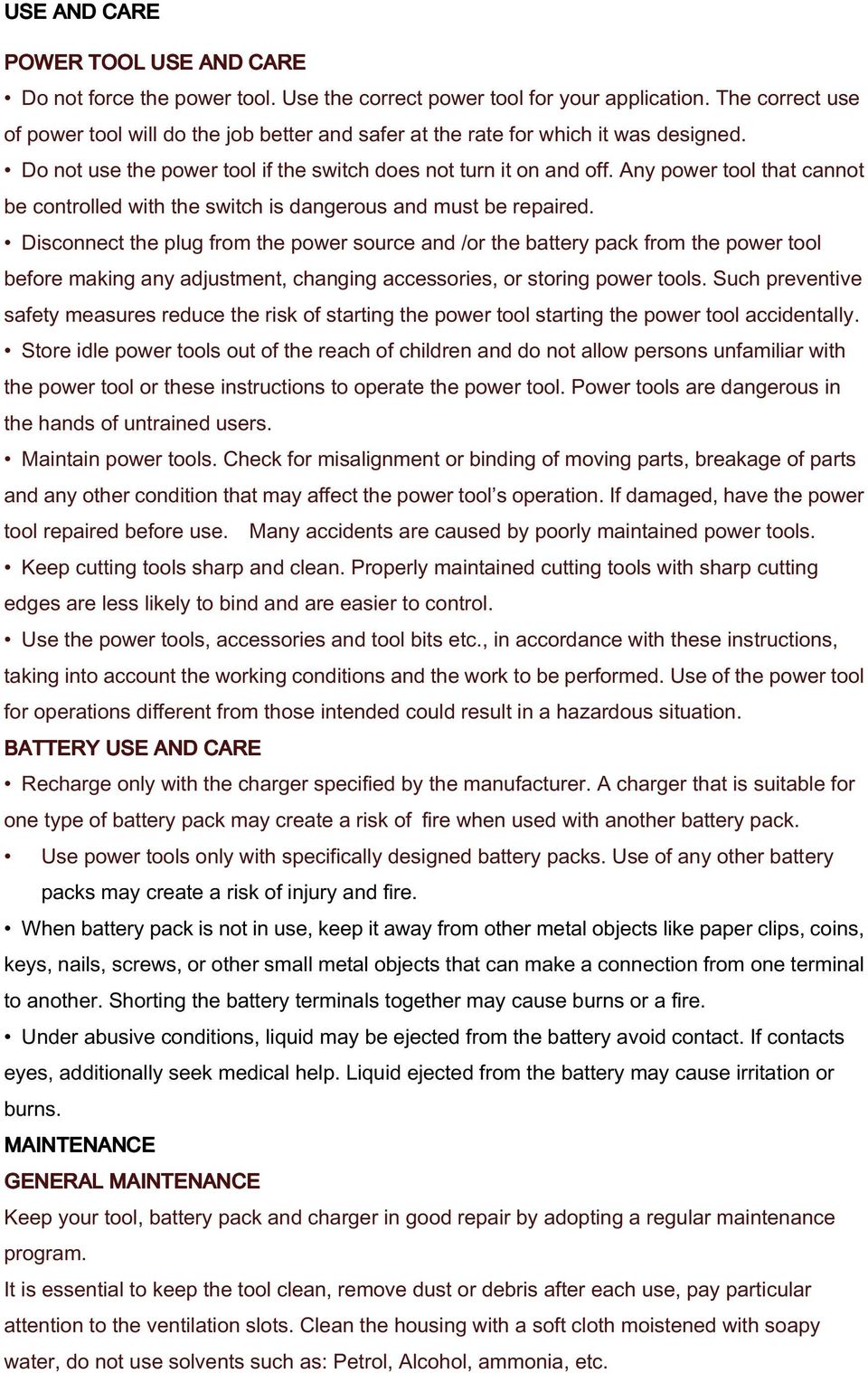

11 USE AND CARE POWER TOOL USE AND CARE Do not force the power tool. Use the correct power tool for your application. The correct use of power tool will do the job better and safer at the rate for which it was designed. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. Disconnect the plug from the power source and /or the battery pack from the power tool before making any adjustment, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool starting the power tool accidentally. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. Use the power tools, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. BATTERY USE AND CARE Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of ifire when used with another battery pack. Use power tools only with specifically designed battery packs. Use of any other battery packs may create a risk of injury and fire. When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. Under abusive conditions, liquid may be ejected from the battery avoid contact. If contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. MAINTENANCE GENERAL MAINTENANCE Keep your tool, battery pack and charger in good repair by adopting a regular maintenance program. It is essential to keep the tool clean, remove dust or debris after each use, pay particular attention to the ventilation slots. Clean the housing with a soft cloth moistened with soapy water, do not use solvents such as: Petrol, Alcohol, ammonia, etc. such as; Petrol, Alcohol, ammonia, etc...

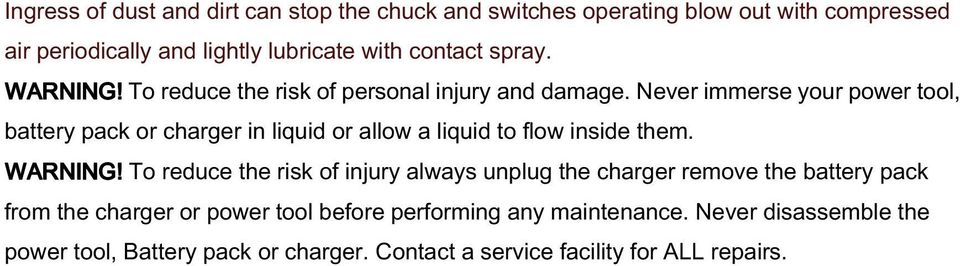

12 Ingress of dust and dirt can stop the chuck and switches operating blow out with compressed air periodically and lightly lubricate with contact spray. WARNING! To reduce the risk of personal injury and damage. Never immerse your power tool, battery pack or charger in liquid or allow a liquid to flow inside them. WARNING! To reduce the risk of injury always unplug the charger remove the battery pack from the charger or power tool before performing any maintenance. Never disassemble the power tool, Battery pack or charger. Contact a service facility for ALL repairs.

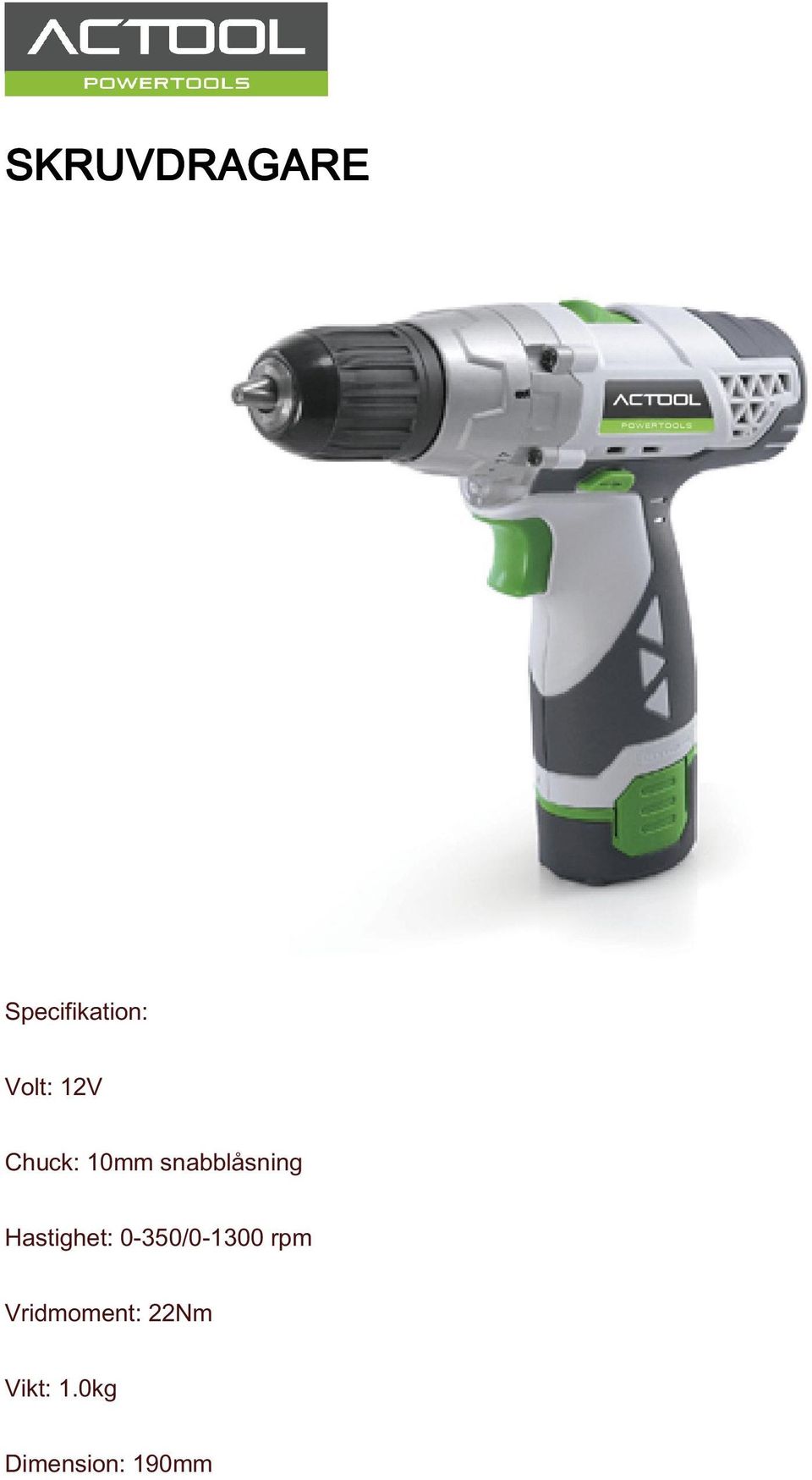

13 SKRUVDRAGARE Specifikation: Volt: 12V Chuck: 10mm snabblåsning Hastighet: 0-350/ rpm Vridmoment: 22Nm Vikt: 1.0kg Dimension: 190mm

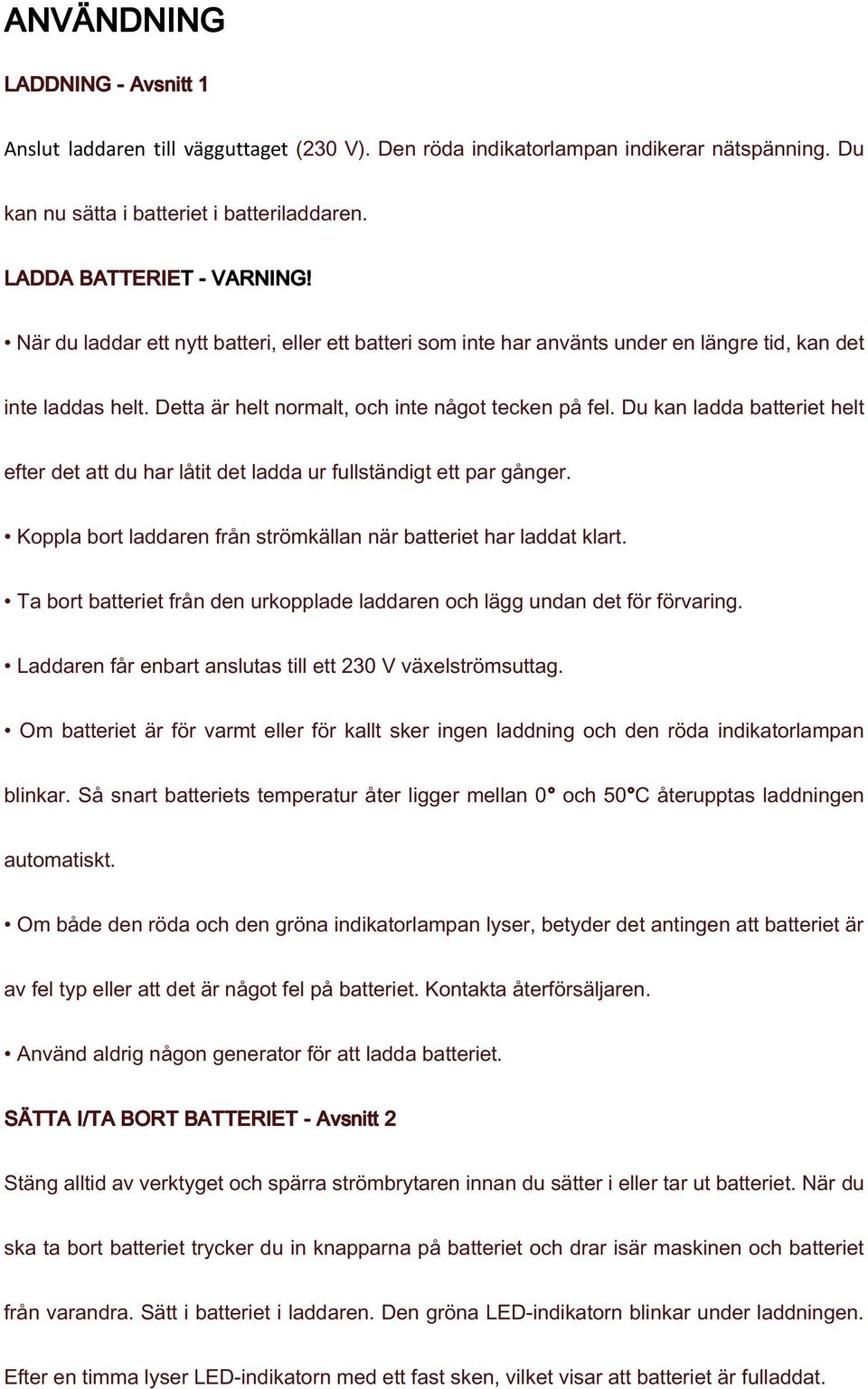

14 ANVÄNDNING LADDNING - Avsnitt 1 Anslut laddaren till vägguttaget (230 V). Den röda indikatorlampan indikerar nätspänning. Du kan nu sätta i batteriet i batteriladdaren. LADDA BATTERIET - VARNING! När du laddar ett nytt batteri, eller ett batteri som inte har använts under en längre tid, kan det inte laddas helt. Detta är helt normalt, och inte något tecken på fel. Du kan ladda batteriet helt efter det att du har låtit det ladda ur fullständigt ett par gånger. Koppla bort laddaren från strömkällan när batteriet har laddat klart. Ta bort batteriet från den urkopplade laddaren och lägg undan det för förvaring. Laddaren får enbart anslutas till ett 230 V växelströmsuttag. Om batteriet är för varmt eller för kallt sker ingen laddning och den röda indikatorlampan blinkar. Så snart batteriets temperatur åter ligger mellan 0 och 50 C återupptas laddningen automatiskt. Om både den röda och den gröna indikatorlampan lyser, betyder det antingen att batteriet är av fel typ eller att det är något fel på batteriet. Kontakta återförsäljaren. Använd aldrig någon generator för att ladda batteriet. SÄTTA I/TA BORT BATTERIET - Avsnitt 2 Stäng alltid av verktyget och spärra strömbrytaren innan du sätter i eller tar ut batteriet. När du ska ta bort batteriet trycker du in knapparna på batteriet och drar isär maskinen och batteriet från varandra. Sätt i batteriet i laddaren. Den gröna LED-indikatorn blinkar under laddningen. Efter en timma lyser LED-indikatorn med ett fast sken, vilket visar att batteriet är fulladdat.

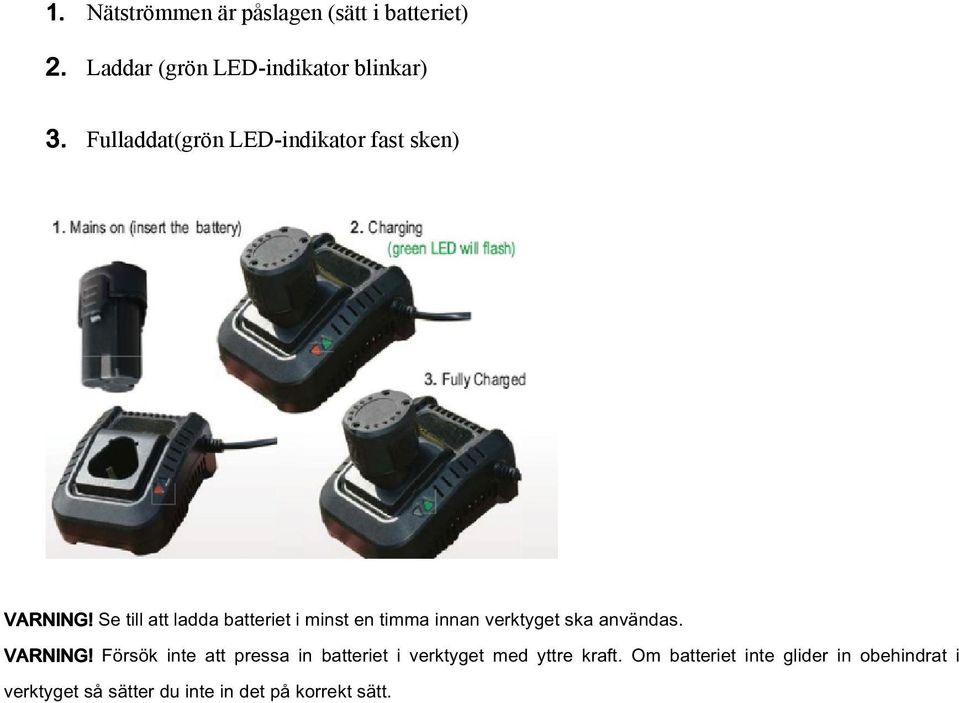

15 1. Nätströmmen är påslagen (sätt i batteriet) 2. Laddar (grön LED-indikator blinkar) 3. Fulladdat(grön LED-indikator fast sken) VARNING! Se till att ladda batteriet i minst en timma innan verktyget ska användas. VARNING! Försök inte att pressa in batteriet i verktyget med yttre kraft. Om batteriet inte glider in obehindrat i verktyget så sätter du inte in det på korrekt sätt.

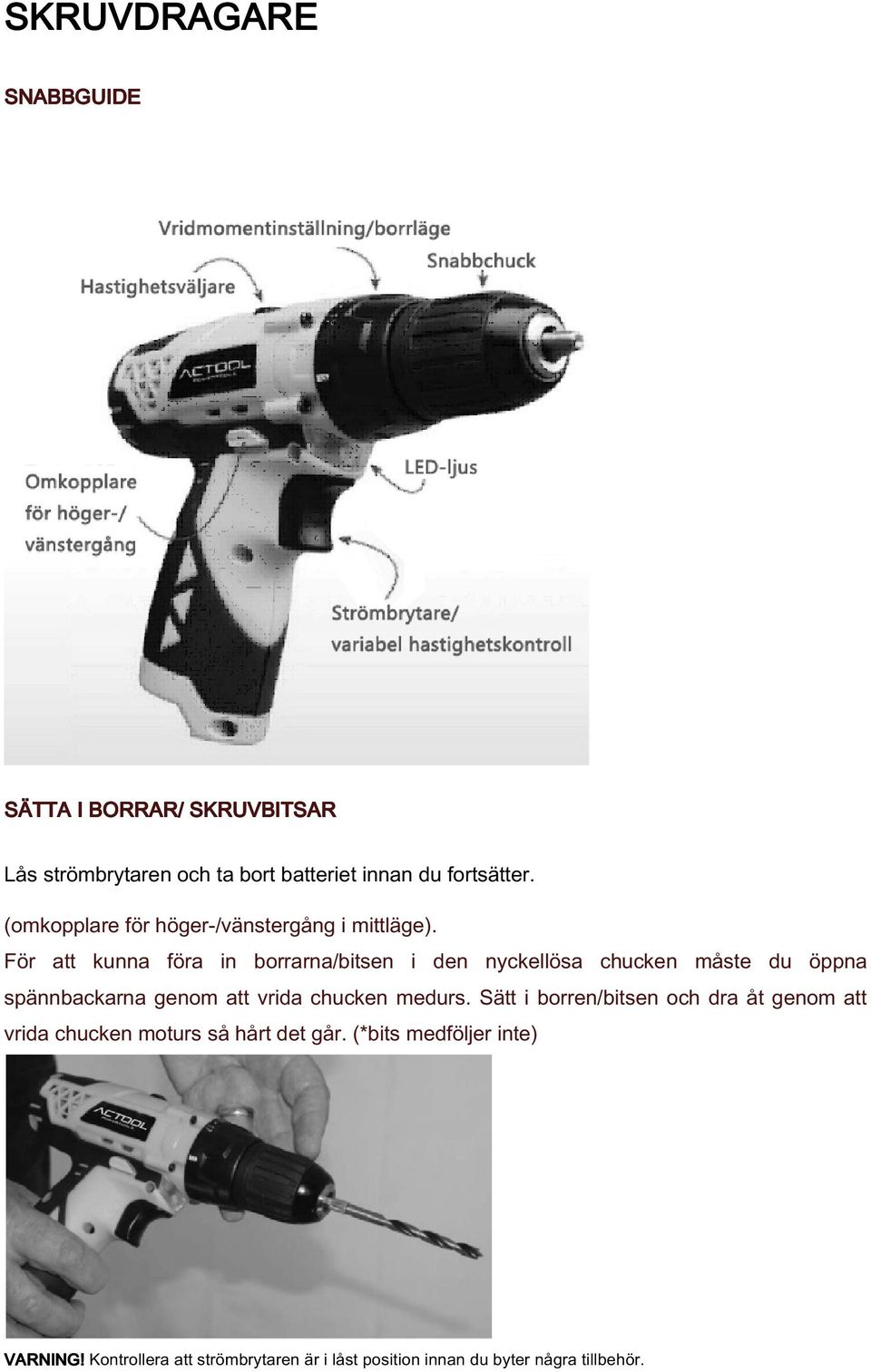

16 SKRUVDRAGARE SNABBGUIDE SÄTTA I BORRAR/ SKRUVBITSAR Lås strömbrytaren och ta bort batteriet innan du fortsätter. (omkopplare för höger-/vänstergång i mittläge). För att kunna föra in borrarna/bitsen i den nyckellösa chucken måste du öppna spännbackarna genom att vrida chucken medurs. Sätt i borren/bitsen och dra åt genom att vrida chucken moturs så hårt det går. (*bits medföljer inte) VARNING! Kontrollera att strömbrytaren är i låst position innan du byter några tillbehör.

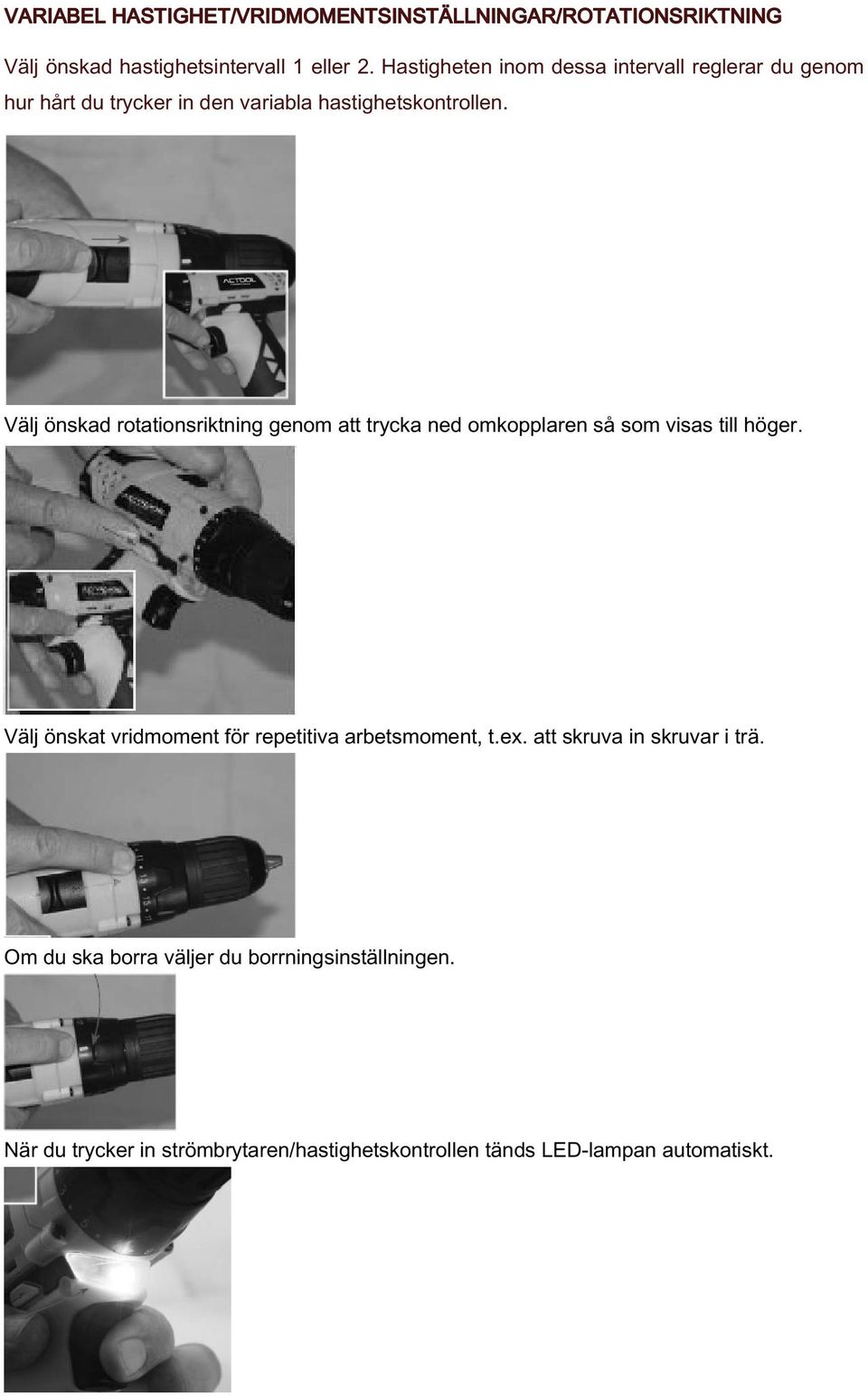

17 VARIABEL HASTIGHET/VRIDMOMENTSINSTÄLLNINGAR/ROTATIONSRIKTNING Välj önskad hastighetsintervall 1 eller 2. Hastigheten inom dessa intervall reglerar du genom hur hårt du trycker in den variabla hastighetskontrollen. Välj önskad rotationsriktning genom att trycka ned omkopplaren så som visas till höger. Välj önskat vridmoment för repetitiva arbetsmoment, t.ex. att skruva in skruvar i trä. Om du ska borra väljer du borrningsinställningen. När du trycker in strömbrytaren/hastighetskontrollen tänds LED-lampan automatiskt.

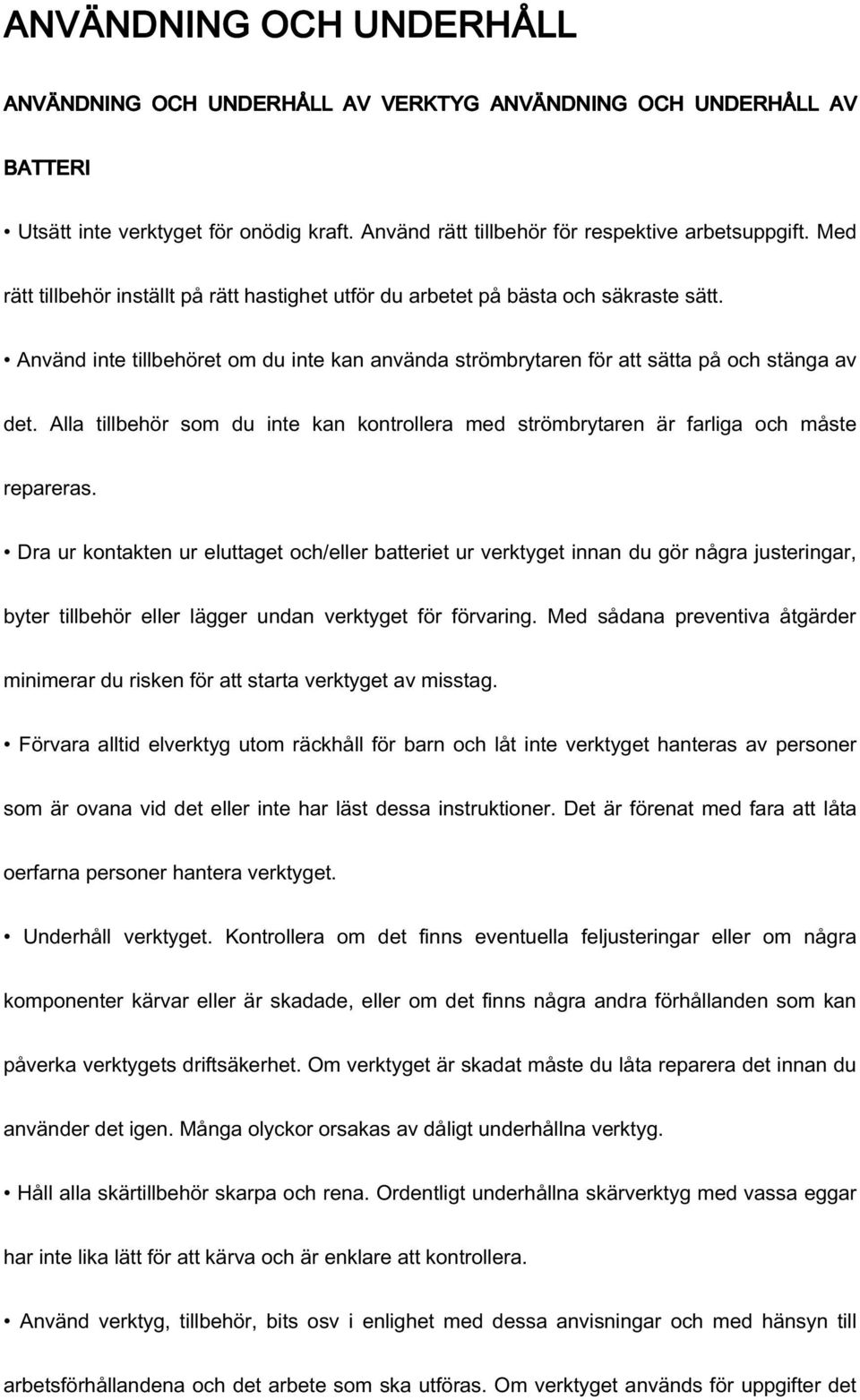

18 ANVÄNDNING OCH UNDERHÅLL ANVÄNDNING OCH UNDERHÅLL AV VERKTYG ANVÄNDNING OCH UNDERHÅLL AV BATTERI Utsätt inte verktyget för onödig kraft. Använd rätt tillbehör för respektive arbetsuppgift. Med rätt tillbehör inställt på rätt hastighet utför du arbetet på bästa och säkraste sätt. Använd inte tillbehöret om du inte kan använda strömbrytaren för att sätta på och stänga av det. Alla tillbehör som du inte kan kontrollera med strömbrytaren är farliga och måste repareras. Dra ur kontakten ur eluttaget och/eller batteriet ur verktyget innan du gör några justeringar, byter tillbehör eller lägger undan verktyget för förvaring. Med sådana preventiva åtgärder minimerar du risken för att starta verktyget av misstag. Förvara alltid elverktyg utom räckhåll för barn och låt inte verktyget hanteras av personer som är ovana vid det eller inte har läst dessa instruktioner. Det är förenat med fara att låta oerfarna personer hantera verktyget. Underhåll verktyget. Kontrollera om det finns eventuella feljusteringar eller om några komponenter kärvar eller är skadade, eller om det finns några andra förhållanden som kan påverka verktygets driftsäkerhet. Om verktyget är skadat måste du låta reparera det innan du använder det igen. Många olyckor orsakas av dåligt underhållna verktyg. Håll alla skärtillbehör skarpa och rena. Ordentligt underhållna skärverktyg med vassa eggar har inte lika lätt för att kärva och är enklare att kontrollera. Använd verktyg, tillbehör, bits osv i enlighet med dessa anvisningar och med hänsyn till arbetsförhållandena och det arbete som ska utföras. Om verktyget används för uppgifter det

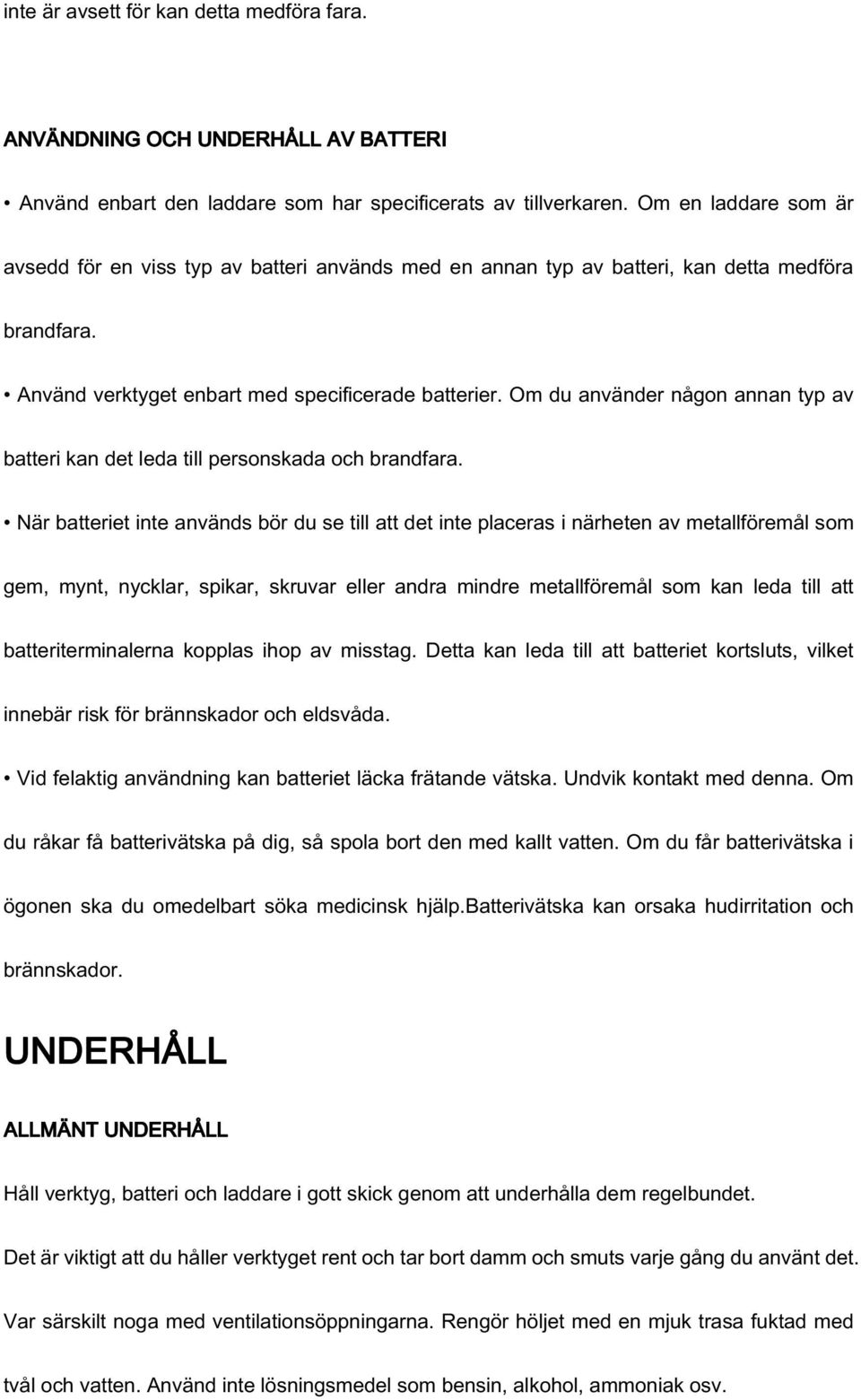

19 inte är avsett för kan detta medföra fara. ANVÄNDNING OCH UNDERHÅLL AV BATTERI Använd enbart den laddare som har specificerats av tillverkaren. Om en laddare som är avsedd för en viss typ av batteri används med en annan typ av batteri, kan detta medföra brandfara. Använd verktyget enbart med specificerade batterier. Om du använder någon annan typ av batteri kan det leda till personskada och brandfara. När batteriet inte används bör du se till att det inte placeras i närheten av metallföremål som gem, mynt, nycklar, spikar, skruvar eller andra mindre metallföremål som kan leda till att batteriterminalerna kopplas ihop av misstag. Detta kan leda till att batteriet kortsluts, vilket innebär risk för brännskador och eldsvåda. Vid felaktig användning kan batteriet läcka frätande vätska. Undvik kontakt med denna. Om du råkar få batterivätska på dig, så spola bort den med kallt vatten. Om du får batterivätska i ögonen ska du omedelbart söka medicinsk hjälp.batterivätska kan orsaka hudirritation och brännskador. UNDERHÅLL ALLMÄNT UNDERHÅLL Håll verktyg, batteri och laddare i gott skick genom att underhålla dem regelbundet. Det är viktigt att du håller verktyget rent och tar bort damm och smuts varje gång du använt det. Var särskilt noga med ventilationsöppningarna. Rengör höljet med en mjuk trasa fuktad med tvål och vatten. Använd inte lösningsmedel som bensin, alkohol, ammoniak osv.

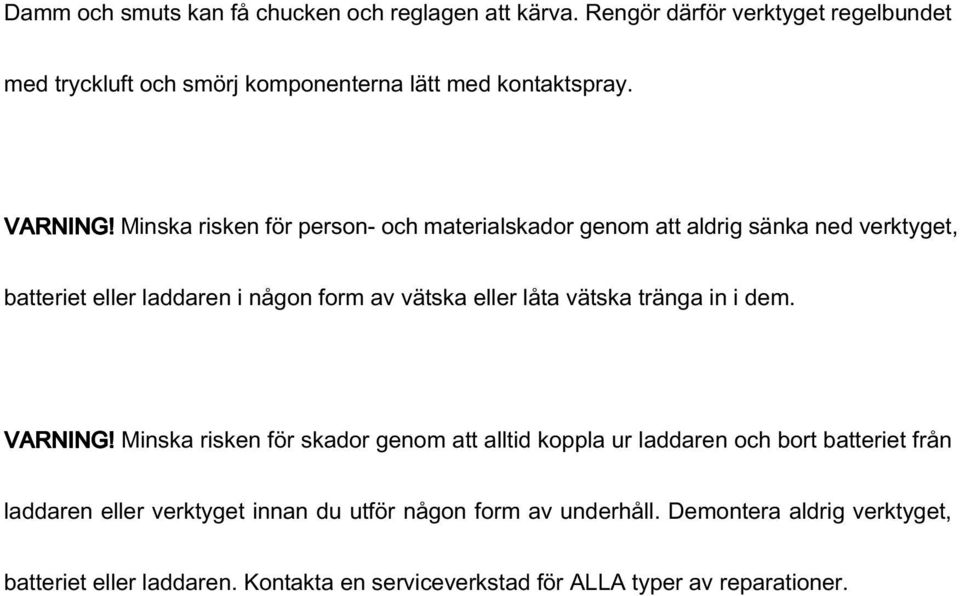

20 Damm och smuts kan få chucken och reglagen att kärva. Rengör därför verktyget regelbundet med tryckluft och smörj komponenterna lätt med kontaktspray. VARNING! Minska risken för person- och materialskador genom att aldrig sänka ned verktyget, batteriet eller laddaren i någon form av vätska eller låta vätska tränga in i dem. VARNING! Minska risken för skador genom att alltid koppla ur laddaren och bort batteriet från laddaren eller verktyget innan du utför någon form av underhåll. Demontera aldrig verktyget, batteriet eller laddaren. Kontakta en serviceverkstad för ALLA typer av reparationer.

21 SKRUTREKKERE Spesifikasjon: Volt: 12V Chuck: 10 mm hurtiglåsing Hastighet: / o/min Dreiemoment: 22 Nm Vekt: 1,0 kg Dimensjon: 190 mm

22 BRUK LADING Avsnitt 1 Koble laderen til strømuttaket (230 V). Den røde indikatorlampen indikerer nettspenning. Du kan nå sette batteriet i batteriladeren. LADE BATTERIET ADVARSEL! Når du lader et nytt batteri eller et batteri som ikke har vært brukt på en lang stund, kan det ikke lades helt. Dette er helt normalt og ikke noe tegn på feil. Du kan lade batteriet helt når du har latt det lade helt ut et par ganger. Koble laderen fra strømkilden når batteriet er ladet ferdig. Ta batteriet ut av den frakoblede laderen, og legg det til oppbevaring. Laderen må bare kobles til et 230 V vekselstrømsuttak. Hvis batteriet er for varmt eller for kaldt, vil det ikke lades, og den røde indikatorlampen blinker. Så snart batteriets temperatur igjen ligger mellom 0 og 50 C, gjenopptas ladingen automatisk. Hvis både den røde og grønne indikatorlampen lyser, betyr det enten at batteriet er av feil type eller at det er en feil på batteriet. Ta kontakt med forhandleren. Bruk aldri generator til å lade batteriet. SETTE I / TA UT BATTERIET Avsnitt 2 Slå alltid av verktøyet, og sperr strømbryteren før du setter i eller tar ut batteriet. Når du skal ta ut batteriet, trykker du inn knappene på batteriet og drar maskinen og batteriet fra hverandre. Sett i batteriet i laderen. Den grønne LED-indikatoren blinker under ladingen. Etter en time lyser LED-indikatoren med et fast lys, noe som viser at batteriet er fulladet.

23 1. Nettstrømmen er slått på (sett i batteriet) 2. Lader (grønn LED-indikator blinker) 3. Fulladet (grønn LED-indikator lyser fast) ADVARSEL! Sørg for å lade batteriet i minst en time før du skal bruke verktøyet. ADVARSEL! Forsøk ikke å presse batteriet inn i verktøyet med ytre kraft. Hvis batteriet ikke glir uhindret inn i verktøyet, setter du det ikke inn på riktig måte. SKRUTREKKERE HURTIGVEILEDNING SETTE I BORER/BITS Lås strømbryteren, og ta ut batteriet før du fortsetter.

24 (omkobler for høyre-/venstrerotasjon i midtposisjon). For å kunne føre borene/bitsene inn i den nøkkelløse chucken, må du åpne spennbakkene ved å vri chucken medurs. Sett inn boret/bitsen, og trekk til ved å vri chucken moturs så hardt det går. (*bits er ikke inkludert) ADVARSEL! Kontroller at strømbryteren er i låst posisjon før du bytter tilbehør.

25 VARIABEL HASTIGHET/DREIEMOMENTINNSTILLINGER/ROTASJONSRETNING Velg ønsket hastighetsintervall 1 eller 2. Hastigheten innen disse intervallene regulerer du alt etter hvor hardt du trykker inn den variable hastighetskontrollen. Velg ønsket rotasjonsretning ved å trykke inn omkobleren, som vist til høyre. Velg ønsket dreiemoment for repeterende arbeidsoppgaver, f.eks. å skru inn skruer i tre. Hvis du skal bore, velger du boreinnstillingen. Når du trykker inn strømbryteren/hastighetskontrollen, slås LED-lampen automatisk på.
