Each picking element is individually suspended in an angular toggle joint to follow the terrain. RM3 Capacity: 2400 balls Area capacity: approx.

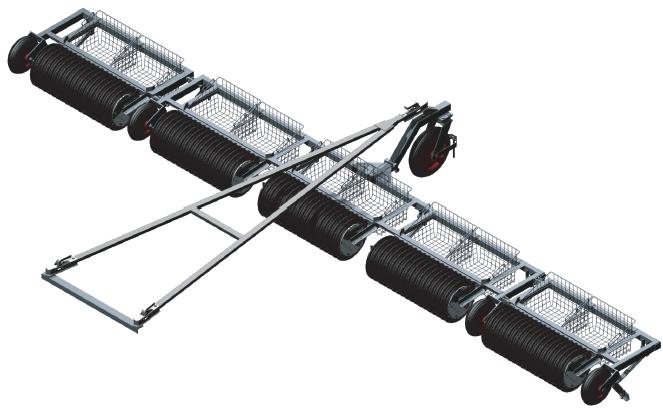

1 RM3 - RM 5 Ringmaster We offer ball pickers in 5 different sizes with a picking width of up to 6 m. RM3 - RM5 has a self-supporting chassis so that the collected balls do not place a load on the picking element since the baskets are located in the bearing frame. Each picking element is individually suspended in an angular toggle joint to follow the terrain. RM3 Capacity: 2400 balls Area capacity: approx. 15,000 m²/30 min Plockbredd 3,6 meter Vikt 180kg RM 4 Capacity: 3200 balls Area capacity: approx. 20,000 m²/30 min Picking width: 4.8 metres Weight: 225 kg RM 5 Capacity: 4000 balls Area capacity: approx. 25,000 m²/30 min Picking width: 6 metres Weight: 285 kg

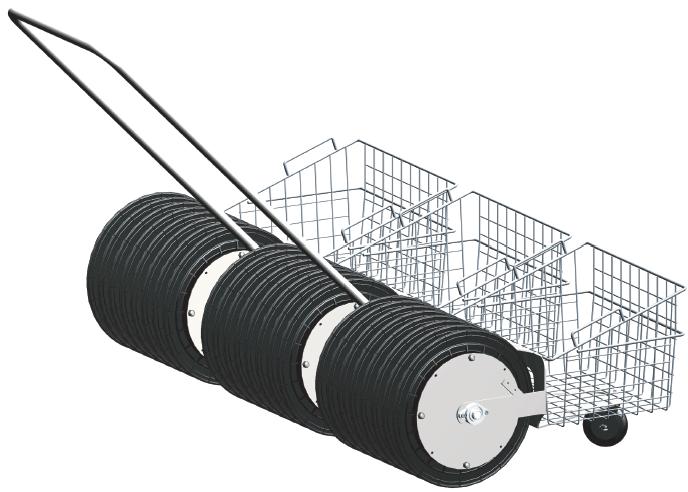

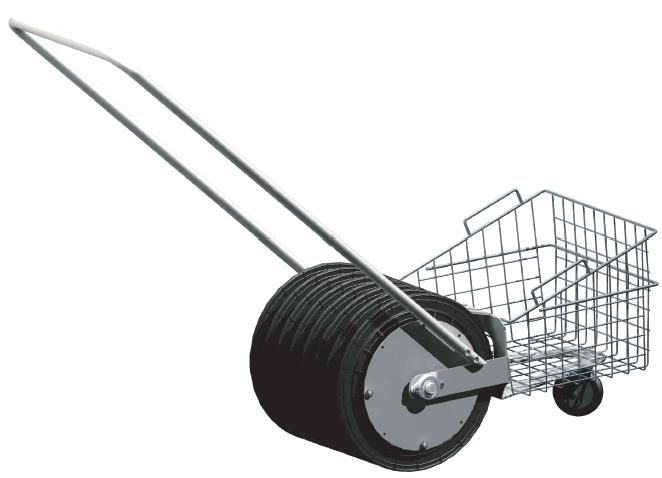

2 RM1 - RM 21 Ringmaster Small ball picker for small areas and indoor halls RM1 Capacity: 400 balls Picking width: 0.4 metre RM 21 Capacity 1200st bollar Picking width: 1,4 meter

3 RM3 - RM5 Assembly Ringmaster The ball picker is almost fully assembled upon delivery. All that remains is the picking elements, the front wheel unit and the pusher mounting, which must be mounted level to the front wheel (see illustration). Operation The ball picker is designed for operation on grassy surfaces. Avoid extremely hilly areas and sharp turns as the picking element runs at too high a speed. Speed must not exceed 10 km/h. The ball picker must not be operated on hard surfaces such as paved roads. Take care when reversing. Care Over time, the ball picker will become dirty. This will cause unnecessary wear, particularly to the picking elements. This can be prevented by keeping the ball picker clean and keeping the swivel (rotating plate at the front wheel) and ball couplings Warranty The warranty applies for a period of 12 months from the date of delivery and covers manufacturing defects for all parts. The warranty becomes invalid if the ball picker shows clear signs of insufficient care or improper handling. Follow these instructions. We wish you lots of benefit from this ball picker. manufacturer Sörens Mekaniska AB Ringborregatan Västerås retailer KSAB Golf AB Signalistgatan Västerås retailer Flevo Green Support Dodaarsweg LP, Zeewolde

4 RM RM3 Item no Part no Description Qty Bookmark Ram Rm Framhjulsenheten 1 Framhjulsenheten Påskjutare RM3-4 1 Påskjutarenheten Påskjutarfästet 1 Påskjutaenheten Lilla Dubbelskrapan V-Enkelskrapan H-Enkelskrapan Plockrulle 3 Plockenheten Bollkorg sidohjul Hjulbult Bladfjäder Låsplatta bladfjäder M8 Låsmutter M8x Används till framhjul och sidohjul och följer med Skraporna.

5 RM RM4 Item no Part no Description Qty Bookmark Ram RM4 V Ram RM4 H Framhjulsenheten 1 Framhjulsenheten Påskjutare RM3-4 1 Påskjutarenheten Påskjutarfästet 1 Påskjutarenheten Stora Dubbelskrapan Lilla Dubbelskrapan V-Enkelskrapan H-Enkelskrapan Ledlagret 2 Ledlagret Plockrullen 4 Plockenheten Bollkorg sidohjul Hjulbult Bladfjäder Låsplatta bladfjäder M8 Låsmutter M8x Används till framhjul och sidohjul och följer med Skraporna.

6 RM RM5 Item no Part no Description Qty Bookmark Ram Rm Ram RM5 V Ram RM5 H Framhjuls enheten 1 Framhjulsenheten Påskjutare RM5 1 Påskjutatenheten Påskjutarfästet 1 Påskjutarenheten Stora Dubbelskrapan Lilla Dubbelskrapan V-Enkelskrapan H-Enkelskrapan Ledlagret 4 Ledlagret Plockrulle 5 Plockenheten Bollkorg sidohjul Hjulbult Bladfjäder Låsplatta bladfjäder M8 Låsmutter M8x Används till framhjul och sidohjul och följer med Skraporna.

7 RM1 - RM Item no Part no Description Qty Qty Ram RM Påskjutare RM Gavel RM Gavel RM1 med låsning Axel Runt 17x Bollkorg Hjul RM Plockring Lager ufl M6x12 Insex M6x5 stoppskruv M8 Låsmutter M8x382 pinnbult Skrapa RM sitter i och låser axeln följer med
