DISTILLATION ANALYSIS OF ROAD TARS

Transkript

1 S T A T E N S V Ä G I N S T I T U T STOCKHOLM M E D D E L A N D E 76 DISTILLATION ANALYSIS OF ROAD TARS Metoder fö r destillationsanalys a v vägtjäror BY S T E N H A L L B E R G and H A R R Y A R N F E L T 1949

2

3 S T A T E N S V Ä G I N S T I T U T STOCKHOLM MEDDELANDE j6 DISTILLATION ANALYSIS OF ROAD TARS Metoder för destillationsanalys a v vägtjäror B Y S T E N H A L L B E R G and H A R R Y A R N F E L T i 949

4 STOCKHOLM I95O IVAR H G G ST R Ö M S BOKTRYCKERI A. B

5 TABLE OF CO N TENTS F ö retal... 4 Introduction... 5 Brief Description of the German, British and American Standard Methods 6 The German Standard M eth od... 6 The British Standard M eth o d... 7 The American Standard M eth od... 8 Comments on the three Standard M ethods General remarks Comparison of the M ethods Development of the Modified M eth od Tests made by some of the Swedish Gas Works and the G O K E F Concluding R em arks Data of the Modified M ethod Page

6 FÖRETAL I S Y F T E A T T K L A R L Ä G G A sammansättningen av en vägtjära brukar man utföra en fraktionerad destillation av tjäran. Vid denna destillation har man i Sverige tidigare använt en tysk standardmetod, beskriven i de tyska normerna D IN 1995, U 16. Metoden var dock i några avseenden icke fullt tillfredsställande, varför väginstitutet beslöt att pröva de metoder, som voro standardiserade i USA och Storbritannien. Dessa metoder visade sig i vissa avseenden vara bättre än den tyska, men i andra avseenden sämre. Följden blev att en modifierad metod utarbetades, vilken i sig förenade de olika metodernas fördelar men undvek deras nackdelar. Denna modifierade metod har prövats under ett par års tid, dels av väginstitutet och dels av Gokef och därvid visat sig vara tillfredsställande. Den användes nu som svensk standardmetod för destillationsanalys av vägtjäror. Metoden ger praktiskt taget samma resultat som de tyska, engelska och amerikanska metoderna, varför de i normalbestämmelserna för de olika tjärfraktionerna angivna procenttalen icke behövde ändras vid övergången till den nya metoden. Fördelarna med denna äro i första hand provningstekniska. Den är lättare att arbeta med än de tyska och engelska metoderna och har framför den amerikanska den fördelen, att de utvunna destillatmängderna äro så stora, att fenol och naftalinhalterna kunna bestämmas. Enär meddelandet huvudsakligen behandlar analysmetodik och därför i första hand är av intresse för laboratorietekniker har det i sin helhet avfattats på engelska. 12. nov

7 INTRODUCTION IN S W E D E N D I S T I L L A T I O N A N A L Y S E S of road tars were performed until recently according to the German standard method D IN 1995 U 16. This method proved, however, not to be entirely satisfactory and the question of its replacement by a more suitable method was raised. In the course of a search for a better method, the standard methods of the United Kingdom and the U. S. A. were studied. A consequence of this study was the development of a modified distillation method giving satisfactory results and being free of some inconveniences pertaining to the other methods. The modified method was tested in routine work in the Association for the By-products from the Swedish Gas and Coke Industries, the Gas- och Koksverkens Ekonomiska Förening (GO KEF), and in the laboratories of the Swedish Gas Works. In 1947 the modified method and the German standard method were both applied on the same samples. In 1948 the modified method alone was used in routine work in Sweden. After two years favourable experience of the modified method, it was adopted as the Swedish standard method for the distillation analyses of road tars. In the following pages a brief survey is given of the German, British and American standard methods. The experiences gathered in the course of some tests made by the Road Institute are also reported. In addition, modifications of the distillation methods are discussed and, finally, a description is given of the method which was arrived at.

8 BRIEF DESCRIPTION OF THE GERMAN, BRITISH AND AMERICAN STANDARD METHODS The German Standard Method D e u t s c h e N O R M E N A U S S C H U S S : D IN 1995 U 1 6. Siedeanalyse von Strassenteer und Kaltteer. Bituminöse Bindemittel fiir den Strassenbau, published by Beuth-Vertrieb, Berlin, The distillation apparatus (Fig. 1) consists of a 500 ml distillation flask connected to a glass tube, 800 mm in length and 20 mm in external diameter, serving as an air-cooled condenser. (For tars of low viscosity a water-cooled condenser is used for the distillate obtained under 170 C). The angle between the condenser tube and the neck of the distillation flask is 85. Fig. 1. The German distillation apparatus

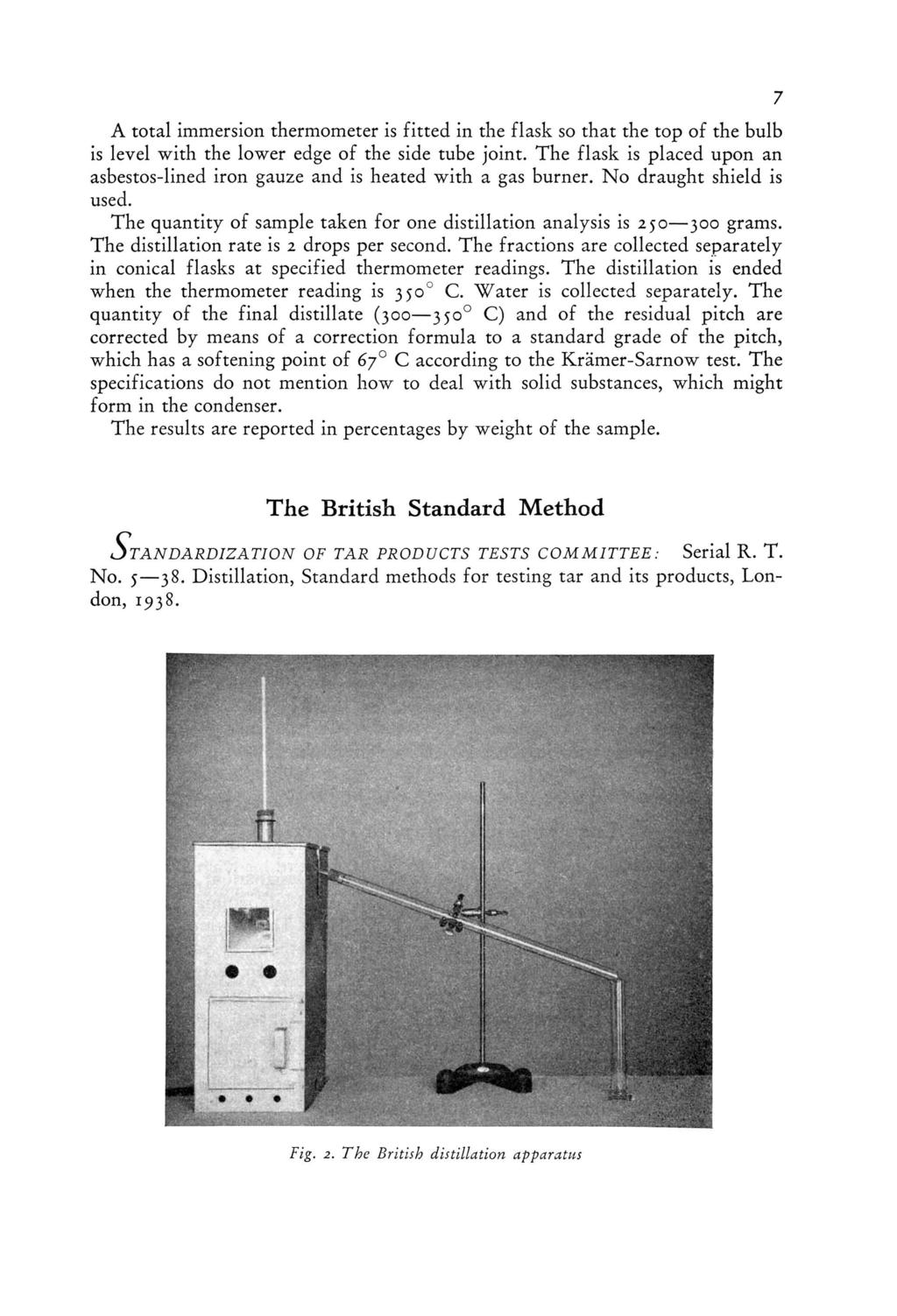

9 A total immersion thermometer is fitted in the flask so that the top of the bulb is level with the lower edge of the side tube joint. The flask is placed upon an asbestos-lined iron gauze and is heated with a gas burner. No draught shield is used. The quantity of sample taken for one distillation analysis is grams. The distillation rate is 2 drops per second. The fractions are collected separately in conical flasks at specified thermometer readings. The distillation is ended when the thermometer reading is 350 C. Water is collected separately. The quantity of the final distillate ( C) and of the residual pitch are corrected by means of a correction formula to a standard grade of the pitch, which has a softening point of 6y C according to the Krämer-Sarnow test. The specifications do not mention how to deal with solid substances, which might form in the condenser. The results are reported in percentages by weight of the sample. The British Standard Method S t a n d a r d i z a t i o n o f t a r p r o d u c t s t e s t s c o m m i t t e e Serial R. T. No Distillation, Standard methods for testing tar and its products, London, Fig. 2. The British distillation apparatus

10 The distillation apparatus (Fig. 2) consists of a distillation flask with a volume of approximately ml equipped with an air condenser of glass with an overall length of 600 mm and an internal diameter of 20 mm. The length of the side tube between the wall of the draught screen, described below, and the condenser is approximately 10 mm. The side tube of the distillation flask and the condenser slope downwards, forming an angle of 7 50 with the neck. A partial immersion thermometer is fitted into the flask in such a way that the bottom of the capillary is level with the lower edge of the side tube joint. The flask is placed in a draught screen divided into two compartments by a horizontal hard asbestos board that has a central circular hole, which is closed by the bottom of the flask. The flask is heated by a large size gas burner. The upper part of the flask is completely shielded from the hot gases from the gas burner and is protected from draught by the sides of the draught screen, but is not protected against heat losses by any cover on top of the screen. The quantity of sample is 750 g. If the sample contains water exceeding 0.5 per cent, the water is removed by a distillation prior to the distillation analysis. The distillation rate is 5 ml per minute or about 1 V2 drops per second. The thermometer shall indicate 2000 C within 35 minutes from the start. If solids tend to deposit during the distillation, the condenser is warmed so that such solids are collected in the fraction to which they belong. When the thermometer indicates 300 C the gas burner is extinguished and the oil remaining in the condenser is allowed to drain from the condenser for five minutes after the flame has been extinguished. The fractions are collected separately at specified temperatures in Crow receivers, i. e., graduated glass cylinders that are conical at the bottom. The softening point of the residue is determined by the Ring and.ball or by the Krämer-Sarnow tests. The results are reported in percentage by weight of the sample. The American Standard Method A m e r i c a n s o c i e t y f o r t e s t i n g m a t e r i a l s. Designation: D 20 30: A. S. T. M. Standards, Part II, Non-metallic materials, Philadelphia, The American Association of State Highway Officials. Designation: T Standard specification for highway materials and methods of sampling and testing, Part II, Methods of sampling and testing, Washington, The distillation apparatus (Fig. 3) consists of a distillation flask with a volume of approximately 300 ml equipped with an air-cooled tapered glass condenser tube of an overall length of 360 mm and an outside diameter at the small end of 12.5 mm. The length of the tapered part is 100 mm and the outside diameter of the large end is 28.5 mm. The length of the side tube between the wall of the draught screen and the condenser is not less than about 90 mm. The downward slope of the side tube and condenser tube is such that the angle between the axes of the tubes and the neck is 7 5.

11 Fig. 3. The A. S. T. M. distillation apparatus A total immersion thermometer is inserted in the flask with the top of the bulb level with the lowest point of juncture of the side tube and the neck of the flask. The flask is shielded from draughts by a cylindrical iron screen lined with asbestos and provided with a top cover. The neck of the flask emerges about 20 mm through a hole in the cover. The flask is supported by two sheets of iron wire gauze with 8 wires per cm, and is heated with a gas burner protected from draughts by a chimney. The quantity of sample is 100 g. If the percentage of water exceeds 3 per cent the water is removed by a special distillation before the distillation analysis. The distillation rate is about 1 drop per second. The first drop shall appear 5 15 minutes after the heat has been applied. Fractions are taken when the thermometer indicates specified temperatures. The condenser is warmed when necessary to prevent accumulation of solid distillates. When the thermometer indicates 300 C (or 350 C for low viscosity tars) the flame is removed, and the oil in the condenser is allowed to drain into the last fraction. The softening point of the residual pitch is determined by means of the Ring and Ball test. The results of the distillation are reported in percentages by weight of the water-free material.

12 COMMENTS ON THE THREE STANDARD METHODS General remarks The German Standard Method T h e S T A T E R O A D I N S T I T U T E gathered a great deal of experience in this method during several years. In the cases when the tars contained even small amounts of water, a condensation of the water occurred in the upper parts of the bulb and the neck of the distillation flask. Drops of condensed water ran down into the hot tar causing it to froth and sputter. In some samples an excessive frothing took place. In order to avoid these difficulties it was found necessary to use rather a low distillation rate or to heat the neck of the flask with a small flame. Many operators using the German standard method seem to heat the neck, although this procedure is not mentioned in the German specifications. When the tar was liable to excessive frothing and sputtering in spite of the extra heating of the neck, it sometimes occurred that the distillation rate had to be held so low that a single distillation required several hours. According to the specifications, the distillation flask should be supported by an asbestos-lined wire gauze. A bare wire gauze was substituted for this gauze, as it proved difficult to keep the specified distillation rate and to raise the temperature above 300 C, even when three burners were used for heating. In spite of this, it was still difficult to reach the specified final temperature of 350 C. The excessive heating often effected carbonization of the tar at the bottom of the flask, which for this reason became over-heated and attained such a high temperature that it softened and was deformed. Owing to the comparatively slight slope and the length of the condenser tube, the drainage of the water was rather slow, with ensuing difficulties in the determination of the water. Stagnant drops of water were removed by the tar oils and came into both the first and the second fractions, instead of being collected quantitatively in the first fraction. For the same reasons a large part of the naphthalene and the anthracene very often solidified in the condenser tube. In order to avoid this trouble it was nearly always necessary to heat the condenser tube. This was done with a small flame. Heating the condenser, however, incurred the risk of a loss of some of

13 the distillate. Moreover, it was difficult to control the proper distillation rate, owing to unavoidable fluctuations in the drainage from the condenser of the molten substance. The British Standard Method When the British standard method was studied, it was found that the heating of the distillation flask met with some difficulties. The burner house of the draught screen attained an inconveniently high temperature. The condensation of water in the neck was nearly as troublesome as in the case of the German standard apparatus. It was also difficult in some instances to obtain a sufficiently high distillation rate at high temperatures. Compared with the German standard apparatus the British one has the advantage of having a condenser tube which is shorter and slopes more steeply downwards. This highly diminishes the risk of solidification of naphthalene and anthracene and facilitates the draining of the water into the receiver. The American Standard Method With this apparatus only a few distillations were made. No difficulties were encountered. No condensation of water occurred in the neck of the flask, presumably owing to the flask being enclosed in the draught screen except for its uppermost part. The quantity of the sample, 100 g, is rather small. The fractions are correspondingly small, which makes it difficult to obtain the desired accuracy. If the phenol and the naphthalene contents are to be determined, the method is not suitable because of the smallness of the fraction taken for these determinations. Comparison of the Methods In order to get an idea of the relative results given by the three standard methods, specimens from some tars were distilled according to all the three methods. The specifications were followed as closely as possible, but some deviations had to be made. Especially when distilling according to the German specifications, it was necessary to substitute the asbestos-lined iron gauze for an ordinary gauze and heat the neck of the distillation flask. When working according to the British specifications the collection of the fractions up to 200 C always required a longer period than that specified. The road tar specifications of the different countries have, however, different temperature ranges for the fractions. For that reason the comparison had to be confined to the two fractions that are common to all the three specifications, viz., up to 270 C and C. Water could be collected only with the German and the British standard apparatuses. The latter apparatus gave somewhat higher values of the water content,

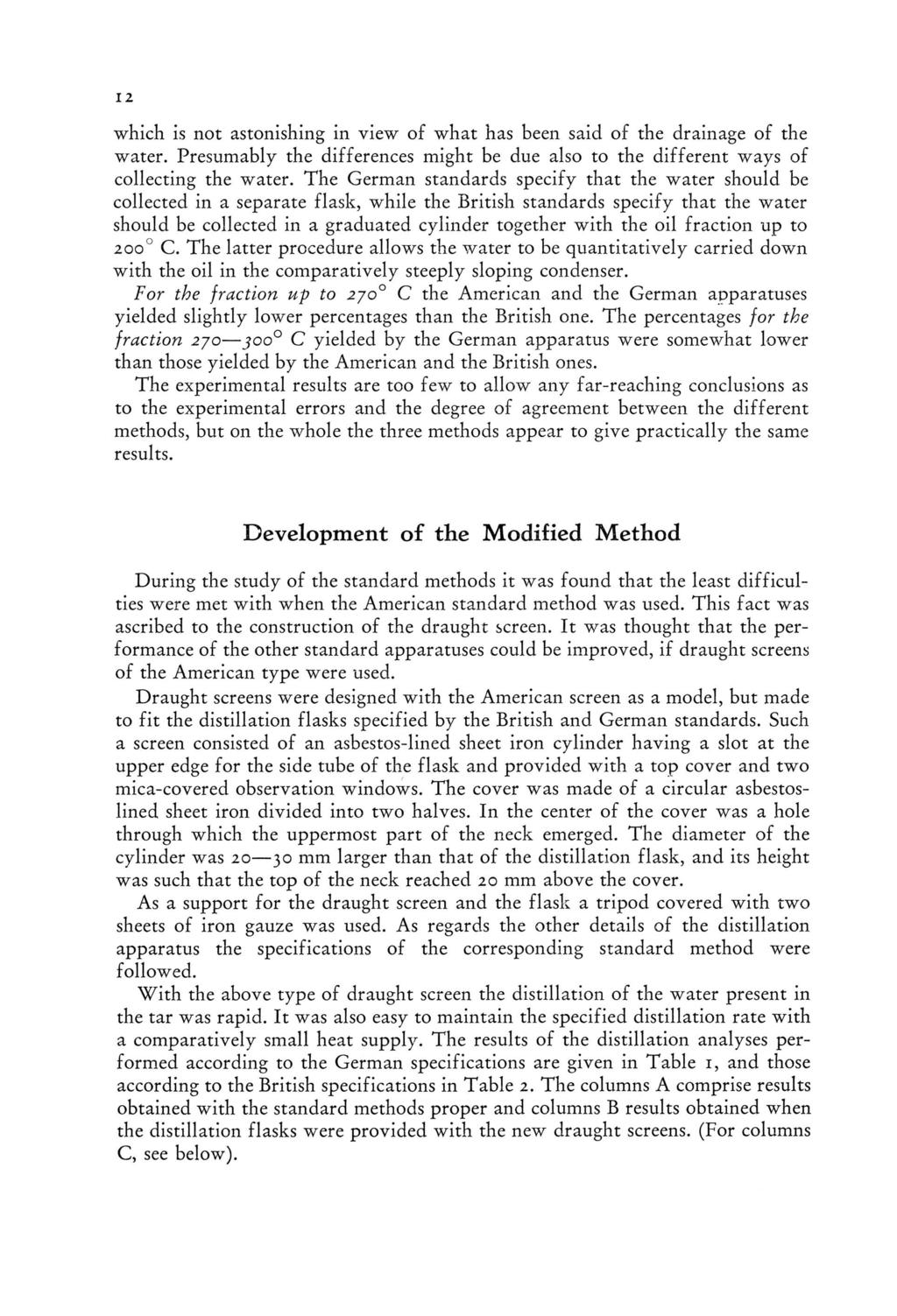

14 which is not astonishing in view of what has been said of the drainage of the water. Presumably the differences might be due also to the different ways of collecting the water. The German standards specify that the water should be collected in a separate flask, while the British standards specify that the water should be collected in a graduated cylinder together with the oil fraction up to 200 C. The latter procedure allows the water to be quantitatively carried down with the oil in the comparatively steeply sloping condenser. For the fraction up to 2 jo C the American and the German apparatuses yielded slightly lower percentages than the British one. The percentages for the fraction 270 jo o C yielded by the German apparatus were somewhat lower than those yielded by the American and the British ones. The experimental results are too few to allow any far-reaching conclusions as to the experimental errors and the degree of agreement between the different methods, but on the whole the three methods appear to give practically the same results. Development of the Modified Method During the study of the standard methods it was found that the least difficulties were met with when the American standard method was used. This fact was ascribed to the construction of the draught screen. It was thought that the performance of the other standard apparatuses could be improved, if draught screens of the American type were used. Draught screens were designed with the American screen as a model, but made to fit the distillation flasks specified by the British and German standards. Such a screen consisted of an asbestos-lined sheet iron cylinder having a slot at the upper edge for the side tube of the flask and provided with a top cover and two mica-covered observation windows. The cover was made of a circular asbestoslined sheet iron divided into two halves. In the center of the cover was a hole through which the uppermost part of the neck emerged. The diameter of the cylinder was mm larger than that of the distillation flask, and its height was such that the top of the neck reached 20 mm above the cover. As a support for the draught screen and the flask a tripod covered with two sheets of iron gauze was used. As regards the other details of the distillation apparatus the specifications of the corresponding standard method were followed. With the above type of draught screen the distillation of the water present in the tar was rapid. It was also easy to maintain the specified distillation rate with a comparatively small heat supply. The results of the distillation analyses performed according to the German specifications are given in Table 1, and those according to the British specifications in Table 2. The columns A comprise results obtained with the standard methods proper and columns B results obtained when the distillation flasks were provided with the new draught screens. (For columns C, see below).

15 Table i. Distillation analyses with different apparatuses, performed according to the German specifications as to the method of distillation. The German specifications were followed with regard to temperature ranges of the fractions, distillation rate and correction of the softening point of the residual pitch. The apparatuses used were: Columns A. German standard apparatus. Quantity of the sample g. Columns B. German standard apparatus with the draught screen shown in Fig. 4. Quantity of the sample g. Columns C. British apparatus with the draught screen shown in Fig. 5. Quantity of the sample 350 g. Registration number Grade1 Water Per cent by weight Fraction Up to 17 0 C Per cent by weight Fraction C Per cent by weight Fraction C Per cent by weight Fraction C Per cent by weight (Corrected) Residue (Corrected) Per cent by weight Distillation losses Per cent by weight A B C A B C A B c A B c A B c A B c A B c S.V T S.V T 55 0 O O 0 O O i O S.V T 6 0 I O i II S.V T 6 0 I O i3-i ' O.4 II O.7 S.V T 6 0 I 0 O 0 O i I O.o O 0.4 II S.V T 6 0 I O.I O.I * r II See foot-note on page 15.

16 Table 2. Distillation analyses with different apparatuses performed according to the British specifications as to the method of distillation. The British specifications were followed with regard to temperature ranges of the fractions and distillation rate. The apparatuses used were: Columns A. British standard apparatus. Quantity of the sample 750 g. Columns B. British standard apparatus with the draught screen shown in Fig. 5. Quantity of the sample 750 g. Columns C.»» >»»»» f-»» 350 g. Registration number Grade1 Water Per cent by weight Fraction Up to 200 C Per cent by weight Fraction C Per cent by weight Fraction C Per cent by weight Residue Per cent by weight Softening point of the residue. Ring and Ball. 0 C Distillation losses Per cent by weight Time3 to 200 C Minutes A B c A B c A B c A B c A B c A B c A B c A B c S.V. 202 T I o I S.V. 192 T 55 0 O S.V T O 45 S.V T S.V T 6 0 I 0.2 O.i ~ II O.T S.V T * *2 00 VO 84.I O.T See foot-note on page It was not possible to obtain the specified distillation rate, when distilling according to the British specifications. 3 Period of time for bringing the temperature up to 200 C.

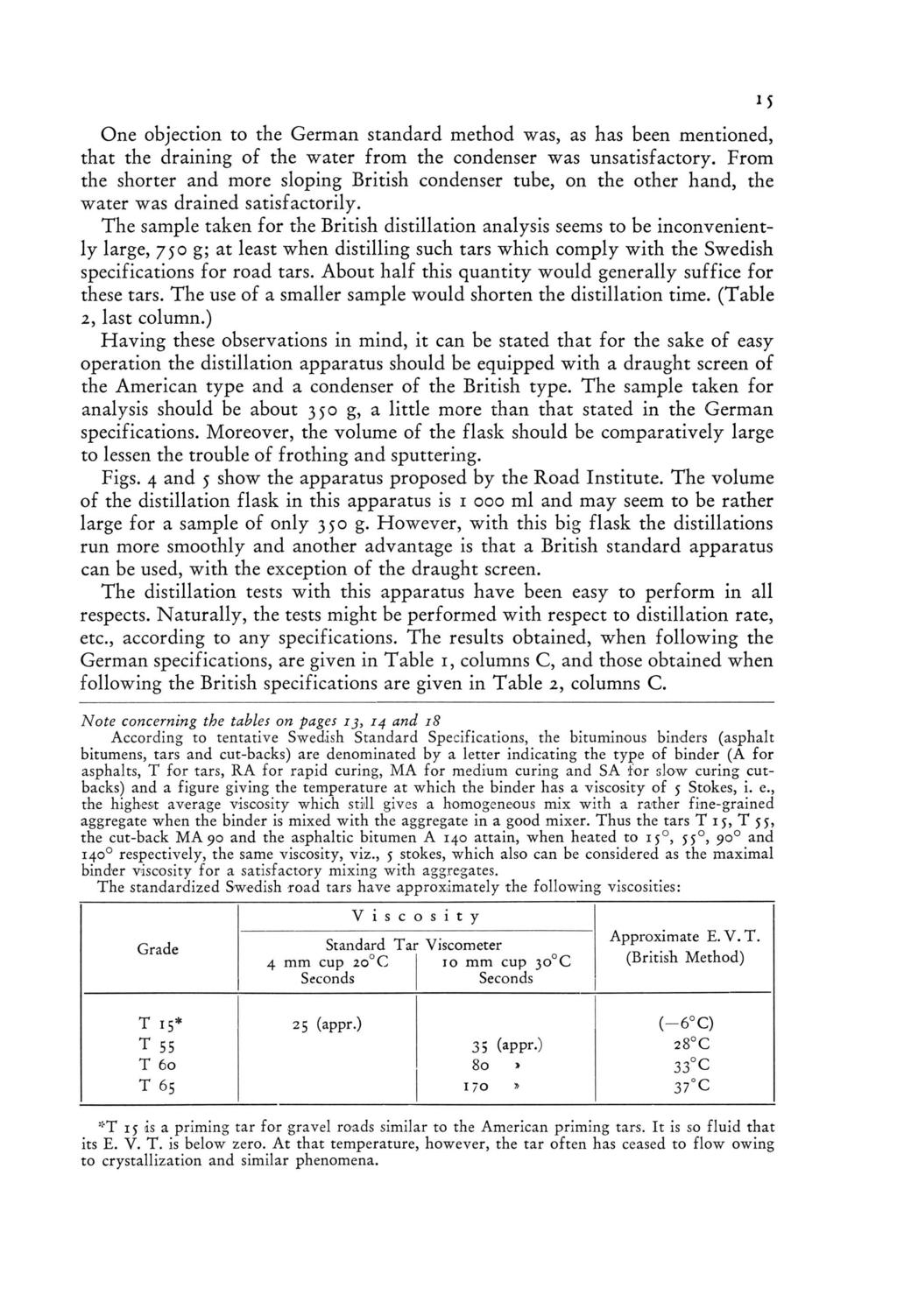

17 One objection to the German standard method was, as has been mentioned, that the draining of the water from the condenser was unsatisfactory. From the shorter and more sloping British condenser tube, on the other hand, the water was drained satisfactorily. The sample taken for the British distillation analysis seems to be inconveniently large, 750 g; at least when distilling such tars which comply with the Swedish specifications for road tars. About half this quantity would generally suffice for these tars. The use of a smaller sample would shorten the distillation time. (Table 2, last column.) Having these observations in mind, it can be stated that for the sake of easy operation the distillation apparatus should be equipped with a draught screen of the American type and a condenser of the British type. The sample taken for analysis should be about 350 g, a little more than that stated in the German specifications. Moreover, the volume of the flask should be comparatively large to lessen the trouble of frothing and sputtering. Figs. 4 and 5 show the apparatus proposed by the Road Institute. The volume of the distillation flask in this apparatus is ml and may seem to be rather large for a sample of only 350 g. However, with this big flask the distillations run more smoothly and another advantage is that a British standard apparatus can be used, with the exception of the draught screen. The distillation tests with this apparatus have been easy to perform in all respects. Naturally, the tests might be performed with respect to distillation rate, etc., according to any specifications. The results obtained, when following the German specifications, are given in Table 1, columns C, and those obtained when following the British specifications are given in Table 2, columns C. Note concerning the tables on pages 13, 14 and 18 According to tentative Swedish Standard Specifications, the bituminous binders (asphalt bitumens, tars and cut-backs) are denominated by a letter indicating the type of binder (A for asphalts, T for tars, R A for rapid curing, M A for medium curing and SA for slow curing cutbacks) and a figure giving the temperature at which the binder has a viscosity of 5 Stokes, i. e., the highest average viscosity which still gives a homogeneous mix with a rather fine-grained aggregate when the binder is mixed with the aggregate in a good mixer. Thus the tars T 15, T 55, the cut-back M A 90 and the asphaltic bitumen A 140 attain, when heated to 1 5 0, 550, 90 and 1400 respectively, the same viscosity, viz., 5 stokes, which also can be considered as the maximal binder viscosity for a satisfactory mixing with aggregates. The standardized Swedish road tars have approximately the following viscosities: Grade V i s c <3 s i t y Standard Tar Viscometer 4 mm cup 20 C 10 mm cup 30 C Seconds Seconds Approximate E. V. T. (British Method) T 15* 25 (appr.) ( 6 C) T (appr.) 28 C T > 33 C T 65 I 70» 37 C * T 15 is a priming tar for gravel roads similar to the American priming tars. It is so fluid that its E. V. T. is below zero. A t that temperature, however, the tar often has ceased to flow owing to crystallization and similar phenomena.

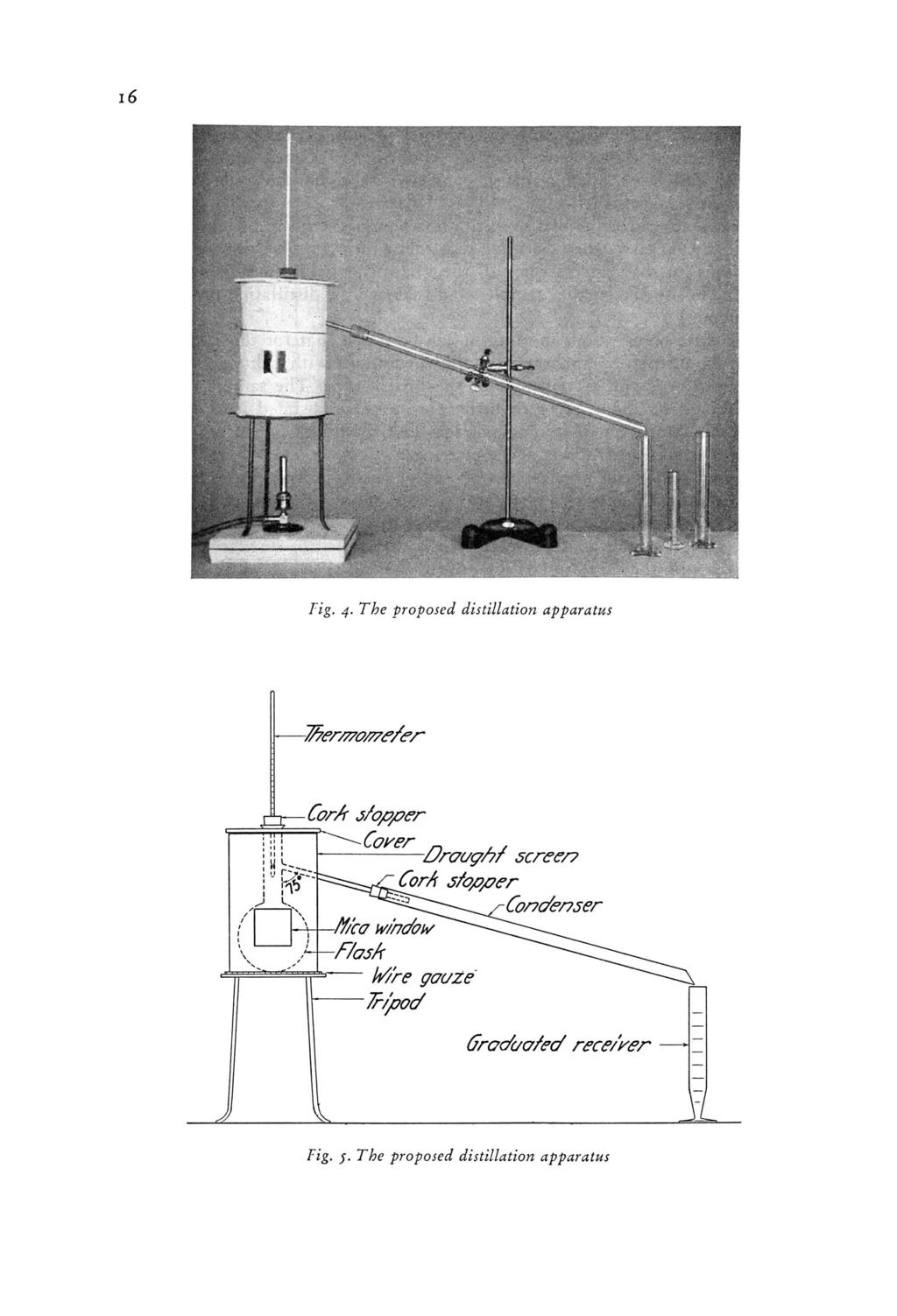

18 Fig. 4. The proposed distillation apparatus Fig. 5. The proposed distillation apparatus

19 TESTS MADE BY SOME OF THE SWEDISH GASWORKS AND THE GOKEF In 1947 a number of distillation analyses were made by the Government Institute for Testing Materials at the request of the GO KEF, and by the Gas Works in Stockholm and Göteborg which all used the German specifications. The distillation, however, was ended at 300 C. The distillation analyses were duplicated by the GO KEF using the proposed method. Mr. Rosengren, Chief Chemist of the GO KEF, states that the method proposed by the State Road Institute is more suitable for routine work than the German standard method of which the GO KEF previously had a great deal of experience. Thus, when distilling according to the proposed method, no condensation of water occurs in the neck of the distillation flask. The deposition of solids in the condenser tube is comparatively small. Table 3 presents the results of these tests. The headings of the three last columns are defined as follows: Average value = 2 (a + b) / m ; Mean d ifferen ces^ (a b) /n; Standard deviation (of a single difference from the mean difference) _j_ / [(a b) mean difference]2? V n 1 where a means the percentage obtained from a single distillation in the German apparatus, b the percentage obtained from a distillation of the same sample in the modified apparatus and n the number of tests. The same definitions also apply to the softening point, with temperature substituted for percentage. A study of the table shows that when the German apparatus is used, the percentages of the oil fractions are somewhat higher. This is especially the case for the fraction Moreover, the standard deviation in this case shows that the difference is significant. The percentage of the pitch residue in the German apparatus is significantly lower. The softening point of the pitch is correspondingly higher. A study was also made of the influence of the size of the sample and the size of the flask upon the percentages of the fractions. Three tars of different grades: T 15, T 55 and T 60 were distilled in a 500 ml flask as well as in a ml flask. The quantity of the sample was 350 g. Furthermore different quantities of the tars were distilled in the ml flask, viz., 300, 350 and 400 g.

20 Table j. Results of tests made by the GO K E F and the Gas Works. Grade of tar1 Number of distillation tests Average value Mean difference Standard deviation W ater Per cent by weight Fraction up to 17 0 C»»»» 2 f 0.3 +_ 0.2 T VI 00 1 K» V OO K) V O0 1 KjJ OOO O O V Pitch residue»»»» Softening point of pitch residue (R.& B.) C ± 1 Water Per cent by weight 0 Fraction up to 170 C»»»» 0. i T 60 18» C»»»» » C»»»» 6 -f Pitch residue»»»» 85 I.4 ± 0. S Softening point of pitch residue (R.& B.) C 43 + I ± I Water Per cent by weight 0 Fraction up to 17 0 C»»»» 0 A T » C»»»» 10 + O » oo C»»»» 6 -f- 0.2 ± 0. 5 Pitch residue»»»» Softening point of pitch residue (R.& B.) C 43 + I ± I 1 See note on page Tar containing about 15 per cent of asphaltic bitumen. Neither the size of the flask nor the size of the sample had any appreciable influence on the percentages of the different fractions. The mean value of a percentage of a fraction obtained with the 500 ml flask coincided often with that obtained with the ml flask. When a deviation occurred it was within the limits of the expected experimental errors. The standard deviation of a single determination was, however, considerably lower when using the ml flask than in the case of the 500 ml flask.

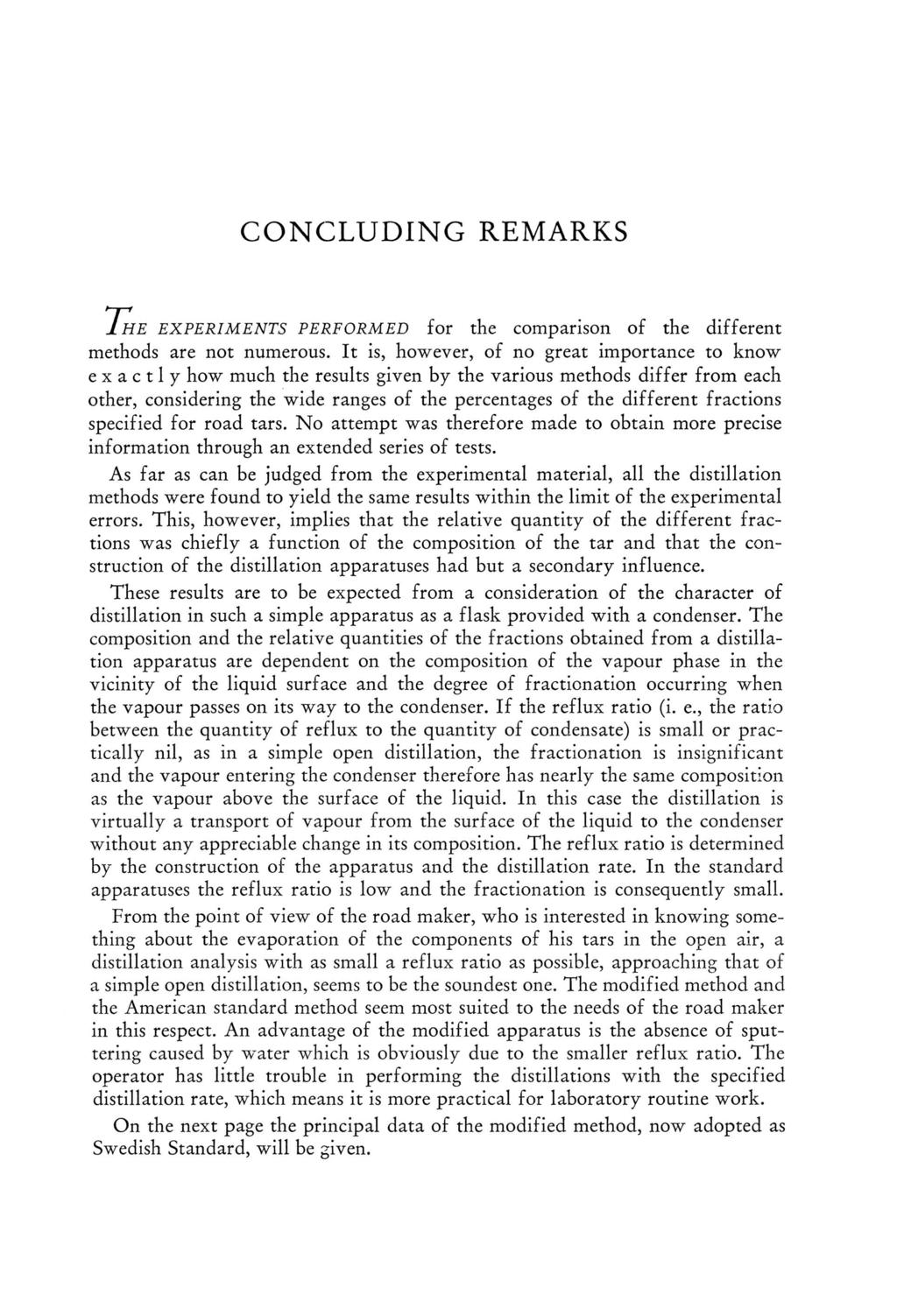

21 CONCLUDING REMARKS 1 H E E X P E R IM E N T S P E R F O R M E D for the comparison of the different methods are not numerous. It is, however, of no great importance to know exactly how much the results given by the various methods differ from each other, considering the wide ranges of the percentages of the different fractions specified for road tars. No attempt was therefore made to obtain more precise information through an extended series of tests. As far as can be judged from the experimental material, all the distillation methods were found to yield the same results within the limit of the experimental errors. This, however, implies that the relative quantity of the different fractions was chiefly a function of the composition of the tar and that the construction of the distillation apparatuses had but a secondary influence. These results are to be expected from a consideration of the character of distillation in such a simple apparatus as a flask provided with a condenser. The composition and the relative quantities of the fractions obtained from a distillation apparatus are dependent on the composition of the vapour phase in the vicinity of the liquid surface and the degree of fractionation occurring when the vapour passes on its way to the condenser. If the reflux ratio (i. e., the ratio between the quantity of reflux to the quantity of condensate) is small or practically nil, as in a simple open distillation, the fractionation is insignificant and the vapour entering the condenser therefore has nearly the same composition as the vapour above the surface of the liquid. In this case the distillation is virtually a transport of vapour from the surface of the liquid to the condenser without any appreciable change in its composition. The reflux ratio is determined by the construction of the apparatus and the distillation rate. In the standard apparatuses the reflux ratio is low and the fractionation is consequently small. From the point of view of the road maker, who is interested in knowing something about the evaporation of the components of his tars in the open air, a distillation analysis with as small a reflux ratio as possible, approaching that of a simple open distillation, seems to be the soundest one. The modified method and the American standard method seem most suited to the needs of the road maker in this respect. An advantage of the modified apparatus is the absence of sputtering caused by w^ater which is obviously due to the smaller reflux ratio. The operator has little trouble in performing the distillations with the specified distillation rate, which means it is more practical for laboratory routine work. On the next page the principal data of the modified method, now adopted as Swedish Standard, will be given.

22 DATA OF THE MODIFIED METHOD 1 H E D IS T IL L A T IO N A P P A R A T U S is identical with that specified by the British Standardization of Tar Products Test Committe described in Standard Methods for Testing Tar and its Products and designated by R T j 38. The draught screen is replaced by the one described below and shown in Figs. 4 and 5. The apparatus Distillation flask: ml. Standardized distillation capacity: 750 ml. Condenser tube: A straight glass tube with a length of 600 mm and an inner diameter of 20 mm. The inclination of the condenser is determined by the specification that the acute angle between the condenser tube and the vertically held neck of the distillation flask should be 75. Receivers: Three graduated cylinders, one having a capacity of 25 ml, the two others of 100 ml each. Thermometer: A thermometer for 100 mm immersion inserted into the distillation flask, so that the upper part of the bulb is level with the lowest part of the joint between the neck of the flask and the side tube. Draught screen: A cylinder of 1 mm sheet-iron, lined with 1 mm asbestos and with a height of mm and an inner diameter of 160 ± 5 mm. The cylinder has a vertical slot in the upper end, which is 15 mm broad and 90 mm deep reckoned from the edge of the cylinder. The latter is also provided with two mica-covered observation windows with the dimensions 50X50 mm. The cylinder is covered by a lid divided into two halves consisting of asbestos board or asbestos-lined sheet-iron. The lid has an opening for the neck of the flask. The cylinder and the flask rest on a wire-gauze with no asbestos-lining. The flask is heated by a gas burner under the wire-gauze. Procedure Quantity of the sample: 350 g. Distillation rate: 5 ml per minute. The thermometer shall indicate 200 C after 20+5 minutes. The volume of the water is determined in the light oil fraction which is collected in a 25 ml graduated cylinder. The other fractions are collected in 100 ml graduated cylinders. In order to determine the percentage of the fractions the cylinders are weighed. The residue in the flask is also weighed, and its softening point (Ring & Ball test) is determined. The period of time from the extinguishing of the flame to weighing shall be only half an hour.

23 F Ö R T E C K N I N G Ö V E R PUBLIKATIONER FRÅN SVENSKA VÄGINSTITUTET OCH STATENS VÄGINSTITUT Meddelanden. Svenska V äginstitutet. 1. Förslag till vägnomenklatur. Del I. Allmänna benämningar samt speciella benämningar för undersöknings- och utsättningsarbeten, terrasserings- och beklädnadsarbeten, konstarbeten, vägmaskiner och redskap samt vägmärken. (Utgånget) Protokoll från det av Svenska Väginstitutet anordnade diskussionsmötet i tjälfrågan i Luleå den 5 och 6 oktober (Utgånget) Erfarenheter från Svenska Väginstitutets trafikräkningar åren , av E. Nordendabl. (Utgånget) Del I. Erfarenheter från trafikräkningar i Gävleborgs län år Trafikens fördelning å vägnätets olika delar, trafikmängder m. m. Del II. Några erfarenheter rörande användbarheten av masugnsslagg för vägändamål, av E. Nordendahl. Del III. Vägbeläggningar av silikatbehandlad makadam. (Utgånget) Klorkalcium och sulfitlut som dammbindnings- och vägförbättringsmedel. En handledning i användningen av dessa medel, av A. Lagergréen, E. Nordendahl och N. Wibeck. (Utgånget, se medd. 14) Automobiltrafikens inverkan på byggnaders bestånd med hänsyn särskilt till bilringarnas beskaffenhet och fordonens hastighet. (Utgånget). Bilaga: H. Kreiiger: Vibrationsmätningar i Norrköping Om motorfordons rörelse, speciellt i avseende på dess samband med vågbildningen å vägar, av G. Blum. (Utgånget) Metoder för och resultat av bergartsprovningar för vägändamål, av R. Schlyter. (Utgånget) Provvägen vid Braunschweig, av E. N ordendahl (U tg å n g et) Gatu- och vägbeläggningars slirighet, av E. Nordendahl. (Utgånget) Förslag till vägnomenklatur. Del II. Vägbyggnadsmaterial av jord- och bergarter. (Utgånget) Uppmätning av ojämnheten hos vägars körbanor med s. k. skrovlighetsmätare, av E. Nordendahl. (Utgånget) Tjälproblemets grundfrågor. Sammanfattning av de viktigaste resultaten av pågående undersökningar. I. A v G. Beskow. (Utgånget) Klorkalcium och sulfitlut som dammbindnings- och vägförbättringsmedel. En handledning i användningen av dessa medel. Andra omarbetade upplagan Dräneringens betydelse för vägarnas tjälförhållanden. Sammanfattning av de viktigaste resultaten av pågående undersökningar. II. A v G. Beskow. (Utgånget)... * Iakttagelser från en studieresa i bil genom Danmark och norra Tyskland, av E. Nordendahl

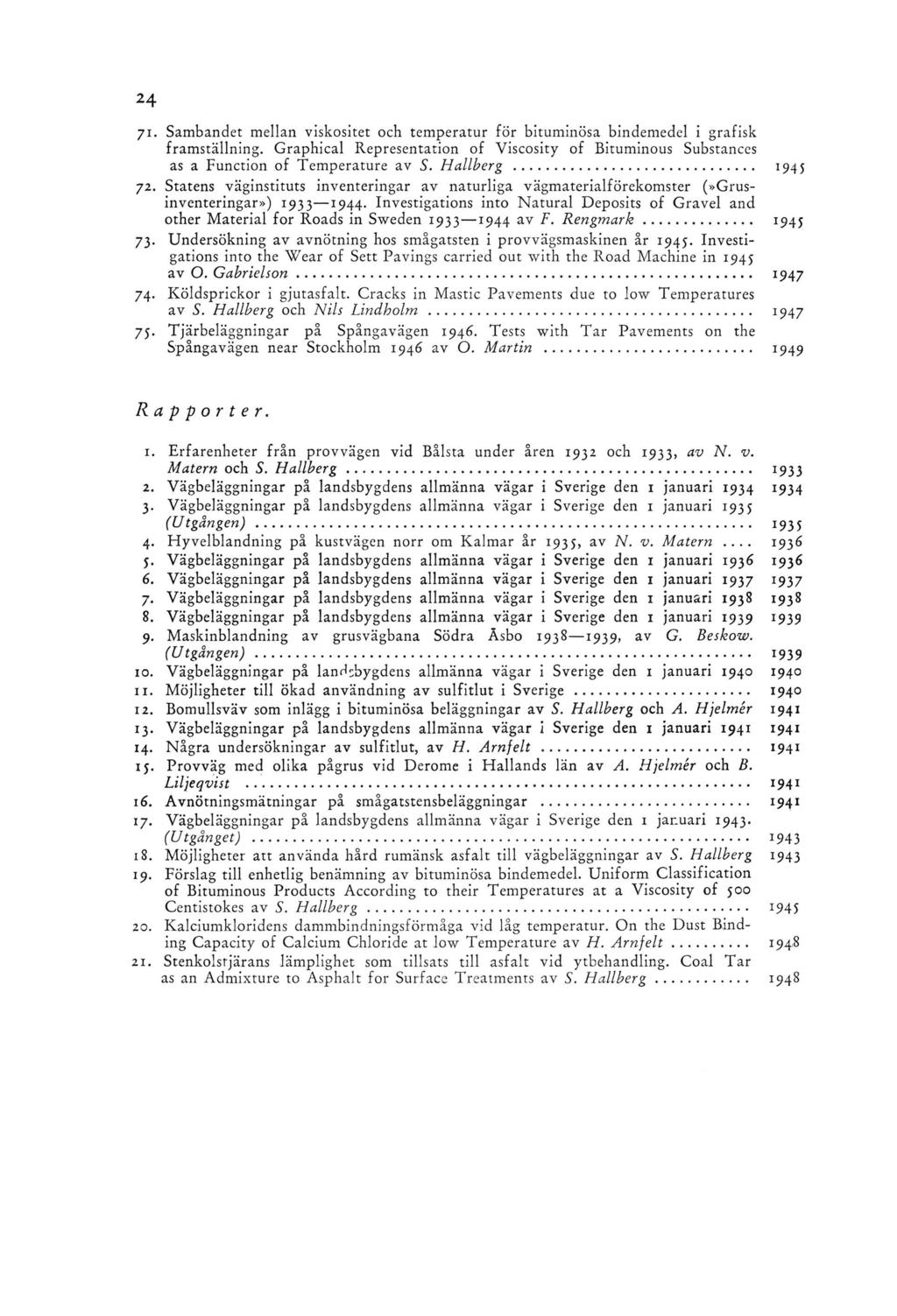

24 i j. Provväg vid Kristianstad mellan Ringelikors och västra Göinge härads gräns på vägen Kristianstad-Hässleholm... l Vågbildning å vägar. Corrugations on road surfaces. Bidrag till utredning om orsakerna till vågbildning å vägarna av Fr. Enblom och G. Blum (Utgånget) Provvägen i Gävle på västra utfartsvägen Vägstudier i Danmark år 1929, av N. v. M a te r n De geologiska faktorernas betydelse för vägarnas tjälförhållanden, av G. Beskow. (Utgånget) Erfarenheter från provvägarna år 1929, av N. v. Matern. (Utgånget) Svenska Väginstitutets trafikräkningar år 1929, av N. v. Matern Om vägarnas bärighet vid vattenövermättning, av G. Beskow. (U tgånget) Om jordarternas kapillaritet, av G. Beskow (Utgånget) Om isoleringsåtgärder mot tjälskott och tjälskjutning, av G. Beskow. (Utgånget) Några undersökningar rörande klorkalcium, klormagnesium och sulfitlut och deras lämplighet som dammbindningsmedel av G. Beskow och N. v. Matern. (Utg.) Bidrag till frågan om högklassiga vägbeläggningar i Sverige, av N. v. Matern Provvägen vid Kalmar. The experimental Road at Kalmar, av N. v. M atern Om vägarnas allmänna ytuppmjukning i tjällossningen. Softening of Roads in Spring, av G. Beskow Vägstudier i Förenta Staterna Road Studies in the United States of America 1930, av T. Biide, G. H öckert, N. L idva ll, N. v. Matern, A. Valsinger och E. P. W r e tlin d Om indränkning och ytbehandling. Grouting and Surface Treatment, av N. v. Matern Erfarenheter från provvägarna år Experiences from the Test Roads 1930, av Fr. Schiitz Asfalt och tjära för vägändamål. Asphalt and T ar for Road Purposes Undersökningar rörande bromslängden för bilar vid olika väglag. Investigations into braking Distances for Motor Cars under different Road Conditions, av G. Andersson och E. Lundeberg Om användning av vägtjära utomlands. The Use cf Road Tars Abroad, av S. H a llb e r g Om korrugeringen och dess motarbetande. Corrugation on Gravel Roads and its Counteraction, av G. Beskow Avnötningsmätningar på vägbeläggningar. Measurements of Wear on Pavements, av N. v. Matern och Fr. Schiitz Utredning rörande motorfordonsbeståndet i Sverige. A Statistical Survey of Motor Vehicles in Sweden, av års väg- och brosakkunniga Provning av betong vid betongvägar medelst provbalkar. Testing of Concrete for Concrete Roads on Beams, av C. F o r s s e ll Tjälens betydelse för vägbeläggningar. Influence of Frost Action in the Subgrade on Pavements, av G. Beskow Provvägen vid Borås. The experimental Road at Borås, av N. v. M a te rn Utredning angående lämpligheten av betongrör till vägtrummor. Investigations about Concrete Pipes for Road Culverts, av års väg- och bro sakkunniga Teknisk-ekonomiska utredningar rörande vägväsendet. Vägar. Technical-Economical Researches into Road Construction and Transport in Sweden, av års väg- och bro sakkunniga. (Utgånget)
