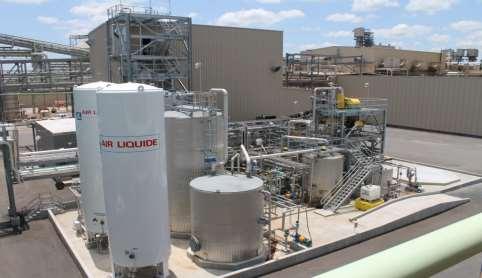

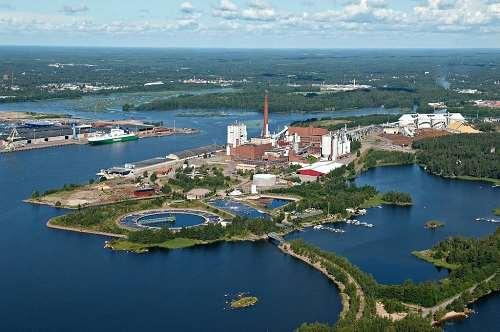

1 LignoBoost installations Domtar, Plymouth, USA Start: Q Stora Enso, Sunila, Finland Start: Q Pulp capacity: t/y Lignin capacity: t/y (54 kg/adt) Pulp capacity: t/y Lignin capacity: t/y (135 kg/adt)

2 Ligninuttag med LignoBoost Svartlut från kokning Indunstning Till sodapanna för förbränning Avvattning Konditionering Tvätt och avvattning Fällning med CO2 Lignin Återvinning av kemikalier

3 Första leveransen till Fortum mars 2007

4 Development of the LignoBoost process Bäckhammar t/y Plymouth t/y Sunila t/y Idea Lab work starts Breakthrough Lab Work Small pilot trials Bäckhammar RISE LignoDemo 2006 Large pilot trials & Patents Valmet acquire LignoBoost technology Plymouth start-up 2013 Lignin handling & energy applications Sunila start-up /03 KAM programs FRAM programs LignoFuel program LignoBoost is the result of long-term R&D collaboration between universities, institutes, pulp producers, technical consultants, chemical and equipment suppliers

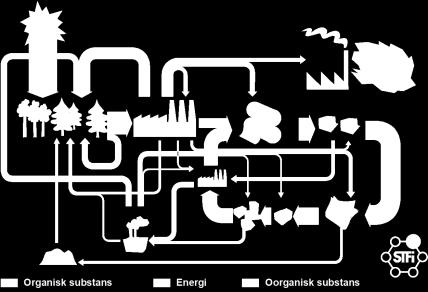

5 Kretsloppsvision 1992 Organisk substans Energi Oorganisk substans Organic substance Energy Inorganic substance

6 Kretsloppsanpassad massafabrik (KAM) MISTRAS första program Period 1, Period 2, Total budget 115 MSEK Företag Södra MoDo Paper/MoRe AssiDomän Eka Chemicals StoraEnso Purac Solvina ÅF-IPK Nykomb Synergetics Kiram Korsnäs Lärosäten och institut LTH, Chalmers, KTH, UU, SLU, MiUn, LuTU, STFI

7 Arbetssätt i KAM Separationsprocesser LTH, CTH, KTH, Eka, Kiram, Purac Processkemi UmU, STFI, AssiDomän, Modo/MoRe Energipotential CTH, KTH Material- och energibalanser CTH, KTH, Univ. of Idaho, STFI, Solvina Delignifiering och blekning STFI, Södra, KTH Nyckelfrågor Think-tank med olika kompetenser Syntes STFI, ÅF-IPK Mineralbalanser (CTH, SLU)

8 Förmedling av resultat KAM och FRAM Sammanfattande slutrapport Över 200 publikationer och rapporter Ca 100 föredrag, exjobb, posters Lic/dr avhandlingar Årliga infodagar

9 The LignoBoost story in short 1996 Idea formulated 1999 Lab work starts at Chalmers 2001 Promising results at Chalmers 2003 Sucessful small pilot scale trials 2004 Industrial pilot scale trials and patent applications 2006 Innventia acquires kraft lignin plant from Lignotech 2006/07 Start-up of LignoBoost demo plant 2007/08 Over lignin produced 2008 Technology sold to Valmet Close collaboration Valmet RISE/Innventia st industrial plant in operation (Domtar) nd industrial plant in operation (Stora Enso)

10 LignoBoost - ett unikt lagarbete med EN vision Per Olof Lindblad Göran Persson Göran Annergren Thore Berntsson Lennart Delin Karin Emilsson Yngve Stade Hans Theliander Per Tomani Eva Katrin Lindman Niklas Berglin Henrik Wallmo, Martin Wimby, Gene Christiansen

11 Klabin s board approves construction of pilot plants for MFC and lignin; to target innovation SAO PAULO, Sept. 18, 2018 Latin America) - Brazilian largest packaging paper producer Klabin announced Sept. 12 that the company s board has approved the construction of two pilot plants in its Telêmaco Borba mill, Paraná state, focusing on the development of microfibrillated cellulose (MFC) and lignin technologies. Our new R&D investment cycle will comprise a Real 32 million [$7.6 million] investment, with a pilot plant park of 500 m² expected to kick off in the fourth quarter of 2019, the company s industrial director, Francisco Razzolini, said. It is a project lignin where will be produced for commercial purposes, enabling the company to enter new markets for renewable and sustainable products. Klabin, because of its diversified wood base, has lignin from pine, eucalyptus and the mixing of both species, providing unique products to the market.
