1 Läget inom Processum och pilotpark Norrland Solander Symposium

2 Our Region and the Site Our Cluster Region The Biorefinery of Domsjö

3 Forest is the Norm 1 million people 10 pulp and paper mills Pilotplants 4 universities A handful development initiatives in biorefining

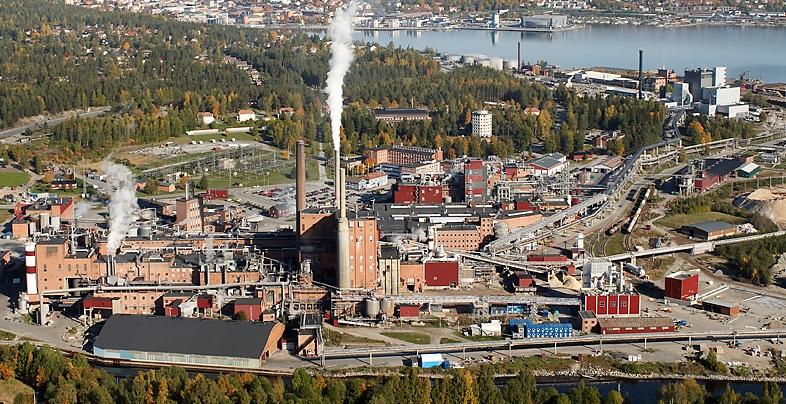

4 The Biorefinery Cellulose forest biorefinery CO2 in Örnsköldsvik, chemicalssweden Ethanol Speciality cellulose First Industrial Torrefaction of its Kind derivatives Energy Process Hans Grundberg Ethanol products fuels Engineering Development and new products in the upand-running R & D Lignosulfonate Steam, electricity & district heating Extractives First Industrial Gasification of black liquor Biogas

5 1 million m 3 Sustainable Forestry! Yearly annual forest growth 100 million m 3 = 200TWh

6 The region

7 A Visionary History

8 Gunnar Westin Unrganic Chem Processum AB Organisation David Blomberg Organic Chem. Björn Alriksson Biotechnology Vacant Feed-stock Liselotte Uhlir Energy Magnus Hallberg Patentengineer Gunnar Westin Green Liquor Sludge Yvonne Söderström Pilot Equipment Jennie Söderström Project Leader Jennie Söderström Project leader Ewa Kristmansson Info och reception CEO Clas Engström MIUN Monitoring Administration Ing-Marie De Wall Kjell Eriksson, controller Communication Jan Bergman R&D Finance Skills Innovation system R&D engineers Patent Project ledaers

9 The Cluster Members Cellulose Energy & Machine Process Universities Biorefinery and Pulp county consultants suppliers products council Paper Governmental Swedish Governmental Agency for Innovation: Processum is the National Center of excellence for Biorefinery

10 Focus INNOVATION

11 The Innovation Tree

12 Green Liqour Sludge on Dirt Roads

13 The Pulpwagon

14 PuriMeth Pilot Equipment INTERNAL

15 Biogas från Sulfatbruk och Skogskemi Kemi Skog

16 More Biorefining

17 And even more

18 R&D-council R&D-project Open Innovation, at least 2 Companies and often 1 University New Ideas New Companies Welcome 5 million SEK next year 30 finished projects, 40 ongoing Results to Companies

19 Pilotpark Norrland? Var och en av piloterna unika Säljs idag in under många olika namn Processum, Solander, BTC, SLU, Umeå Energi, Bioendev, ETC, SEKAB, More m.fl. Sammantaget en världsunik resurs Några exempel (utan ambition att vara komplett)

20 Gasification Centre Energy Technology Center in Piteå Experts on biomass gasification / Luleå Technical University

21 Demo Plant in Övik Fully integrated from cellulose feedstock to distilled ethanol Operated 24h/ 7d Dilute acid + enzymatic hydrolysis Two continuous flow-through thermochemical reactors Five 10 m 3 bio-reactors Yeast cultivation GMM certified Flexible Process configurations Feedstocks Other biorefinery applications (sugar platform) Capacity, 2 tons of dry wood chips / 24 h

22 BioDME plant in Piteå The worlds first black liquor gasifier in production from Chemrec. Are now building a BioDME-pilot plant. 4 tons/day production.

23 Pilot Digester 60 Litres Kraft and sulphite cooking 10 kg of raw material Film sequence:

24 Biorefinery Pilots Övik

25 Membrane filtration Separation of components in process liquors Lignin, carbohydrates etc. PCI unit PCI membrane unit MoRe membrane unit Ultra- and nano filtration MoRe unit

26 Gasification of wood residues No need for black liquor In operation january 2011 Synthetic gas from wood residues no need for black liquor PEBG Pressurized Entrained flow Biomass gasification

27 Biorefinery Pilots at Umeå/Övik

28 Dessutom Indirekt förgasare med DME-steg under uppbyggnad vid MIUN i Härnösand Torrefieringspilot i Umeå MIUN:s Flisningspilot i Utansjö Viskospilot MIUN:s TMP-pilot på Metso i Sundsvall

29 Ett kraftfullt Norrland! Algpilot DME-pilot Härnösand Solander Science Park Etanolpiloten i Örnsköldsvik Torrefieringsdemonstrator Svartlutsdemonstrator Förgasnings- Piloter i Piteå Kemipiloter Processum Åkroken Uminova Bortom Oljan BTC Röbäck Biogas Norr Processum Framtidens Bioraffinaderi Centrum Bioraffinaderi Diverse projekt Energi- Samverkan Norr Bio4Energy CleanTech Region UPSC Bio- Improve Umeå Universitet SLU ETC Bio4 Gasification FSCN Luleå Universitet Biofuelregion Mittuniversitetet

30 Pilotpark Norrland! Our Region and the Site En världsunik svensk testsite för Lignocellulosa! DME Suspensionsförgasning Fastfasförgasning Torrefiering Algpilot BTC Röbäcksdalen Bioreaktor/Flödesreaktor Viskos/Spinning Sockerplattform/Etanoldemo Massakokningspilot Enhetsoperationer Membranfiltrering Indirekt förgasning DME Flisningapilot Utansjö TMP-pilot Redan i dag pilotutrustningar för Ca 1,5 miljarder!

31 Vägen framåt Kom på mötet den 1 december i Örnsköldsvik som Processum och Bio4Energy arrangerar gemensamt om Pilotpark Norrland 1. Hur nyttjar vi denna resurs bättre? 2. Hur kan vi organisera oss smartare? 3. Hur får vi nationen Sverige att se detta som just en nationell resurs?
