1 SECURITY PRODUCTS FROM KENTIMA VMS /NVC PSIM

2 About Kentima Kentima is an innovative company that conducts development, manufacturing and sales of advanced products intended for the automation and security industry We have divided our operation in two business areas: Automation and Security This brochure describes our business area Security and our product areas VMS, /NVC and PSIM Our ambition is to develop products with unique features that give added value to our end customers It is important that the system integrators quickly and efficiently can configure the products and create solutions adjusted for each customer s specific needs and requests To us, it s natural that our products constantly maintain high quality, functionality, flexibility and in addition the products should also be able to integrate easily with other systems All to give the end user a powerful and costefficient system that is easy to use and simple to work with AUTOMATION SECURITY HMI/SCADA SOFTWARE VIDEO MANAGEMENT SOFTWARE INDUSTRIAL COMPUTERS NETWORK VIDEO RECORDER/CLIENT OPERATOR PANELS PSIM SOFTWARE Kentima Partner Program We have created the Kentima partner program to facilitate the work with our system integrators and to get satisfied end customers Within our partner program, we offer the system integrators support and attractive training which gives them necessary knowledge on our products and information on how they efficiently can create desired functionality for the end customer Kentima have more than 300 registered partners Are you a system integrator and interested in becoming a partner to Kentima, visit our website and learn more about our partner program and how to proceed in order to become a partner, wwwkentimacom/partner Kentima Success Stories Norra Djurgårdsstaden växer fram med ledande teknik uppfyllde Servistiks efterfrågan och krav WideQuick ger oss precis den flexibilitet vi behöver, säger Thomas Walldof, Projektspecialist Teletec Connect AB Då systemet skall kopplas samman med olika affärssystem och planeringsverktyg uppstod ett behov av att hitta ett överordr lösningatill nat system enkelt kan anpassas pletta larm, r kom ude applikationen och har goda g, inbrotts kninkommunikations AJTY erbj oöverva an säkerhetsutmöjligheter inom vide ann AKTA SNABBF SNABBFAKTA Stadsdelen Norra Djurgårdsstaden, på 236 hektar är ett av Stockholms mest spännande bostadsprojekt WideQuick har gett möjlighet att bygga ett grafiskt gränssnitt är anpassat för verksamheten, där man kan knyta samman flera underliggande system y Hajkovsk Stockholms stad har anlitat Linköpingsföretaget Servistik AB är experter inom logistik De planerar transporter tillsammans med byggherrarna för att skapa ett jämt och effektivt flöde Fö r att te k n i s k t s ä ke rstä l l a att transporterna sker vid rätt tidpunkt har det därför tagits fram ett slottidssystem där inpasseringskoder endast fungerar vid en specifik tidpunkt, i en specifik grind och under särskilda förutsättningar Kravspecifikationen var tydlig redan från början när valet för övervakningssystem och passagesystem skulle väljas Vällingby Låsservice tog i samarbete med Teletec Connect fram och presenterade en komplett systemlösning med funktioner Med hjälp av Ethiris funktioner kan man bland annat centralt styra grind och dörröppningar med en enkel knapptryckning : Marek eckar in ll ch Ethiris kiskt lyxhote a på slov År 2030 ska Norra Djurgårdsstaden stå klart, kanske ett av det mest spännande bostadsprojekten någonsin i Stockholm Kentima är stolta över att kunna vara en del av byggprojektet med sitt överordnade säkerhetssystem där både WideQuick och Ethiris spelar en viktig roll right Photo copy Together with our partners of cooperation, we produce success stories on projects that our partners have carried out with products from Kentima Our products are installed all over the world within a large number of businesses and applications: infrastructure, shopping centres, mines, process industry, buildings, sport arenas, stores, opera house, airports, machine control, railway stations and hospitals Visit our website and read about e of Kentima s successful projects, wwwkentimacom/successstories m och brandlar el Lom Flexibiliteten rustning och presentationset på Hot eror det överordnade systemet Ethiris gör det ssystemwidequick möjligheterna gjorde 70 kam ning möjligt att manuellt styra grind och dörrövervak akien har över Kentima öppningar från kontoret med hjälp av tillnica deti Slov självklara valet, säger :er från Ethiris popup fönster på skärmarna och en enkel Cluster Mathias ris VD och fyraesselström, i ett Ethi g Vällingby AB körslåsserviceoöv ervaknin denknapptryckning All information lagras i programmet och detta används senare för rott, kräver vide Hotellet felfritt utan avbris därbland annat fakturering där man får ut exakta Valet erar föll på WideQuick efter är n är Ethi fung ris VMS slottider a lösninge erbjuder r 70 programmet och Ethi stora optimaldessutom emoch med öve Detta är en stor tidsvinst, anser Crisattsyst bygga anpassa sieratdet ammans er videoöver möjligheter operativ och licen erat för :er tills tina Aguilar på Servistik arbetar med grafiska gränssnittet verksamheten, la stall kräv ima eri förin opt Ethiris a gall systemet samtidigt flera underliggande leve såg den ts unik rat fyra reras t AJTY installe akien Hotelle rhet run ster har säke att Cristina tycker att systemet Clu system knyts sammanimal drift net SSD TA Förutom pany Ltd GB msa nica i Slov n avbrott dyg s i ett Ethiris få max ävenenär32fullt använda och förstå, är hon även på den Efter är kör AJTY Compå Hotel Lom förinatt uta För attwidequick med är lätt företag l felfritt Kentima r ris ett välkänt valde Hoteintegrerat Ethiris VMS imponerad medethi Ethiris finns möjligheten kamero fungerar :er i sys över de skarpa och tydliga bilder samtliga AJTY är m och från rknaden fyrai stalefter rativsyste sma visas på i systemet Alla min att koppla samman kamerasystemet t ope vakning n med Ethiris rhet NAS syste där siera dades m extern akiska säke nda AJTY och licen vaknings lösninge akien grun stallerat nder en gemensa r slov att anvä iska över i norra Slov atör leve skrit nica Ltd anvä Lom ring pany gsguide säkerhet temet ingar mintegr AJTY Com hög till detta all videolag ktiv konfigurerin par är en syste övervakningslösn ett latör mycket 25 TB för över ett en effe de de 2005 och håller en värlbara beh dsystem system Ethiris har anpassa ik Kentima inled info@kentimacom a galleriet konst från hela atören wwwkentimacom erar kund taget har ett grun mintegr Det unik dygnet och cerad tekn t ifik kon där syste konfigurera upp 4 och före historia rvakning med avan med AJTY 201 risprojek ingsspec s med att videoöve avbrott AJTY te anläggn bidragit till den srika Ethi Rumä klas klick för kräver en samarbe flera framgång görs all felfritt utan starkt ris den och n, Ungern, rt dagar Därefter fungerar ingen med Ethi detta har genomfö er Slovakie totalt två runt rering och ata lösn tiden på figu knad var rrike ings ultim mar och Öste på tagn 1849 såg den et och kien och korta drift färdigt år i Österrikenien, Tjec aarvänligh tades och ar nica stod bin en änd star Lom t t shus l kom anv i mes eme Hote två dag korsvirke Det var smöjligheter tet a och det get i största Hela syst des på bara ddarsy flexibili tion mest lyxig ett av de rera integra en hög grad av llet är belä ell tillika det konfigu uderade att skrä r kunatt vi ition llet Hote Ungern, gjorde tion med Detade hote och erbjuder trad Detta inkl gssystemet efte ensky, ilitet, säger n eftertrak r och anj Vod Y och stab na plattform och svite av Slovakie övervaknin, säger Jura elegant ctor AJT hjärtat äma rum ov detta i en r mi, bekv valde den, Technical Dire dens beh gastrono för familjen Allt kultu Y ar t, lyx och attande nis Fronko gjorde att VD AJT använda läggning touch av kons omf er en tion med att auto en llet kamd annat fördelar stil med viktiga funk a kraven var den ng mgick hote över 70 m, blan s en rad hård En av flera anläggni 2016 geno då installerades bestående Det finn övervakningssyste alitet, unik klus fyllde de ndans I g och tion ris Cluster Ethiris upp tionen för redu i ett kluster med grera Ethiris het och funk renoverin till ett Ethi :er funk ter att inte okoll bär iska lade rlitlig is inne lighe ima mat Ethir a möj prot hög tillfö eror kopp :er från Kent fyra Det tar fyra g och stor m via olika samarbe nsgrad av en på kan gå ner, då tar terlösnin av fyra ra syste a nda and flera :ern iskt med mat ris en redu t av Ethiris med P, Modbus valde Ethi bt och auto hels :en att vilken OPC, HTT Denis varför de :erna snab e! de rera ar awe a tre have rlig de övrig den När vi fråg lt Because it s kontinue kameror rätthålls viss hårdenke över de sätt upp svarar han även om e På så avbrott hanterad le haverera met utan drift i syste n anledning skul någo macom vara av wwwkenti macom info@kenti

3 Video Management Software Unique and powerful software for video surveillance Camera support for leading camera manufacturers Great capabilities for integration with other systems Integrated script engine customizes the system Extremely high reliability with Ethiris Cluster for redundancy ETHIRIS VMS Powerful and Reliable Video Surveillance Ethiris Video Management Software (VMS) from Kentima is a powerful and advanced surveillance system that is easy to use Ethiris VMS has a broad area of use and is today used within several different areas such as stores, shopping centres, airports, railway stations, truck terminals, plant and process facilities, sport arenas, hospitals and other public buildings Easy, Effective and Powerful Software Easy Adjustment for all Customers Thanks to an integrated configuration guide that automatically starts, the user gets help to connect available cameras on the network and configure the system Within a few minutes, you are up and running Smart functions such as synchronizing alarms and events with the video player, where the user quickly can find relevant recorded video, makes Ethiris a highly effective tool where the operator saves lots of time in their daytoday work With the component based structure and scalability, the software is suitable for small facilities as well as large and complex applications There is a large number of functions that facilitate the work of the system integrator Automatic search for cameras on the network speeds up the configuration of the system A clear overview of the storage units helps out on configuration and adjustment of recording Statistics on all connected cameras in realtime, provides information on, for example, current band width, frame rate and the amount of recorded video The java based script engine opens up almost infinite possibilities for the system integrator to adjust the facility after the specific needs of the customer and to create a really intelligent security system Camera Support for Leading Camera Manufacturers Mission Critical Systems Ethiris is an open platform and has a broad camera support via ONVIF and individual protocols from leading camera manufacturers There are no limits in recording nor resolution Some of the supported large camera manufacturers are Axis, ACTi, Canon, Dahua, FLIR, HikVision, Panasonic and Samsung Ethiris has support for H265, H264, MPEG4 and MJPG Ethiris scalable structure is perfect for large, demanding facilities By using Ethiris Cluster, you will also get the highest level of reliability for the most mission critical systems Ethiris Cluster is a function for creating a redundant system where several Ethiris servers are joint together as a cluster Ethiris can continue to run a facility without any loss of function even if one or multiple servers fail The other servers immediately direct the tasks from the server that has failed, and the clients will automatically get video from the correct server The redundancy function also has many other advantages, for instance, basic load balancing by automatic distribution of the one and the same configuration across multiple server computers in the cluster Integration Ethiris advanced integration possibilities with a number of different systems, provides the user the possibility to create very powerful security solutions The software can quickly be integrated with, for example, access control systems, fire alarms, intruder alarms, control systems and superior SCADA systems Through general and flexible support for communication via TCP, http or ONVIF Events, Ethiris can be connected with intelligent units for example video analysis

4 Network Video Recorder/Client Costefficient Powerful CPUs up to i7 Can be run as a Cluster 12, 16, 24, 48 or 64 cameras can be connected Simplifies the system integrators work 1, 2, 4, 8, 10, 16 or 20 TB storage Preinstalled Ethiris VMS Three license levels Robust hardware adjusted for the task NVC for live up to 30 Full HD with 25 fps ETHIRIS /NVC Video Surveillance has Never Been Easier Ethiris Network Video Recorder () and Ethiris Network Video Client (NVC) are complete, turnkey and costefficient units for professional video surveillance facilitating the work for both system integrators and endcustomers Each unit is comprised by a reliable, rugged computer where Ethiris Video Management Software (VMS) is preinstalled The models are prelicensed and are tested to easily handle recording of all cameras with Full HD resolution and 25 frames per second in H264 The NVC models are optimized for running Ethiris Client and display live video from up to 30 Full HD cameras with 25 fps simultaneously Midsize systems Systems to grow with To cover different requirements, Ethiris and Ethiris NVC are available in several different models The units can be used separately, but can also be combined to create powerful and reliable system solutions Smaller Allinone systems When you want both recording and display of video in the same unit, Ethiris C fits very well This unit is optimized for running both Ethiris Server and Ethiris Client simultaneously Each C can connect up to 32 cameras, have up to 10 TB internal video storage and two monitors for viewing of live and recorded video Smaller systems with separate client Sometimes you want to put the recording unit in a secure location where it is protected from theft and fire Most often you want to be able to view live and recorded video from another location and therefore choose separate units for recording and viewing of video A good choice for recording is 1 which can connect up to 32 cameras and have up to 10 TB of internal video storage For viewing of video, Ethiris NVC1 which can display live video from up to 30 Full HD cameras with 25 fps of H264 simultaneously on one monitor is a good choice In larger systems you often want to connect more cameras to each server computer and have operator stations with several monitors connected to each client computer Ethiris 2 can connect up to 64 cameras and have up 20 TB of internal video storage per unit Ethiris NVC2, which is optimized for running Ethiris Client, can connect up to 3 monitors for viewing of live and recorded video Large redundant systems For really large redundant systems you usually use external storage, such as a NAS, which can have redundancy via RAID Ethiris N is optimized for external storage and thus has no internal video storage Just like all other Ethiris models, N can be used in an Ethiris Cluster to create a redundant system where one or several servers can fail without losing capacity in the facility The remaining servers in the cluster automatically and quickly take over the cameras handled by the failing servers and the camera surveillance continues as nothing has happened

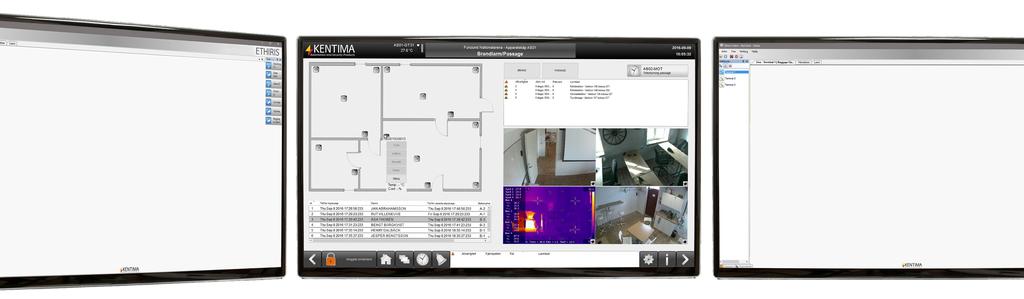

5 PSIM Software Ethiris Video Management Software Fire Alarm Building Automation PLC Access Control Intruder Alarm SCADA Operator Panel Database Access Perimeter Intrusion Other Security Systems Distributed I/O The purpose of a PSIM solution is to surveille, compile and present relevant information Presentation occurs in a common user interface Intelligent filtering in combination of alarms and events gives the operator complete control Connects to a large number of different security systems and facilitates twoway data communication Broad spectrum of interaction objects to be used in WideQuick PSIM WIDEQUICK PSIM For Complete Control of Your Facility WideQuick Physical Security Information Management (PSIM) is a superior surveillance system used within security facilities WideQuick PSIM communicates with different security systems, surveilles various functions and presents relevant information to the operator in an efficient common user interface WideQuick PSIM provides many advantages, for instance increased control, enhanced situation awareness and reporting A higher efficiency gives lower costs and an intelligent system contributes to an increase in security The authorization system in WideQuick PSIM is based on privileges to ensure that selected parts of the system can be used by authorized personnel only Instant Decisions WideQuick PSIM is a highly efficient tool to enable the operator to make instant decisions and take action directly in critical situations Information from several different security systems is presented in a common user interface and gives a unprecedented overview of the facility It doesn t only increase the efficiency of the operator s work, but also reduces the risk of operator errors The information from the facility can be presented locally in a control room as well as on a remotely controlled computer or via a web browser Intelligent Filtering All alarms and alerts occurring in a facility can t be considered of serious character They need to be prioritized, based on the level of risk and a number of other important factors Dynamic alarm handling is required to quickly realize to quickly realize if any action is nesessary Check lists of mandatory actions can be presented to the operator, based on what kind of event that occurs Different procedures can be carried out automatically and/or manually Optional Design The system integrator can easily adjust the system to fit the requirements of the end customers WideQuick PSIM has powerful tools in the designer which provide short development time and thus saves time and money With help of the designer, a very flexible user interface is created where the end customer can get in basically any functionality at all Close integration with Ethiris Video Management Software gives the opportunity to a vast video functionality Connects to a Large Number of Different Security Systems WideQuick PSIM can be connected to a large number of different security systems and has the possibility to twoway data communication Examples on security systems that can connect to WideQuick PSIM are: video surveillance, access control systems, fire alarms, intruder alarms and other security and building automation systems The inherent scalability in WideQuick makes the software appropriate to large application such as cities, airports, hospitals and prisons as well as smaller installations Integration Examples on systems that can be integrerated with WideQuick PSIM

6 KENTIMA PRODUCT LINES SECURITY VIDEO MANAGEMENT SOFTWARE NETWORK VIDEO RECORDER/CLIENT PSIM SOFTWARE AUTOMATION HMI/SCADA SOFTWARE INDUSTRIAL COMPUTERS OPERATOR PANELS Mailing Address: Visiting Address: PO Box 174 Kastanjevägen 2 SE Staffanstorp Staffanstorp Sweden Sweden Phone: +46 (0) Fax: +46 (0) info@kentimacom wwwkentimacom Copyright Kentima AB All rights reserved Ethiris and WideQuick are registered trademarks of Kentima AB English
