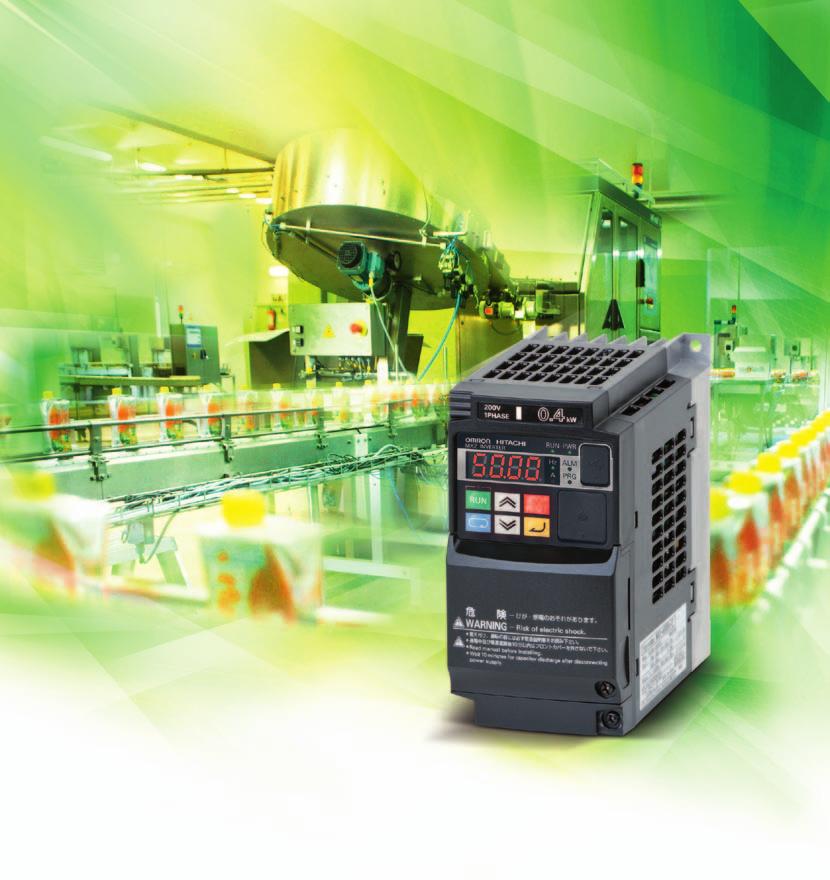

1 MX2-FREKVENSOVANDARE Utvecklad för optimal styrning»» Omron-kvalitet med stort K»» Hög programmeringsfunktionalitet»» Inbyggd säkerhet

2 Harmoniserad motor- och maskinstyrning MX2 är specifikt utformad för styrning av maskiner. Den har utvecklats för harmonisering av avancerad motor- och maskinstyrning. Tack vare avancerad design och algoritmer ger MX2 smidig styrning även vid stillastående användning, samt exakt drift för snabb cyklisk användning och funktioner för vridmomentsstyrning i konfigurationer med och utan återkoppling. Dessutom har MX2 omfattande funktionalitet för maskinstyrning, till exempel positionering, varvtalssynkronisering och logikprogrammering. MX2 är helt integrerad i Omrons smarta automationsplattform. MX2 har utvecklats av en verklig ledare inom maskinautomation. 200 % initialt vridmoment Vridmomentstyrning utan återkoppling Specialmotorer Automatisk inställning med en parameter MOTORSTYRNING Nära stillastående läge (0,5 Hz) Smidig styrning av belastning med stor tröghet Styrning av snabba cykliska belastningar Perfekt lämpad för tillämpningar med litet till medelstort vridmoment Kan ersätta en flödesvektor eller servoenhet i lämpliga system Permanentmagnetmotorer Motorer med högt varvtal upp till Hz Ange bara kw-värdet för motorn, så får du problemfri och säker drift med MX2 3

3 MASKINSTYRNING Varvtalssynkronisering Integrerad säkerhet Uppfyller kraven för säkerhet i ISO CAT3, prestandanivå P d 2 säkerhetsingångar Extern övervakning av utrustning (EDM, External Device Monitoring) ogikprogrammering Programmering med flödesdiagram Textredigering Intuitivt max 5 uppgifter parallellt Positionering Upp till 8 förinställda positioner med referens-körning Integrerad i Omrons arkitektur för smart automation CX-Drive programmerings- verktyg anslutet via integrerad USB-port på MX2 Inbyggd RS485 Modbus Tillvals enheter för EtherCAT, Profibus, DeviceNet, M-II m.m.

4 100 % kontroll... Högt startvridmoment och funktioner för vridmomentsstyrning i läge utan återkoppling ger dig fullständig kontroll över maskinens dynamik och prestanda. Alternativ för alla större fältbussystem och ett externt nätaggregat på 24 V DC ger dig fullständig kontroll över maskinens drift. Vridmoment (%) Frekvensomfång kontra vridmomentsvariation Exempel med 7,5 kw fyrpolig motor Hz 24 VDC 220 VAC Överlägsen vridmomentsstyrning MX2 har 200 % startvridmoment i nära stillastående läge (0,5 Hz) och kan användas för vridmomentsstyrning i läge utan återkoppling. Det gör det möjligt att använda MX2 i tillämpningar där AC-vektorenheter tidigare användes. Enkel nätverksintegration Inbyggd RS485 Modbuskommunikation och industriella nätverk av standardtyp, till exempel EtherCAT (kompatibelt med CoE CiA402-drivsystemsprofilen), MECHATROINK-II, DeviceNet, Profibus eller CompoNet som tillval. Extern 24 V DC-anslutning för kontinuerlig drift Tack vare en 24 V DC-anslutning till MX2 kan du vara förvissad om att processorn alltid har kontroll, även om huvudströmförsörjningen avlägsnas, och utan att ytterligare maskinvara krävs. Den här funktionen är nödvändig för kontrollerade stopp i nödsituationer och för att hålla igång nätverkskommunikationen.

5 ... 0 % risk! Säkerhet är inbyggt i MX2, i enlighet med ISO , kat. 3, med två säkerhetsingångar och en EDM-utgång (External Device Monitoring). Inga externa kontaktorer på motorsidan krävs, vilket ger enklare kabeldragning för användaren. Säkerhetsingång med redundans Kedja med dubbla säkerhetsingångar EDM-utgång EDM-säkerhetsutgångskedja Inbyggd säkerhet; ISO , kat. 3 Det är inte längre nödvändigt med två kontaktorer vid utgången för omriktaren. Direkt anslutning till ett säkerhetsstyrsystem säkerställer efterlevnad med ISO , kat. 3. EDM-övervakningsutgång Med en EDM-utgång (External Device Monitoring) bekräftas säkerhetsstatus för omvandlaren, vilket ger lägre kostnader och mindre kabeldragning för externa enheter men samma funktion. Direkt integrering i säkerhetskretsen MX2-omvandlaren kan enkelt implementeras i säkerhetskretsen. Säkerhetsingångarna kan kopplas från en omvandlare till en annan utan ytterligare säkerhetsreläer.

6 Positionera och kör! MX2 är ett kombinerat drivnings- och positionsstyrsystem, perfekt lämpat för modulära maskiner där det ställs tämligen stora krav på positionsnoggrannhet. Varvtalssynkronisering är också möjlig, utan att ytterligare programmering krävs. Varvtalssynkronisering Varvtalssynkronisering kan uppnås utan extern maskinvara och via standardparameterinställningar. MX2 fungerar som en varvtalsövervakare för en extern pulsgivarsignal upp till 32 khz.. Positioneringsfunktioner Tack vare specialutvecklade tillämpningsfunktioner kan MX2 utföra enkla positioneringsåtgärder utan att ett externt styrsystem krävs. Användaren kan välja upp till åtta positioner och startposition, och dessutom växla mellan varvtals och positionsläge.

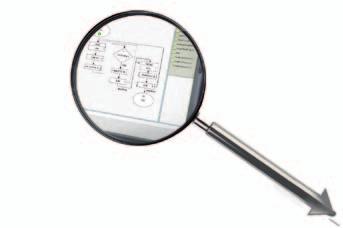

7 Användarvänlig programmering MX2 ger dig möjlighet att skapa smarta lösningar med hjälp av PC-funktioner, som standard. Via ett intuitivt programmeringsverktyg med flödesdiagram kan du skapa program med upp till kodrader och köra fem uppgifter parallellt. 0 Start bl0001 Etikett U(01):= Om X(00)=1 gå till Falskt Sant bl0002 Etikett 7 Timerinställning, TD (0) U(01) 3 Timer av, TD (0) 5 Vänta, TD(0)=1 8 Frihet att programmera Intuitiv och användarvänlig programmering med flödesdiagram Integrerad i CX-Drive Upp till rader i ett program 5 uppgifter kan köras parallellt Gå tillgå 6 till Nästa block 10 Slut 9 Nästa block

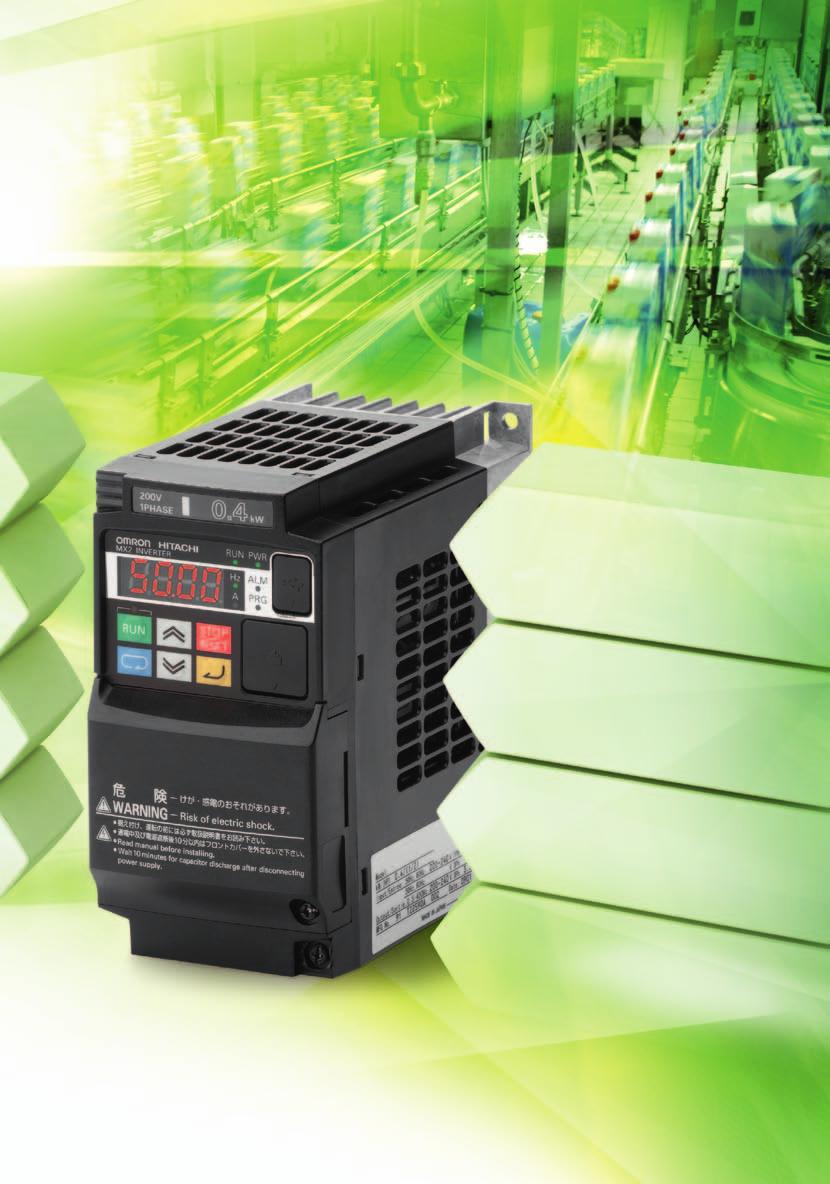

8 MX2 Born to drive machines Current vector control High starting torque: 200% at 0.5 Hz Double rating VT 120%/1 min and CT 150%/1 min Speed range up to 1000 Hz IM & PM motor control Torque control in open loop vector Positioning functionality Built-in application functionality (i.e. Brake control) Built-in logic programing Safety embedded compliant with ISO (double input circuit and external device monitor EDM) USB port for PC programming 24 VDC backup supply for control board Fieldbus communications: Modbus, DeviceNet, Profibus, Componet, Ethercat, M-II and Ethernet/IP PC configuration tool: CX-Drive RoHS, CE, cuus Ratings 200 V Class single-phase 0.1 to 2.2 kw 200 V Class three-phase 0.1 to 15.0 kw 400 V Class three-phase 0.4 to 15.0 kw System configuration Power supply MCCB USB cable CX-Drive CX-One Input AC reactor Remote operator extension cable CD 5 lines remote operator Installation accessory Filter Communication option board MX2 Braking resistor Choke DC reactor Motor Output AC reactor Ground 8 Frequency inverters

9 Specifications Type designation 3 G 3 MX2-AB002-E@ MX2 series C: IP54 ready for customization A: IP20 D: IP54 (Includes Class 2 EMC filter) Voltage: B: Single-phase 200 VAC 2: Three-phase 200 VAC 4: Three-phase 400 VAC E: Europe standard Max. applicable motor output 002: 0,2 kw ~ 150: 15,0 kw 200 V class Motor kw 2 Output characteristics Power supply Single-phase: 3G3MX2-@ B001 B002 B004 B Three phase model use forced-air-cooling but single phase model is self cooling. 2. Based on a standard 3-Phase standard motor. 3. Above 400 Hz with some function limitation. 4. Forced air cooling for IP54 models B015 B Three-phase: 3G3MX2-@ For VT setting For CT setting VT Inverter capacity kva 200 CT VT CT Rated output current (A) at VT Rated output current (A) at CT Max. output voltage Proportional to input voltage: V Max. output frequency 1000 Hz 3 Rated input voltage and frequency Single-phase V 50/60 Hz 3-phase V 50/60 Hz Allowable voltage fluctuation -15%..+10% Allowable frequency fluctuation 5% Braking torque At short-time deceleration At capacitor feedback 100%: <50Hz 50%: <60Hz Cooling method Self cooling 4 70%: <50Hz 50%: <60Hz Approx 20% - Forced-air-cooling 400 V class Motor kw 1 Output characteristics Power supply Three-phase: 3G3MX2-@ For VT setting For CT setting VT Inverter capacity kva 380 CT VT CT Rated output current (A) at VT Rated output current (A) at CT Max. output voltage Proportional to input voltage: V Max. output frequency 1000 Hz 2 Rated input voltage and frequency 3-phase V 50/60 Hz Allowable voltage fluctuation -15%..+10% Allowable frequency fluctuation 5% Braking torque At short-time deceleration *3 At capacitor feedback Cooling method Self cooling 3 1. Based on a standard 3-Phase standard motor. 2. Above 400 Hz with some function limitation. 3. Forced air cooling for IP54 models 100%: <50Hz 50%: <60Hz 70%: <50Hz 50%: <60Hz Forced-air-cooling - MX2 9

10 Specifications Common specifications Control functions Functionality Protection functions Ambient conditions Model number Specifications 3G3MX2 Control methods Phase-to-phase sinusoidal pulse with modulation PWM (Sensorless vector control, V/F) Output frequency range Hz (with restrictions above 400Hz) Digital set value: ±0.01% of the max. frequency Frequency precision Analogue set value: ±0.2% of the max. frequency (25 ±10ºC) Digital set value: 0.01 Hz Resolution of frequency set value Analogue set value: 1/1000 of maximum frequency Resolution of output frequency 0.01Hz Starting torque 200% / 0.5 Hz Dual rating: Overload capability Heavy duty (CT): 150% for 1 minute Normal Duty (VT): 120% for 1 minute Frequency set value 0 to 10 VDC (10 K ), 4 to 20 ma (100 ), RS485 Modbus, Network options V/f Characteristics Constant/ reduced torque, free V/f FW (forward run command), RV (reverse run command), CF1~CF4 (multi-stage speed setting), JG (jog command), DB (external braking), SET (set second motor), 2CH (2-stage accel./decel. command), FRS (free run stop command), EXT (external trip), USP (startup function), CS (commercial power switchover), SFT (soft lock), AT (analog input selection), RS (reset), PTC (thermistor thermal protection), STA (start), STP (stop), F/R (forward/reverse), PID (PID disable), PIDC (PID reset), UP (remote control up function), DWN (remote control down function), UDC (remote control data clear), OPE (operator control), SF1~SF7 (multi-stage speed setting; bit operation), OR (overload restriction), T (torque limit enable), TRQ1 (torque limit Inputs signals changeover1), TRQ2 (torque limit changeover2), BOK (Braking confirmation), AC (AD cancellation), PCR (position deviation clear), ADD (add frequency enable), F-TM (force terminal mode), ATR (permission of torque command input), KHC (Cumulative power clear), MI1~MI7 (general purpose inputs for EzSQ), AHD (analog command hold), CP1~CP3 (multistageposition switches), OR (limit signal of zero-return), ORC (trigger signal of zero-return), SPD (speed/position changeover), GS1~GS2 (STO inputs, safety related signals), 485 (Starting communication signal), PRG (executing EzSQ program), HD (retain output frequency), ROK (permission of run command), EB (rotation direction detection of B-phase), DISP (display limitation), OP (option control signal), NO (no function) RUN (run signal), FA1~FA5 (frequency arrival signal), O,O2 (overload advance notice signal), OD (PID deviation error signal), A (alarm signal), OTQ (over/under torque threshold), UV (under-voltage), TRQ (torque limit signal), RNT (run time expired), ONT (power ON time expired), THM (thermal warning), BRK (brake release), BER (brake error), ZS (0Hz detection), DSE (speed deviation excessive), POK (positioning completion), ODc (analog voltage input disconnection), OIDc (analog current input disconnection), FBV (PID second stage output), NDc (network disconnect detection), OG1~OG3 (ogic output signals), WAC (capacitor life warning), WAF (cooling fan warning), FR (starting contact), OHF (heat sink overheat warn- Output signals ing), OC (ow load), MO1~MO3 (general outputs for EzSQ), IRDY (inverter ready), FWR (forward operation), RVR (reverse operation), MJA (major failure), WCO (window comparator O), WCOI (window comparator OI), FREF (frequency command source), REF (run command source), SETM (second motor in operation), EDM (STO (safe torque off) performance monitor), OP (option control signal), NO (no function) Free-V/f, manual/automatic torque boost, output voltage gain adjustment, AVR function, reduced voltage start, motor data selection, auto-tuning, motor stabilization control, reverse running protection, simple position control, simple torque control, torque limiting, automatic carrier frequency reduction, energy saving operation, PID function, non-stop operation at instantaneous power failure, brake control, DC injection braking, dynamic braking (BRD), frequency upper and lower limiters, jump frequencies, curve accel and decel (S, U, inversed U,E-S), 16-stage speed profile, fine adjustment of start Standard functions frequency, accel and decel stop, process jogging, frequency calculation, frequency addition, 2-stage accel/decel, stop mode selection, start/end freq., analog input filter, window comparators, input terminal response time, output signal delay/hold function, rotation direction restriction, stop key selection, software lock, safe stop function, scaling function, display restriction, password function, user parameter, initialization, initial display selection, cooling fan control, warning, trip retry, frequency pull-in restart, frequency matching, overload restriction, over current restriction, DC bus voltage AVR Analogue inputs 2 analogue inputs 0 to 10 V (10 K ), 4 to 20 ma (100 ) Pulse train input terminal 0 to 10 V (up to 24 V), up to 32 khz Accel/Decel times 0.01 to s (line/curve selection), 2nd accel/decel setting available Status indicator ED s Run, Program, Alarm, Power, Hz, Amps Display Digital operator: Available to monitor 32 items: frequency reference, output current, output frequency... Motor overload protection Electronic Thermal overload relay and PTC thermistor input Instantaneous overcurrent 200% of rated current Dual rating: Overload Heavy duty (CT): 150% for 1 minute Normal Duty (VT): 120% for 1 minute Overvoltage 800 V for 400 V type and 400 V for 200 V type Undervoltage 345 V for 400 V type and V for 200 V type Momentary power loss Following items are selectable: Alarm, decelerates to stop, decelerates to stop with DC bus controlled, restart Cooling fin overheat Temperature monitor and error detection Stall prevention level Stall prevention during acceleration/deceleration and constant speed Ground fault Detection at power-on Power charge indication On when power is supplied to the control part Degree of protection IP20, Varnish coating on PCB & IP54 (For 3G3MX2-D@ type) Ambient humidity 90% RH or less (without condensation) Storage temperature -20ºC..+65ºC (short-term temperature during transportation) Ambient temperature 1 10 C to 50ºC (Both the carrier frequency and output current need to be reduced over 40ºC) Installation Indoor (no corrosive gas, dust, etc.) Installation height Max m Vibration 5.9 m/s 2 (0.6G), 10 to 55 Hz 1. Some types of 3G3MX2-D requires special derating depending on installation conditions and carrier frequency selected. Check the manual for details 10 Frequency inverters

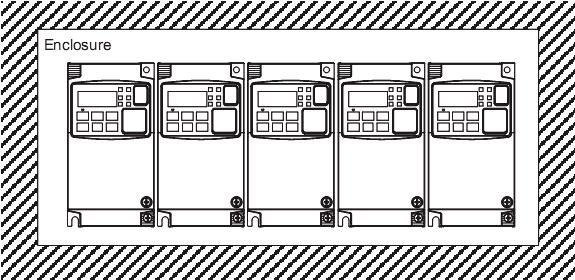

11 R f R l w Q?@ h m u d q s d q r s n o q d r d s q t m g š o v q ` k l ` o q f R f R l w Q q t m r x r c q h u d?@ h m u d q s d q r s n o q d r d s q t m g š o v q ` k l ` o q f R f R l w Q?@ h m u d q s d q q t m r s n o q d r d s q t m g š o v q ` k l ` o q f Dimensions IP20 W1 W 4.5 W W1 2-d W W1 2-d q t m H1 H H1 H H1 H 5 t t D Figure 1 D Figure 2 D1 D Figure 3 2,6 D1 D1 D2 D2 Voltage class Single-phase 200 V Three-phase 200 V Three-phase 400 V Inverter model 3G3MX2-A@ Figure Dimensions in mm W W1 H H1 t D D1 D2 d Weight (KG) B001 1 B B B B B Option board 31.3 Note: Option boards could be fitted inside the IP54 model MX2 11

12 IP Figure Figure Figure Figure Figure 1 Figure 2 Figure 3 Figure 4 3G3MX2-DB001-E 3G3MX2-DB001-EC 3G3MX2-D2055-EC 3G3MX2-D2110-EC 3G3MX2-DB002-E 3G3MX2-DB002-EC 3G3MX2-D2075-EC 3G3MX2-D2150-EC 3G3MX2-DB004-E 3G3MX2-DB004-EC 3G3MX2-D4055-EC 3G3MX2-D4110-EC 3G3MX2-D2001-E 3G3MX2-DB007-EC 3G3MX2-D4075-EC 3G3MX2-D4150-EC 3G3MX2-D2002-E 3G3MX2-DB015-EC 3G3MX2-D2004-E 3G3MX2-DB022-EC 3G3MX2-D2007-E 3G3MX2-D2001-EC 3G3MX2-D2002-EC 3G3MX2-D2004-EC 3G3MX2-D2007-EC 3G3MX2-D2015-EC 3G3MX2-D2022-EC 3G3MX2-D2037-EC 3G3MX2-D4004-EC 3G3MX2-D4007-EC 3G3MX2-D4015-EC 3G3MX2-D4022-EC 3G3MX2-D4030-EC 3G3MX2-D4040-EC - 12 Frequency inverters

13 INE O AD Rasmi footprint filters Rasmi model Dimensions W H X Y M AX-FIM1010-RE M4 1x200 V AX-FIM1014-RE M4 AX-FIM1024-RE M4 AX-FIM2010-RE M4 AX-FIM2020-RE M4 3x200 V AX-FIM2030-RE M4 AX-FIM2060-RE M5 AX-FIM2080-RE M5 AX-FIM2100-RE M6 AX-FIM3005-RE M4 AX-FIM3010-RE M4 3x400 V AX-FIM3014-RE M4 AX-FIM3030-RE M5 AX-FIM3050-RE M5 Schaffner footprint filters H W Rasmi model Dimensions W H X Y A B M 1x200 V AX-FIM1010-SE-V M5 AX-FIM1024-SE-V M5 AX-FIM2010-SE-V M5 AX-FIM2020-SE-V M5 3x200 V AX-FIM2030-SE-V M5 AX-FIM2060-SE-V M5 AX-FIM2080-SE-V M5 AX-FIM2100-SE-V M5 AX-FIM3005-SE-V M5 AX-FIM3010-SE-V M5 3x400 V AX-FIM3014-SE-V M5 AX-FIM3030-SE-V M5 AX-FIM3050-SE-V M5 AX-FIM1024-SE-V1 1' 1 N' N B Y A X Input AC Reactor Voltage 200 V 400 V Dimensions A B2 C2 D E F Weight kg AX-RAI DE AX-RAI DE AX-RAI DE AX-RAI DE AX-RAI DE AX-RAI DE AX-RAI DE AX-RAI DE DC Reactor Voltage 200 V Dimensions Weight A B C D E F G H kg AX-RC DE AX-RC DE AX-RC DE AX-RC DE 1.60 AX-RC DE AX-RC DE AX-RC DE AX-RC DE AX-RC DE AX-RC DE MX2 13

14 Voltage 400 V Dimensions Weight A B C D E F G H kg AX-RC DE AX-RC DE AX-RC DE AX-RC DE AX-RC DE AX-RC DE AX-RC DE AX-RC DE AX-RC DE Output AC Reactor Voltage 200 V 400 V Dimensions Weight A B2 C2 D E F kg AX-RAO DE AX-RAO DE AX-RAO DE AX-RAO DE AX-RAO DE AX-RAO DE AX-RAO DE AX-RAO DE AX-RAO DE AX-RAO DE AX-RAO DE AX-RAO DE AX-RAO DE AX-RAO DE AX-RAO DE AX-RAO DE Chokes D diameter Motor kw Dimensions Weight kg W H X Y m AX-FER2102-RE 21 < AX-FER2515-RE 25 < AX-FER5045-RE 50 < W Y X Ø m H Ø d 14 Frequency inverters

15 Resistor dimensions AX-REM00K1200 Fig 1 Fig 2 Fig 3 Fig 4 Type Fig. Dimensions Weight H M I T kg AX-REM00K1400-IE AX-REM00K2070-IE AX-REM00K2120-IE AX-REM00K2200-IE AX-REM00K4075-IE 1 AX-REM00K4035-IE AX-REM00K4030-IE AX-REM00K5120-IE AX-REM00K6100-IE AX-REM00K6035-IE AX-REM00K9070-IE AX-REM00K9020-IE AX-REM00K9017-IE AX-REM01K9070-IE AX-REM01K9017-IE AX-REM02K1070-IE AX-REM02K1017-IE 4 AX-REM03K5035-IE AX-REM03K5010-IE MX2 15

16 Standard connections Breaker, MCCB or GFI Power source, 3-phase or 1-phase, per inverter model Thermistor Meter Meter Intelligent inputs, 7 terminals NOTE: For the wiring of intelligent I/O and analog inputs, be sure to use twisted pair/ shielded cable. Attach the shielded wire for each signal to its respective common terminal at the inverter end only. Input impedance of each intelligent input is 4.7k Forward Short bar (Source type) GND for logic inputs Analog reference 0~10VDC 4~20mA Pulse train input 24Vdc 32kHz max. GND for analog signals R (1) S (2) T N(3) 24V P /GS1 4/GS2 5/PTC 6 7/EB PC EO AM H O OI EA Input circuits MX2 [5] configurable as discrete input or thermistor input Apprx.10k Apprx.100 Output circuit Termination resistor (200 ) (Change by slide switch) 10Vdc + - RS485 transceiver RS485 transceiver USB transceiver Option port controller U(T1) V(T2) W(T3) PD/+1 P/+ RB N/- A1 A0 A2 11/EDM Open collector output Freq. arrival signal oad 12 oad + - CM2 GND for logic outputs SP SN Brake resistor (optional) Relay contacts, type 1 Form C RJ45 port (Optional operator port) Option port connector Motor DC reactor (optional) Braking unit (optional) Serial communication port (RS485/ModBus) USB (mini-b) port (PC communication port) USB power: Self power Terminal Block Specifications Terminal Name Function (signal level) R/1, S/2, T/3 U/T1, V/T2, W/T3 PD/+1, P/+ P/+, N/- P/+, RB Main circuit power supply input Inverter output Used to connect line power to the drive. Drives with single-phase 200 V input power use only terminals R/1 and N (T/3), terminal S/2 is not available for these units Used to connect the motor External DC reactor terminal Normally connected by the short-circuit bar. Remove the short-circuit bar between +1 and P/ +2 when a DC reactor is connected. Regenerative braking unit terminal Connect optional regenerative braking units (If a braking torque is required) Braking resistor terminals Grounding Connect option braking resistor (if a braking torque is required) For grounding (grounding should conform to the local grounding code.) 16 Frequency inverters

17 Control Circuit Type No. Signal name Function Signal level PC Intelligent input common Source type: connecting [P24] to [1]-[7] turns inputs ON Sink type: connecting [] to [1]-[7] turns inputs ON - P24 Internal 24 VDC 24 VDC, 30mA 24 VDC, 100 ma Digital input signals 1 Multi-function Input selection 1 Factory setting: Forward/ Stop 2 Multi-function Input selection 2 Factory setting: Reverse/ Stop 3/GS1 Multi-function Input selection 3 / safe stop input 1 Factory setting: External trip 4/GS2 Multi-function Input selection 4 / safe stop input 2 Factory setting: Reset 5/PTC Multi-function Input selection 5 / PTC thermistor input Factory setting: Multi-step speed reference 1 6 Multi-function input selection 6 Factory setting: Multi-step speed reference 2 27 VDC max 7/EB Multi-function input selection 7 / Pulse train input B Factory setting: Jog Pulse train Analog input signal Digital output signals Multi-function Input selection common (in upper row) EA Pulse train input A Factory setting: Speed reference EO Pulse train output AD frequency H Frequency reference power supply 10 VDC 10 ma max O Voltage frequency reference signal 0 to 10 VDC (10 k ) OI Current frequency reference signal 4 to 20 ma (250 ) Frequency reference common (bottom row) -- 11/EDM Discrete logic output 1 / EDM output Factory setting: During Run 12 Discrete logic output 2 Factory setting: Frequency arrival type 1 CM2 GND logic output -- A0 A1 A2 Relay commom contact Relay contact, normally open Relay contact, normally closed Factory setting: Alarm signal Under normal operation A1 - A0 Closed A2 - A0 Open 32 khz max 5 to 24 VDC 10 VDC 2 ma 32 khz max 27 VDC, 50 ma max EDM based on ISO R load 250 VAC 2.5 A 30 VDC 3.0 A I load 250 VAC 0.2 A 30 VDC 0.7 A Monitor Signal AM Analog voltage output Factory setting: AD frequency 0 to 10 VDC 1 ma Comms Side by side mounting SP Serial communication terminal SN RS485 Modbus communication Enclosure 100mm 50mm 100mm Inverter heat loss Three-phase 200 V class Model 3G3MX2 A2001 A2002 A2004 A2007 A2015 A2022 A2037 A2055 A2075 A2110 A VT Inverter 200 CT capacity kva 240 VT CT Rated current (A) VT Rated current (A) CT Total heat loss Efficiency at rated load Cooling Method Self cooling Forced-air-cooling MX2 17

18 Single-phase 200 V class Inverter capacity kva Model 3G3MX2 AB001 AB002 AB004 AB007 AB015 AB V VT V CT V VT V CT Rated current (A) VT Rated current (A) CT Total heat loss Efficiency at rated load Cooling Method Self cooling Forced-air-cooling Three-phase 400 V class Inverter capacity kva Model 3G3MX2 A4004 A4007 A4015 A4022 A4030 A4040 A4055 A4075 A4110 A V VT V CT V VT V CT Rated current (A) VT Rated current (A) CT Total heat loss Efficiency at rated load Cooling Method Self cooling Forced-air-cooling Input AC Reactor AC reactor MX2 Power supply MCCB U X R/1 V Y S/2 W Z T/3 3 phase 200 V class 400 V class Current value Inductance Max. applicable Current value A mh motor output kw A 1.5 AX-RAI DE AX-RAI DE AX-RAI DE AX-RAI DE AX-RAI DE AX-RAI DE AX-RAI DE AX-RAI DE Max. applicable motor output kw Inductance mh DC Reactor Power supply MCCB R/1 MX2 S/2 T/3 +1 P/ V class 400 V class Current value Inductance Max. applicable Current value A mh motor output kw A 0.2 AX-RC DE AX-RC DE AX-RC DE AX-RC DE AX-RC DE AX-RC DE AX-RC DE AX-RC DE AX-RC DE AX-RC DE AX-RC DE AX-RC DE AX-RC DE AX-RC DE AX-RC DE AX-RC DE AX-RC DE AX-RC DE AX-RC DE AX-RC DE Max. applicable motor output kw Output AC Reactor DC reactor Inductance mh 200 V class 400 V class Max. applicable Current value Inductance Max. applicable Current value Inductance motor output kw A mh motor output kw A mh 0.4 AX-RAO DE AX-RAO DE AX-RAO DE AX-RAO DE AX-RAO DE AX-RAO DE AX-RAO DE AX-RAO DE AX-RAO DE AX-RAO DE AX-RAO DE AX-RAO DE AX-RAO DE AX-RAO DE AX-RAO DE AX-RAO DE Frequency inverters

19 Ordering information Power supply MCCB B USB cable E CX-Drive CX-One A Input AC reactor B Remote operator extension cable B CD 5 lines remote operator B Installation accessory A Filter C Communication option MX2 D Braking resistor A Choke A DC reactor Motor A Output AC reactor Ground 3G3MX2 Voltage class Single-phase 200 V Three-phase 200 V Three-phase 400 V Specifications Model Constant torque Variable torque Max motor kw Rated current A Max motor kw Rated current A IP20 IP G3MX2-AB001-E 3G3MX2-DB001-E/EC G3MX2-AB002-E 3G3MX2-DB002-E/EC G3MX2-AB004-E 3G3MX2-DB004-E/EC G3MX2-AB007-E 3G3MX2-DB007-EC G3MX2-AB015-E 3G3MX2-DB015-EC G3MX2-AB022-E 3G3MX2-DB022-EC G3MX2-A2001-E 3G3MX2-D2001-E/EC G3MX2-A2002-E 3G3MX2-D2002-E/EC G3MX2-A2004-E 3G3MX2-D2004-E/EC G3MX2-A2007-E 3G3MX2-D2007-E/EC G3MX2-A2015-E 3G3MX2-D2015-EC G3MX2-A2022-E 3G3MX2-D2022-EC G3MX2-A2037-E 3G3MX2-D2037-EC G3MX2-A2055-E 3G3MX2-D2055-EC G3MX2-A2075-E 3G3MX2-D2075-EC G3MX2-A2110-E 3G3MX2-D2110-EC G3MX2-A2150-E 3G3MX2-D2150-EC G3MX2-A4004-E 3G3MX2-D4004-EC G3MX2-A4007-E 3G3MX2-D4007-EC G3MX2-A4015-E 3G3MX2-D4015-EC G3MX2-A4022-E 3G3MX2-D4022-EC G3MX2-A4030-E 3G3MX2-D4030-EC G3MX2-A4040-E 3G3MX2-D4040-EC G3MX2-A4055-E 3G3MX2-D4055-EC G3MX2-A4075-E 3G3MX2-D4075-EC G3MX2-A4110-E 3G3MX2-D4110-EC G3MX2-A4150-E 3G3MX2-D4150-EC MX2 19

20 A ine filters Inverter ine filter Rasmi ine filter Schaffner Voltage Model 1Phase 200 VAC 3Phase 200 VAC 3Phase 400 VAC AB001 / AB002 / AB004 AX-FIM 1010-RE Current (A) 10 AX-FIM 1010-SE-V1 Current (A) AB RE SE-V1 27 AB015 / AB RE SE-V1 27 A2001 / A2002 / A2004 / A RE SE-V1 7.8 A2015 / A RE SE-V1 16 A RE SE-V1 25 A2055 / A RE SE-V1 50 A RE SE-V1 75 A RE SE-V1 100 A4004 / A RE SE-V1 6 A4015 / A4022 / A RE SE-V1 12 A RE SE-V1 15 A4055 / A RE SE-V1 29 A4110 / A RE SE-V A Input AC reactors Inverter AC Reactor Voltage Model 3G3MX2-@ A2002 / A2004 / A2007 AX-RAI DE 3-Phase 200 VAC 1-Phase 200 VAC 3-Phase 400 VAC A2015 / A2022 / A2037 AX-RAI DE A2055 / A2075 AX-RAI DE A2110 / A2150 AX-RAI DE AB002 / AB004 AB007 Under development AB015 / AB022 A4004 / A4007 / A4015 AX-RAI DE A4022 / A4030 / A4040 AX-RAI DE A4055 / A4075 AX-RAI DE A4110 / A4150 AX-RAI DE A DC reactors 200V single phase 200V 3-phase 400V 3-phase Inverter DC Reactor Inverter DC Reactor Inverter DC Reactor 3G3MX2-AB001 3G3MX2-A2001 3G3MX2-A4004 AX-RC DE AX-RC DE AX-RC DE 3G3MX2-AB002 3G3MX2-A2002 3G3MX2-A4007 AX-RC DE 3G3MX2-AB004 AX-RC DE 3G3MX2-A2004 AX-RC DE 3G3MX2-A4015 AX-RC DE 3G3MX2-AB007 AX-RC DE 3G3MX2-A2007 AX-RC DE 3G3MX2-A4022 AX-RC DE 3G3MX2-AB015 AX-RC DE 3G3MX2-A2015 AX-RC DE 3G3MX2-A4030 AX-RC DE 3G3MX2-AB022 AX-RC DE 3G3MX2-A2022 AX-RC DE 3G3MX2-A4040 AX-RC DE 3G3MX2-A2037 AX-RC DE 3G3MX2-A4055 AX-RC DE 3G3MX2-A2055 AX-RC DE 3G3MX2-A4075 AX-RC DE - 3G3MX2-A2075 AX-RC DE 3G3MX2-A4011 AX-RC DE 3G3MX2-A2011 AX-RC DE 3G3MX2-A4015 AX-RC DE 3G3MX2-A2015 AX-RC DE - A Chokes Model Diameter Description AX-FER2102-RE 21 For 2.2 KW motors or below AX-FER2515-RE 25 For 15 KW motors or below AX-FER5045-RE 50 For 45 KW motors or below A Output AC reactor Inverter AC Reactor Voltage Model 3G3MX2-@ 200 VAC 400 VAC A2001 / A2002 / A2004 AB001 / AB002 / AB004 A2007/AB007 A2015 / AB015 A2022 / AB022 A2037 A2055 A2075 A2110 A2150 A4004 / A4007 / A4015 A4022 A4030 / A4040 A4055 A4075 A4110 A4150 AX-RAO DE AX-RAO DE AX-RAO DE AX-RAO DE AX-RAO DE AX-RAO DE AX-RAO DE AX-RAO DE AX-RAO DE AX-RAO DE AX-RAO DE AX-RAO DE AX-RAO DE AX-RAO DE AX-RAO DE AX-RAO DE B Accessories Types Model Description Functions AX-OP05-E CD remote operator 5 ine CD remote operator with copy function, cable length max. 3m. 3G3AX-CAJOP300-EE Remote operator cable 3 meters cable for connecting remote operator 3G3AX-OP01 ED remote operator ED remote operator, cable length max. 3m 4X-KITMINI Mounting kit for ED operator Mounting kit for ED operator on panel 3G3AX-OP05-H-E Operator holder Holder to put the AX-OP05-E inside of the cabinet Digital operator Accessories AX-CUSBM002-E PC configuration cable Mini USB to USB connector cable 20 Frequency inverters

21 C Communication option boards Types Model Description Functions 3G3AX-MX2-PRT Profibus option card Communication options 3G3AX-MX2-DRT 3G3AX-MX2-ECT 3G3AX-MX2-CRT 3G3AX-MX2-MRT DeviceNet option card Ethercat option card CompoNet option card Mechatrolink II option card Used for running or stopping the inverter, setting or referencing parameters, and monitoring output frequency, output current, or similar items through communications with the host controller. 3G3AX-MX2-EIP Ethernet IP option board D Braking unit, braking resistor unit Voltage 200 V (Single-/ Threephase) 400 V (Threephase) Inverter Braking resistor unit Max. Inverter 3G3MX2@ Connectable Inverter mounted type Inverter mounted type motor min. (3 %ED, 10 sec max) Braking (10%ED, 10 sec max) Braking kw resistance torque % torque % 3-phase 1-phase Type AX- Resist Type AX- Resist B REM00K1400-IE 400 REM00K1400-IE B B REM00K1200-IE REM00K1200-IE B REM00K2070-IE B REM00K4075-IE REM00K2070-IE B REM00K4035-IE REM00K4075-IE REM00K6035-IE REM00K9020-IE REM00K4035-IE REM01K9017-IE REM00K6035-IE REM02K1017-IE REM00K9017-IE REM03K5010-IE REM00K1400-IE 400 REM00K1400-IE REM00K1200-IE REM00K2200-IE REM00K2200-IE REM00K5120-IE REM00K2120-IE REM00K6100-IE REM00K9070-IE REM00K4075-IE REM01K9070-IE REM00K6100-IE REM02K1070-IE REM00K9070-IE REM03K5035-IE E Computer software Types Model Description Installation CX-drive Computer software Configuration and monitoring software tool Software CX-One Computer software Configuration and monitoring software tool Saver Computer software Software tool for Energy Saving calculation A DIMENSIONS SHOWN ARE IN MIIMETERS. To convert millimeters into inches, multiply by To convert grams into ounces, multiply by Cat. No. I113E-EN-03 In the interest of product improvement, specifications are subject to change without notice. MX2 21
