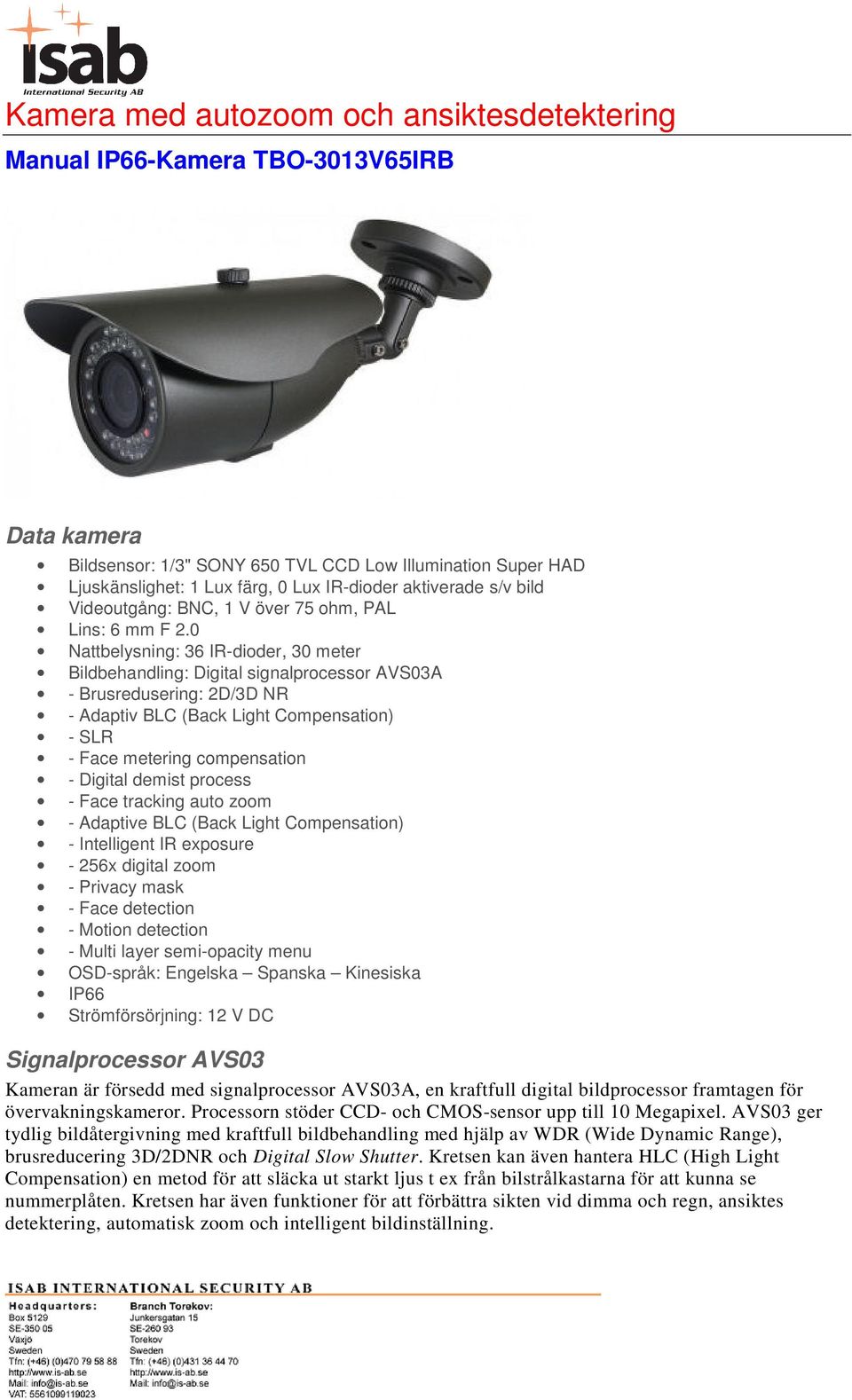

1 Kamera med autozoom och ansiktesdetektering Manual IP66-Kamera TBO-3013V65IRB Data kamera Bildsensor: 1/3" SONY 650 TVL CCD Low Illumination Super HAD Ljuskänslighet: 1 Lux färg, 0 Lux IR-dioder aktiverade s/v bild Videoutgång: BNC, 1 V över 75 ohm, PAL Lins: 6 mm F 2.0 Nattbelysning: 36 IR-dioder, 30 meter Bildbehandling: Digital signalprocessor AVS03A - Brusredusering: 2D/3D NR - Adaptiv BLC (Back Light Compensation) - SLR - Face metering compensation - Digital demist process - Face tracking auto zoom - Adaptive BLC (Back Light Compensation) - Intelligent IR exposure - 256x digital zoom - Privacy mask - Face detection - Motion detection - Multi layer semi-opacity menu OSD-språk: Engelska Spanska Kinesiska IP66 Strömförsörjning: 12 V DC Signalprocessor AVS03 Kameran är försedd med signalprocessor AVS03A, en kraftfull digital bildprocessor framtagen för övervakningskameror. Processorn stöder CCD- och CMOS-sensor upp till 10 Megapixel. AVS03 ger tydlig bildåtergivning med kraftfull bildbehandling med hjälp av WDR (Wide Dynamic Range), brusreducering 3D/2DNR och Digital Slow Shutter. Kretsen kan även hantera HLC (High Light Compensation) en metod för att släcka ut starkt ljus t ex från bilstrålkastarna för att kunna se nummerplåten. Kretsen har även funktioner för att förbättra sikten vid dimma och regn, ansiktes detektering, automatisk zoom och intelligent bildinställning.

2 Sida 2 Menyvaljoysticken Val av meny sker med joysticken på kabeln. Joysticken har fem val: UP DOWN, Vänster Höger och Tryck (Press). Menyn aktiveras med en tryckning på joystickens knapp. Utgång ur en meny sker med en tryckning. I vissa menyer sker utgången med en 2 sekunder lång tryckning. Joysticks-menyn har följande funktioner. Huvudmenyn Kameran montering Bäst ansiktes detekteringen fås när kameran är monterad enligt skissen nedan. Detektering av flera objekt När Multi Object Tracking är aktiverad söker kameran efter förändringar i bilden och zoomar in området där den detekterar en förändring. OBS När Multi Object Tracking aktiveras, deaktiveras automatiskt funktionen Face auto zoom och vise versa. Samma gäller när D-Zoom sätts >1.0. OSD-meny Val i menyerna omgivna med [] kräver RS485 kommunikation och används när AVS03-kretsen är monterad i en PTZ kamera. Efter tabellen finns några bilder och länkar som visar och beskriver hur kamerans olika funktioner används.

3 Sida 3 Intelligent Surveillance Multi Object Tracking D-zoom 0, 3, 4, 5 (0) Digital amplified when detects motion object. Sensitivity (0) Face note Sensitivity 0 11 (9) Capture of human face. BLC 1 Off / On Back Light Compensation. Face auto zoom On / Off The default settings are Face auto zoom. FN stay time 5 90 (5) Seconds. Stored faces display time. FN = Face Note FN delay Off / On Frame Off / On Frame shows the detecting area. The area is set with Set range. Set range Capture function (Right click settings) Zoom / Original Size Set the detection area. Press the button to set the size and position of the area of UP and DOWN, press, to switch between upper hand - the left side and the bottom side - right side. To exit press 2 sec. Face auto zoom Frame On / Off Show face frame. Only available when Multi object tracking = 0! Sensitivity 0 11 (9) Sensitivity of face detection. [Warning trigger] Off / High / Low Alarm On/Off. [Warning seconds] (10) Seconds. Alarm time. BLC 1 Off / On Back Light Compensation. [Virtual fences] Warning trigger Off / High / Low Alarm time Tracking line 0 10 (10) Seconds. Off / On Sensitivity (0) Fence select 1, 2, 3, 4 (1) Set fence (Right click settings) Alert dir Off / Two way / Right-Left / Left-Right / Touch Set the detection area. Press the button to set the size and position of the area of UP and DOWN, press, to switch between upper hand - the left side and the bottom side - right side. To exit press 2 sec. Mask colour (3) Depending on the Fence select. Face detection Frame On / Off Show face frame. Box up the human faces when human faces are detected. Sensitivity 0 11 (9) Sensitivity of face detection. Human face detection sensitivity: The higher number, the more sensitive. [Warning trigger] Off / Low / High Alarm On/Off. Alarm output when human faces are detected. [Warning second] (10) Seconds. Alarm time. Timer of alarm output, when human face is detected. BLC 1 Off / On Back Light Compensation. 1 BLC (Back Light Compensation). In images where a bright light source is behind the subject of interest, the subject would normally appear in silhouette. BLC allows the camera to adjust the exposure of the entire image to properly expose the subject in the foreground. WDR is a more effective alternative to BLC because it handles multiple exposure zones to give both the highlight and low light areas a proper exposure.

4 Sida 4 [Motion detection] Set range (Right click settings) Set the detection area. Press the button to set the size and position of the area of UP and DOWN, press, to switch between upper hand - the left side and the bottom side - right side. To exit press 2 sec. Sensitivity (0) Sensitivity of motion objects detection. The higher number, the more sensitive. Warning trigger Off / Low / High Alarm On / Off. An alarm outputs when a motion is detected. Warning second (10) Seconds. Alarm time. Timer of alarm output, when a motion is detected. Privacy mask Opacity 0 3 (3) Set opacity of privacy mask. Mask select 1 8 (1) Select mask area number, totally 8 areas available. Set mask area (Right click settings) Switch Off / On Mask switch. Mask colour (30720) Mask colour. Set the detection area. Press the button to set the size and position of the area of UP and DOWN, press, to switch between upper hand - the left side and the bottom side - right side. To exit press 2 sec. Close IS 2 Turn off the Intelligent Surveillance menu. The camera will back to normal surveillance status. AE mode Standard AE IDC Off / On Standard exposure mode. The camera would auto back to standard AE mode when it running under intelligent surveillance. IDC = Image Dissector Camera. Under Standard mode AE, symbol on the upper left corner of Live view. will be shown WDR 1 och 3 Level 0 8 (7) Set up the WDR intensity range. Show face frame. Only active when Close IS is set. Level: (Setting value: 0-8), smaller value will make outside image brighter, the higher value will make image brighter. Symbol Live view. will be shown on the upper left corner of BLC 1 Level Auto / Low / High / Middle Back light compensation mode. Symbol shown on the upper left corner of Live view. will be HLC Set range (Right click settings) High Light Control. Set the detection area. Press the button to set the size and position of the area of UP and DOWN, press, to switch between upper hand - the left side and the bottom side - right side. To exit press 2 sec. Symbol Live view. will be shown on the upper left corner of 2 När den funktionen är markerad deaktiveras alla funktioner i Intelligent Surveillance. Funktionen kvarstår så länge valet är markerat. Gå ur genom att backa till föregående meny med joysticken. Kameran fungerar nu som en vanlig övervakningskamera och alla övriga menyer är fortfarande tillgängliga. 3 WDR (Wide Dynamic Range). Digitally adjusting exposure in areas of the frame to maintain optimum detail in both the shadows and highlights of the image.

5 Sida 5 Level High / Low / Middle Dark area compensation mode. Mask greyscale 1 6 (1) Mask greyscale level. Face AE Frame On / Off Show face frame. Only active when Close IS are set. Symbol will be shown on the upper left corner of Live view Sensitivity 0 11 (9) Sensitivity level. Demist 4 Level Auto / Low / High / Middle Colour adjust Symbol Live view. 3D NR On / Off Set 3D NR mode. will be shown on the upper left corner of AWB ATW, F/A, U30, CWF, D50, D65, D75, AWB Set white balance. ATW = Auto Tracking White Balance, CWF = Cool-White Fluorescent, F/A = Fluoresce in Angiogram Angiography. Brightness 0 99 (50) Colour-Red 0 99 (50) Colour-Green 0 99 (50) Colour-Blue 0 99 (50) Contrast 0 99 (52) Saturation 0 99 (50) CR Suppress On / Off Colour rolling suppression. Image adjust Day & Night 5 Auto-General / Auto Progressive / Ext / Color / BW Set Day & Night mode. When the condition light value matches the setting value, it will switch to mode BLACK and WHITE automatically. Auto-General Color burst Off / On Only be activated under mode BW and mode Auto- General. Delay control (2) Day and Night switch timer set up. Only be activated under mode Auto-General. Day Night (64) Only be activated under mode Auto-General. The value of Day to Night switches point setting (Colour to BW switch). The Day to Night switch point MUST be latter than Night to Day recovery point. Night Day (48) Only be activated under mode Auto-General. The value of Night to Day switch point set up (BW to Colour). The Night to Day recovery point MUST be latter than the Day to Night switch point. IR-Cut output Off / Low / High Only be activated under mode Auto-General. A high/low signal generated in order to provide a standard point for IR-CUT switching. Auto Progressive Demist A surveillance camera function that digitally sharpens video which is being depredated from fog, rain, snow, haze, sand storm, or dust on your lens. 5 Day / Night A Day/Night function helps the camera adapt to low lighting conditions on cameras that are not equipped with Infrared illuminators. The Day/Night function can be done by using a mechanical cut filter (sometimes called an IR cut filter or ICR) and/or by using dual imagers (one colour, one black & white).

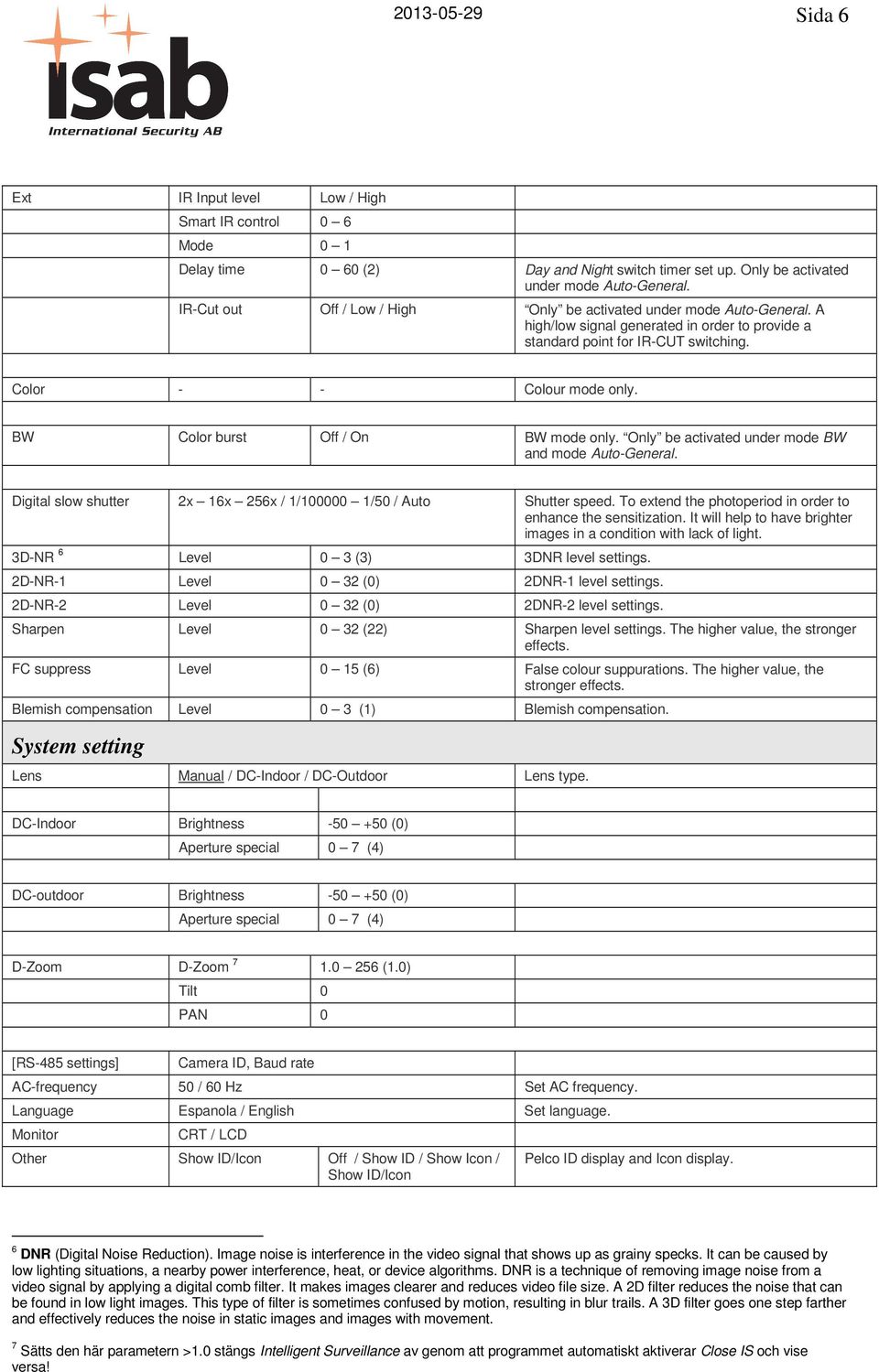

6 Sida 6 Ext IR Input level Low / High Smart IR control 0 6 Mode 0 1 Delay time 0 60 (2) Day and Night switch timer set up. Only be activated under mode Auto-General. IR-Cut out Off / Low / High Only be activated under mode Auto-General. A high/low signal generated in order to provide a standard point for IR-CUT switching. Color - - Colour mode only. BW Color burst Off / On BW mode only. Only be activated under mode BW and mode Auto-General. Digital slow shutter 2x 16x 256x / 1/ /50 / Auto Shutter speed. To extend the photoperiod in order to enhance the sensitization. It will help to have brighter images in a condition with lack of light. 3D-NR 6 Level 0 3 (3) 3DNR level settings. 2D-NR-1 Level 0 32 (0) 2DNR-1 level settings. 2D-NR-2 Level 0 32 (0) 2DNR-2 level settings. Sharpen Level 0 32 (22) Sharpen level settings. The higher value, the stronger effects. FC suppress Level 0 15 (6) False colour suppurations. The higher value, the stronger effects. Blemish compensation Level 0 3 (1) Blemish compensation. System setting Lens Manual / DC-Indoor / DC-Outdoor Lens type. DC-Indoor Brightness (0) Aperture special 0 7 (4) DC-outdoor Brightness (0) Aperture special 0 7 (4) D-Zoom D-Zoom (1.0) Tilt 0 PAN 0 [RS-485 settings] Camera ID, Baud rate AC-frequency 50 / 60 Hz Set AC frequency. Language Espanola / English Set language. Monitor CRT / LCD Other Show ID/Icon Off / Show ID / Show Icon / Show ID/Icon Pelco ID display and Icon display. 6 DNR (Digital Noise Reduction). Image noise is interference in the video signal that shows up as grainy specks. It can be caused by low lighting situations, a nearby power interference, heat, or device algorithms. DNR is a technique of removing image noise from a video signal by applying a digital comb filter. It makes images clearer and reduces video file size. A 2D filter reduces the noise that can be found in low light images. This type of filter is sometimes confused by motion, resulting in blur trails. A 3D filter goes one step farther and effectively reduces the noise in static images and images with movement. 7 Sätts den här parametern >1.0 stängs Intelligent Surveillance av genom att programmet automatiskt aktiverar Close IS och vise versa!

7 Sida 7 AWB (Automatic White Balance) BLC (Back Light Control) DNR (Digital Noise Reduction) Face AE

8 Funktioner Sida 8

9 Sida 9 HLC (High Light Compensation) Virtual Fences
