Kommodor.25. Kommodor.49

Transkript

1 PRODUCTGUIDE.08

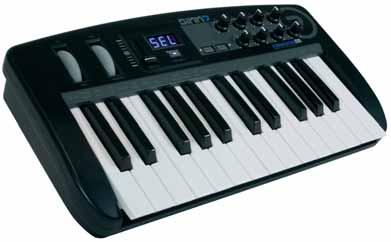

2 Kommodor.25 Portable USB/MIDI controller masterkeyboard 25 full-size velocity-sensitive keys Altogether 14 MIDI controllers Integrated USB/MIDI interface 8 freely programmable MIDI knobs MIDI compatible pitch and modulation wheels All controllers are freely programmable to any MIDI controller number All controllers are freely programmable to any MIDI channel 10 presets with preassigned patches for current programms/instruments, freely editable Octave up/down facilitates an easy change of the keyboard's octaves Additional data linefader Connection for optional sustain pedal 3-digit LED display USB port Power supply via USB or mains adapter MIDI output Constructed in an especially compact and lightweight fashion for the studio or any mobile performance Plug-N-Play for Windows XP and Mac OS X Weight: 1,9 kg Dimensions: 402 x 249 x 73 mm Kommodor.49 Extensive USB/MIDI controller masterkeyboard 49 full-size velocity sensitive keys Altogether 22 MIDI controllers Integrated USB/MIDI interface 8 freely programmable MIDI knobs 8 freely programmable MIDI linefaders MIDI compatible pitch and modulation wheels All controllers are freely programmable to any MIDI controller number All controllers are freely programmable to any MIDI channel 15 presets with preassigned patches for current programs/instruments, freely editable Octave up/down facilitates an easy change of the keyboard's octaves Additional data linefader 3-digit LED display USB port Power supply via USB or mains adapter MIDI output Connection for optional sustain pedal Constructed in a compact and lightweight fashion for the studio or any mobile performance Plug-N-Play for Windows XP and Mac OS X Weight: 2,7 kg Dimensions: 790 x 250 x 90 mm

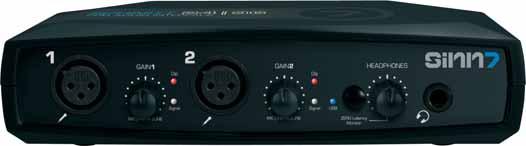

3 USB/ XLR Interface USB audio interface with convenient cord design USB 2.0 technology 16 bit resolution 48 khz A/D converter Output: USB 2.0 Input: XLR F Length: 3,0 m Schnitt 24I96 Professional USB audio interface High resolution 24 bit/96 khz studio quality Simultaneous two-channel recording and playback Especially big dynamic range and extremely low-noise technology for ideal recording performances Volume adjustment for headphones and main output Direct monitoring without latency period 48 V phantom power can be activated Electrical power supply via USB XLR mic inputs with gain control and signal/peak LED for monitoring Plug-N-Play compatible with Windows XP (also 64 bit), Windows Vista and Mac OS X ( and higher) Symmetrical stereo operation up to 24 bit/96 khz Inputs: 2 x microphone/line/hi-z (XLR/6,3 mm jack) Outputs: 2 x symmetrical outputs (6,3 mm jack), headphones (6,3 mm jacks)

4 DieBox.5 DieBox.8 DerSub.10 Professional near-field monitor speaker Magnetically-shielded bass driver unit with high-temperature oscillation coil Ferro-fluid cooled tweeter Resonance-absorbing MDF high-density housing Instantly visible power LED on the front On/off switch Volume control Spatial adjustment (0, -2, -4 db) High-frequency amplifier (+2, 0, -2 db) Medium-frequency booster Low-frequency cut-off (56, 80, 100 Hz) 50 watt RMS active monitor speakers Max. capacity: 80 Watt Type: 2-way / bi-amping / bass reflex system Input sensitivity: 85 db Speakers: 14.7 cm woofer, 8.9 cm tweeter Frequency range: 45 Hz - 20 khz Connections: XLR and 6.3 mm jack Dimensions: 190 x 310 x 210 mm Weight: 5 kg (per speaker) Professional near-field monitor speaker Magnetically-shielded bass driver unit with high-temperature oscillation coil Ferro-fluid cooled tweeter Resonance-absorbing MDF high-density housing Instantly visible power LED on the front On/off switch Volume control Spatial adjustment (0, -2, -4 db) High-frequency amplifier (+2, 0, -2 db) Medium-frequency booster Low-frequency cut-off (56, 80, 100 Hz) 70 watt RMS active monitor speakers Max. capacity: 110 Watt Type: 2-way / bi-amping / bass reflex system Input sensitivity: 85 db Speakers: 20.3 cm woofer, 8.9 cm tweeter Frequency range: 50 Hz - 20 khz Connections: XLR and 6.3 mm jack plug Dimensions: 260 x 380 x 240 mm Weight: 8.3 kg (per speaker) Professional near field monitor speaker Magnetically-shielded bass driver with high-temperature oscillation coil Resonanceabsorbing MDF high-density housing Instantly visible power LED on the front On/Off switch Integrated diplexer with manual frequency separation control (50 Hz Hz) Manual phase inversion and control level switch for optimum adaptation to environment Volume control with auto switch Signal loop to connect further speakers 120 watt RMS active subwoofer Max. capacity: 200 Watt Type: 1-way / bass reflex system Input sensitivity: 89 db Speakers: 25.4 cm woofer Frequency range: 20 Hz Hz Inputs: XLR and 6.3 mm jack plug Outputs: XLR Dimensions: 315 x 420 x 300 mm Weight: 16.3 kg (per speaker)

5 Zenit.5 Zenit.8 Nadir.10 Professional near-field monitor speaker Magnetically shielded Ferrofluid-cooled neodymium soft-dome tweeter Glass aramid composite woofer Rotund angles for reduced edge diffraction Optimized bass-reflex channels 18 db octave filter 45 W RMS active monitor speaker Maximum capacity: 75 W Type: two-way / dynamic bi-amping / bass-reflex system Acoustic pressure: 106 db Speaker: 12,7 cm woofer, 2,54 cm tweeter Frequency range: 53 Hz - 20 khz Connections: XLR, 6,3 mm jack and RCA (10 kohm, symmetrical and asymmetrical) Dimensions: 276 x 185 x 225 mm Weight: 8 kg (per speaker) Professional near-field monitor speaker Magnetically shielded Ferrofluid-cooled neodymium soft-dome tweeter Glass aramid composite woofer Rotund angles for reduced edge diffraction Optimized bass-reflex channels 24 db octave filter 90 W RMS active monitor speaker Maximum capacity: 140 W Type: two-way / dynamic bi-amping / bass-reflex system Acoustic pressure level: 109 db Speaker: 20,3 cm woofer, 2,54 cm tweeter Frequency range: 45 Hz - 20 khz Connections: XLR, 6,3 mm jack and RCA (10 kohm, symmetrical and asymmetrical) Dimensions: 381 x 265 x 304 mm Weight: 15 kg (per speaker) Professional near-field monitor speaker Magnetically shielded High excursion glass aramid composite woofer Rotund angles for reduced edge diffraction Optimized bass-reflex channels Variable low pass filter (36 Hz - 50 Hz) Fixed 80 Hz high pass filter Active limiter Manual phase reversal Volume adjustment 150 W RMS active subwoofer Maximum capacity: 225 W Type: one-way / bass-reflex system Acoustic pressure level: 111 db Speaker: 25,4 cm woofer Frequency range: (36 Hz - 50 Hz) Hz Connections: XLR, 6,3 mm jack and RCA (10 kohm, symmetric and asymmetric) Dimensions: 382 x 355 x 398 mm Weight: 19 kg (per speaker)

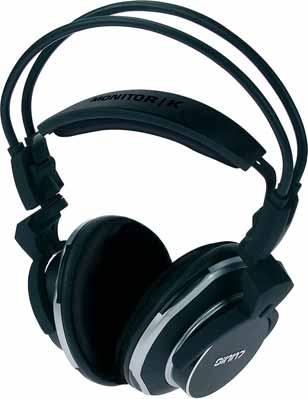

6 Monitor K Professional, closed swivel and folding design studio headphones Undistorted playback at high volume levels High outside-sound insulation Excellent, individually adjustable wearing comfort Outstanding finish with especially reinforced headband design Extendable cord on earpiece Single-sided cable Frequency range: 10-20,000 Hz Impedance: 65 Ohm Sensitivity: 103 db Sensitivity: 100 db/mw. Weight: 410 g Includes 3 m cord, gold-plated 3.5 mm stereo jack plug with strain relief and professional screw-on 6.3 mm adapter Monitor Stativ Height adjustable stand for monitor speakers Direct mounting of monitor speakers with 9,52 mm threaded connection (thread length 12 mm) Mounting of fitting monitor speakers via screwing of locating plate (support via thread cone-point or rubber knobs) Tube combination is staglessly adjustable in height via binding screw Especially secure height adjustment with safety cotter-pin (11 different heights) Extensive, extremely flat round base (cast) with felt pads Maximum loading capacity: 35 kg Diameter base: 450 mm Size of locating plate: 205 x 245 mm Height stand: mm Weight: 10,6 kg Incl. cotter-pin, 4 safety pins and 4 rubber knobs Monitor Pad Polymer-foam boards for all current monitor speakers in order to decouple platforms Ideal, slightly horizontal down-grade Also usable as turntable pad for avoidance of acoustic feedback

7 Rox.5 USB Rox.6 USB Rox.8 USX Rox.12 USX Compact 5 channel PRO low noise studio mixer and USB interface combined in one device Integrated 16 bit stereo USB audio interface with high-quality 48 khz converters in order to carry audio signals between a computer and the Rox mixer Low-noise, firstclass sound characteristics with a lot of head room High-quality components and especially robust construction 1 mono mic/line input 2 symmetric stereo-line inputs High-quality mic preamp with trim function Supports professional studio condenser and dynamic microphones Warm 2-band EQ for the mic/line channel Peak LED for the mic/line channel for a better supervision Mono channel with pan regulation, stereo channels with balance adjustment High-performance headphones output with volume adjustment Especially handy potentiomenters Precise LED display Well arranged alignment and colour-coordinated arrangement of all functions assure quick control Symmetric master output Tape function assignable to main mix or headphones Plug-n-Play compatible with Windows XP and Mac OS X, no further drivers necessary Dimensions: 167 x 45 x 204 mm Weight: 1,05 kg Compact 6 channel PRO low-noise studio mixer and USB audio interface combined in one device 2 mono/line inputs with optional 48 V phantom power 2 symmetric stereo-line inputs Seperate control room output, adjustable 1 mono send and stereo return connection in order to grind in external effect devices Warm 3 band EQ per channel Aux/effect loop, adjustable per channel Separate symmetric master and monitor outputs [other features like Rox.5 USB] Plug-n-Play compatible with Windows XP and Mac OS X, no further drivers necessary Phantom power: 48 V Dimensions: 250 x 89 x 245 mmweight: 1,5 kg Compact 8 channel PRO low-noise studio mixer and USB audio interface all in one device Integrated digital reverb/echo unit, adjustable via various presets 4 mono/line inputs with optional 48 V phantom power Separate control room output, adjustable 1 mono send and stereo return connection in order to grind in external effect devices Warm 3-band EQ per channel Aux/effect loop adjustable per channel Mono channels with pan regulation, stereo channels with balance regulation Separate symmetric master and monitor outputs [other features like Rox.5 USB] Plug-n-Play compatible for Windows XP and Mac OS X, no further drivers necessary Phantom power: 48 V Dimensions: 302 x 89 x 247 mm Weight: 2,2 kg Compact 12 channel PRO low-noise studio mixer and USB audio interface all in one device Integrated 24 bit digital multi effect processor with 99 effect presets, individually adjustable 4 mono mic/line inputs with optional 48 V phantom power 4 symmetric stereo-line inputs 2 mono send and 2 stereo return connections in order to grind in external effect devices Stereo group-out output Seperate mono-out output Separate control room output, adjustable Sustain pedal connection Warm 3 band EQ per channel 7 band master stereo graphic equalizer 2 sub groups, 1 mono group Aux/effect loop per channel, adjustable Mono channels with pan regulation, stereo channels with balance regulation Separate symmetric master (XLR & jack) and monitor outputs (jack) [other features like Rox.5 USB] Plug-n-Play compatible with Windows XP and Mac OS X, no further drivers necessary Phantom power: 48 V Dimensions: 433 x 95 x 378 mm Weight: 3,5 kg

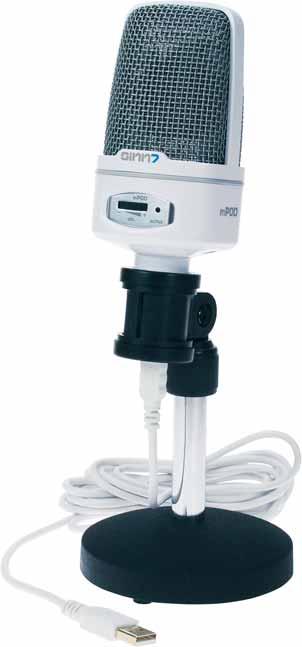

8 mpod Professional USB microphone for podcasting Condenser microphone with one-sided directional characteristics USB 2.0 technology Plug-n-play for PC and Mac Ltency-free transmission 16 bit resolution 48 khz A/D converter Voltage: USB feed, 5,0 V A/D converter: 16 bit resolution, 48 khz sampling Sensibility: -65 +/- 5 1 khz S/N ratio: -59 db Frequency range: 50 Hz - 18 khz Connection: USB Dimensions: 148 x 65 x 56 mm Weight: 0,35 kg Incl. USB cord, table stand and software DasMic.1 USB Professional USB condenser microphone Onesided directional characteristics USB 2.0 technology Latency-free transmission of recording 16 bit resolution 48K A/D converter Voltage: USB feed, 5,0 V Membrane: 2 microns Frequency range: 20 Hz - 18 khz Plug-n-Play compatible for Windows Vista, XP and Mac OS X Connection: USB Dimensions: 180 x 45 x 56 mm Weight: 0,41 kg Incl. USB cord, software and table stand KSM-10 Professional studio condenser mic (large diaphragm) Directional characteristics (options include polar, figure 8 or omnidirectional pattern) Gold-layered quality diaphragm Extremely low self-noise 3-fold mesh basket to protect mic & reduce breathing and plosive sounds Optional bass cut function Switchable 10 db preattenuation Integrated gold-plated XLR connection Sound pressure level: 135 db (145 db with active pre-attenuation) S/N ratio: 80/79/78 db Impedance: 200 ohm Voltage: 48 V phantom power Frequency range: 20 Hz 20 khz Dimensions: 54 x 201 mm Weight: 0,59 kg Incl. case, swivel mount and windshield

9 DasMic.1 DasMic.2 DasMic.3 DualBand Professional large-membrane condenser microphone Onesided directional characteristics Gold-plated membrane Vintage lollypop-design High sensitivity Balanced sound reproduction Excellent, natural sound characteristics Extremly low self-noise Frequency range: 20Hz - 20kHz Sensibility: -32dB +- 3dB Output: 150 Ohm +- 30% (at 1kHz) Impedance: 1000 Ohm Noise: 16dB A Maximum input level SPL: 132dB S/N ratio: 78dB Phantom power: 48 V Dimensions: 164 mm long, 76 mm max. housing diameter Weight: 0,25 kg Incl. XLR cable (5,0 m), pouch and swivel mount Professional electret condenser microphone Directional characteristics: hyper cardioid High-quality condenser capsule Perfectly suited for live use High sensitivity Balanced sound reproduction Excellent natural sound characteristics Robust construction Extremely low self-noise Transmitting element: electret mic with condenser Directional pattern: hyper cardioid polar pattern Frequency range: 30Hz - 18kHz Sensitivity: -36dB±2dB (0dB=1V/Pa at 1kHz) Output: 200 Ohm ± 30% (at 1kHz) Impedance: 1000 Ohm Noise: 22dB A (IEC 581-5) Maximum input level SPL: 128dB (at 1kHz =1% T.H.D) S/N ratio: 72dB Phantom power: 48 V DV Dimensions: 120 mm long, 52 mm max. housing diameter Weight: 0.35 kg Incl. XLR cable (5.0m) Professional large-membrane condenser mic Directional characteristics: hyper cardioid High-quality condenser capsule Perfectly suited for live use High sensitivity Balanced sound reproduction Excellent natural sound characteristics Robust construction Extremely low self-noise Frequency range: 20Hz - 20kHz Sensitivity: -35dB±2dB (0dB=1V/Pa at 1kHz) Output: 100 Ohm ± 30% (at 1kHz) Impedance: 1000 Ohm Noise: 15dB A (IEC 581-5) Maximum input level SPL: 130dB (at 1kHz =1% T.H.D) S/N ratio: 79dB Phantom power: 48 V Dimensions: 150 mm long, 52 mm max. housing diameter Weight: 0.5 kg Incl. XLR cord (5.0m) Professional studio ribbon-microphone Double sided directional characteristics Excellent sound characteristics of classic ribbon microphones Terminating impedance: > 1000 Ohm Maximum acoustic pressure: 137 db Sensitivity: -53 db +/- 2dB Noise background: 17 db A Impedance: 200 Ohm Frequency range: 30 Hz - 18 khz Connection: XLR Dimensions: 30 x 60 x 150 mm Weight: 0,36 kg Incl. microphone clamp and carrying case

10 Phantom.1 Phantom.1 USB Set Protektor Spinne.1 48 V interface for phantom power of condenser mics 1 XLR input and 1 XLR output Incl. mains adapter Set consists of: 1 x Sinn7 Phantom.1 1 x Sinn7 USB/XLR interface Professional popping security filter Covered with double-ended acoustic gauzes Eliminates unwanted popping noises Flexible swan neck with integrated clamp for easy mounting Microphone holder Elastic suspension of microphones Swivel stand adapter Thread mount: 22 mm Dimensions: 135 x 100 x 65 mm Weight: 0,35 kg

11 M Stativ.1 black M Stativ.1 white M Stativ.2 T Stativ Microphone stand Incl. table interlock Adjustable rod Integrated XLR cord Microphone stand Incl. table interlock Adjustable rod Integrated XLR cord Microphone stand Foldable stand Adjustable support rod and stay rod Microphone table stand For professional studio application Fold-away design Variable angle adjustment for microphone accomodation Shock absorbing feet Material: metal Colour: black Height (support rod): 57.5 cm Height (stay rod): 57.5 cm Weight: 1.67 kg Incl. clamp and XLR cord (5.0 m) Supply without microphone Material: metal Height (support rod): 57,5 cm Length (stay rod): 57,5 cm Weight: 1,67 kg Incl. clamp holder and XLR cord (5,0 m) Supply without microphone Material: metal Colour: black Height (support rod): cm Height (stay rod): cm Weight: 9.2 kg Adjustable height: mm Microphone accomodation: mm Pyramid Panels Acoustic insulation panel Neutral recording surroundings For studio, rehearsals, vocal booths, hifi, home cinema, speaker construction, etc. Variant 1: Colour: anthracite Dimensions: 500 x 500 x 30 mm Colour: white Dimensions: 500 x 500 x 30 mm Colour: anthracite Dimensions: 500 x 500 x 50 mm Colour: white Dimensions: 500 x 500 x 50 mm Variant 2:

12 Ihr Händler: Sinn7 Audio Subject to technical modifications without notice. All illustrations are simular to the original. Liability excluded for printing errors. Copyright Global Distribution GmbH 2008
