Masttoppsmodul med periskop-kameror och DGPS enhet Typ MT-Cam 4X90/50M/DGPS

Transkript

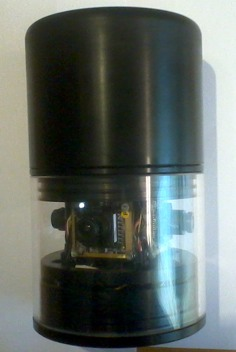

1 Masttopps / 360 graders kamera för undervattensbruk i ubåtar och andra undervattensfarkoster. Teknisk beskrivning av MT-Cam 4X90/50M/DGPS Tillverkare Laseroptronix AB Glimmervägen Täby Sverige Tel Sidan 1 av 11

2 Innehållsförteckning!! Instruktionsbok Periskopkamera Sid 1!!! Omslag med skiss+ vissa data tillverkaren Sid 2!!! Innehållsförteckning / denna sida Sid 3!!! Genomskärning av kamera med vissa kommentarer om!!! innehåll i enheten Sid 4!!! Skiss montageordning av kameran Sid 5!!! Bottenplatta med hålbild / montageskruvar + plats!!! kontaktdon Sid 6!!! Kameraenheten i kort samt information DGPS enhet!!! Radomenheten i kort. Sid 7!!! C-Mos kamera tekniska specifikationer Sid 8!!! Inställning av parametrar i kamera / knappoligi Sid 9!!! Inställning av parametrar i kamera / knappoligi Sid 10!! Inställning av parametrar i kamera / knappoligi Sid 11!! Kontaktdon med anslutniung + specifikation Lemo. Sidan 2 av 11

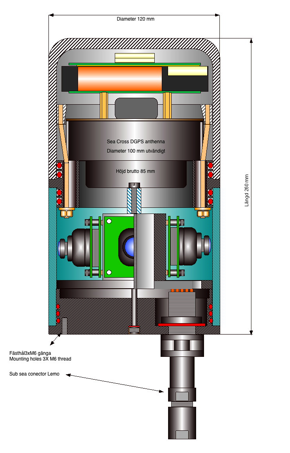

3 Vy av produkten med röntgenskiss bild Diameter 120 mm Vikt ca 4 kg Övre delen har DGPS systemet under en radom i acetalplast Under denna en mellanring med tätningar via o-ringar I mitten kamera sektionen med 4 st kameror över 360 grader vy. Seoareata signaler från varje kamera Högdynamiska kameror med över till 1 i dynamikområde. Ruta som är ett cylindriskt plexirör med 5 mm gods. O- ringstätad. Kabelutrymme med kontaktdon där allt sitter på en enda Lemokontakt i botten Dragstång som håller ihop hela enheten sitter via en skruv i bottens centrum 3 st M6 gänga för fastsättning mot periskopmast / fästplatta. Sidan 3 av 11

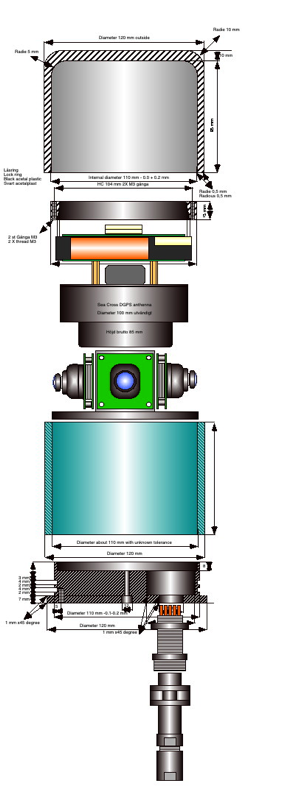

4 Montagen ordning av kameran Sidan 4 av 11

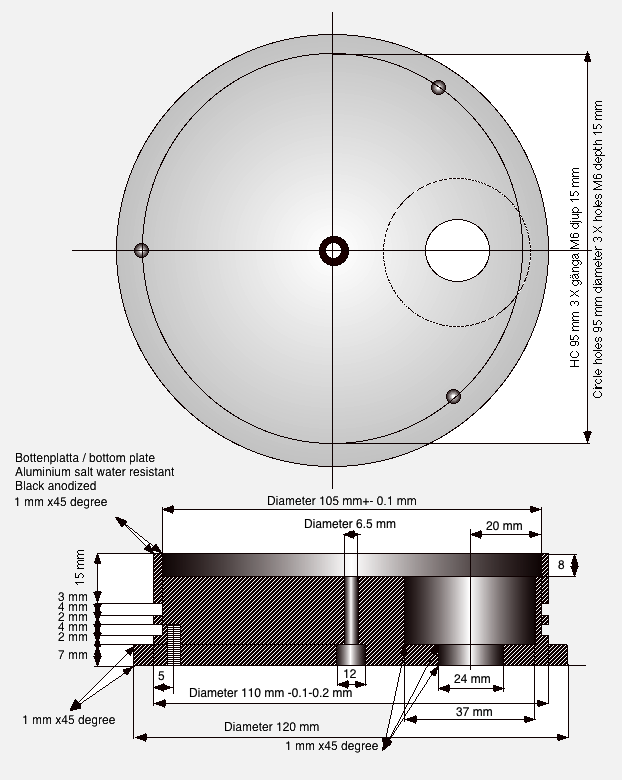

5 Ritning som visar montagets hålbild. Centrumhålet är förseglat efter montage. Sidan 5 av 11

6 Produkten i kort Produkten är en kamera + navigationsmodul avsett att sitta i en masttopp på en mindre ubåt eller annan marin farkost. Modulen innehåller följande funktioner / huvuddelar * DGPS system fabrikat Seacross. Mottagardelen fabrikat Koden. * Plastdome som skyddar antennen och är radiotransparrent. * 4 st separata kamera moduler som ger ca 360 graders synfält. Varje kamera har en egen utgång och en extern bildväxlare bestämmer vilken kamera observatören skall använda * Plexiglas-cylinderruta som skydd med o-ringstätning. 360 graders täckning. * Vattentät kapsling ned till 50 meters djup / designdjup 100 meter. * Anslutning till övrig elektronik med ett Lemo special kontaktdon för max 30 Bar Ö-tryck * Displayenhet som har 4 ingångar med PAL standard * DGPS system Seacross system som beskrivs i detalj separata papper. Märkt Koden DGPS sensor KGB-3 Kabelanslutningar ut ur GPS enheten DC Jord!! Skärm + svart Data input +!! Orange Data input -!! Blå Data output +! Vit Data output -!! Grön DC matning +! Röd Tekniska egenskaper Matningsspänning!! ,2 VDC Effektförbrukning!! 2,5W Arbetstemperatur!! -25C till + 55 C Vikt med standardkåpa! 760 gram men mycket av detta är demonterat i denna!!!! applikation. * Radom med DGPS system Material! Tillverkat i svart acetalplast Gods!! 5-10 mm tjockt Fäste!! Fastsatt mot underdelen via en kompressionskona och dragstänger!! låser fast överdelen mot mellandelens o-ringstätningar Tätning! 2 st O-ringar smorda med vattenfast fett / vaselin Sidan 6 av 11

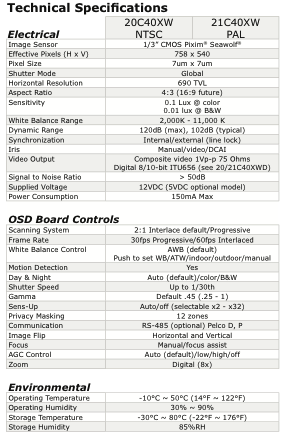

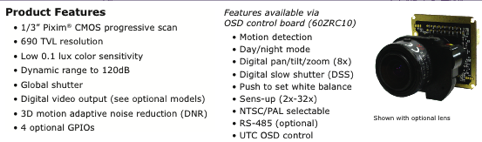

7 Kamerasektion med 4 st separata kameror. Varje kamera har sin egen PAL utgång tillgänglig i utgångskontakten Sidan 7 av 11

8 SETTINGS Settings can be made using the 5 buttons located on the OSD control board. UP LEFT DOWN RIGHT 1. Press the SET button on the control board to display the window. 2. Select an option from the list available by using the UP & DOWN buttons on the control board. The selected position is displayed in blue. Select the function using the UP or DOWN buttons 3. Change the status by using the Left and Right buttons. 4. To finish and save the settings, select 'EXIT' and press the SET button on the control board. SET Three types of presets : default color balance INDOOR : fluorescence color balance OUTDOOR : outdoor color balance EXPOSURE NOTE: An item with the.. icon has sub-menus. To select a sub-menu, press the SET button. Change the status using the LEFT or RIGHT buttons When the menu screen is displayed, select EXPOSURE by using the UP & DOWN buttons so that the arrow indicates EXPOSURE. EXPOSURE LENS DC.. FOCUS.. EXPOSURE MODE 60i AGC DNR HIGHLIGHT ON COLOR ROLL LOW SENS-UP 2X LENS This function controls the screen s brightness. DC / Manual : Select Lens Type LENS MENU DC GAIN VIDEO GAIN AI THRESH FOCUS This function adjusts the DC & VIDEO lens focus FOCUS DETECTOR FOCUS METER 88 SET FOCUS REGION.. SET FOCUS REGION EXPOSURE MODE Select the number of fields and number of exposure cycles. 60i/30p selectable AGC (AUTO GAIN CONTROL) In a dark situation, the higher the gain level, the brighter the screen, but there will be more noise within the video. / LOW / / HIGH selectable DNR (Digital Noise Reduction) The level of background noise in low light decreases automatically as the level of gain changes. / LOW / / HIGH selectable HIGHLIGHT To optimize the scene when high dynamic range lighting is detected. ON : bright parts of the image are most visible : dark parts of the image are most visible COLOR ROLL To control a detector that finds color fluorescent roll. / LOW / / HIGH selectable SENS-UP When it is night or dark, the camera automatically detects the light level and maintains a clear picture if this mode is activated. 2X, 4X, 8X, 16X, 32X : Deactivates the SENS-UP function. When the image has simultaneous bright and dark areas, the Wide Dynamic Range makes both areas distinct. LOW / / HIGH / USER selectable LEVEL BIAS LIMIT Use the White Balance function to adjust the screen colors. 1. Move the cursor to point to WHITE BAL on the menu screen, select using the UP & DOWN buttons. 2. Select the desired mode by using the LEFT & RIGHT buttons. Select one of the following 5 modes: The mode continuously monitors. INDOOR Select for color temperature between 4000K & 8500K OUTDOOR Select for color temperature between 2000K & 11000K AWB To obtain the optimum state under the current luminance levels, point the camera at a sheet of white paper and press the SET button. If the environment changes, including the light source, the white balance will require re-adjustment. MANUAL Select to "fine-tune" the White Balance manually. First set the White Balance with or AWB. Then switch to MANUAL, fine-tune and then press the SET button to save. MANUAL RED BLUE NOTE: Under the following conditions, White Balance may not work properly. In such cases, select the AWC mode. 1) When the color temperature of the subject environment has a very high temperature range (e.g. clear sky, or sunset) 2) When the ambient illumination of the subject is low 3) If the camera is directed toward a fluorescent light, or is installed in a place where illumination changes dramatically, the White Balance operation may become unstable. Detta sker med knapparna på det lilla kortet kopplat till kameran. Detta kort ligger instoppat i kameraklumpens centrumhål. Sidan 8 av 11

9 AUTO This camera has an IR Cut-Filter and automatically changes to the appropriate mode according to lighting levels. To set the switching time and switching speed for the AUTO mode, press the SET button. COLOR B/W The picture is displayed in color. The picture is always displayed in black and white. IMAGE ADJ. In the menu, select 'IMAGE ADJ.' using the UP & DOWN buttons. FREEZE View still pictures FLIP (2xC40xWD models only) DAY&NIGHT TIME DELAY / ON selectable IMAGE FREEZE FLIP SHARPNESS COLOR GAIN GAMMA / HORIZ / VERT / BOTH selectable SPECIAL Within the menu, select 'SPECIAL' by using the UP & DOWN buttons. CAMERA ID User can enter a unique name for the respective camera. The maximum length of the ID is ten characters. You can choose ON or. If you select ON, the entered camera ID is displayed at the selected position in the video picture (normal operation). Please select the setup button while in ON mode. Select the desired position with the selector. ID POSITION Move the cursor to the letter required by pressing the UP button. Select an ID from A,B~Y,Z, a,b~y,z, 0,1~8,9 by using the LEFT and RIGHT buttons. Repeat the above steps until the ID is complete. Select the position where the ID is to be displayed by using the LEFT and RIGHT buttons. VIDEO I/O Move the cursor to select the video system. SPECIAL CAMERA ID VIDEO I/O.. DZOOM MOTION PRIVACY.. SYNC RS485.. RESET RETURN CAMERA ID CAM-001 ID POSITION UP-LEFT CAMERA ID CAM-001 VIDEO I/O UP-LEFT VIDEO STANDARD.. VIDEO OUT INTERLC DIGITAL OUT 656 OSD ON FIELD ORDER. HORIZ - VIDEO STANDARD You can control NTSC / PAL, Video level, Sync level, Burst level VERT BOTH SHARPNESS The outline of the video image becomes cleaner and more distinctive as the level of SHARPNESS increases. If the level goes up excessively however, it may affect the video image and generate noise. The available range of level is -8 ~ 8 COLOR GAIN To control the color level in the video. The available range of level is -8 ~ 8 VIDEO STANDARD VIDEO SELECT NTSC VIDEO LEVEL SYNC LVL BURST LVL COLOR BAR. VIDEO OUT Interlace/Progressive Video selectable DIGITAL OUT Digital output ON/ selectable 656 OSD Digital output OSD ON/ selectable FIELD ORDER Normal/Reverse Field selectable GAMMA Change the gamma setting between 25 and 100 Sidan 9 av 11

10 DZOOM Digital P/T/Z are used to create a zoom lens effect. Zoom Factor (1X to 8X), Pan (±100%, center of image can be moved to left and right edges of screen), Tilt (±100%, center of image can be moved to top and bottom edges of screen) MOTION This product has a feature that allows you to observe movements of objects in on the screen, hence a single individual can conduct supervision efficiently. The camera detects an object's movement by sensing disparity of outline, and level of brightness and color. MOTION DETECTION ACTIVITY THR. 0 MESSAGE TIME MOTION ZONE.. ZOOM PAN TILT DZOOM MOTION ZONE If 'LL' is selected, it can be adjusted to the desired phase. Press the SET button to save. V PHASE LINE LOCK Adjust to the desired phase from 0 to 624. RS 485 This function sets up the camera communication status when controlling the camera through an external control device. RS CAMERA # : 1 < 1 > 255 PROTOCOL PELCO-D BAUD RATE < 2400 > < 4800 > < 9600 > < > EXIT MENU Saves all the setting menus and then exits. White Green Red MOTION ZONE Position movement MOTION ZONE Size enlargement MOTION ZONE Size reduction To confirm the MOTION ZONE, press & hold the SET button PRIVACY Hide an area you want to hide on the screen. PRIVACY MASK PRIVACY MASK MASK COLOR WHITE SPECIFICATIONS MECHANICAL Dimensions W x H x D Weight Lens Mounts Ex: Change 20C40XW to 20C405W to select an M-12 Board Mount. Change 20C40XW to 20C406W to select an M-14 Board Mount. Lens 42mm x 42mm x 9.05mm (1.65 x 1.65 x 0.35 ) 12g (0.42oz) Replace X in model number with desired lens mount option: 5 = Metal M-12 Board 6 = Metal M-14 Board See our lenses at ENABLE MASKS (1 to 6) MASK 1 MASK 2 MASK 3 MASK 4 MASK 5 MASK 6 PREV. NEXT. ON ENABLE MASKS (7 to 12) MASK 7 MASK 8 MASK 9 MASK 10 MASK 11 MASK 12 PREV. NEXT. ACCESSORIES Included BNC/power cable Optional 60ZRC10 OSD control board 60C pin - 20 pin digital output cable (digital camera only 20/21C40XWD) PIN ASSIGNMENT Digital Signal White Blue PRIVACY-ZONE Position movement PRIVACY-ZONE Size enlargement or reduction To confirm the PRIVACY-ZONE, press & hold the SET button SYNC Two synchronization modes are available, INTERNAL and EXTERNAL LINE LOCK. In LINE-LOCK mode, it synchronizes the video signal between cameras without asynchronous generator. The line-lock synchronization is only used in areas of 60Hz (NTSC)/50Hz (PAL). IRIS PELCO-D MAIN CONNECTOR I/O INT LL Internal synchronization External line-lock synchronization Sidan 10 av 11

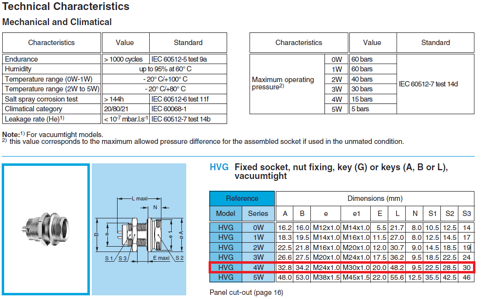

11 Kontaktdon fabrikat Lemo Kameran har en special undervattenskontakt från Lemo. Den har 9 st vanliga stift + 4 special koaxialkontakter för videosignaler. Stift 1 Stift 2 Stift 3 Stift 4 Stift 5 Stift 6 Stift 7 Stift 8 Stift 9 Koax1! Kamera 1 Koax 2! Kamera 2 Koax 3! Kamera 3 Koax 4! Kamera 4 Montage med hålbild Sidan 11 av 11
