1 KITTEN II Reservedelar Spareparts V2
2
3 Innehållsförteckning / INDEX Fig 1 Stel / chassis Fig 2 Skærme / plastic body Fig 3 Bagerste svingarm / rear swingarm Fig 4 Forhjulsophæng / front suspension Fig 5 Elektriske dele & motor komponenter / electricals & engine parts Fig 6 Styringssystem / steering system
4 g 1: Stel / chassis
5 g 1: Stel / chassis Ref. no. PL nr / art. no. Varenavn Art. name OE no. Antal / pcs Kofångare Bumper N/A Bumper block N/A Spring washer Bult, M8x16 Bolt M8*16 yellow zinc plated N/A Frame N/A Spacer washer for rear swingarm N/A Sleeve for rear swingarm
6 Fig 2: Skærme / plastic body

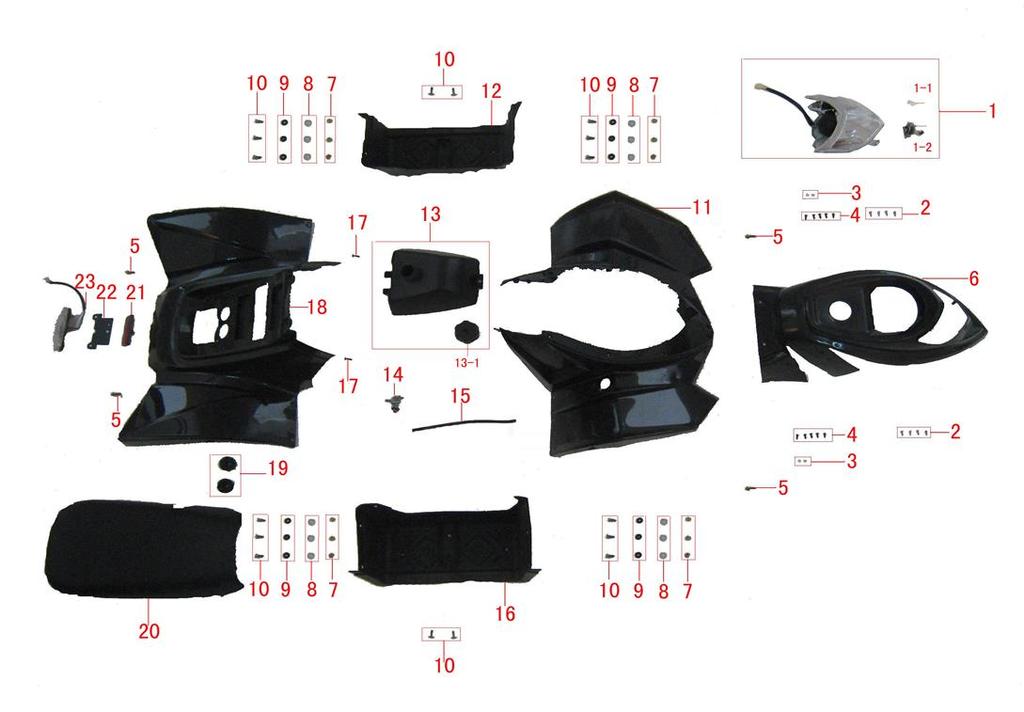

7 Fig 2: Skærme / plastic body Ref. no. PL nr / art. no. Varenavn Art. name OE no. Antal / pcs Framlykta Headlight Lampa, liten Bulb for small headlight Lampa, stor Bulb for big headlight N/A Cross recess head screw ST4.8* N/A Washer N/A Cross recess head screw ST4.8* N/A Bolt M6*16 zinc plated Front panel Front panel Mutter M6 Nut M N/A Washer N/A Rubber washer N/A Mushroom head bolt M6* Framskydd Front body cover Fotplatta vänster Footrest left Bränsletank, komplett Fuel tank assy Skydd bränsletank Fuel tank cap Bensinhane Switch for fuel tank N/A Fuel pipe Fotplatta, höger Footrest right N/A Mushroom head bolt M6* Bakskydd, svart Rear body cover (black) N/A Washer for seat Sits Seat N/A Rear reflector (red) N/A Bracket for taillight Baklykta Taillight
8 Fig 3: bagerste svingarm / rear swingarm
9 Fig 3: bagerste svingarm / rear swingarm Ref. no. PL nr / art. no. Varenavn Art. name OE no. Antal / pcs Kedja, låg växel Chain Kedja, hög växel Chain N/A Nut M14* N/A Bolt M14*1.5*230 for rear swingarm N/A Abrasion-resistant cover N/A Spacer washer abrasion-resistant cover N/A Steel sheet washer Bakre svängarm Rear swingarm Låsmutter M8 Locknut M N/A Washer Kedjespännare Rear jack N/A Nut M10* Stötdämpare bak Rear shock absorber N/A Bolt M10*1.25* Skivbroms bakre Rear hydraulic disc brake Bromskabel Cable for brake switch Bromsklossar Brake pads N/A Bolt M8*20 yellow zinc plated N/A Nut M8 yellow zinc plated Hjulnav, bakre Rear wheel hub Tandhjul, Sprocket Tanhjul 37T Sprocket 37T Tandhjulsnav Housing for sprocket Bakaxel Rear axle Hållare till skivbroms Seat for brake disc Skivbroms Brake disc N/A Dustproof washer N/A Washer 14*28* N/A Slotted nut M14* N/A Cotter pin 2.5* Skydd dammsäkert Dustproof cover N/A Spring washer Packning 35x55x8 Oil seal 35*55* Lager Bearing N/A Sleeve for seat of rear swingarm N/A Oil seal 32*52* N/A Right sleeve for rear axle N/A Hexagon cap head screw M8* N/A Washer 14*39* Bult, M6x16 Bolt M6* Mutter, M6 Nut M Skyddsskärm för tandhjul, övre Up protecting cover for sprocket N/A Bolt M12*1.25* N/A Spring wahser Hållare till bakre svängarm Seat of rear swingarm Skyddsskärm för tandhjul, nedre Down protecting cover for sprocket Skyddsskärm till skivbroms, nedre Down protecting cover for brake disc Däck, 14.5/7-6 Tyre14.5/ Fälg fram & bak - 6" Rim 6"
10 Fig 4: Forhjulsophæng / front suspension
11 Fig 4: Forhjulsophæng / front suspension Ref. no. PL nr / art. no. Varenavn Art. name OE no. Antal / pcs 4-1 N/A Bolt M10*1.25* Stötdämpare, främre Front shock absorber N/A Nut M10* A-arm, övre Up A-arm N/A Bolt M10*1.25* N/A Sleeve for top A-arm Trumbroms främre - vänster Front left drum brake assy N/A Sleeve for front wheel hub lager Bearing Bromstrumma bakre Front drum brake body Bromstrumma främre Brake shoes for front drum N/A Spring for front drum brake N/A Left side cover of drum brake Mutter M8 Nut M N/A Washer 14*28* N/A Slotted nut M14* N/A Cotter pin Navkapsel, dammtät Dustproof cover for wheel Spindel, vänster Y-bone left N/A Bolt M10*1.25* N/A Bolt M10*1.25* Spindel, höger Y-bone right Trumbroms främre - höger Right drum brake assy N/A Right cover for drum brake A-arm, nedre Down A-arm Manchet till A-arm, nedre Sleeve for down A-arm Bult, M10x1,25x155 Bolt M10*1.25* Däckk, 14.5/7-6 Tyre14.5/ Fälg, fram & bak - 6" Rim 6"
12 Fig 5: Elektriske dele & motor komponenter / electricals & engine parts
13 Fig 5: Elektriske dele & motor komponenter / electricals & engine parts Ref. no. PL nr / art. no. Varenavn Art. name OE no. Antal / pcs Tändningsnyckel Key switch Tändspole Ignition coil Tändstiftshatt Cap f/ignition coil Tändning Ignition N/A Bolt M6* Mutter, M6 Nut M Regulator Regulator Relä Relay Nödstopp kontakt Emergency switch Ledningsnät Main cable N/A Fuse N/A 90cc engine assy N/A 90cc engine N/A Bolt M6* N/A Washer for gear N/A Sprocket Tandhjul 12T Sprocket N/A Bolt M6* N/A Engine side cover N/A Oil level gauge Bult, M6x20 Bolt M6* N/A Intake pipexs N/A Rubber washer for intake pipe N/A Bolt M6* Batteri Battery N/A Bolt for battery Bult, M6x16 Bolt M6* batteriskydd Battery cover Rem till batteri Belt for battery Förgasare Carburetor Luftfilter Airfilter N/A Nut M8 zinc plated N/A Bolt m8*105 zinc plated N/A Bolt m8*110 zinc plated N/A Nut M6 zinc plated Ljuddämpare Muffler N/A Seal washer for muffler N/A Bolt M8*16 Zinc plated
14 Fig 6: Styringssystem / steering system
15 Fig 6: Styringssystem / steering system Ref. no. PL nr / art. no. Varenavn Art. name OE no. Antal / pcs 6-1 N/A Handle cover(l/r) Multifunktionsknapp Function button Skumskydd Foam cover Skum Foam N/A Bolt M8* N/A Up block for handlebar N/A Down block for handlebar N/A Handblebar Bromshandtag Brake level Bromskabel, främre Front brake cable Styre, komplett Steering assy N/A Dustproof seal N/A Dlipper for steering pole N/A Sleeve for clipper N/A Fixing panel for steering pole Choker kabel Choke cable Kabel till gasregulering Throttle cable Styrstag komplet Tie rod N/A Spring washer N/A Washer N/A Slotted nut M N/A Cotter pin 2.5* N/A Dustproof cover for steering pole N/A Washer14*28* N/A PU cover N/A Slotted nut M10* N/A Cotter pin 2.5*
