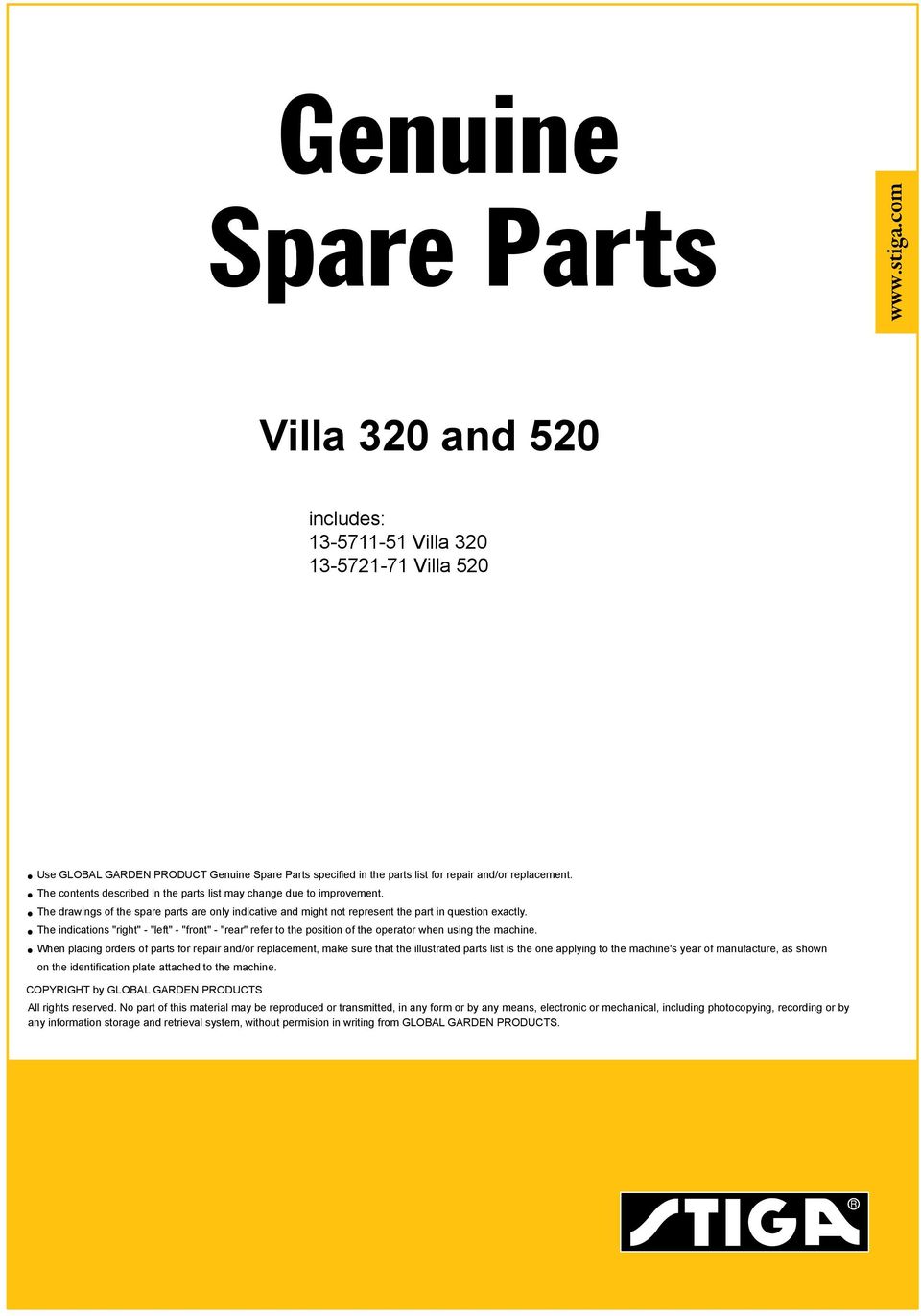

Villa 320 and 520. includes: Villa Villa 520

Save this PDF as:
 WORD  PNG  TXT  JPG

Storlek: px
Starta visningen från sidan:

Download "Villa 320 and 520. includes: 13-5711-51 Villa 320 13-5721-71 Villa 520"

Transkript

1 Villa 0 and 50 includes: Villa Villa 50 Use GLOBAL GARDEN PRODUCT Genuine Spare Parts specified in the parts list for repair and/or replacement. The contents described in the parts list may change due to improvement. The drawings of the spare parts are only indicative and might not represent the part in question exactly. The indications "right" - "left" - "front" - "rear" refer to the position of the operator when using the machine. When placing orders of parts for repair and/or replacement, make sure that the illustrated parts list is the one applying to the machine's year of manufacture, as shown on the identification plate attached to the machine. COPYRIGHT by GLOBAL GARDEN PRODUCTS All rights reserved. No part of this material may be reproduced or transmitted, in any form or by any means, electronic or mechanical, including photocopying, recording or by any information storage and retrieval system, without permision in writing from GLOBAL GARDEN PRODUCTS.

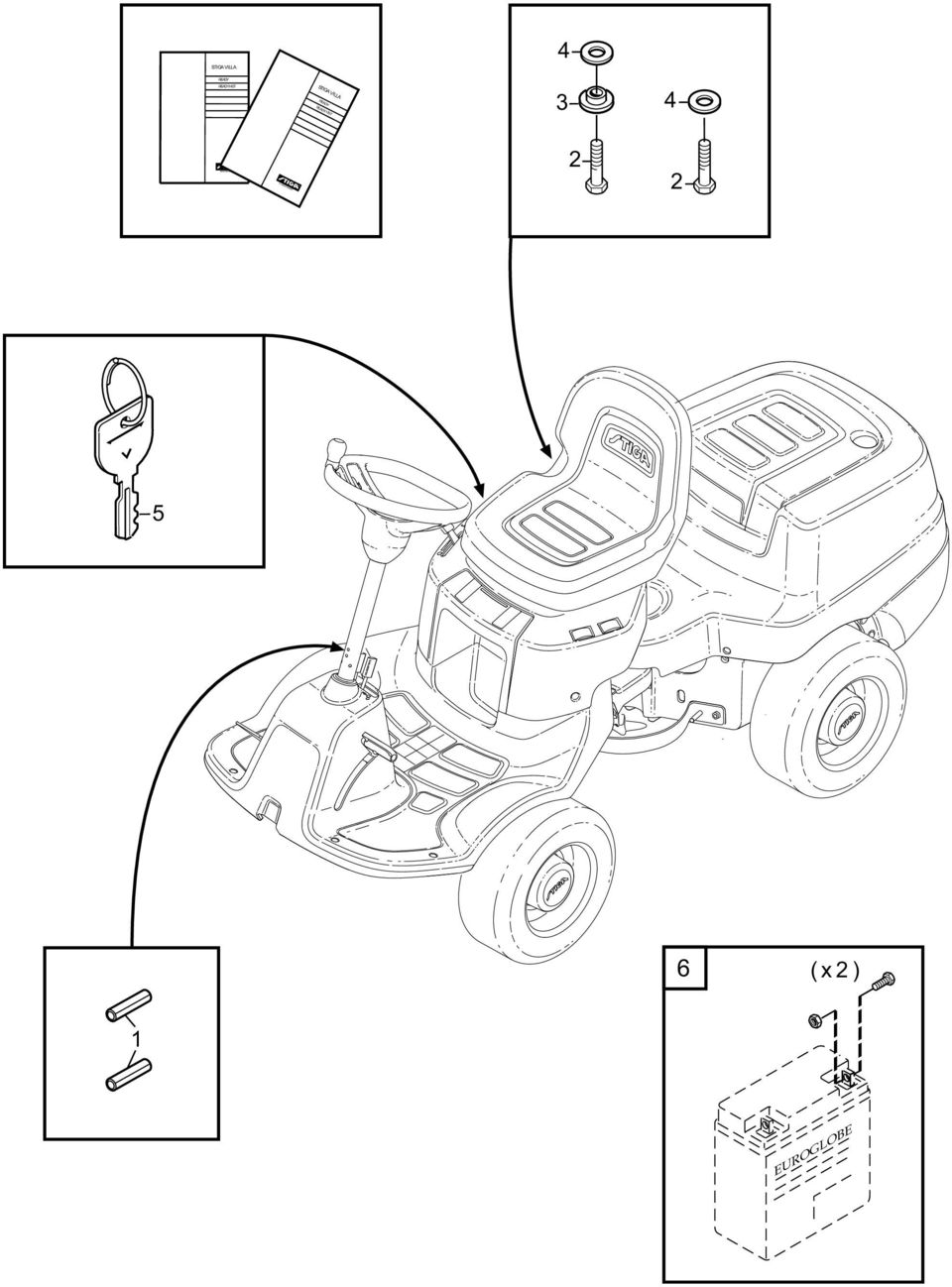

2 MOWING AHEAD STIGA READY READY HST STIGA READY READY HST MOWING AHEAD 5 ( x ) 1 EUROGLOBE

3 Reservdelskatalog Parts Catalogue FRONT KLIPPARE FRONT MOWERS Utgåva Issue Bildnr Picture No MONTERINGSDETALJER ASSEMBLY PARTS Sida Page Pos. Fig. Antal/Quantity Art nr Part No Benämning Description Sats Kit Anmärkning Notes Spännstift... Locating pin Skruv... Screw Ansatsbricka... Flangw washer Bricka... Washer Tändningsnyckel... Ignition key Batteriskruvar... Battery screws...

4

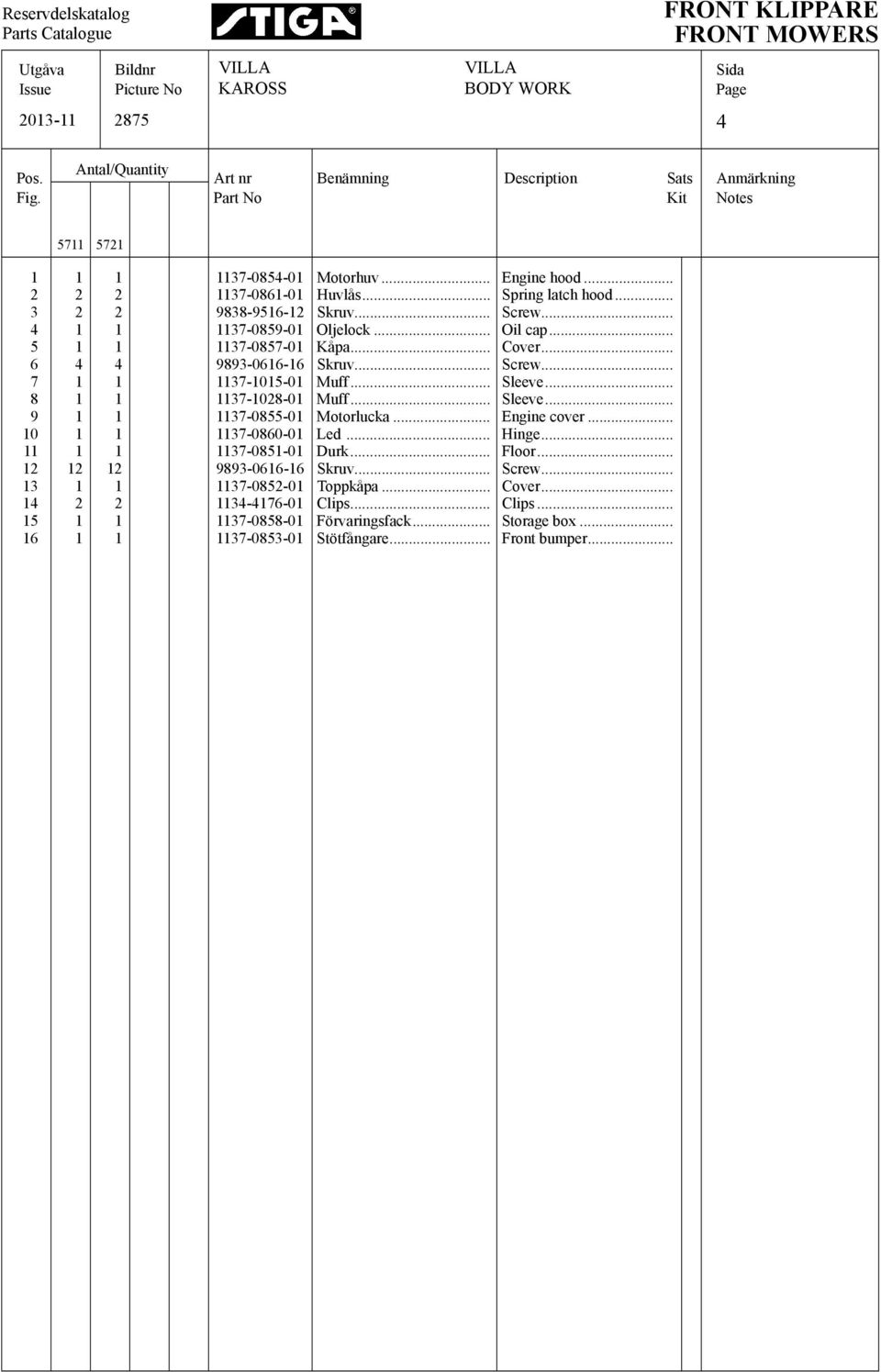

5 Reservdelskatalog Parts Catalogue FRONT KLIPPARE FRONT MOWERS Utgåva Issue Bildnr Picture No KAROSS BODY WORK Sida Page Pos. Fig. Antal/Quantity Art nr Part No Benämning Description Sats Kit Anmärkning Notes Motorhuv... Engine hood Huvlås... Spring latch hood Skruv... Screw Oljelock... Oil cap Kåpa... Cover Skruv... Screw Muff... Sleeve Muff... Sleeve Motorlucka... Engine cover Led... Hinge Durk... Floor Skruv... Screw Toppkåpa... Cover Clips... Clips Förvaringsfack... Storage box Stötfångare... Front bumper...

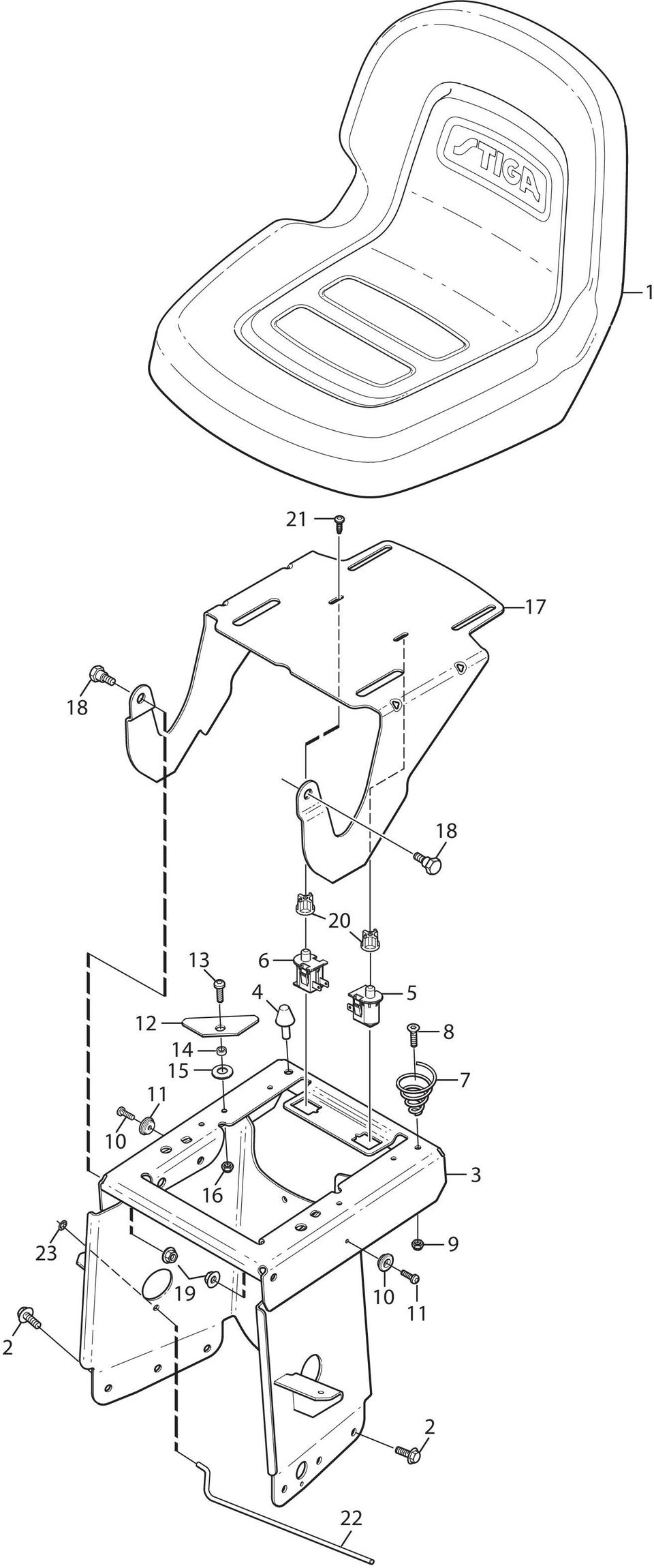

6

7 Reservdelskatalog Parts Catalogue FRONT KLIPPARE FRONT MOWERS Utgåva Issue Bildnr Picture No SITS SEAT Sida Page Pos. Fig. Antal/Quantity Art nr Part No Benämning Description Sats Kit Anmärkning Notes Sits... Seat Skruv... Screw Sitskonsol... Seat bracket Gummifjäder... Rubber spring Brytare (svart)... Switch (svart) Brytare (grey)... Switch (grey) Fjäder... Spring Skruv... Screw Mutter... Nut Distans... Spacer Skruv... Screw Sitslås... Bracket Skruv... Screw Distans... Spacer Brickfjäder... Spring washer Mutter... Nut Sitsplatta... Seat plate Ansatsskruv... Shoulder bolt Mutter... Nut Brytarknapp... Button Skruv... Screw Bygel... Rod Starlock... Starlock...

8

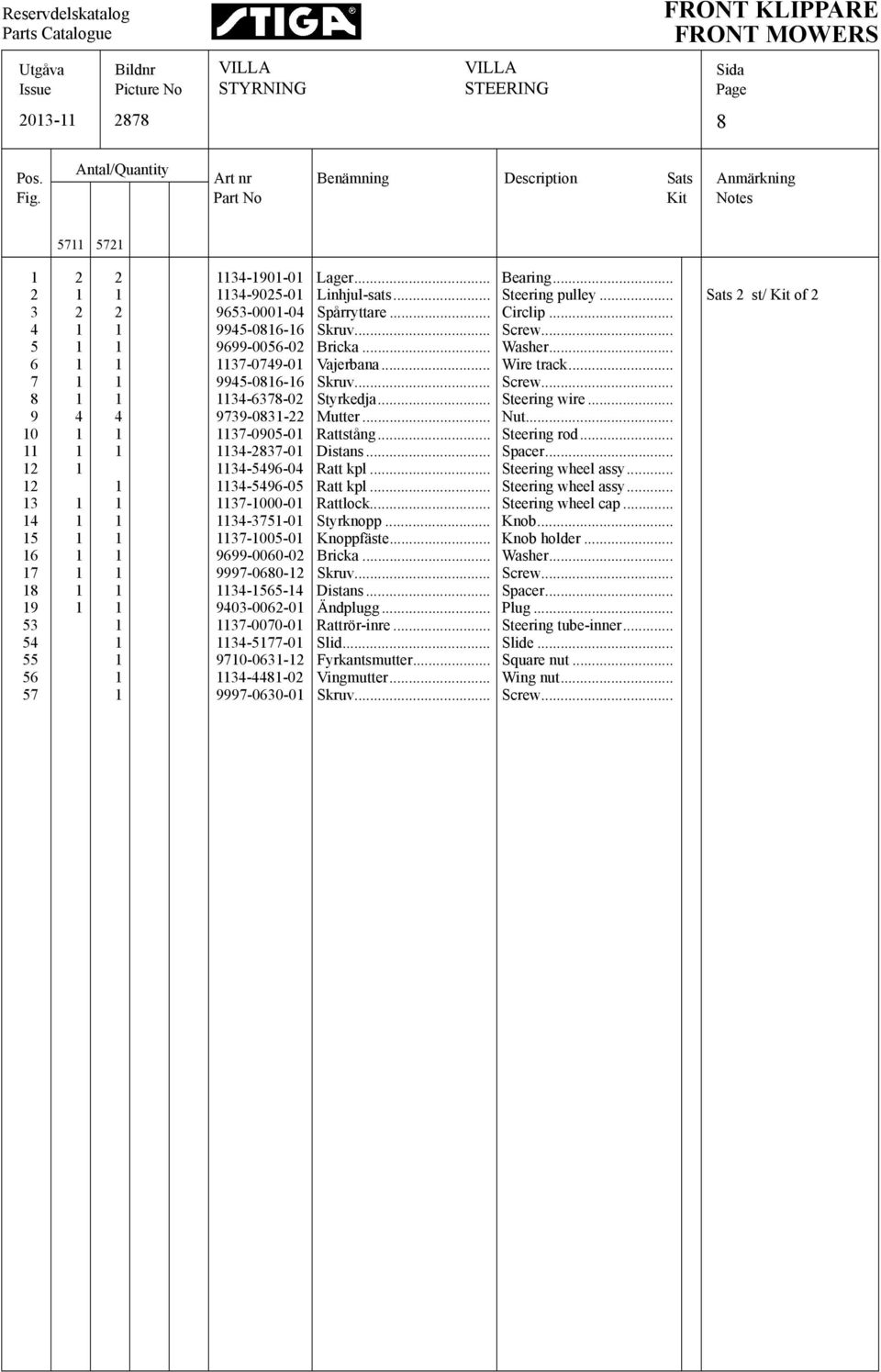

9 Reservdelskatalog Parts Catalogue FRONT KLIPPARE FRONT MOWERS Utgåva Issue Bildnr Picture No STYRNING STEERING Sida Page Pos. Fig. Antal/Quantity Art nr Part No Benämning Description Sats Kit Anmärkning Notes Lager... Bearing Linhjul-sats... Steering pulley... Sats st/ Kit of Spårryttare... Circlip Skruv... Screw Bricka... Washer Vajerbana... Wire track Skruv... Screw Styrkedja... Steering wire Mutter... Nut Rattstång... Steering rod Distans... Spacer Ratt kpl... Steering wheel assy Ratt kpl... Steering wheel assy Rattlock... Steering wheel cap Styrknopp... Knob Knoppfäste... Knob holder Bricka... Washer Skruv... Screw Distans... Spacer Ändplugg... Plug Rattrör-inre... Steering tube-inner Slid... Slide Fyrkantsmutter... Square nut Vingmutter... Wing nut Skruv... Screw...

10

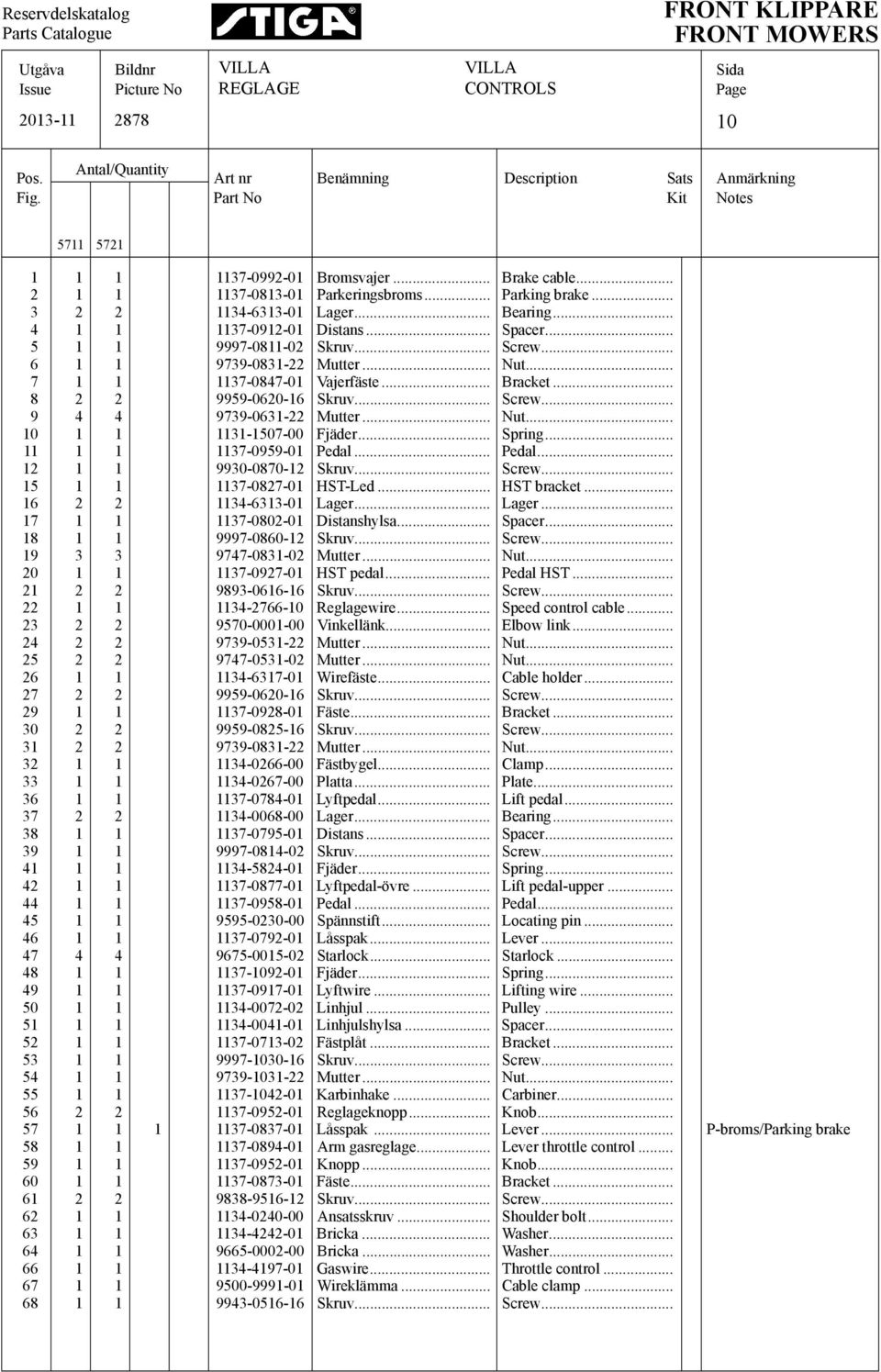

11 Reservdelskatalog Parts Catalogue FRONT KLIPPARE FRONT MOWERS Utgåva Issue Bildnr Picture No REGLAGE CONTROLS Sida Page Pos. Fig. Antal/Quantity Art nr Part No Benämning Description Sats Kit Anmärkning Notes Bromsvajer... Brake cable Parkeringsbroms... Parking brake Lager... Bearing Distans... Spacer Skruv... Screw Mutter... Nut Vajerfäste... Bracket Skruv... Screw Mutter... Nut Fjäder... Spring Pedal... Pedal Skruv... Screw HST-Led... HST bracket Lager... Lager Distanshylsa... Spacer Skruv... Screw Mutter... Nut HST pedal... Pedal HST Skruv... Screw Reglagewire... Speed control cable Vinkellänk... Elbow link Mutter... Nut Mutter... Nut Wirefäste... Cable holder Skruv... Screw Fäste... Bracket Skruv... Screw Mutter... Nut Fästbygel... Clamp Platta... Plate Lyftpedal... Lift pedal Lager... Bearing Distans... Spacer Skruv... Screw Fjäder... Spring Lyftpedal-övre... Lift pedal-upper Pedal... Pedal Spännstift... Locating pin Låsspak... Lever Starlock... Starlock Fjäder... Spring Lyftwire... Lifting wire Linhjul... Pulley Linhjulshylsa... Spacer Fästplåt... Bracket Skruv... Screw Mutter... Nut Karbinhake... Carbiner Reglageknopp... Knob Låsspak... Lever... P-broms/Parking brake Arm gasreglage... Lever throttle control Knopp... Knob Fäste... Bracket Skruv... Screw Ansatsskruv... Shoulder bolt Bricka... Washer Bricka... Washer Gaswire... Throttle control Wireklämma... Cable clamp Skruv... Screw...

12

13 Reservdelskatalog Parts Catalogue FRONT KLIPPARE FRONT MOWERS Utgåva Issue Bildnr Picture No MOTOR ENIGNE Sida Page Pos. Fig. Antal/Quantity Art nr Part No Benämning Description Sats Kit Anmärkning Notes Motor VM 1... Engine VM Nippel... Nipple Oljeavtappning kpl... Oil drain assy Slangklämma... Hose clamp Ljuddämpare... Muffler Ljuddämpare... Muffler Ljuddämparpackning... Muffler gasket Skruv... Screw Bränsletank... Fuel tank Bensinkran... Fuel shut-off valve Gummibussning... Grommet Bränsleslang... Fuel hose Slangklämma... Hose clamp Bränslenivågivare... Fuel lever indicator Gummimanchett... Rubber cuff Tanklock... Fuel cap Tankhylla... Tank bracket Skruv... Screw Skruv... Screw Motorplatta... Engine plate Tankavskärmning... Tank shield Skruv... Screw Skruv... Screw Mutter... Nut Skruv... Screw...

14

15 Reservdelskatalog Parts Catalogue FRONT KLIPPARE FRONT MOWERS Utgåva Issue Bildnr Picture No RAM FRAME Sida Page Pos. Fig. Antal/Quantity Art nr Part No Benämning Description Sats Kit Anmärkning Notes Ram främre... Frame front Bakram-främre... Rear frame-front Bakram-bakre... Rear frame-rear P-nut... P-nut Skruv... Screw Mutter... Nut Ledlager... Bearing Länk... Link Bricka... Washer Skruv... Screw Mutter... Nut Remskydd... Belt protection Skruv... Screw Dragkrok... Tow bar Skruv... Screw /0 Gummibuffert... Rubber protection Dämpare... Rubber cone Mutter... Nut Hake tvättläge... Bracket Skruv... Screw Mutter... Nut Remskydd... Belt protection Skruv... Screw Mutter... Nut...

16

17 Reservdelskatalog Parts Catalogue FRONT KLIPPARE FRONT MOWERS Utgåva Issue Bildnr Picture No TRANSMISSION TRANSMISSION Sida Page Pos. Fig. Antal/Quantity Art nr Part No Benämning Description Sats Kit Anmärkning Notes Kilrem... Belt Fäder... Spring Transmission... Transmission Skruv... Screw Reaktionsstag... Strut Skruv... Screw Mutter... Nut Motorremskiva... Engine belt pulley Kil... Key Bricka... Washer Spännarm... Tension arm Skruv... Screw Bricka... Washer Distans... Spacer Mutter... Nut Spännrulle... Tension pulley Distans... Spacer Skruv... Screw Mutter... Nut Dragstång... Pull rod Starlock... Starlock...

18

19 Reservdelskatalog Parts Catalogue FRONT KLIPPARE FRONT MOWERS Utgåva Issue Bildnr Picture No HJUL WHEEL Sida Page Pos. Fig. Antal/Quantity Art nr Part No Benämning Description Sats Kit Anmärkning Notes Fjäderbricka... Spring washer Aggregatsfäste... Bracket Nit... Rivet Starlock... Starlock Stödbricka... Support washer Framhjul... Front wheel Bricka... Washer Skruv... Screw Navkapsel... Hub Navhylsa... Spacer Stödbricka... Support washer Bakhjul... Rear wheel Bricka... Washer Spårryttare... Circlip Navkapsel... Hub...

20

21 Reservdelskatalog Parts Catalogue FRONT KLIPPARE FRONT MOWERS Utgåva Issue Bildnr Picture No KRAFTUTTAG POWER TAKE-OFF Sida Page Pos. Fig. Antal/Quantity Art nr Part No Benämning Description Sats Kit Anmärkning Notes Spännhjulsarm... Tension arm Spännrulle... Tension pulley Skruv... Screw Distans... Spacer Spännhjulsarm... Tension arm Fjäder... Spring Kilrem... Belt Centrumremskiva kpl... Centre pulley assy... Incl. Pos Kullager... Ball bearing Distans... Spacer Kilrem... Belt Magnetkoppling... Magnet clutch Stag... Strut Skruv... Screw Mutter... Nut Mellanremskiva kpl... Pulley assy Skruv... Screw Fäste... Bracket Mutter... Nut Skruv... Screw Spännhjulsarm... Tension arm Spännarmsfäste... Bracket Skruv... Screw Mutter... Nut Skruv... Screw Bricka... Washer Distans... Spacer Mutter... Nut Skruv... Screw Mutter... Nut Fjäder... Spring Skruv... Screw Bricka... Washer Fäste... Bracket...

22 A

23 Reservdelskatalog Parts Catalogue Utgåva Issue Bildnr Picture No ELSYSTEM 0 ELECTRICAL SYSTEM 0 FRONT KLIPPARE FRONT MOWERS Sida Page Pos. Fig. Antal/Quantity Art nr Part No Benämning Description Sats Kit Anmärkning Notes Kablage... Harness... 1A Säkring... Fuse Solenoid... Solenoid Mutter... Nut Batteri... Battery Batteriplåt... Battery bracket Batteribygel... Battery loop Vingmutter... Wing nut Mutter... Nut Tändningslås... Ignition switch Mutter... Nut Skruv... Screw Brytare m. diod... Switch w. diode Vippa-PTO... Cover-PTO Täckbricka... Cover Brytare... Switch Skruv... Screw Kabel-svart... Cable-black Kabel-röd... Cable-red Batterikabel... Battery cable Mutter... Nut Isoleringshatt... Guard cap Relä... Relay Relä... Relay...

24 A

25 Reservdelskatalog Parts Catalogue Utgåva Issue Bildnr Picture No ELSYSTEM 50 ELECTRICAL SYSTEM 50 FRONT KLIPPARE FRONT MOWERS Sida Page Pos. Fig. Antal/Quantity Art nr Part No Benämning Description Sats Kit Anmärkning Notes Kablage... Harness... 1A Säkring... Fuse Solenoid... Solenoid Mutter... Nut Batteri... Battery Tändningslås... Ignition switch Mutter... Nut Skruv... Screw Brytare m. diod... Switch w. diode Vippa-PTO... Cover-PTO Brytare m. diod... Switch w. diode Vippa-höjdinställning... Cover-height adjust Brytare... Switch Skruv... Screw Kabel -... Cable Kabel +... Cable Batteryskydd... Guard cap Mutter... Nut Kabel-röd... Cable-red Honkontakt... Female terminal Skruv... Screw Relä... Relay Relä... Relay Buntband... Cable tie...
