350W ATX12V 2.2 Power Supply for HP and Compaq PC

Transkript

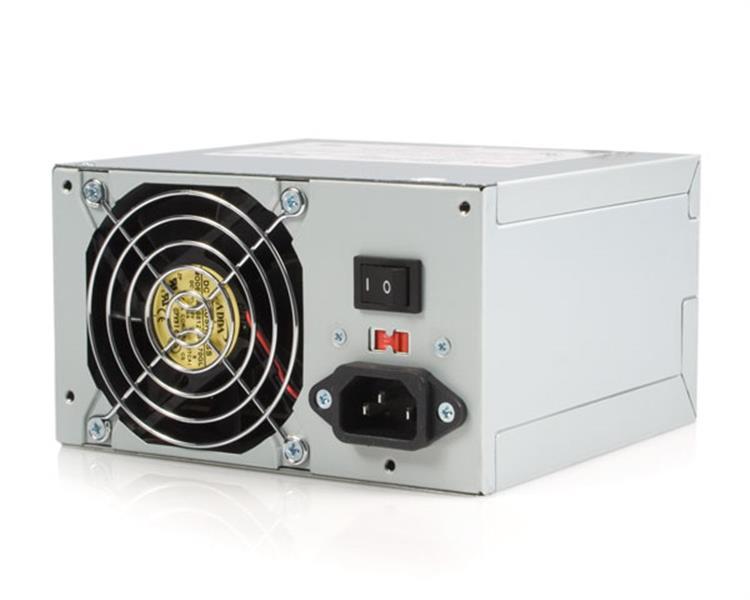

1 350W ATX12V 2.2 Power Supply for HP and Compaq PC Product ID: ATXPW350HPCQ Designed to deliver more power than the original, this enhanced 350 Watt ATX12V Power Supply is an ideal replacement for many compatible HP Media Center, HP Pavilion and Compaq Presario computers. The ATXPW350HPCQ offers dual 12V power rails to deliver stable power to demanding components, both 20 and 24-pin ATX motherboard power connectors, and other component support for broad motherboard compatibility. Get this replacement power supply, backed by StarTech.com s 2-year warranty and FREE tech support. The ATXPW350HPCQ is compatible with ATX style versions of following Series systems: HP Media Center Models: M Series HP Pavilion Models: A Series, M Series, W Series Compaq Presario Models: SR Series For detailed list of all compatible models, See Applications!

2 Certifications, Reports and Compatibility Applications HP Media Center models: m7434n, m7457c, m7463w, m7470n, m7480n, m7531kr, m7540la, m7550kr, m7550la, m7551kr, m7580kr, m7590kr, m7590n, m7591kr, m7630la, m7640la, m7640n, m7650la, m7650n, m7657c, m7667c, m7674n HP Media Center models:(cont'd) m7680n, m7684n, m1050e CTO, m1050y CTO, m1070n, m1072n, m1080n, m1082n, m1090n, m1095c, m1170n, m1180n, m1195c, m1264n, m1265c, m1270n, m1277c, m1280n, m1297c, m7060n HP Media Center models:(cont'd) m7063w, m7067c, m7070n, m7077c, m7087c, m7163w, m7167c, m7177c, m7240la, m7246n, m7248n, m7250la, m7250, m7257c, m7259c, m7263w, m7265c, m7267c HP Media Center models:(cont'd) m7330n, m7334n, m7350n, m7357c, m7360n, m7363w, m7050e CTO, m7050y CTO, m7160n. HP Pavilion A Series models: a1654n, a1217n, a1253w, a1267c, a1268c, a1300la, a1310y CTO, a1330e CTO, a1350y CTO, a1400y CTO, a1410n, a1410y, a1412n, a1419h, a1420n, a1423w, a1428x, a1430n, a1440n, a1445n, a1450n a1467c, a1473w, a1477c, a1483w, a1487c, a1500kr, a1500la, a1501kr, a1510n, a1511kr, a1512x, a1514n, a1517x, a1519h, a1520kr, a1520n, a1520y CTO, a1523w, a1524n, a1528x a1530e CTO, a1530n, a1532n, a1534x, a1540n, a1542n, a1547c, a1550e CTO, a1550kr, a1550y CTO, a1551kr, a1555kr, a1560kr, a1560n, a1570kr, a1571kr, a1580kr, a1587c, a1600la, a1600n, a1610n a1612n, a1613w, a1619h, a1620e CTO, a1620n, a1620y, a1623w, a1624n, a1626n, a1630n, a1637c, a1640n, a1644x, a1647c, a1648x, a1650e CTO, a1650y, a1657c, a1677c a1030e-2 CTO, a1114n, a1118cl, a1129n, a1130n, a1132n, a1206n, a1210n, a1211n, a1214n, a1222n, a1226n, a1228x, a1229x, a1230n, a1235c, a1243w, a1245c, a1247c, a1250n a1283w, a1310n, a1310y CTO, a1312n, a1314n, a1319h, a1320n, a1323w, a1324n, a1328x, a1329x, a1330e CTO, a1330n, a1340n, a1350n, a1350y CTO, a1355c, a1357c, a1373w, a1383w a1010y CTO, a1030e CTO, a1050y CTO, a1110y CTO, a1130e CTO,

3 a1150y CTO, a630n, a700y CTO, a724n, a730n, a744x, a747c, a749c Bundle, a750e CTO, a750y CTO, a752n, a762x, a767c, a775c, a785c a805n, a810e CTO, a810y CTO, a813w, a815n, a815y CTO, a817n, a818n, a819n, a820n, a824n, a830n, a832n, a844n, a847c, a850e CTO, a850y CTO, a867c 8000T, 8000Z, S4020AP, a110m, a110t, a200m, a200n, a200t, a200y CTO, a205v, a206x, a207m, a210e CTO, a210m, a210n, a210t, a210y CTO, a215m, a220n, a230n a244w, a245c, a250e CTO, a250n, a250y CTO, a255c, a257c, a262n, a264w, a265c, a282n, a287x, a288n, a290n, a296n, a300n, a300y CTO, a302x, a305w, a306x, a307x a310e CTO, a310m, a310n, a310t, a316n, a317x, a320m, a320n, a320t, a324x, a330n, a335w, a336n, a340n, a342n, a345c, a345w, a347x, a350e CTO, a350n, a350y CTO, a362n a365c, a367c, a375c, a376x, a384x, a387x, a400n, a400y CTO, a404x, a405n, a406x, a408x, a410e, a410n, a410y CTO, a412n, a414x, a418x, a420n, a422n, a424x, a430n a434n, a445c, a445w, a446x, a450e CTO, a450n, a450y CTO, a462x, a465c, a465w, a475c, a500n, a500y CTO, a505m, a510e CTO, a510m, a510n, a518x, a520n, a522n, a523x, a524x a527x, a530e CTO, a530n, a532x, a535w, a545c, a550e CTO, a550y CTO, a556x, a562n, a564n, a566n, a574n, a600n, a600y CTO, a604x, a605x, a610e CTO, a610n, a610y CTO a612x, a614n, a618x, a620n, a622n, a624x, a635w, a636n, a640n, a642n, a643n, a645c, a646c, a647c, a650e CTO, a650y CTO, a656x HP Pavilion M Series models: m7340la, m7350la, m1171n HP Pavilion W Series models: w5320la, w5330la, w5340la, w5410la, w5410la, w5510la, w5520la, w5530kr, w5530la, w5610la HP Pavilion W Series (Cont'd): w5630la, w5020la, w5050la, w5210la, w5220la, w5230la, w5240la, w5010la, w5030la, w5040la, w5120la. HP Pavilion T Series models: t115m, t115t, t120m, t120t, t130m, t130t, t140m, t220m, t220t, t230m, t230t, t240m, t322m, t325m, t325t, t330m, t330t, t340m, t427m, t430m, t440m, t450m, t520m, t525m, t530m, t550m

4 Compaq Presario SR Series models: SR2038X, SR1900NX SR1700Z CTO, SR1703LS, SR1717LS, SR1720LS, SR1730T CTO, SR1730Z CTO, SR1800NX, SR1817CL, SR1820NX, SR1830NX, SR1834NX, SR1838NX, SR1850NX, SR1900Z CTO SR1901LS, SR1903LS, SR1911X, SR1913WM, SR1917CL, SR1917LS, SR1918LS, SR1920LA, SR1920LS, SR1920NX, SR1922X, SR1923WM, SR1924NX, SR1930KR, SR1930NX, SR1930T CTO, SR1930Z CTO SR1931KR, SR1934NX, SR1936X, SR1950NX, SR1954NX, SR2000Z CTO, SR2001LS, SR2001NX, SR2003LS, SR2005LS, SR2006NX, SR2011WM, SR2015LS, SR2017LS, SR2018LS, SR2020LS SR2030T CTO, SR2030Z CTO, SR2044NX, SR2050NX, SR1803WM, SR1005T CTO, SR1010T CTO, SR1010Z CTO, SR1151NX, SR1222NX, SR1250NX, SR1318NX, SR1319RS, SR1334NX, SR1350NX, SR1010Z, SR1020Z SR1030Z, SR1614X, SR1625NX, SR1630NX, SR1638NX, SR1650NX, SR1675CL, SR1700Z CTO, SR1711NX, SR1722X, SR1726NX, SR1730T CTO, SR1730Z CTO, SR1734X, SR1738NX SR1750NX, SR1755NX, SR1010Z CTO, SR1020T CTO Features Split 20+4 pin motherboard connector compatible with original motherboards used in compatible HP and Compaq systems Over Current Protection (OCP), Over Voltage Protection, Over Temperature Protection, Short Circuit Protection, Protection Reset and No Load operation Dual 12V output rails, 12V1 & 12V2, providing dedicated output for today s more advanced & demanding processors Intelligent thermal fan speed control technology

5 Warranty 2 Years Hårdvara Flaktar 1-80 mm Fläktlagerstyp Glidlager Prestanda Allmänna specifikationer Chrome Fanguard ON / OFF Switch Medeltid mellan fel (MTBF) 100, C Uteffekt 350 Verkningsgrad > 230vAC Kontakt(er) Utdatakontakter 1 - ATX 12 V P4-ström (4-stifts, v 2.x) Hona Ström Inspänningsfrekvens 50~60 Hz Inström V V Maximal stötström 72.5A Strömstyrka +12,0 V 1 (A) 16 Strömstyrka +12,0 V 2 (A) 18 Strömstyrka +3,3 V (A) 18 Strömstyrka +5,0 V (A) 25 Strömstyrka +5,0 Vsb (A) 2.0 Strömstyrka -12,0 V (A) 1.0 Miljö Drifttemperatur 0 ~ 50 Degrees C 1 - ATX delad ström (20+4-stifts, v 2.x) Hane 1 - SP4 (4-stifts, ström till liten enhet) Hona 2 - SATA-ström (15-stifts) Honuttag 5 - LP4 (4-stifts, Molex strömkontakt för stor enhet) Hona Förvaringstemperatur -40 ~ 70 Degrees C Utseende Kabinettyp Stål Produktbredd Produkthöjd Produktlängd Produktvikt 5.5 in [140 mm] 3.4 in [86 mm] 5.9 in [150 mm] 2.9 lb [1.3 kg] Förpackning Fraktvikt (förpackning) 3.7 lb [1.7 kg] Vad det är i lådan Ingår i paketet 1 - Power Supply

6 1 - NA Power Cord 1 - Manual Product appearance and specifications are subject to change without notice.
