The network topology is a hub and spoke structure Central routing solution

Transkript

1

2 The network topology is a hub and spoke structure Central routing solution The central routing solution is used to provide the functions of the customer CPE routers, using logical router features The goal is to have a 10 to 15 year lifetime of the fiber system (including amplifiers etc.) and a 5 to 8 year lifetime of the attached electronics (routers etc.)

3 SUNET has signed a contract for a 8 to 12 years lease of dark fiber from TDC Song, which is becoming our only supplier of fiber for the whole network Using several subcontractors. Some details: Wide area network between PoPs km of dark fiber, in 46 sections Local loops from PoPs to universities 94 dark fiber connections 3 x 2,5 Gbit/s connections (due to cost constraints) 2 x Visby, 1 x Kiruna

4 3 systems North North, West and South 2 networks per system Red and Green West Redundancy on layer 3 Special solutions: Kiruna ( Blue network ) South One optical system (capable of 10 Gbit/s) + leased OC48 Visby 2 * leased OC48.

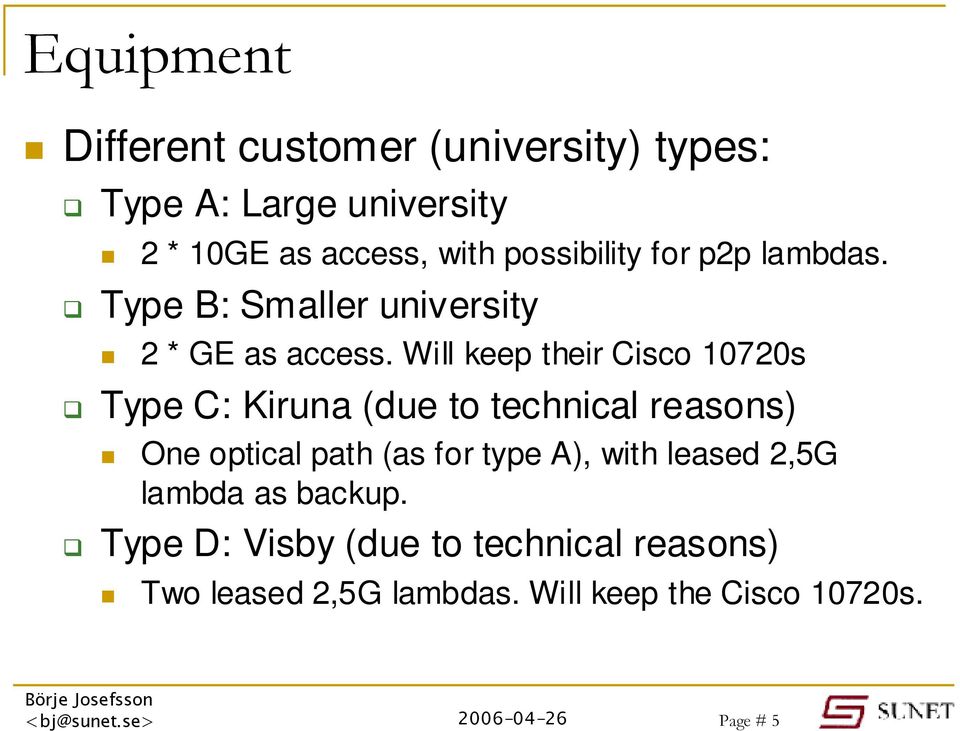

5 Different customer (university) types: Type A: Large university 2 * 10GE as access, with possibility for p2p lambdas. Type B: Smaller university 2 * GE as access. Will keep their Cisco 10720s Type C: Kiruna (due to technical reasons) One optical path (as for type A), with leased 2,5G lambda as backup. Type D: Visby (due to technical reasons) Two leased 2,5G lambdas. Will keep the Cisco 10720s.

6 Preferably no regeneration on 10G network. 40G capable Transparent traversal (not using transponders) between the different networks. LDGE Low Density Gigabit Ethernet Possibility to provide GE connections everywhere p2p capabilities 40G (later), 10GE, 2.5G, 1GE and possibly FC.

7 # Central routing solution Using logical routers as CPE :s Lower CAPEX Lower OPEX Easier capacity planning / better utilization of equipment. Simple 10-to-one converters at university premises (for type A customers) Continue to use our Cisco 10720s for type B customers. "

8 Contract signed with Imtech Telecom B.V. Optical equipment from Ciena Routers from Juniper Networks Using Eltel networks as field partner in Sweden $

9 &'( Logical routers 5*Juniper T640 %

10 Core network: Ciena CoreStream Agility Regional and access networks: Ciena 4200 Ciena 4350 as access switch and 10:1 converter )*

11 &+, < 1500 km Terminals: 100% Drop with ability to offer Optical Bypass OLA: Amplifier of the DWDM Spectrum C-OADM: Coarse Optical Add/Drop S-OADM: Any Channel ROADM Add/Drop ))

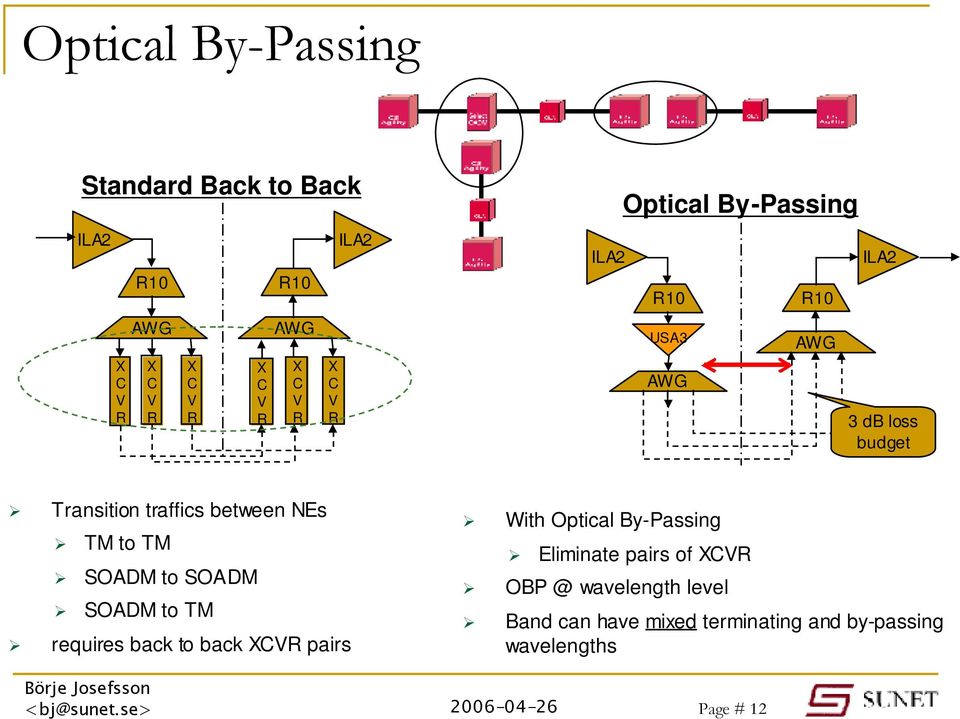

12 -. Standard Back to Back Optical By-Passing ILA2 R10 R10 ILA2 ILA2 R10 R10 ILA2 X C V R AWG X C V R X C V R X C V R AWG X C V R X C V R USA3 AWG AWG 3 db loss budget Transition traffics between NEs TM to TM SOADM to SOADM SOADM to TM requires back to back XCVR pairs With Optical By-Passing Eliminate pairs of XCVR wavelength level Band can have mixed terminating and by-passing wavelengths )

13 &** /» Multi-Service WDM Access/Metro/Regional Transport Platform» Compact, high-density platform (4RU)» Built-in distributed 60 Gb/s sub-wavelength ADM & cross connect with full protocol transparency (155M GbE OCn FC SDI ISC Terminal Node OTU-N Intermediate Node Add Drop Crossconnect OTU-N OTU-N granularity)» Single 10M-2.7G line module with fully programmable ports and all-pluggable (SFP) optics» 10/100BT, OC-3/12/48, STM-1/4/16, GbE, 1000BT, ESCON, FC100, FC200, OTU1, FC400 (future)» Single 10G line module with programmable ports and fully tunable ITU-grid optics (46λ)» OC-192/STM-64, 10GbE LAN/WAN, 10GFC, OTU2» Upcoming 40G line module )

14 &*/0+/ 8 Interface Modules Redundant Switch/Controller Modules 160Gbps Non-blocking Ethernet Switch (80Gbps full-duplex) 10-port * 1GbE module Copper and Optical SFP-based ports 1-port 10GbE module Integrated Tunable 10G DWDM optics Integrated Optical Protection Switching Carrier-Grade Fault Tolerance Redundant Power and Fans Redundant Switch Fabric & Controller Hitless failover, growth & software upgrades Guaranteed Quality of Service )

15 12 Low Density Gigabit Ethernet $ " # $ Possibility to drop a few GE connections at more or less every PoP. Connect to other ISP:s Student dorms Other services )

16 &, & '( $ " # % $ & '( % )

17 &, Every type A customer will be connected with two CN4350 as a layer-2 Ethernet switch with DWDM functionality, using a 10 Gbit/s connection, transported transparent over the DWDM network into the central router in Stockholm. Each Ethernet connection can be seen as an extension of the LAN into to the central router. Day one, there will be 1 slot with a DWDM card for connection to the CN4200, 1 slot for 10 GE to the redundant Also 1 slot for the 10 GE and 1 slot for the 8 port 1 GE connection for customer LAN equipment. The total backplane capacity of the Ciena CN 4350 is 80 Gbit/s non blocking. After the initial configuration, there will be 4 slots available for additional interface cards. )"

18 &,3 & '( $ " # % $ & '( % & '( % )$

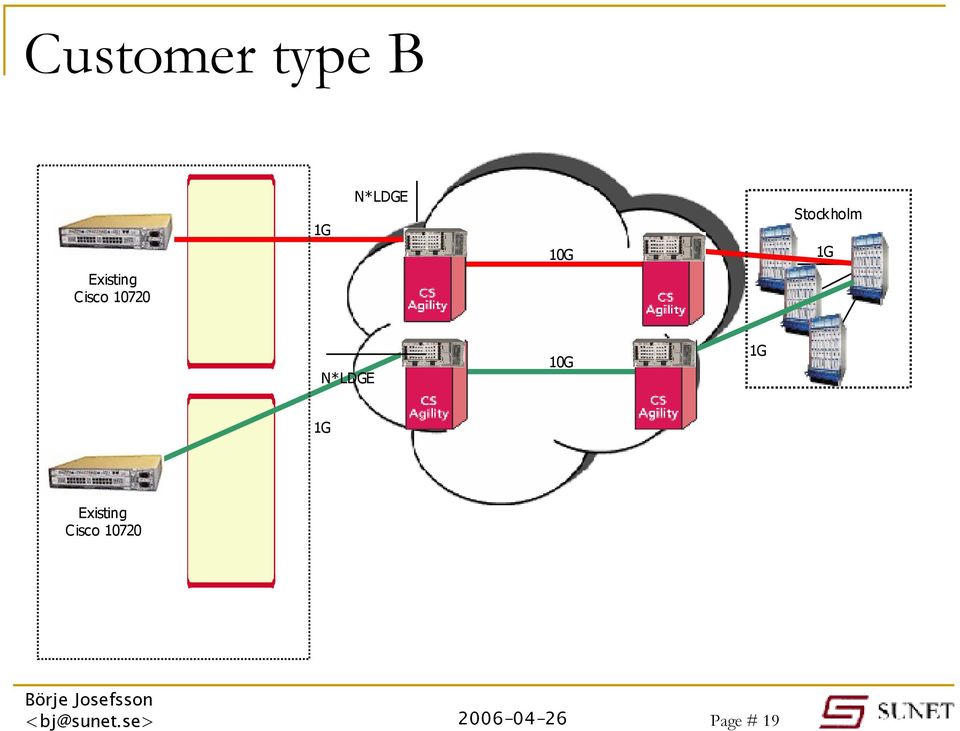

19 & - $ " # )* +*, $ )* +*, )%

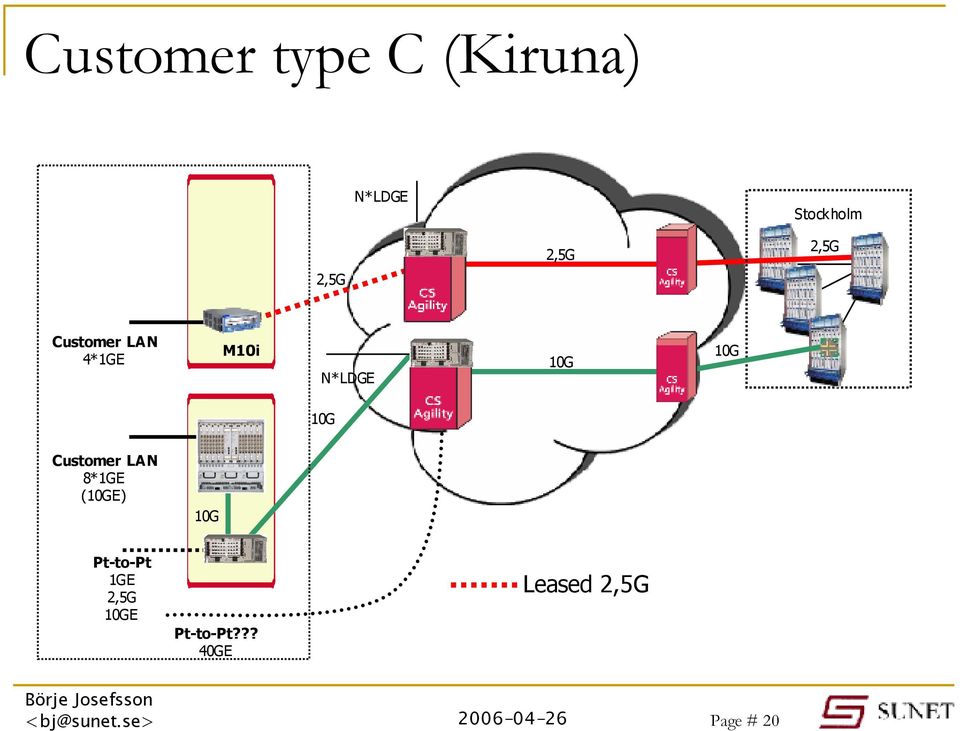

20 & &456 $ " # % % % $ & '( % *-% *

21 Convert OLA site to drop site Example: Kungsbacka (Onsala), Norrköping, Skellefteå, Karlskrona, Price not yet defined. )

22 78 SUNET NOC Monitoring Fault isolation Provisioning of p2p s TDC Song Everything concerning the fibers and OC48:s Imtech Telecom responsible for Spare parts Field personnel Support staff (direct contact with vendors)

23

24 5( A LTU KaU UmU LiU Miun HJ DU Chalmers UU + FTP-arkivet GU KTH HH SU HiK KI BTH MDH VxU ORU LU B HiG SLU HHS LHS SH HTU HIS HB HKR MaH C+D IRF=C HGO=D

25 9,. /&.(3 I grundläget behöver ni inte skaffa ny lokal utrustning. Använd logisk router i centrala klustret och CN4350 som 10:1 konverter (dvs. anslut er lokala utrustning med n*ge). Om ni har lokal utrustning som är kapabel till 10 Gbit/sek, men inte kan köra full BGP: Använd logisk router i centrala klustret och kör 10 Gbit/sek till er egen utrustning från CN4350. Om ni har lokal utrustning som kan 10 Gbit/sek och full BGP: Använd den (logisk router behövs inte). Migrering mellan dessa varianter är möjlig.

26 9,. /&.(3 Har man logisk router i det centrala klustret så får man SUNET-rötter + defaultroute från AS1653. Om man har egen, fullt BGP-kapabel, accessrouter kan man även välja full BGPtabell om man vill. Eventuella specialfall hanteras separat/senare.

27 9-/.( Fortsätt som vanligt Koppla in de nya fibrerna till de Cisco som ni redan har. Konfigurera interface och BGP mot de nya SUNET-routrarna. Mot ert lokala nät behövs få/inga ändringar. "

28 :(/;(< Uppmätning av långdistansfiber i stort sett klar. Leverans och uppmätning av accessfiber pågår. Detaljplanering av routing, adressplan etc. pågår. Workshop med högskolornas nätfolk till hösten. Mer info på nätteknikdagarna maj. Anmäl er dit $

29 => /? TDC kommer (om dom inte redan har gjort det) att leverera/installera fiber. Ett par till vardera leveransadressen på högskolan Ett fiberpar mellan dessa adresser/rum. Utrustning installeras i sept-nov (A+C-kunder). Ni tillhandahåller rackutrymme och kablage mellan er utrustning och CN4350. Detaljerad info om utrymme mm kommer under maj. Site inspection (A+C-kunder) Eltel kommer att kontakta er för site inspection. %

30 @6 Dom A+C -kunder som är intresserade av att behålla routrarna kontaktar mig via mail. Hör jag inget antar jag att dom ska återlämnas Notera att den routern har en begränsning på drygt 3 Gbit/sek. Nej, det finns inga 10GE-kort till den *

31 Gå igenom listan på kontaktpersoner och se till att det är rätt namn, mail och telnr. Gör det NU under pausen Notera antingen OK för er skola, eller ange ny info )

32 AB /C Questions? Börje Josefsson
