Parking garage, Gamletull. MDM-piles, pre-installation testing RÄTT FRÅN GRUNDEN!

Transkript

1 Parking garage, Gamletull MDM-piles, pre-installation testing Gamletull, MDM-pålar 1

2 CPT tests Gamletull, MDM-pålar 2

3 CPT test results Cone resistance Undrained shear strength Gamletull, MDM-pålar 3

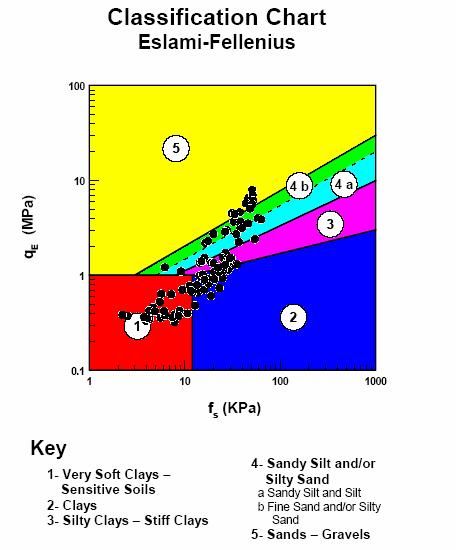

4 Interpretation of soil layers WSP 4A BH 3 Gamletull, MDM-pålar 4

5 Loads & pile design Design parameters Total settlement 40 mm Differential settlement 1:800 Environmental impact 10 mm 20 mm Gamletull, MDM-pålar 5

6 Design of MDM piles and pile slabs Load limits Sliding Horisontal shear Contact pressure Load capacity MDM Geotechnical bearing capacity Total settlement Differential settlement Gamletull, MDM-pålar 6

7 Load characteristics Sliding Vertical 2100 kn (472 Kipf) Horizontal 200 kn (45 Kipf) Requiered friction 5.4 degrees!!!!! Result: Small stresses No reinforcement Shear Horizontal 200 kn (45 Kipf) Area 1.6*1.6=2.56 m 2 Shear strain 78 kpa (11.3 psi) Contact pressure Horizontal 200 kn (45 Kipf) Contact surface 1.6*2=3.2 m 2 Contact pressure 63 kpa (9.1 psi) Gamletull, MDM-pålar 7

8 Load capacity MDM piles Load 2100 kn (472 kipf) Load transfer surface, 2.56 m 2 Compressive stress 820 kpa (118 psi) Average compressive strength approx kpa (435 psi) Safety factor 3.7 Gamletull, MDM-pålar 8

9 Geotechnical bearing capacity, CPT evaluations Gamletull, MDM-pålar 9

10 Plaxis 3D analysis Vertical load CFA & MDM; V 4000 kn; H 0 kn Vertikal deformation Deformation [mm] CFA 15 m MDM 12 m Lasteffekt Dim. sättning MDM 15 m Vertikal lasteffekt [kn] Gamletull, MDM-pålar 10

11 Plaxis 3D analysis Horizontal load CFA & MDM; V2200 kn; H330 kn Horisontell deformation Deformation [mm] CFA 15 m MDM 12 m Horisontell lasteffekt [kn] Gamletull, MDM-pålar 11

12 Visual control Gamletull, MDM-pålar 12

13 Static load test (pull) single pile Gamletull, MDM-pålar 13

14 Results pull-out load test Force [kn] Deformation [mm] MDM Stag Plaxis 3D 7 m long pile 1 week curing time Shaft resistance 35 kpa (5 psi) Geotechnical bearing capacity 400 kn (90 kipf) Gamletull, MDM-pålar 14

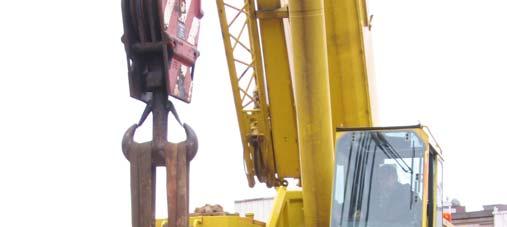

15 Extraction of 2 MDM piles (1) Pullout force 510 & 610 kn (114 & 137 kipf) Age - 2 weeks Weight 45 kn (10 kipf) Density 2.27 ton/m 3 Shaft resistance 39 & 46 kpa (5.6 & 6.7 psi) Gamletull, MDM-pålar 15

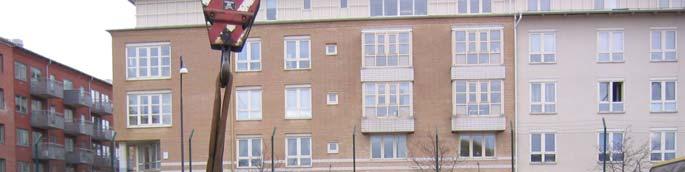

16 Pile extraction (2) Pile 1 Length 5.7 m Bending 26 knm (19 kpff) Tension stress kpa (161 psi) Compressive stress 7.4 MPa (1073 psi) Pile 2 Length 4.5 m Bending 16 knm (11.8 kpff) Tension stress 700 kpa (101 psi) Compressive stress 4.7 MPa (681 psi) Gamletull, MDM-pålar 16

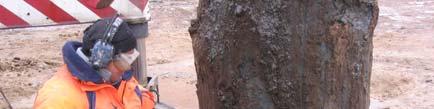

17 Pile extraction (3) Gamletull, MDM-pålar 17

18 Static load test MDM block (1) Gamletull, MDM-pålar 18

19 Static load test results MDM block A-B/12 Kraft [kn] Deformation [mm] Plint -6 m 9 piles, 12 m long (net) 4 mm permanent deformation at 2100 kn (472 kipf) Secant modulus (2100 kn) 2.5 GPa Gamletull, MDM-pålar 19

20 Static load test results MDM block B-C/5 Kraft [kn] Deformation [mm] Plint 9 piles, 16 m long (net) No permanent deformation at 2100 kn (472 kipf) Secant modulus (2100 kn) 6 GPa Titan tension piles pulled out at 2100 kn (472 kipf), test abandoned Gamletull, MDM-pålar 20

21 Description of work Grading Cut-off level +1.0 Widening of excavation Setting out Installation Piles to be installed with overlap; fresh in fresh Min 0.5 above cut-off Final grading Within hours Frost protection Curing 3 days Casting of slabs Form work Reinforcement Pouring of concrete Quality control! Gamletull, MDM-pålar 21
